Description

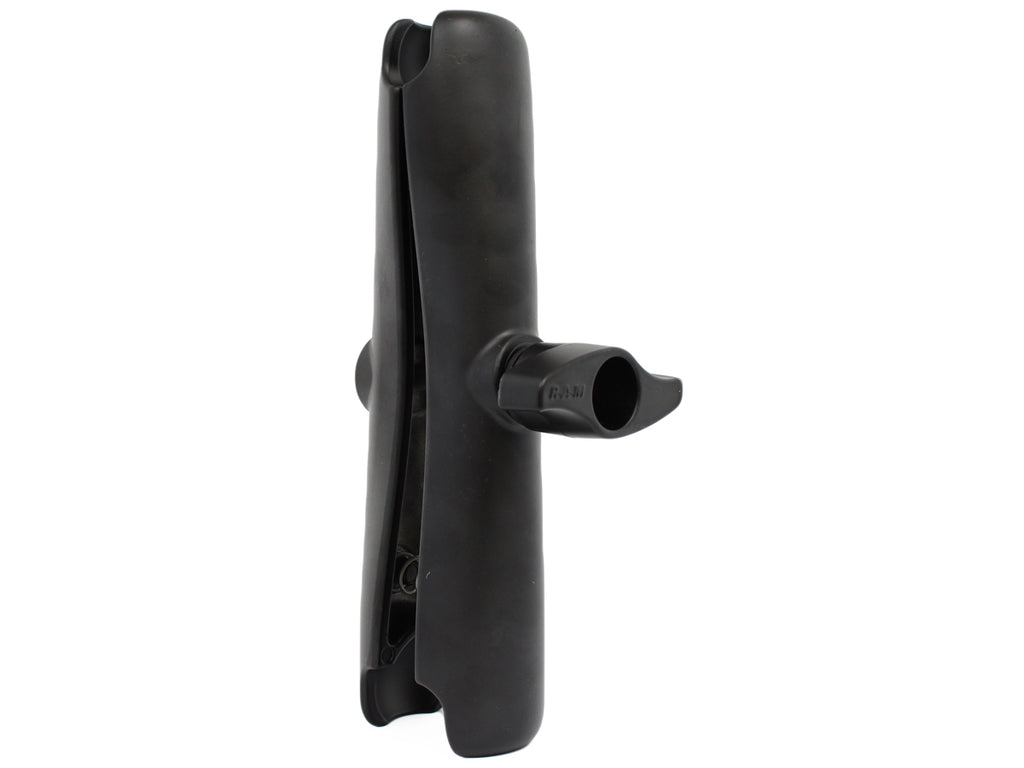

The RAM-D-201U-E is a long double socket arm designed to connect two RAM D Size 2.25" ball components. Its extended 12.98" overall length provides additional reach for positioning mounted equipment farther from the installation point.
A spring inside the arm helps open the sockets as the adjustment knob is loosened, making it easier to attach compatible ball components and adjust the mounting angle.
Key Features
-
Connects two RAM D Size 2.25" ball components
-
Extended 12.98" overall length
-
11.41" socket-to-socket length
-
Single adjustment knob controls both socket connections
-
Internal spring assists with installation and adjustment
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
This socket arm is designed for compatible RAM D Size 2.25" modular mounting systems. It can connect a D Size mounting base to a compatible device holder, adapter, plate, or other D Size ball component.
Its extended length is useful when additional reach or clearance is needed between the mounting surface and attached equipment.
Specifications
Socket Size: D Size 2.25" Ball
Overall Length: 12.98"
Socket-to-Socket Length: 11.41"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 3.79 lbs
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-201U-E
Warranty: Manufacturer’s lifetime warranty.
