Description
The RAM Tough-Ball™ 1" Mirror Base for Harley-Davidson Motorcycles adds a RAM® B Size mounting point to compatible motorcycle fairing mirror holes. The adapter uses a 1/4"-20 threaded connection with an included barrel nut and nylon washer to create a secure base for attaching a RAM B Size double socket arm and device holder.
Constructed from high-strength composite with stainless steel components, this compact base is ideal for mounting a phone, GPS, action camera, or other lightweight device without installing a larger handlebar or reservoir base.
Key Features
-
Designed for installation in compatible Harley-Davidson fairing mirror holes
-
Integrated RAM® B Size 1" ball connects to compatible RAM double socket arms
-
1/4"-20 x 1" threaded connection with female blind barrel nut
-
High-strength composite construction with stainless steel components
-
Includes a 1/4"-20 barrel nut and nylon washer
-
Weight capacity: 2 lbs under standard use or 1 lb under heavy-duty use
-
Compact mounting solution for phones, GPS units, cameras, and other lightweight devices
Use Cases & Compatibility

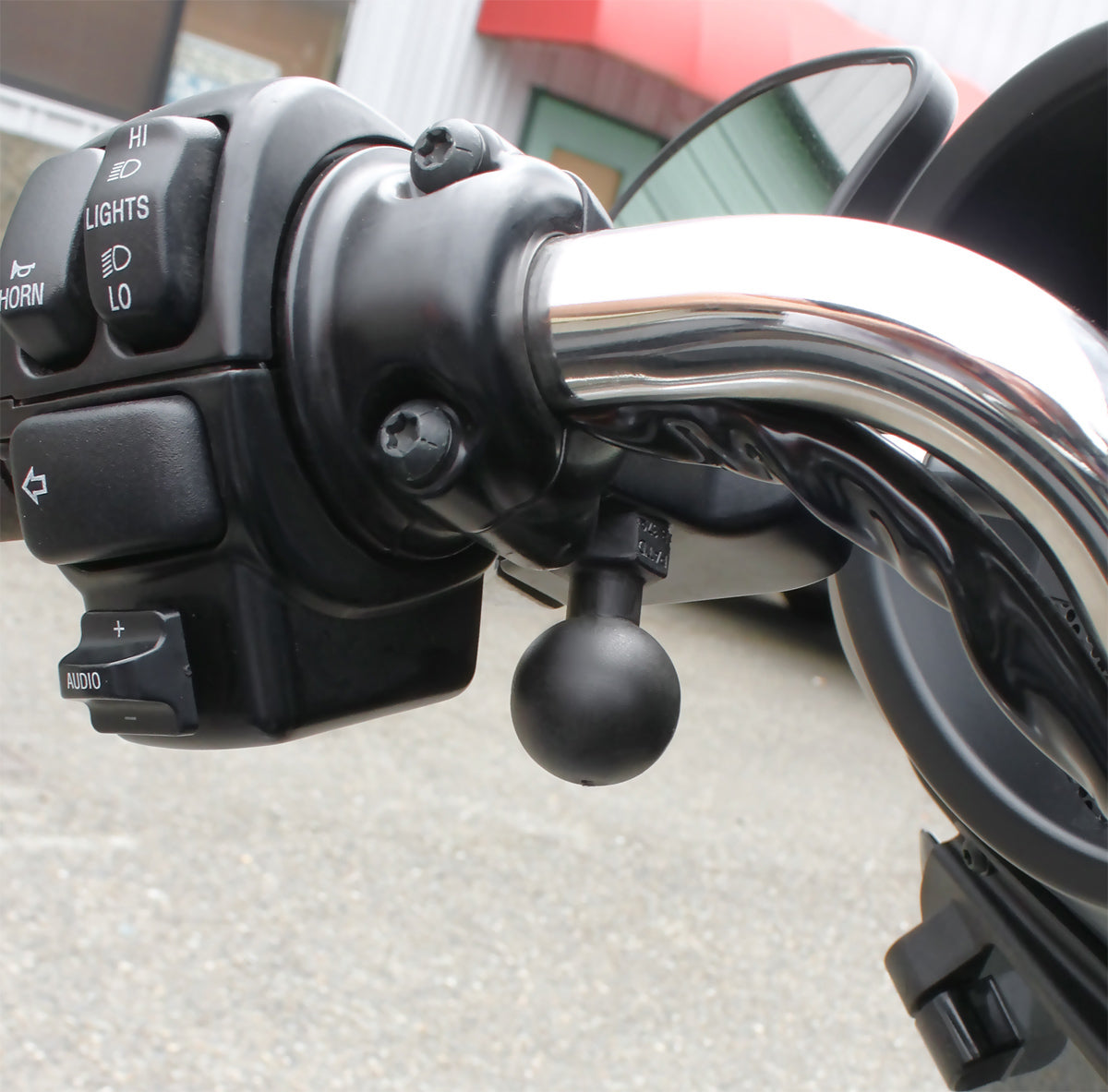

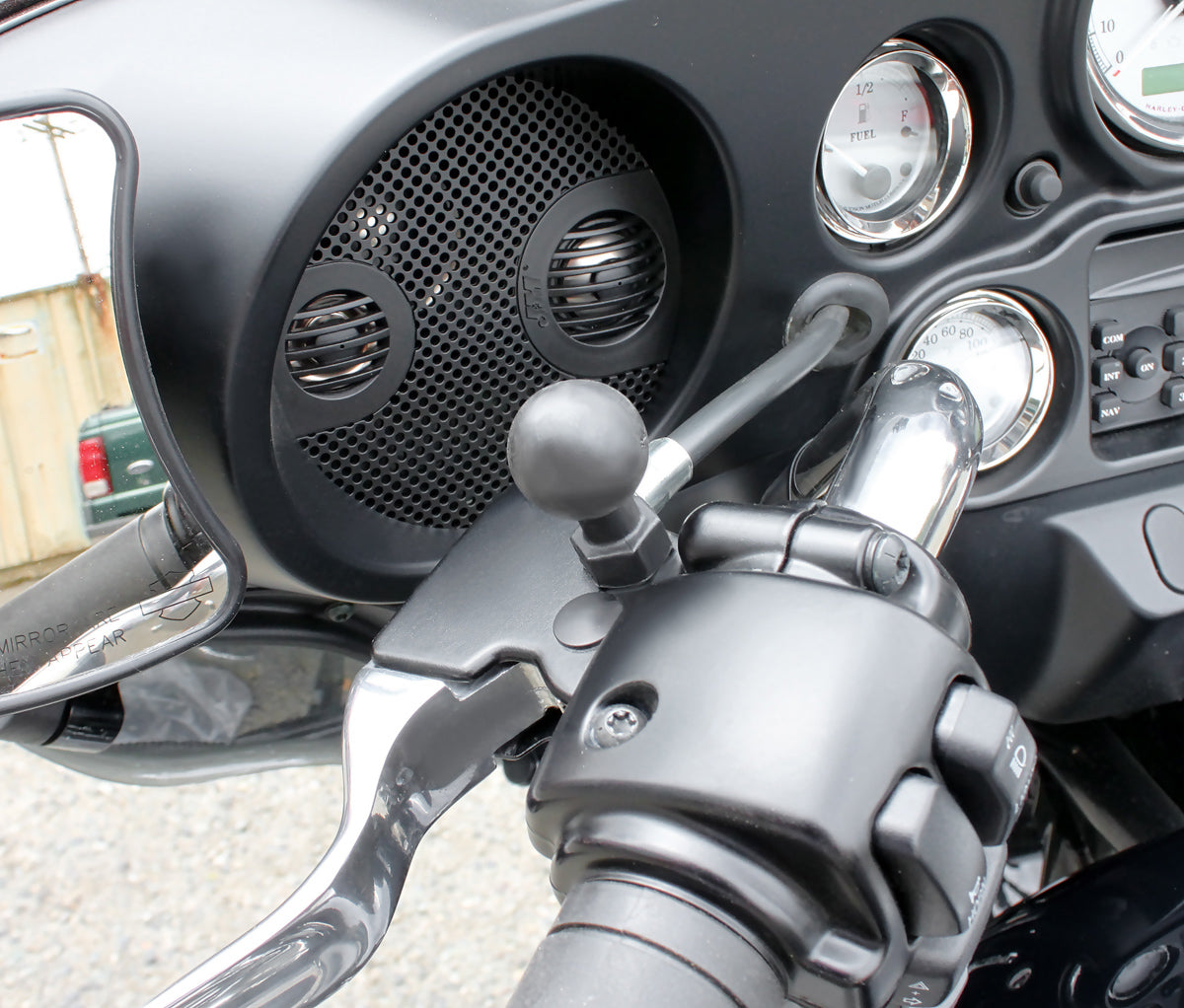

This Tough-Ball™ base is commonly used to add a RAM B Size mounting point to compatible Harley-Davidson motorcycles using an available fairing mirror hole. Once installed, it can be connected to a RAM B Size double socket arm and an appropriate device holder to build a customized motorcycle mounting system.
Installation requires access to both sides of the fairing mirror hole. Place the nylon washer over the barrel nut, insert the barrel nut into the hole on the motorcycle controls, and thread the ball adapter into the barrel nut from the opposite side. Tighten using 5/8" and 1/2" wrenches.
Hydraulic Clutch Note: On motorcycles equipped with a hydraulic clutch, modification of the included nylon washer may be required for proper installation.
Specifications
Ball Size: B Size (1")
Thread Size: 1/4"-20 x 1"
Material: High-strength composite and stainless steel
Color: Black
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Included Hardware: (1) 1/4"-20 x 0.87" barrel nut and (1) 0.77" nylon washer
Product Weight: 0.1 lb
Additional Details: Installs through compatible fairing mirror holes using the included female blind barrel nut and nylon washer
What’s Included
-

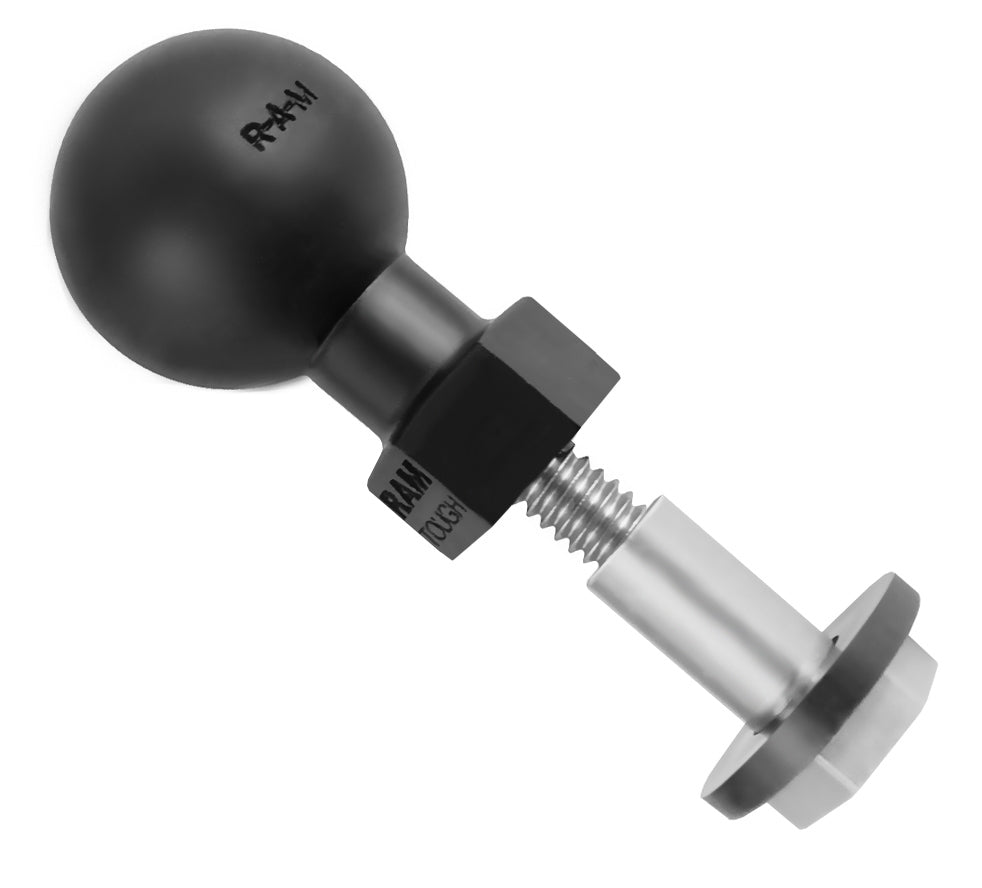

RAM Tough-Ball™ adapter with B Size 1" ball and 1/4"-20 threaded stud
-
1/4"-20 x 0.87" barrel nut
-
0.77" nylon washer
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAP-B-379-HA1U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
