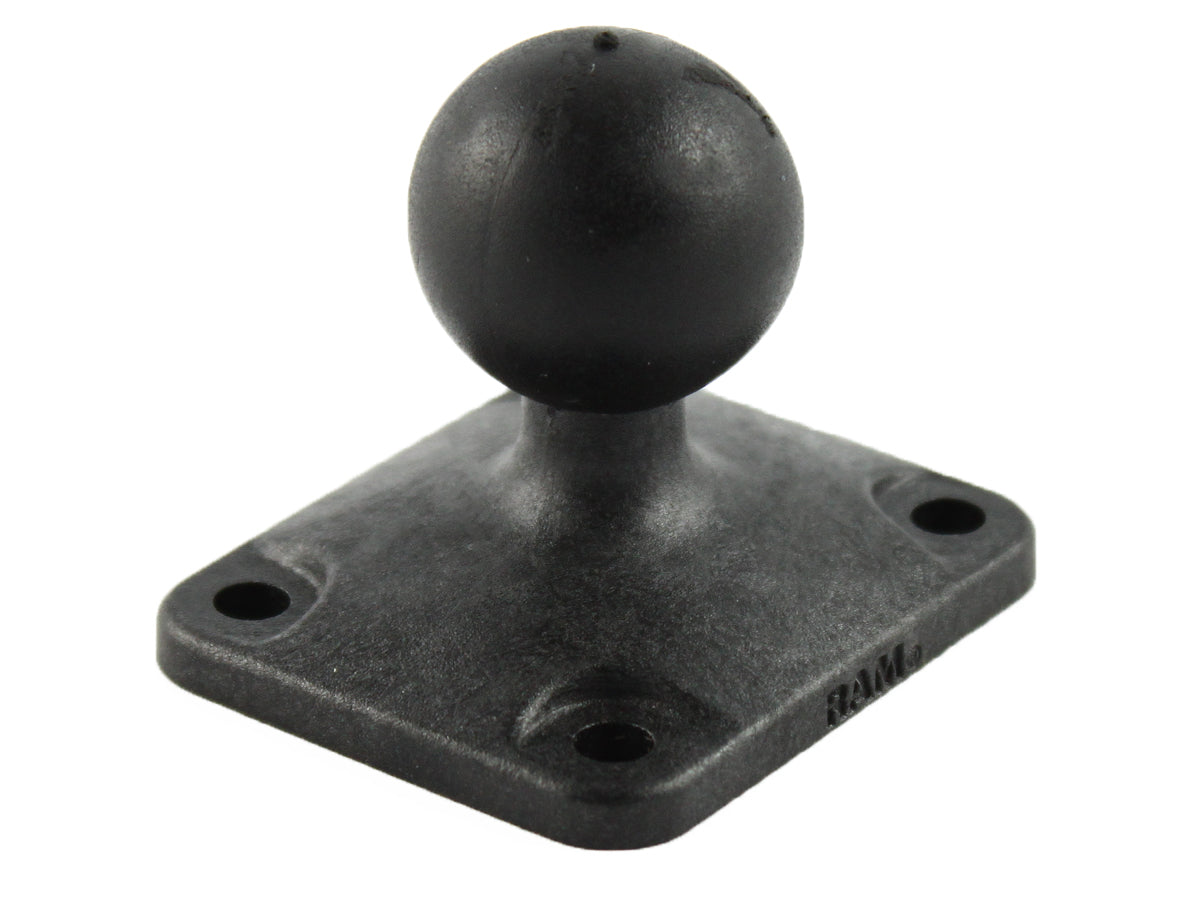

The RAM Composite AMPS Plate Adapter with B Size 1" Ball is a lightweight mounting component that connects compatible device holders, cradles, and adapters to RAM B Size mounting systems. The square plate features the standard 4-hole AMPS pattern used by many RAM and third-party device holders.
This component can also be used as a compact drill-down base when a small mounting footprint is needed, making it useful for custom installations in vehicles, workstations, marine applications, equipment panels, and other flat mounting surfaces.
Key Features
- B Size 1" RAM rubber ball connected to a compact square AMPS plate
- 4-hole AMPS pattern fits many RAM and third-party device holders
- Can be used as a drill-down base for small-footprint mounting applications
- High-strength composite construction keeps the component strong and lightweight
- Manufacturer-rated weight capacity: 2 lbs standard use, 1 lb heavy-duty use
Use Cases & Compatibility
This RAM AMPS plate adapter is commonly used to connect compatible cradles, holders, and adapter plates to RAM B Size socket arms and other 1" ball components. It is especially useful when attaching a device holder with the standard AMPS hole pattern to an adjustable RAM mounting system.
The plate can also be mounted directly to a flat surface as a compact drill-down base. This part is a component only and may require compatible hardware, a RAM socket arm, and a device holder or adapter to complete a full mounting setup.
Specifications
Ball Size: B Size 1" Ball
Material: High-strength composite
Color: Black
Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
Hole Diameter: 3/16"
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.08 lb
Additional Details: Square base measures approximately 2" x 1.7" and can be used with compatible AMPS-pattern holders or as a compact drill-down base
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAP-B-347U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
