Description

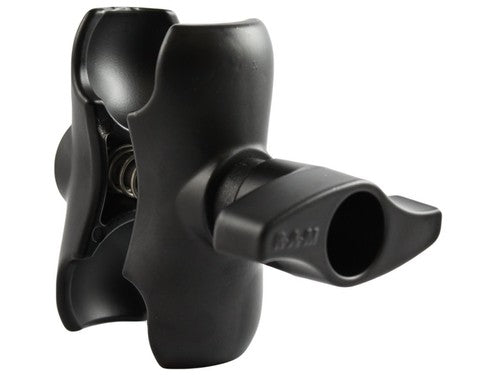

The RAM-D-201U-C is a short double socket arm designed to connect two RAM D Size 2.25" ball components. Its compact 5.1" overall length provides adjustable positioning while keeping the mounting system relatively close to the installation surface.
An internal spring holds one socket open as the adjustment knob is loosened, making it easier to attach the arm to a compatible ball. Tightening the knob secures both ball-and-socket connections in the selected position.
Key Features
-
Connects two RAM D Size 2.25" ball components
-
Compact 5.1" overall length
-
3.6" socket-to-socket length
-
Single adjustment knob controls both socket connections
-
Internal spring keeps one socket open during installation
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
This socket arm is designed for compatible RAM D Size 2.25" modular mounting systems. It can connect a D Size mounting base to a compatible device holder, adapter, plate, or other D Size ball component.
Specifications
Socket Size: D Size 2.25" Ball
Overall Length: 5.1"
Socket-to-Socket Length: 3.6"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 1.7 lbs
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-201U-C
Warranty: Manufacturer’s lifetime warranty.
