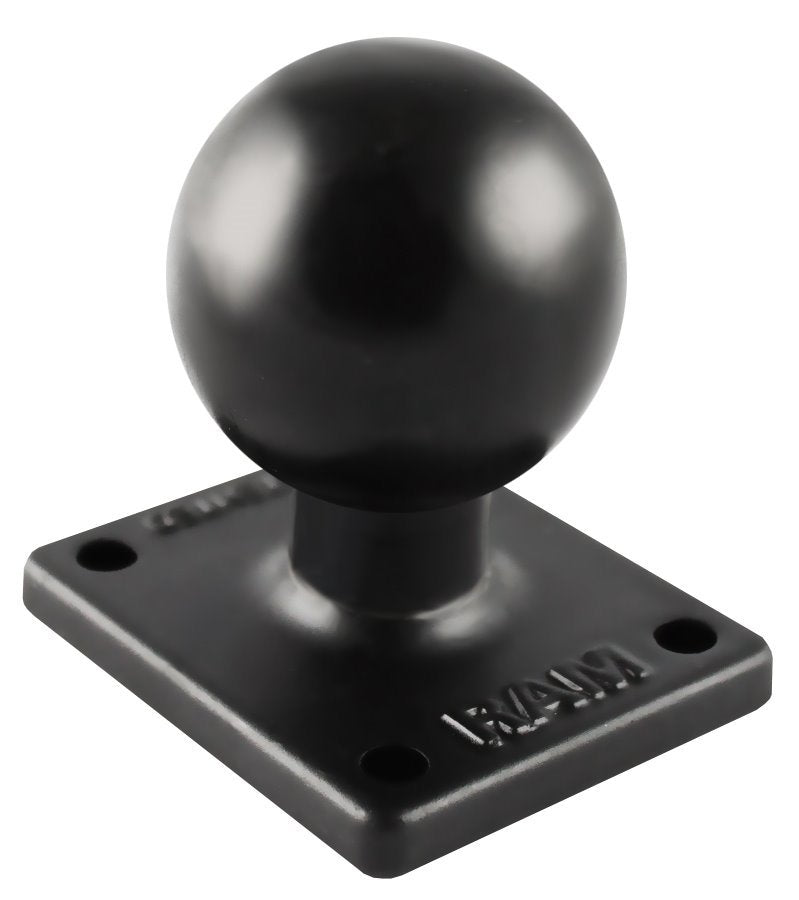

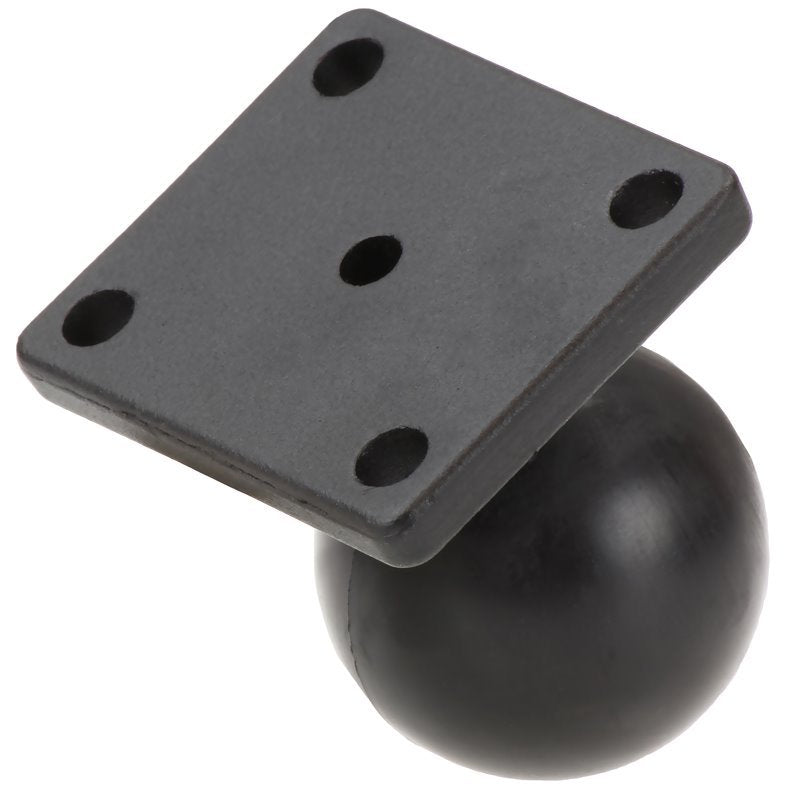

The RAM-347U combines a rectangular AMPS mounting plate with a RAM C Size 1.5" ball positioned at a right angle to the plate. It is designed to connect compatible devices and holders to a RAM C Size modular mounting system.
The four-hole AMPS pattern supports a wide range of compatible equipment, while the ball connection allows adjustable positioning when paired with a compatible RAM C Size socket arm.
Key Features
-
2" x 1.69" rectangular mounting plate
-
Four-hole AMPS pattern for compatible devices and holders
-
RAM C Size 1.5" ball connection
-
Right-angle ball orientation
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
-
Mounting hardware is not included
Use Cases & Compatibility
This standalone ball adapter is designed for devices and holders that use the four-hole AMPS mounting pattern.
Compatible with a variety of RAM C Size 1.5" socket arms and mounting components. Attachement hardware not included. Common screw sizes include #8, #10, M4, and M5, depending on surface if using as a drill-down base. Hardware for attaching to a RAM cradle included with the cradle.
Specifications
Ball Size: C Size 1.5" Ball
Mounting Pattern: Four-hole AMPS
Hole Spacing: 1.181" x 1.496"
Plate Dimensions: 1.69" x 2"
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Material: Marine-grade aluminum
Product Weight: 0.21 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-347U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
