Description

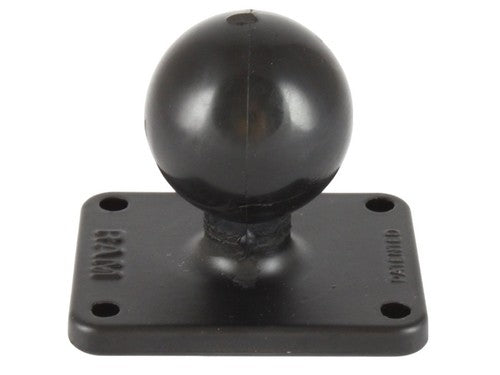

The RAM-202U-225 combines a rectangular mounting plate with a RAM C Size 1.5" ball for use in modular RAM mounting systems. Its four-hole pattern measures 1.5" x 2" center to center and is designed for compatible equipment and mounting surfaces.
When paired with a compatible RAM C Size socket arm, the ball-and-socket connection allows the attached device or component to be positioned as needed.
Key Features
-
2" x 2.5" rectangular mounting plate
-
Four-hole pattern measuring 1.5" x 2" center to center
-
0.218" mounting holes
-
RAM C Size 1.5" ball connection
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This standalone ball base is designed for mounting compatible equipment or components that use the specified four-hole pattern.
Compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Hole Pattern: Four-hole, 1.5" x 2" center to center
Hole Diameter: 0.218"
Plate Dimensions: 2" x 2.5"
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Material: Marine-grade aluminum
Product Weight: 0.24 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202U-225
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
