Description

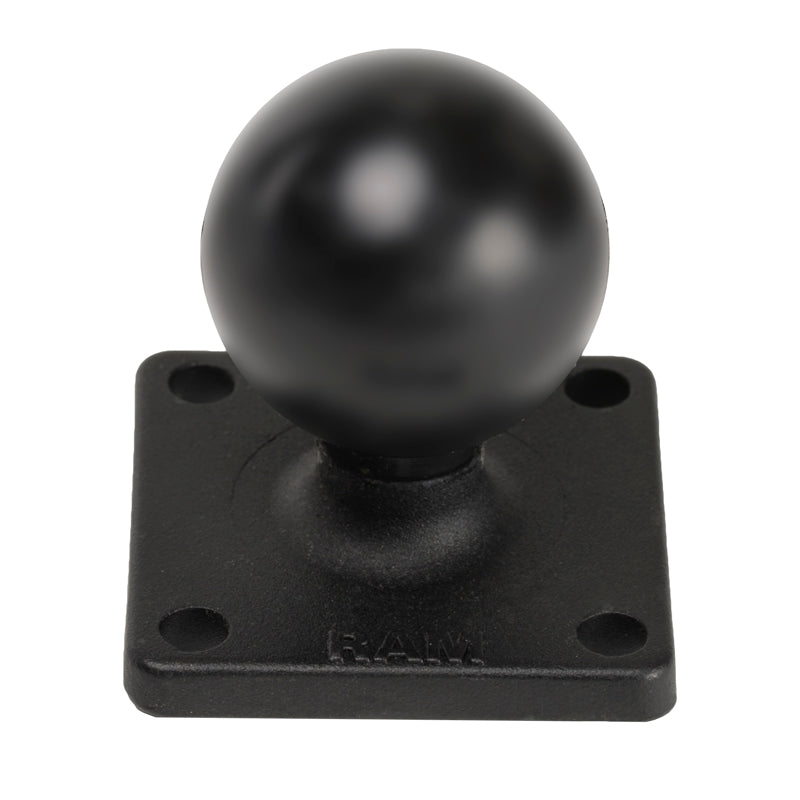

The RAM® Square Plate Base combines a C Size 1.5" Ball with a compact 2" x 2" mounting plate. Its four-hole pattern measures 1.5" x 1.5" center to center for attachment to compatible equipment and mounting surfaces.
Constructed from powder-coated marine-grade aluminum, this standalone base connects to compatible RAM C Size double socket arms for adjustable positioning.
Key Features
-
RAM C Size 1.5" ball connection
-
Compact 2" x 2" square mounting plate
-
Four-hole pattern measuring 1.5" x 1.5" center to center
-
Compatible with RAM C Size 1.5" double socket arms
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This standalone ball base is designed for applications requiring a square mounting plate with a four-hole 1.5" x 1.5" pattern. It is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Attachment hardware is not included.
Specifications
Ball Size: C Size 1.5" Ball
Plate Dimensions: 2" x 2"
Hole Pattern: Four-hole, 1.5" x 1.5" center to center
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.22 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202U-22
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
