Description

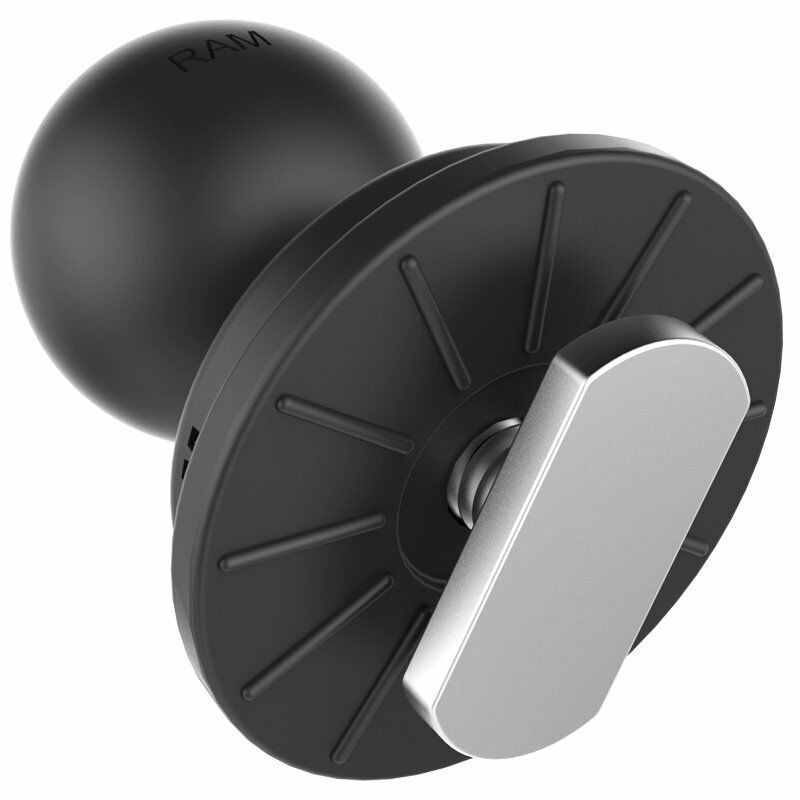

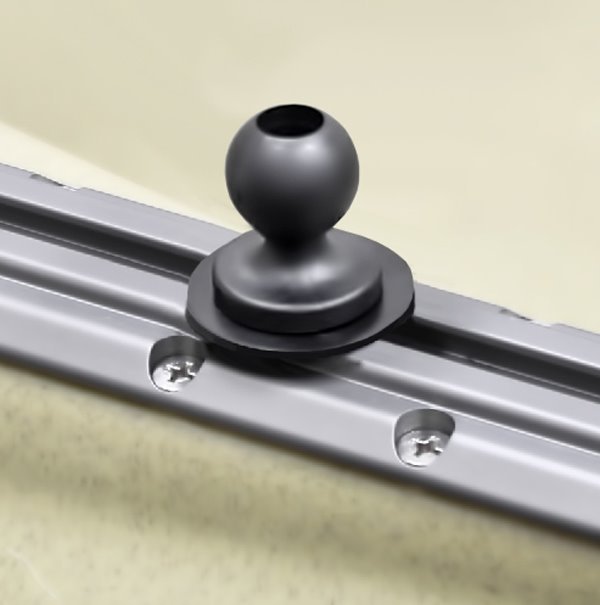

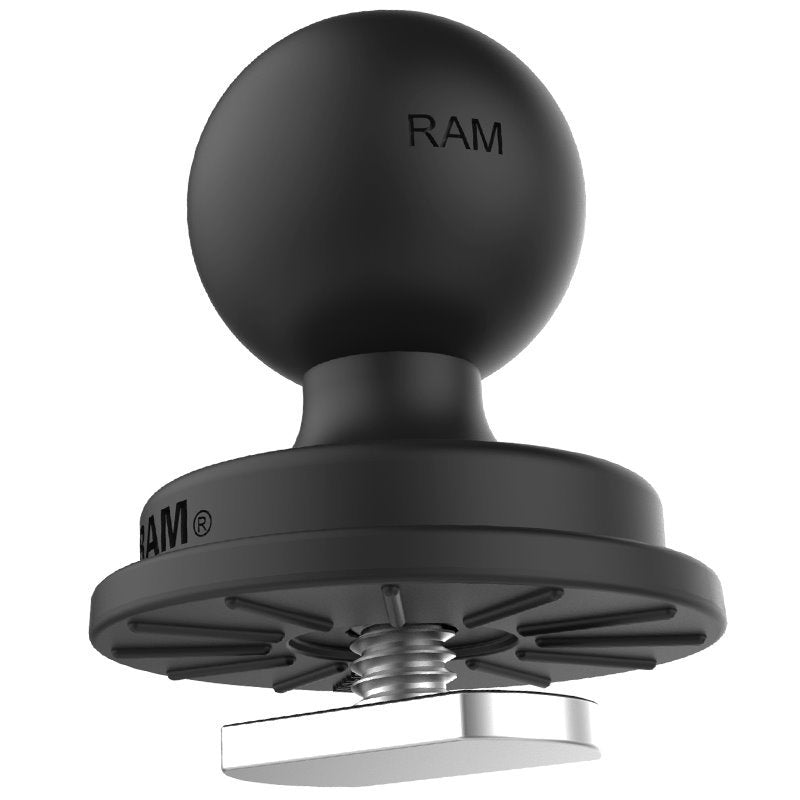

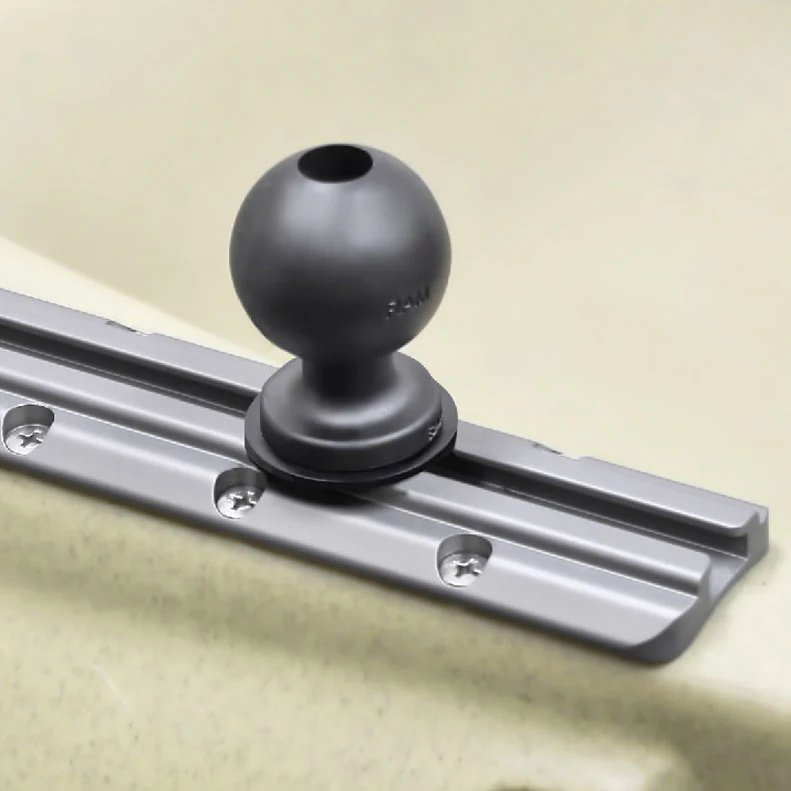

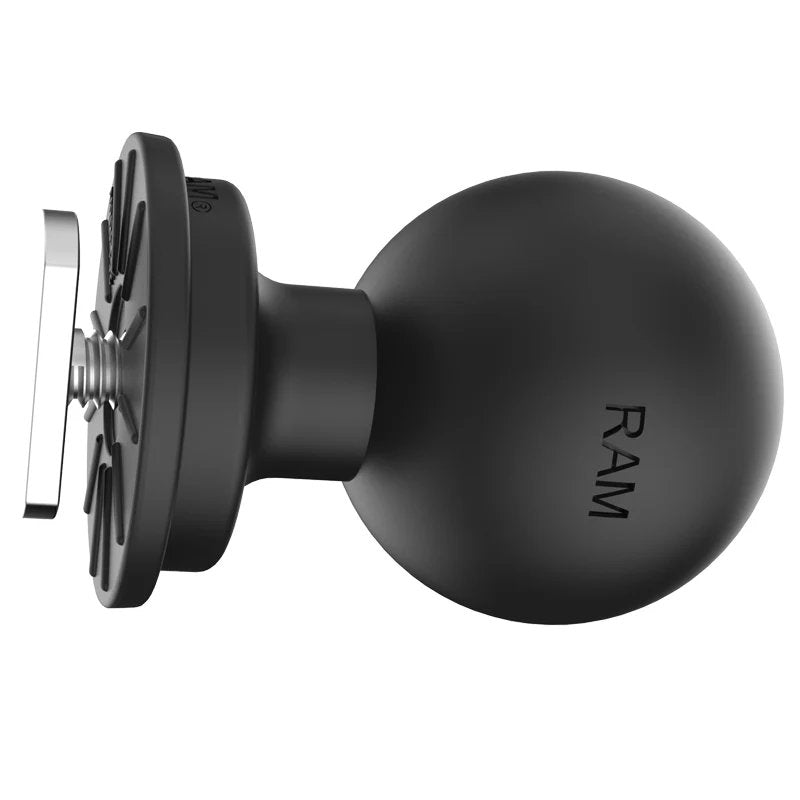

The RAM® Track Ball™ Base provides a compact mounting point for compatible track systems, including the RAM® Tough-Track™. Its stainless steel T-bolt slides into the track channel, while the integrated RAM C Size 1.5" ball connects with compatible C Size socket arms.
The base installs without tools by inserting it into the track and twisting the ball clockwise to tighten. A rubber friction washer helps maintain a secure connection while still allowing the base to be loosened and repositioned as needed.
Key Features
-
RAM C Size 1.5" ball connects with compatible C Size socket arms
-
Designed for compatible track mounting systems, including RAM® Tough-Track™
-
Stainless steel T-bolt slides into the track channel
-
Twist-to-tighten design allows tool-free installation and adjustment
-
Rubber friction washer helps improve grip within the track
-
High-strength composite construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility

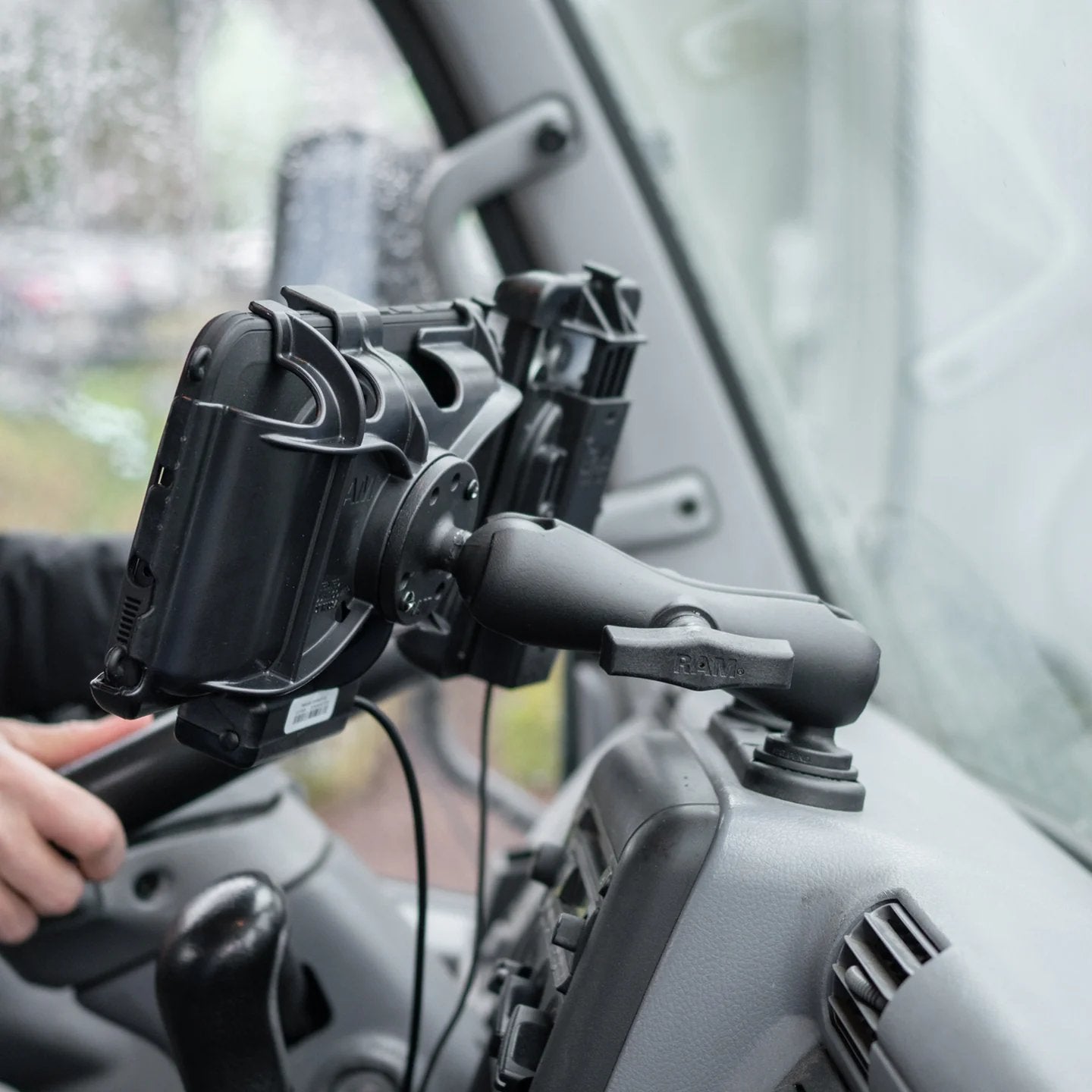

This standalone track ball base creates an adjustable mounting point on compatible track systems. It is suitable for marine, vehicle, utility, and recreational applications where equipment must be repositioned or removed without permanently altering the mounting surface.
Compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
T-Bolt Dimensions: 0.48" x 0.95"
Thread Size: 1/4"-20
Material: High-strength composite
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.15 lb
What’s Included
-
(1) friction washer
-
(1) 1/4"-20 x 7/8" T-bolt
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAP-354U-TRA1
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
