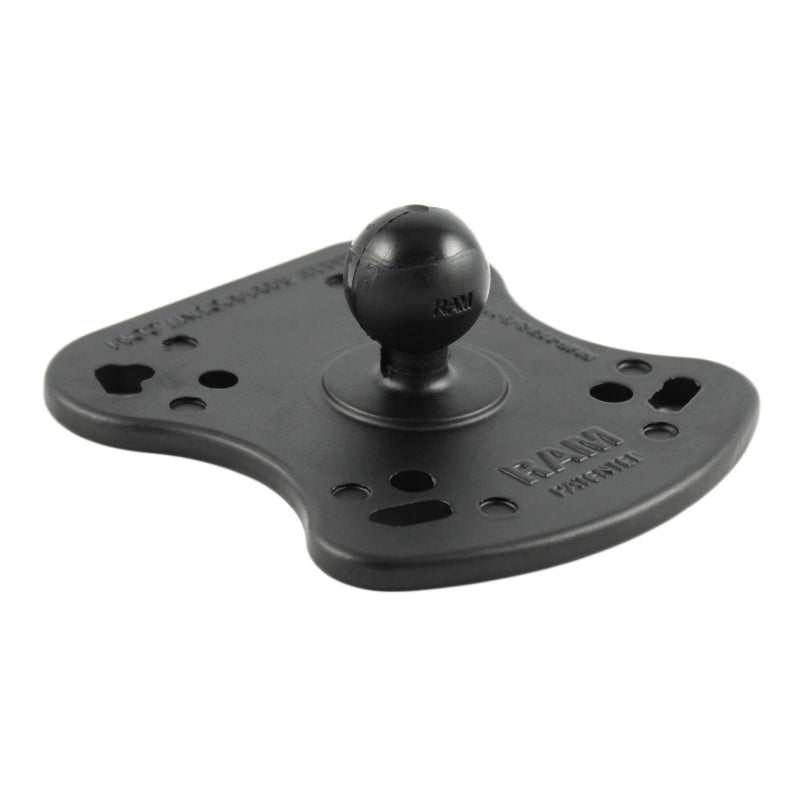

The RAM-B-107BU Ball Adapter is a marine-grade aluminum mounting component designed to connect to the underside of compatible Humminbird and Raymarine marine GPS devices. It features a B size 1" RAM rubber ball, allowing the device to connect to compatible RAM B size double socket arms and mounting systems.
This adapter is commonly used in marine electronics mounting setups where a fish finder or marine GPS unit needs to be positioned with RAM’s adjustable ball-and-socket system.
Key Features
-
Ball adapter designed for compatible Humminbird and Raymarine marine GPS devices
-
Integrated B size 1" RAM rubber ball for use with RAM B size socket arms
-
Marine-grade aluminum construction for durability in demanding environments
-
Designed to mount to the underside of compatible marine electronics
-
Useful for custom fish finder and marine GPS mounting systems
Use Cases & Compatibility

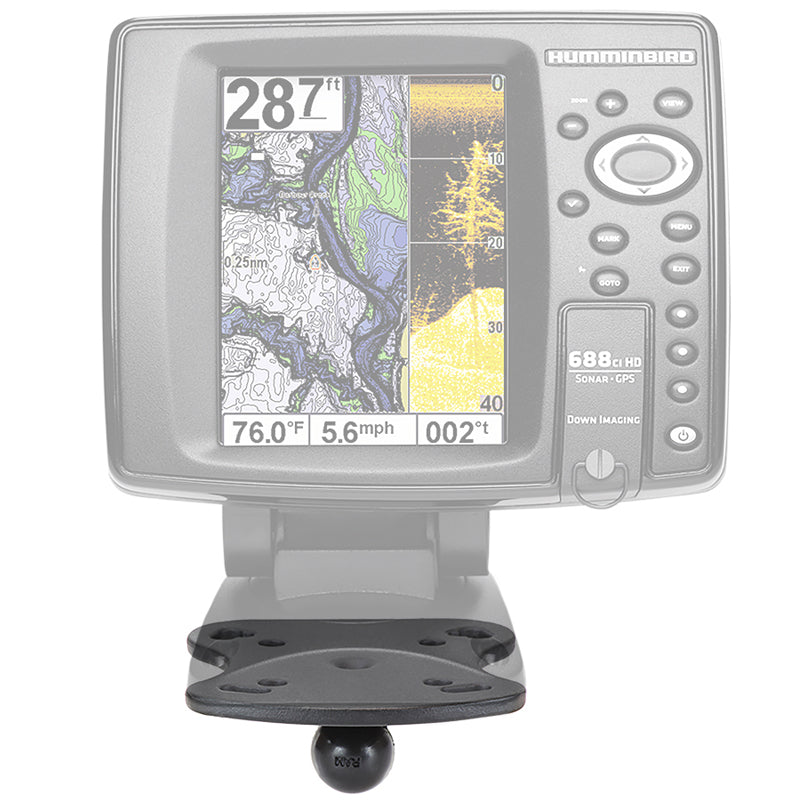

The RAM-B-107BU is designed to connect to the underside of compatible Humminbird and Raymarine marine GPS devices. The integrated B size 1" ball works with RAM B size double socket arms and other compatible RAM B size components.
Hardware is not included. When pairing with certain RAM holders, the holder may include the necessary hardware to connect to the mount. If using this component as a drill-down base, common screw sizes include #8, #10, M4, and M5 screws.
Specifications
Ball Size: B Size 1"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb

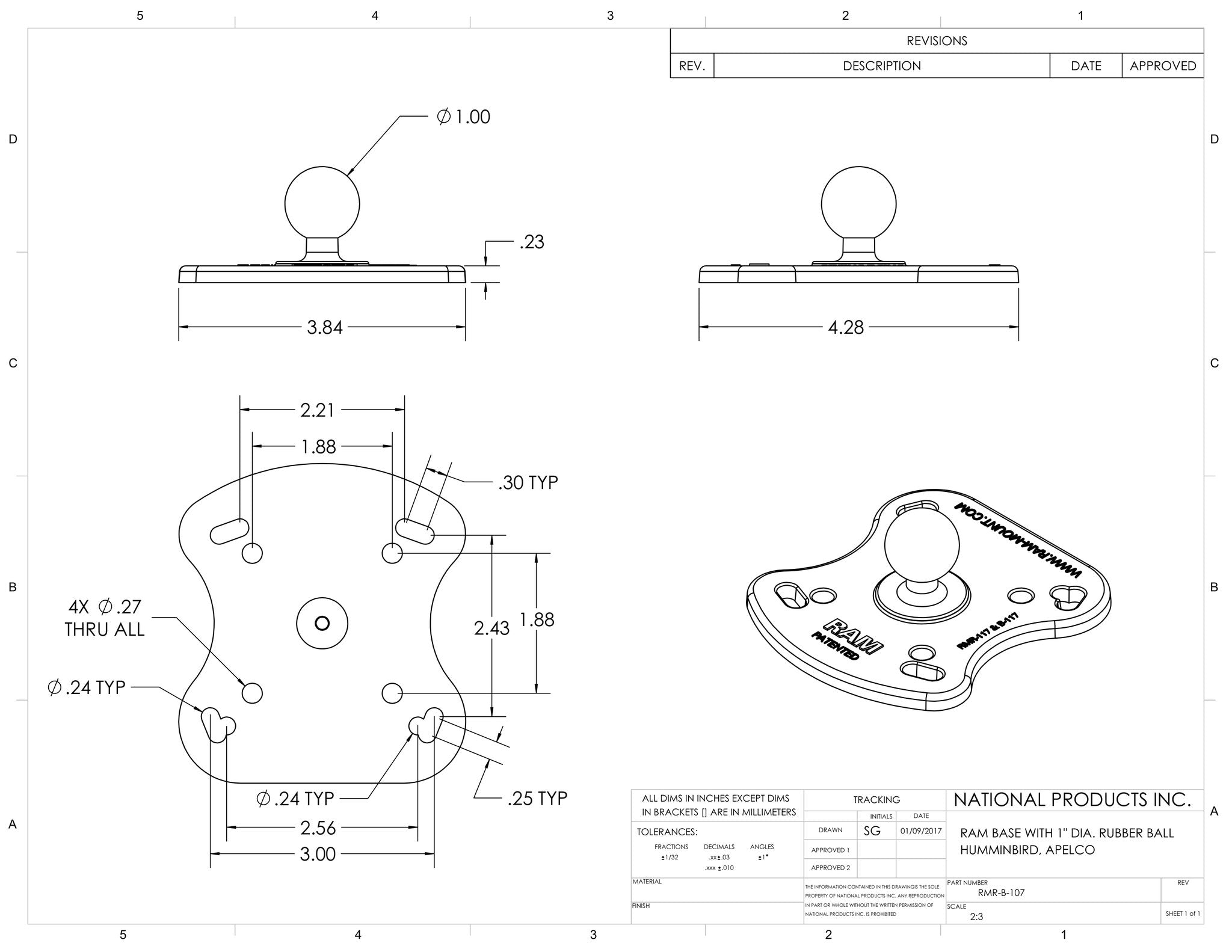

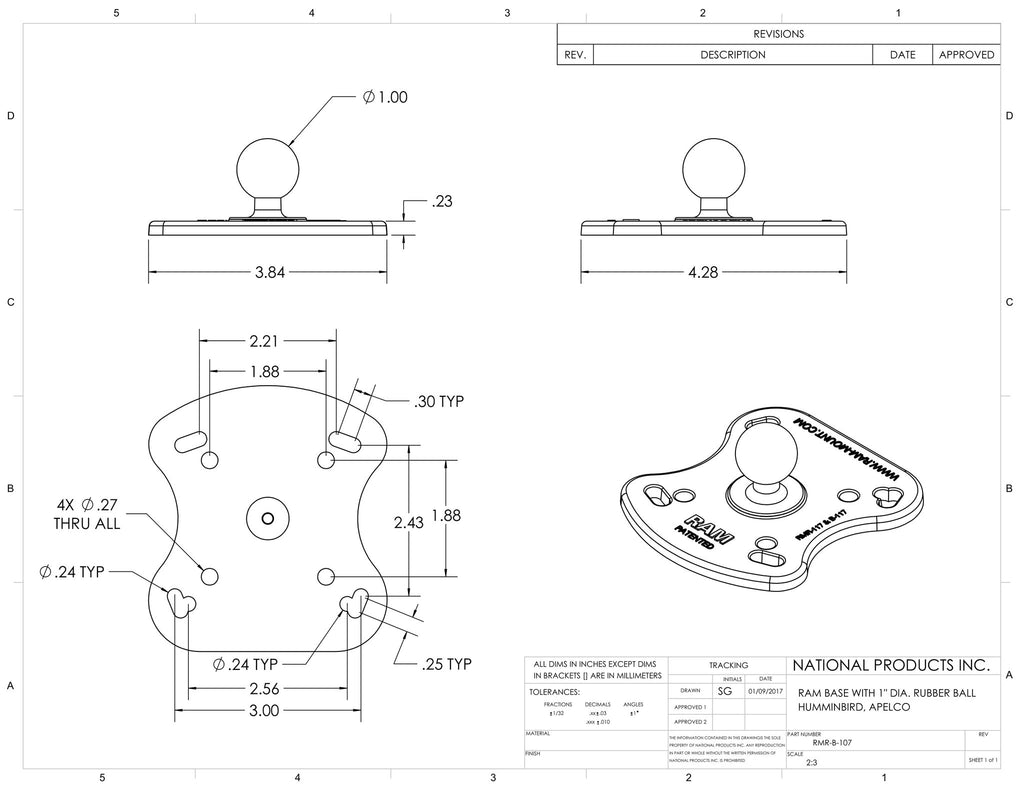

Pattern / Hole Spacing: See drawing
Dimensions: 4.25" x 3.81" plate size
Product Weight: 0.36 lb
Additional Details: Hardware not included
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-107BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
