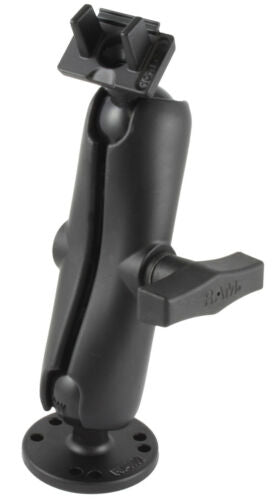

Secure your fish finder with confidence using the RAM® 1.5" Ball Mount with custom quick-release adapter, purpose-built for select Lowrance Elite, HOOK, and MARK series displays. Designed for anglers who demand durability, adjustability, and fast removal, this mounting system delivers rock-solid performance in harsh marine environments.
At the core of this system is RAM’s patented 1.5" C-size rubber ball and socket technology, paired with a medium-length double socket arm for near-infinite adjustment. Dial in the perfect viewing angle, reduce vibration, and lock your display firmly in place—even in rough water.
The included Lowrance-specific adapter inserts directly into the back of compatible units, acting as a true quick-release solution. Move your fish finder between boats or remove it for storage in seconds, without tools. Built from powder-coated, marine-grade aluminum and made in the USA, this mount is trusted by professionals and weekend anglers alike.
Gadget Mounts is an Authorized RAM Mounts Dealer, so you can buy with total confidence.
Features
• 1.5" C-size RAM rubber ball system for superior vibration damping
• Medium double socket arm allows precise, secure positioning
• Quick-release adapter installs directly into compatible Lowrance units
• Round base with universal AMPS hole pattern for flexible mounting
• Designed for rugged marine use
• Powder-coated, marine-grade aluminum construction
• Made in the USA with RAM Mounts lifetime warranty
Compatibility Notes
• Not compatible with the standard Lowrance Elite-7
Specifications
Ball Size: C Size (1.5")
Overall Height (Fully Extended): 7.35"
Arm Type: Medium Double Socket Arm
Socket-to-Socket Length: 4.66"
Overall Arm Length: 5.69"
Base Diameter: 2.5"
Hole Pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" diameter
Weight Capacity:
• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs
Material: Marine-grade aluminum
Finish: Powder coated
Product Weight: 1.22 lb
Installation Notes
Mounting hardware is not included. Hardware selection depends on mounting surface and access to the back side. Common fastener sizes include #8, #10, M4, and M5 screws.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-101-LO11
Warranty: Manufacturer’s Lifetime Warranty
