Description

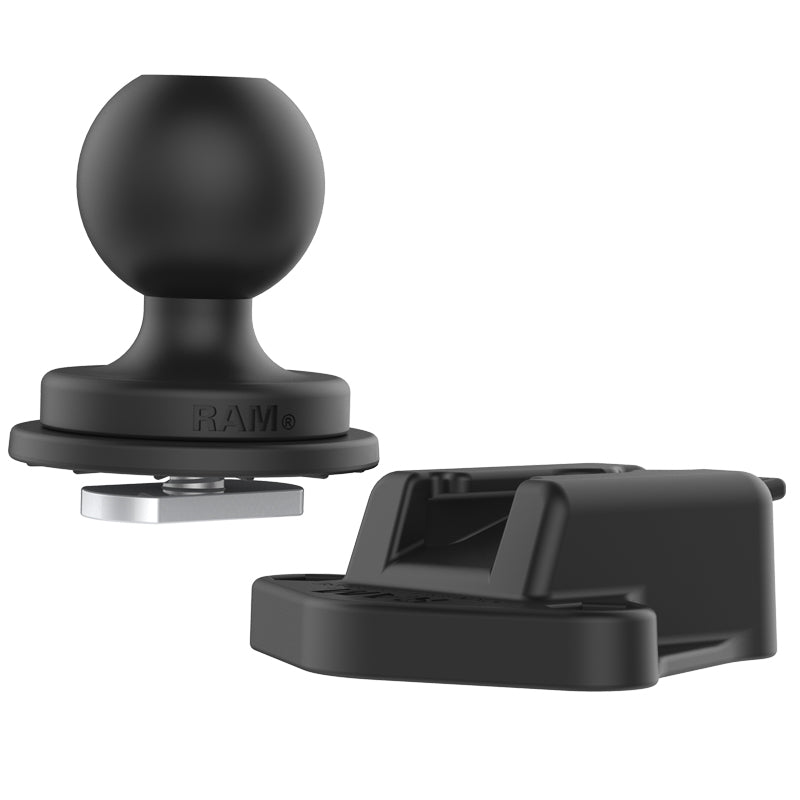

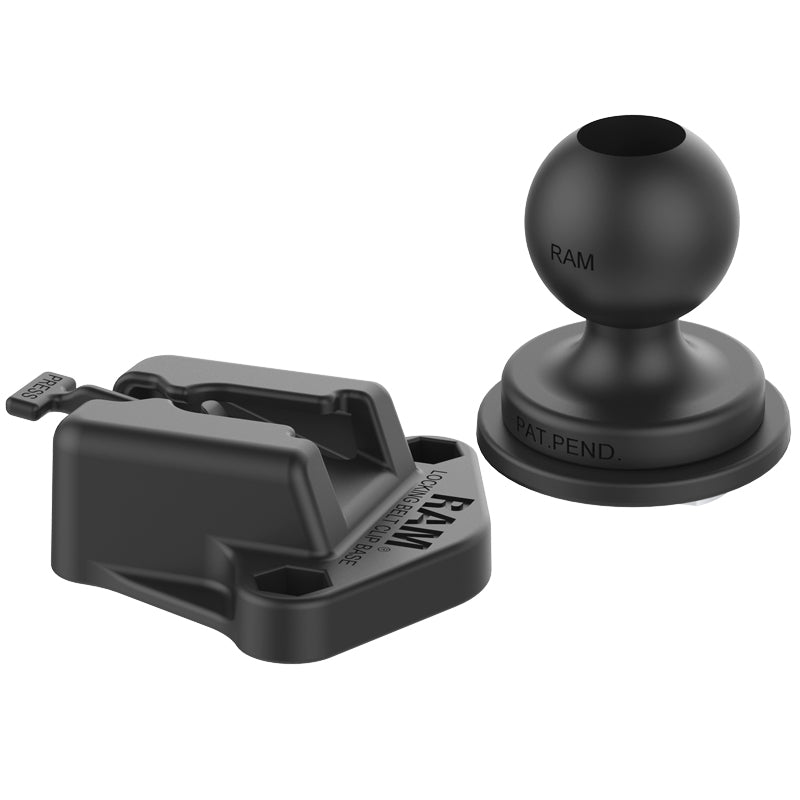

The RAP-B-304U-TRA1 is a low-profile RAM® Track Ball™ base with a drill-down receiver that mounts to a flat surface. The included B Size 1" Track Ball™ slides into the receiver and tightens in place, creating a compact mounting point for compatible RAM® B Size arms, holders, and adapters.
This component is useful when you want a semi-permanent flat-surface base with the ability to quickly remove the ball mount when it is not in use. It is commonly used for small handheld electronics such as phones, action cameras, GPS units, and small tablets.
Key Features
- Drill-down receiver base with removable RAM® B Size 1" Track Ball™
- Creates a low-profile mounting platform on flat surfaces
- Track Ball™ slides into the receiver and tightens securely in place
- Allows the ball mount to be quickly removed when not in use
- 2-hole AMPS pattern with 1.912" hole spacing
- Compatible with RAM® B Size double socket arms and related 1" ball components
- Made from high-strength composite for durability and reliability
- Manufacturer-rated weight capacity: 2 lbs standard use, 1 lb heavy-duty use
- Backed by RAM Mounts’ manufacturer’s lifetime warranty
Use Cases & Compatibility
The RAP-B-304U-TRA1 is commonly used for flat-surface mounting on dashboards, consoles, workstations, equipment panels, boats, carts, and custom mounting locations. It is a good choice when a low-profile drill-down base is preferred and the ball connection needs to be removable.
This base works with compatible RAM® B Size 1" socket arms, device holders, cradles, adapter plates, and other B Size RAM® components. A socket arm and device holder are required to complete a full mounting setup.
Specifications
Ball Size: B Size 1" Ball
Material: High-strength composite
Color: Black
Hole Pattern: 2-hole AMPS pattern, 1.912" spacing
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.12 lb
Additional Details: Includes drill-down receiver base and removable 1" Track Ball™ for low-profile flat-surface mounting
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAP-B-304U-TRA1
Warranty: Manufacturer's lifetime warranty
