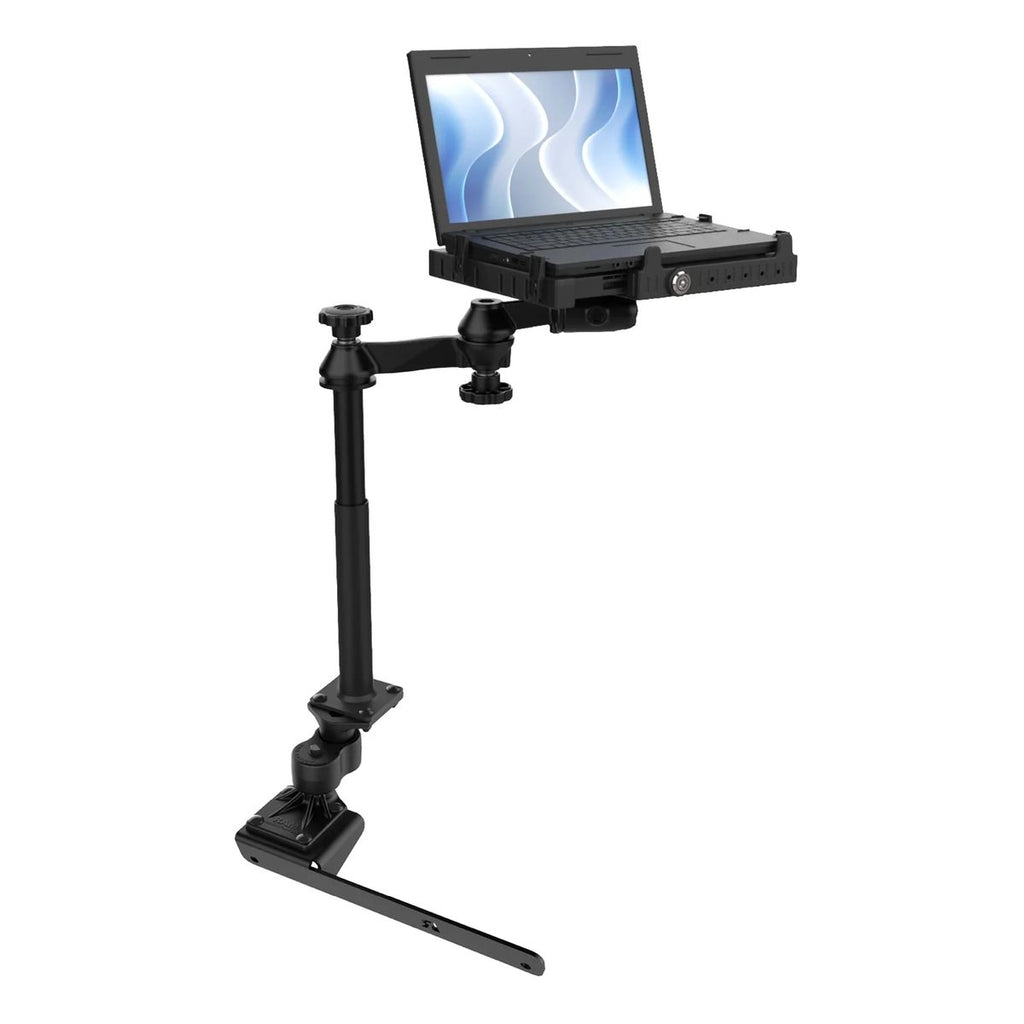

The RAM® No-Drill™ Laptop Mount for select Ram 1500, Ram 1500 Classic, and Ram 2500–5500 trucks provides a complete in-vehicle laptop mounting system without drilling. This RAM Mounts kit installs using the existing passenger-side seat rail hardware and includes a No-Drill™ vehicle base, telescoping riser, dual swing arm assembly, and RAM® Tough-Tray™ III spring-loaded laptop holder.
The telescoping post adjusts from 12" to 18", while the dual swing arms provide articulation and up to 12" of reach for driver or passenger access. RAM® rubber ball and socket technology provides additional adjustability while helping reduce shock and vibration in demanding vehicle environments.
The included RAM® Tough-Tray™ III holder accommodates most 10" to 17" laptops measured diagonally. Adjustable retaining arms move vertically and horizontally to help secure laptops of varying thicknesses without blocking drives or ports. Integrated 2-hole AMPS mounting locations around the tray perimeter allow compatible accessories such as printers, handheld devices, scanners, or screen supports to be added separately.
The low-profile base is designed to limit intrusion into passenger-side leg space and avoid interference with factory levers, consoles, 4WD levers, and trucks equipped with power take-off setups.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features
• Complete RAM Mounts No-Drill™ laptop mounting kit for select Ram trucks
• Installs using existing passenger-side seat rail hardware with no drilling required
• Compatible with select Ram 1500, Ram 1500 Classic, and Ram 2500–5500 trucks
• Telescoping riser adjusts from 12" to 18" for flexible laptop positioning

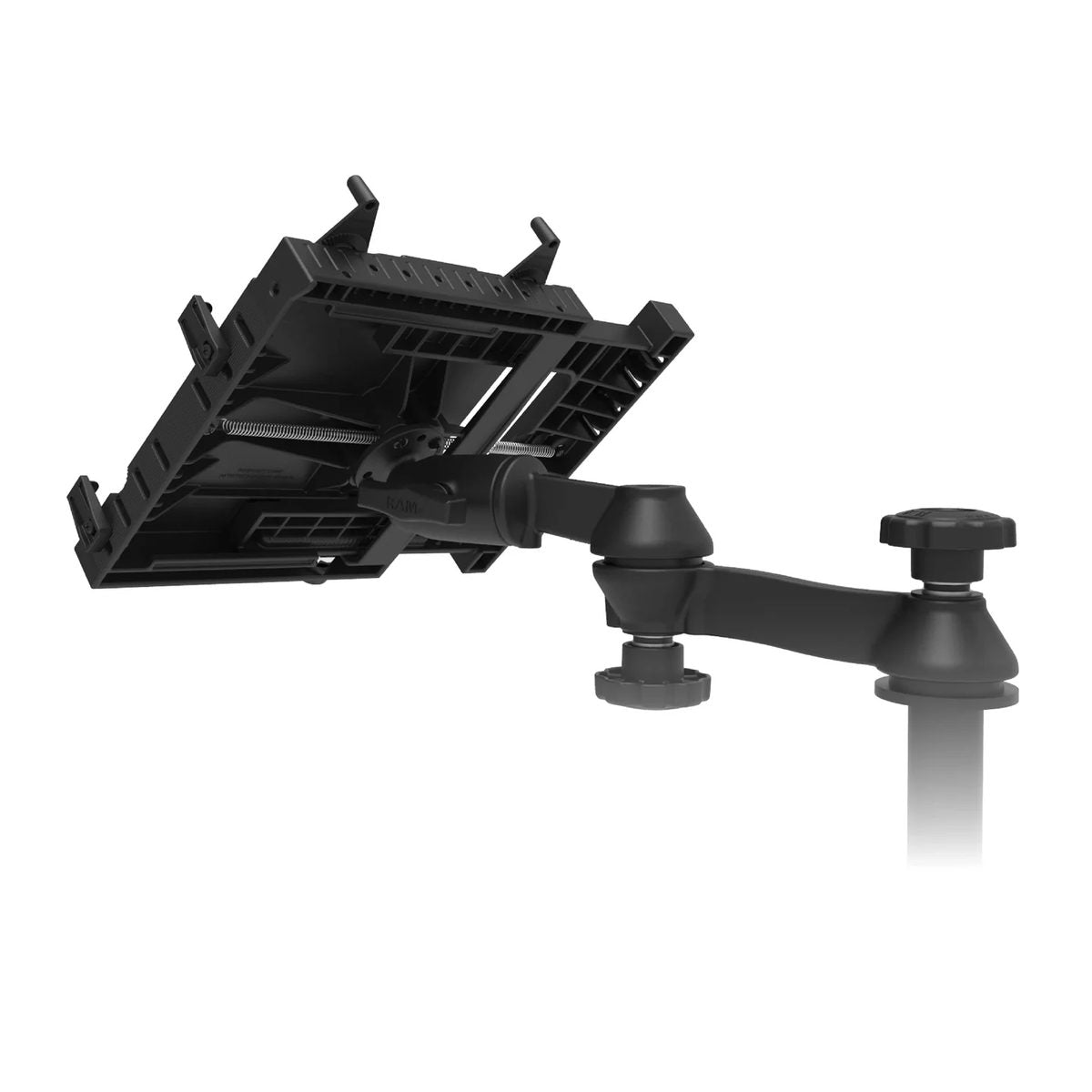

• Dual swing arms provide articulation and up to 12" of reach

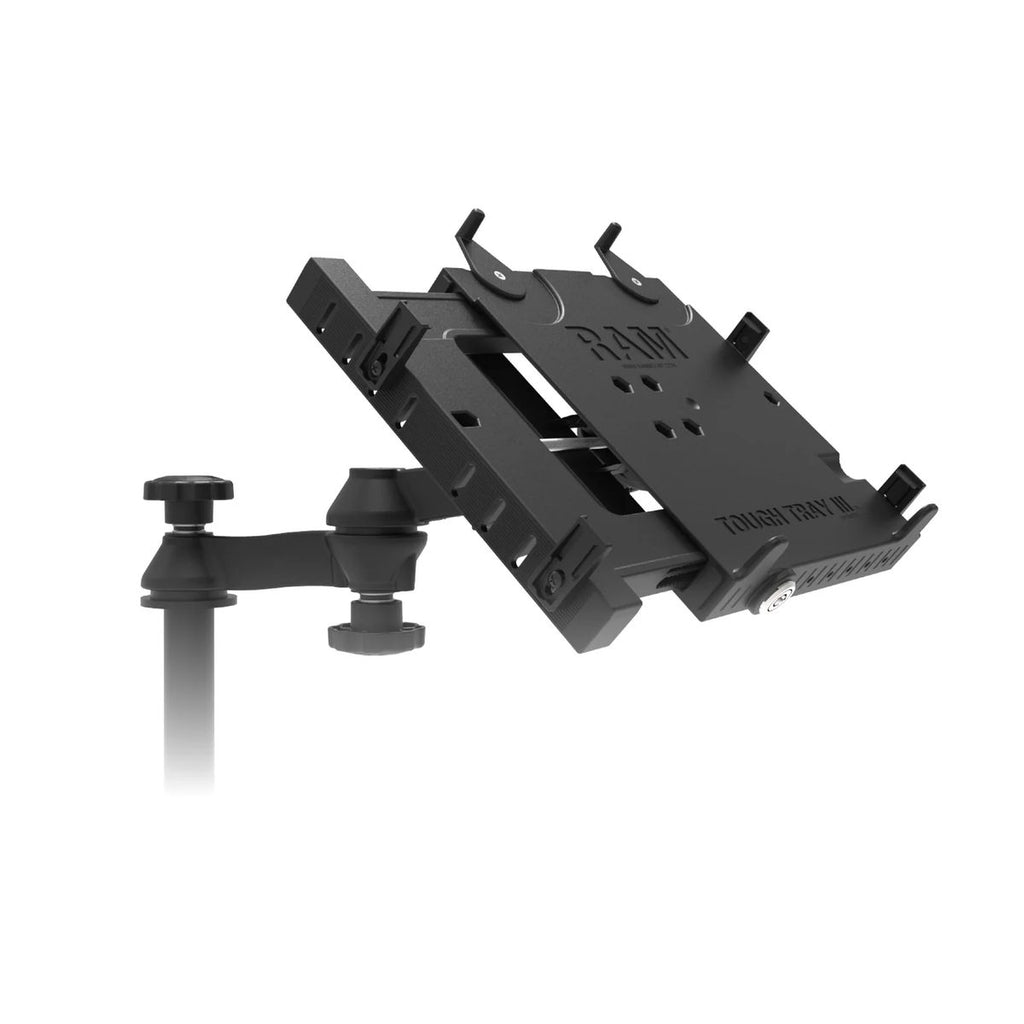

• RAM® Tough-Tray™ III holder fits most 10" to 17" laptops
• Adjustable tray arms help secure laptops while keeping ports and drives accessible

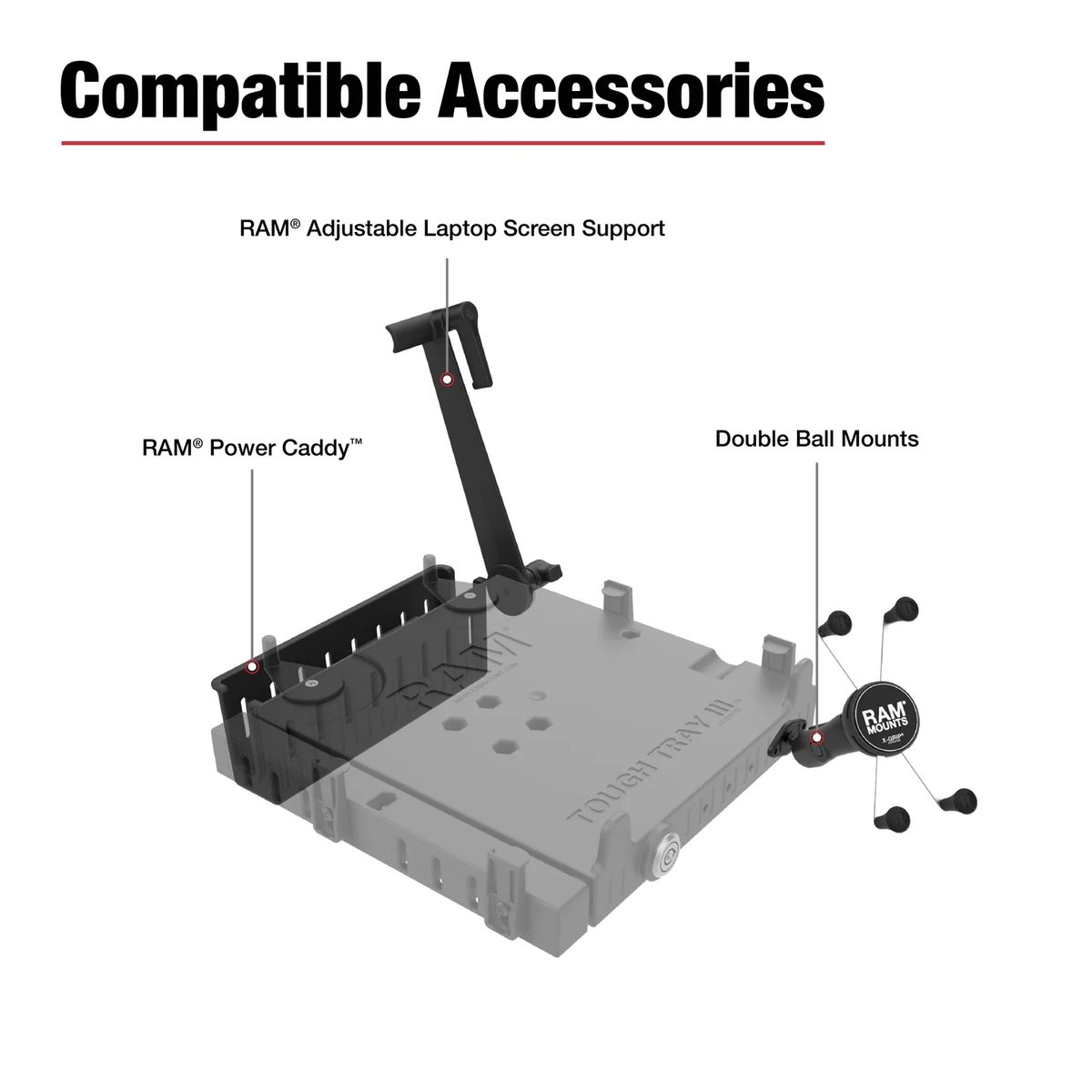

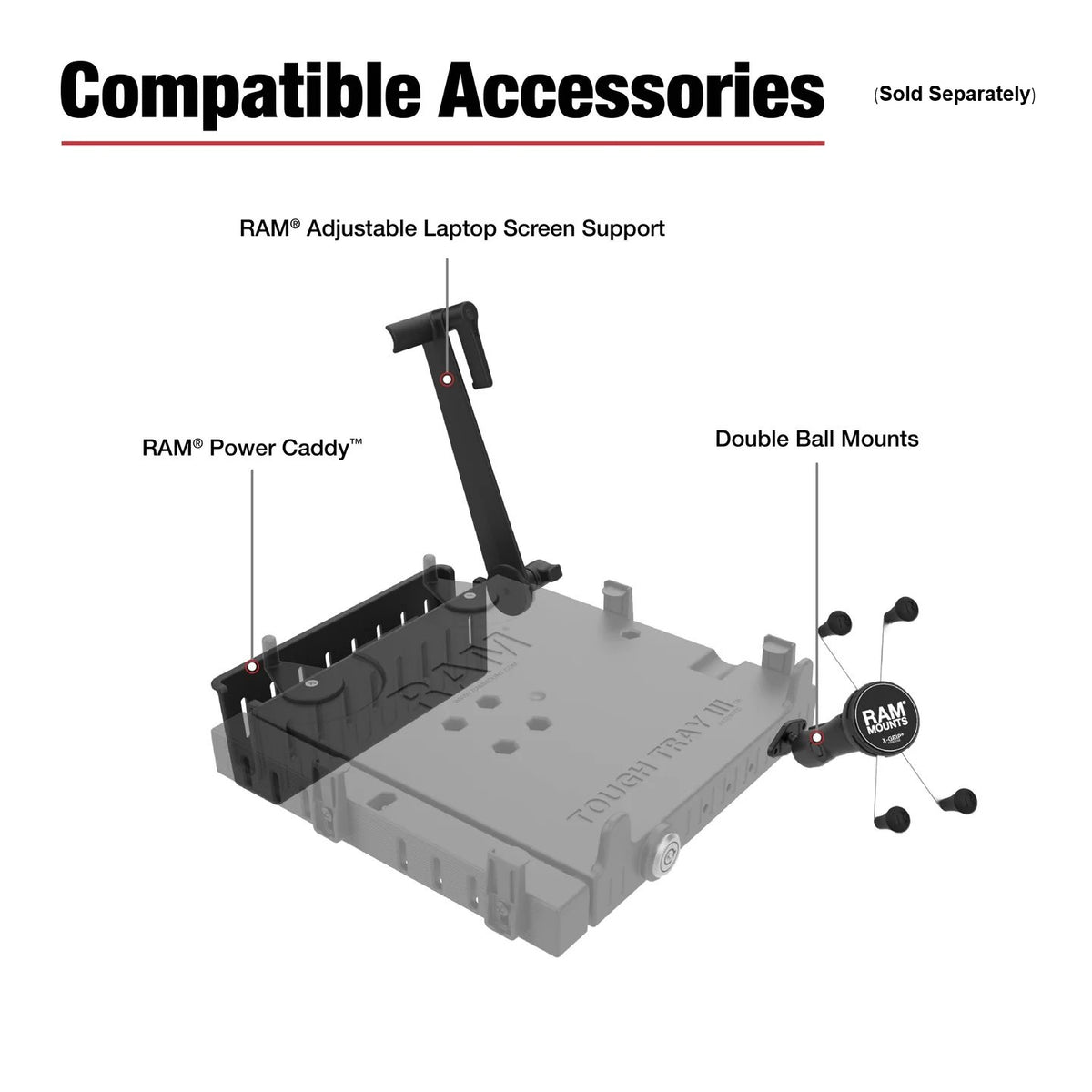

• Integrated 2-hole AMPS locations support compatible add-on accessories
Use Cases & Compatibility
This complete vehicle laptop mount is designed for work trucks, fleet vehicles, utility trucks, service vehicles, public safety vehicles, construction trucks, and mobile workstation applications where a laptop needs to be securely mounted inside the cab.
The included RAM® Tough-Tray™ III laptop holder fits most 10" to 17" laptops measured diagonally.
Compatible Vehicles:
Ram Trucks
• Ram 1500: 2012–2018
• Ram 1500 Classic: 2019–2024
• Ram 2500–5500: 2012–2026
Vehicle fitment should be verified before ordering.
Specifications
Product Type: Vehicle Laptop Mount Kit
Ball Size: C Size (1.5")
Base Type: No-Drill™ passenger-side seat rail base
Arm Length: Dual swing arm assembly with up to 12" of reach
Height Adjustment Range: 12" to 18"
Mounting Pattern: Passenger seat bolt mounting; 13.25" seat bolt distance, center to center
Tray Accessory Mounting: Integrated 2-hole AMPS mounting locations around tray perimeter
Laptop Fitment: 10" to 17" laptops, measured diagonally
Material:
- Powder-coated steel
- marine-grade aluminum
- high-strength composite
Dimensions:
- Tray Width Range: 10" to 15.25"
- Tray Depth Range: 7.625" to 10.625"
- Side Arm Clamp Height: 0" to 1.875"
- Tray Thickness: 1.26"
Product Weight: 16.0 lb
What’s Included
• RAM® No-Drill™ vehicle base
• Telescoping riser and dual swing arm assembly
• RAM® Tough-Tray™ III spring-loaded laptop holder
• Assembly hardware
• (2) M8-1.25 x 60mm hex bolts
• (2) 3/4" stand-offs
• (2) 5/16" flat washers
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-VB-178A-SW3
Warranty: Manufacturer’s lifetime warranty
