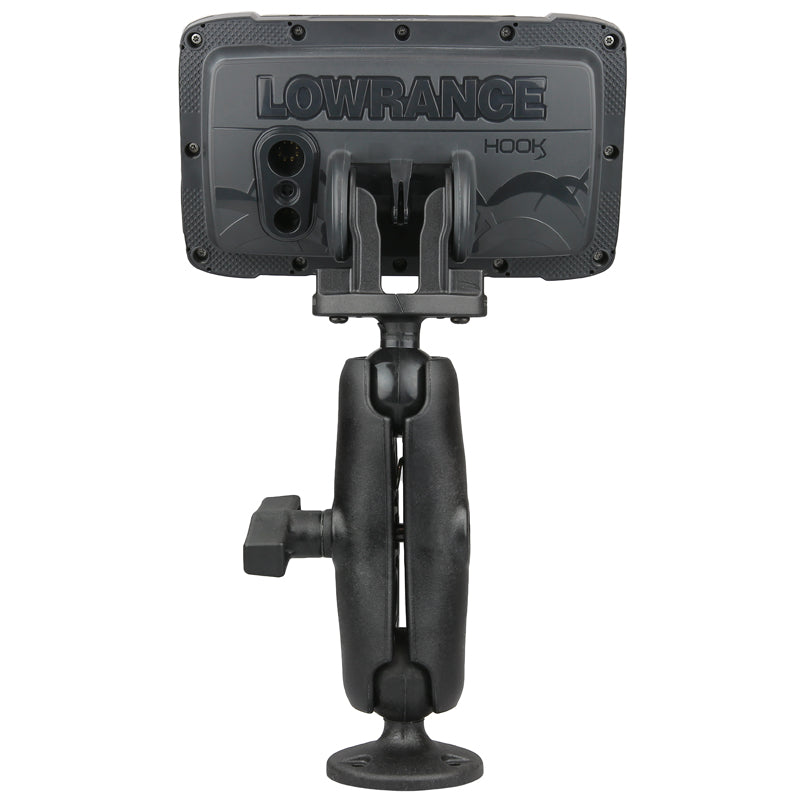

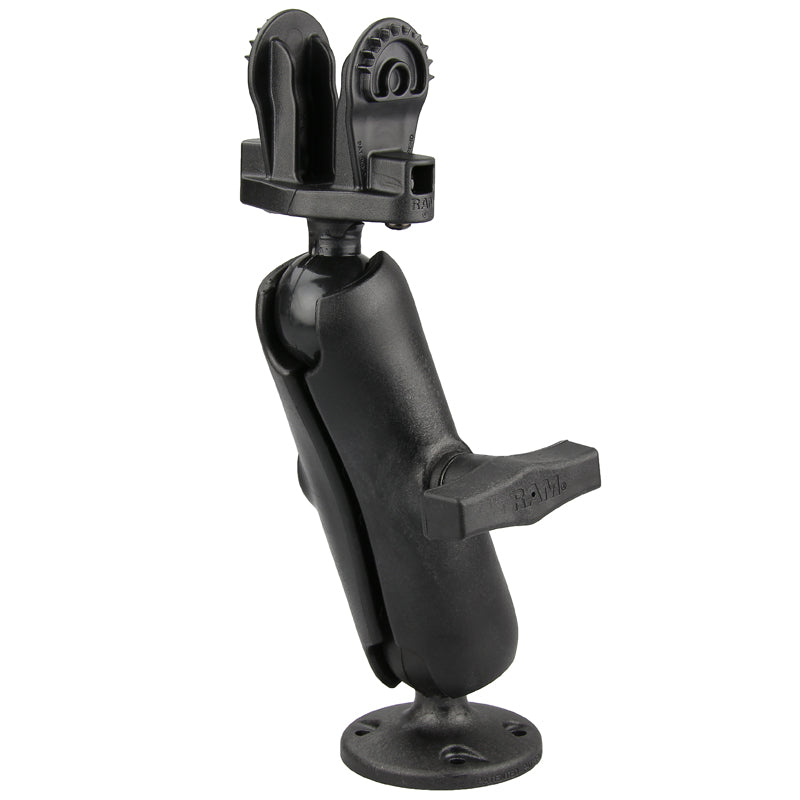

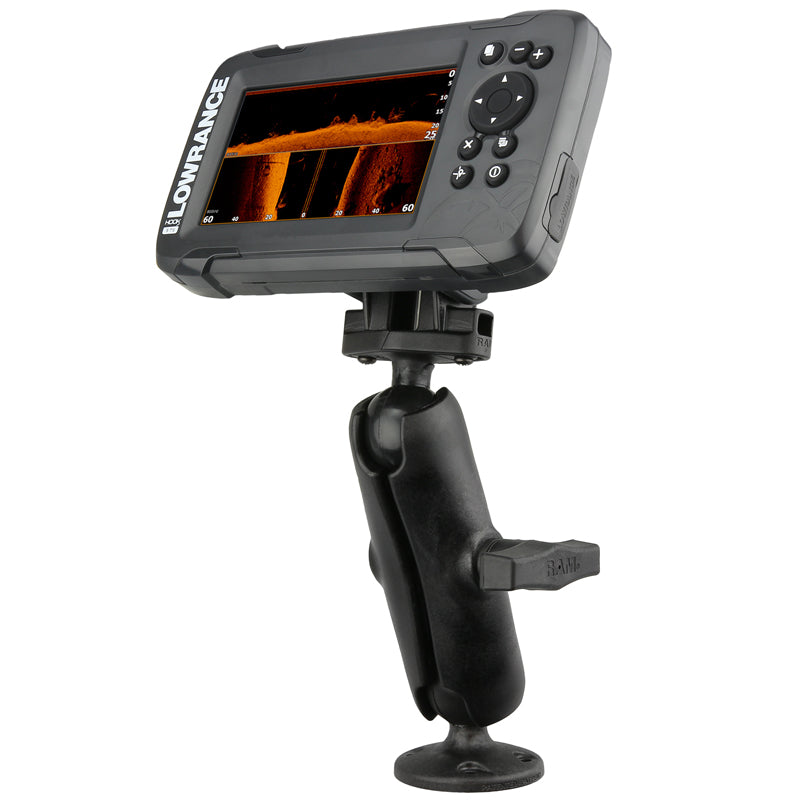

Enhance your marine electronics setup with a rugged, adjustable mounting solution built for demanding environments. This RAM® C-size (1.5") composite drill-down mount replaces the factory bracket on select Lowrance fish finders, delivering superior stability and vibration resistance on boats, kayaks, and inflatables. Designed for heavy-duty saltwater use, the RAM ball-and-socket system lets you dial in the perfect viewing angle while keeping your display locked in place when conditions get rough.
Crafted from high-strength composite and marine-grade aluminum, this mount is engineered for long-term durability and corrosion resistance. As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM® products backed by a manufacturer lifetime warranty—so you can mount with confidence.
Features
-
Heavy-duty C-size (1.5") ball and socket system for maximum stability
-
Round 2.5" base with AMPS hole pattern for versatile drill-down installs
-
Medium double socket arm for smooth, secure angle adjustments
-
Custom Lowrance adapter with integrated 1.5" ball replaces factory mount
-
Built for saltwater, vibration, and harsh marine conditions
-
Made in the USA with premium materials
Ideal For
-
Fishing boats, kayaks, and inflatables
-
Saltwater and freshwater environments
-
Anglers needing a secure, adjustable fish finder mount
Specifications
-
Ball Size: C Size (1.5")
-
Socket-to-Socket Length: 4.66"
-
Overall Arm Length: 5.69"
-
Base Diameter: 2.5"
-
Hole Pattern: 4-Hole AMPS (1.181" x 1.496")
-
Weight Capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
-
Product Weight: 1.17 lbs
-
Materials: High-strength composite & marine-grade aluminum
Assembly Hardware Included
-
Mounting hardware for drill-down installation is not included due to varying surface requirements
-
Common screw sizes: #8, #10, M4, M5
Brand and Warranty
Brand: RAM Mounts
Part number: RAP-101-LO12
Warranty: Manufacturer’s Lifetime Warranty
