Description

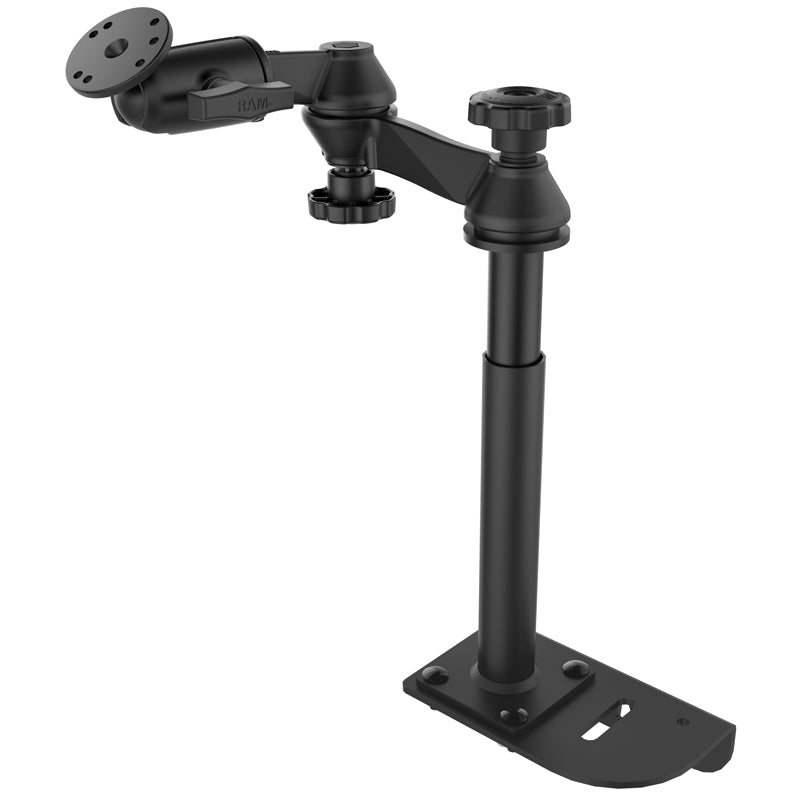

The RAM® No-Drill™ Device Mount provides a secure and adjustable mounting platform for tablets, laptops, and other compatible electronics in Ford Transit cargo vans. The vehicle-specific base installs using the existing passenger-side seat rail hardware, eliminating the need to drill into the vehicle.
A telescoping Tele-Pole adjusts from 12" to 18", while dual articulating swing arms provide up to 12" of reach for positioning the mounted device toward either the driver or passenger. The system ends in a C Size 1.5" ball with a 2.5" round plate that supports both four-hole AMPS and three-hole 120-degree mounting patterns.
Key Features
-
Vehicle-specific no-drill mounting system for compatible Ford Transit cargo vans
-

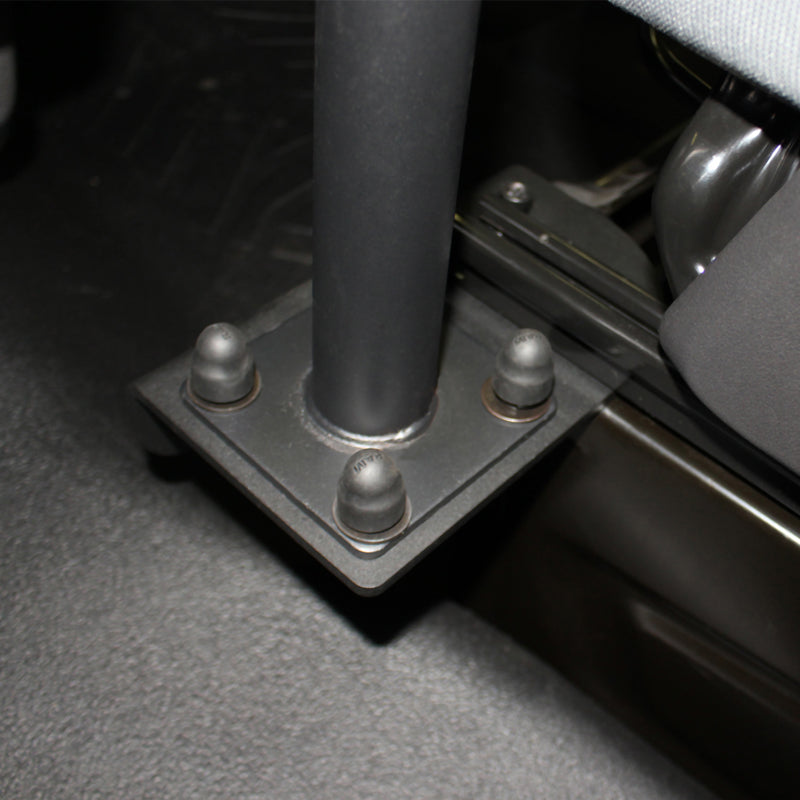

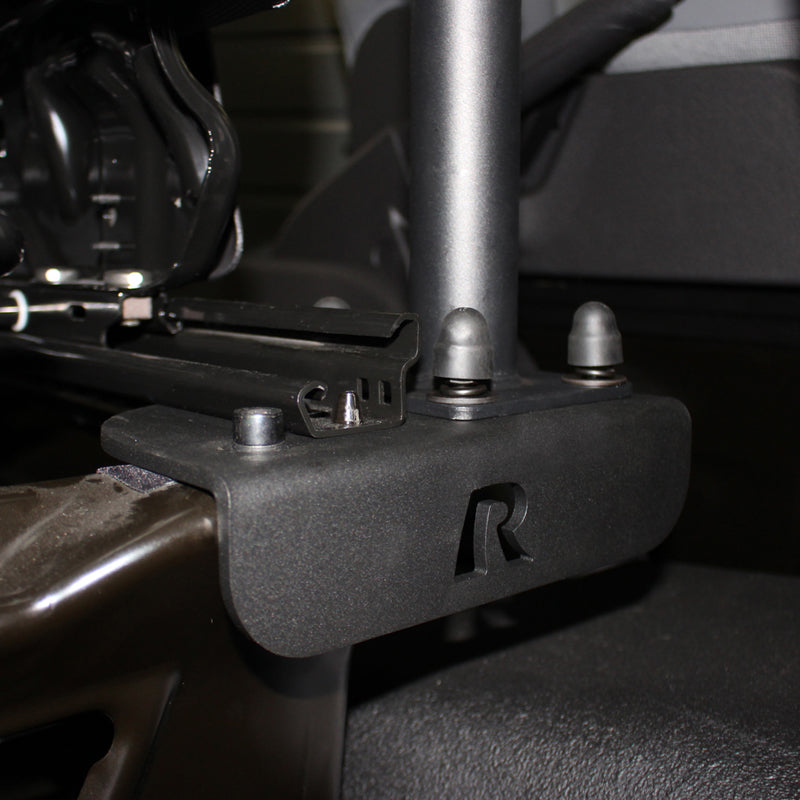

Installs using existing passenger-side seat rail hardware
-

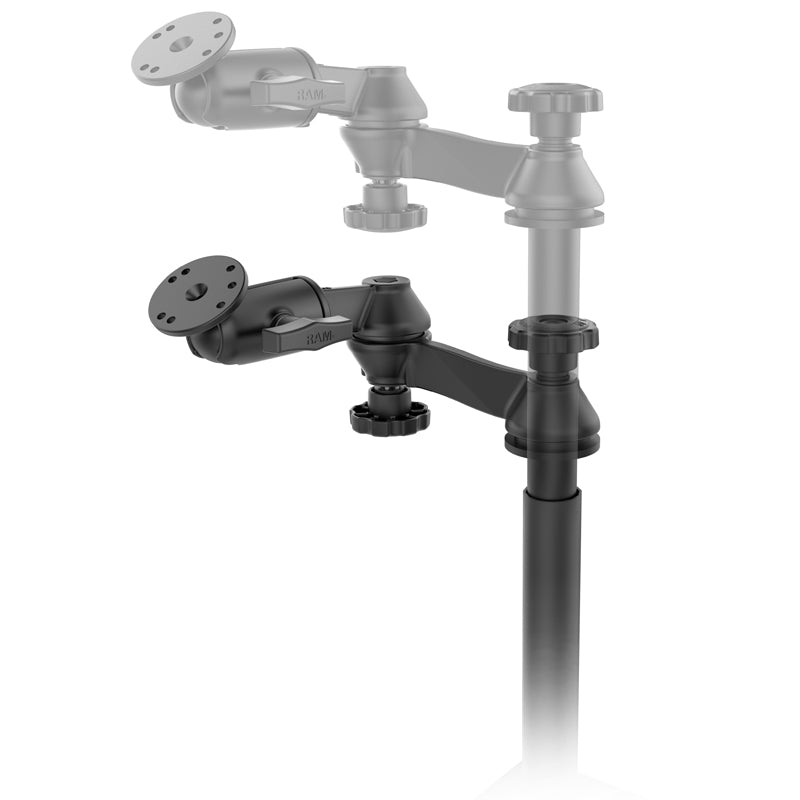

Telescoping Tele-Pole adjusts from 12" to 18"
-

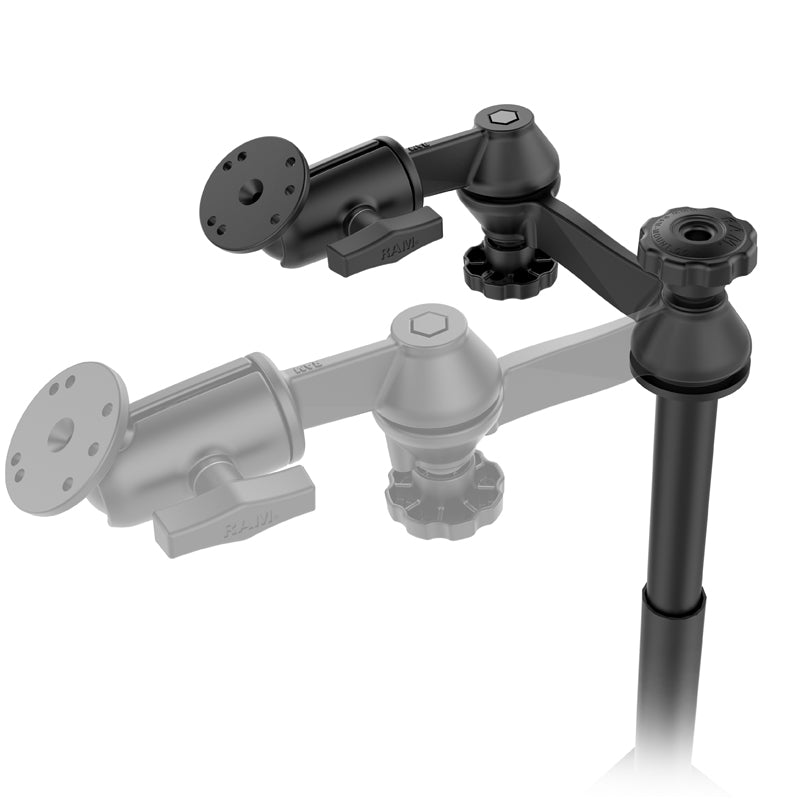

Dual articulating swing arms provide up to 12" of reach
-
Supports a variety of compatible RAM tablet and laptop holders
-
C Size 1.5" rubber ball-and-socket connection provides additional positioning
-
Rubber ball design helps reduce transferred shock and vibration
-
Powder-coated steel and marine-grade aluminum construction
-
Supports up to 4 lbs in standard-use applications
Use Cases & Compatibility
Designed for commercial vans, delivery vehicles, service fleets, public safety applications, mobile workstations, and other installations requiring an adjustable tablet or laptop mounting platform.
Compatible Vehicles
Ford
-
Transit Cargo Van (2014–2026)
The included 2.5" round plate supports holders and mounting components using either the four-hole AMPS pattern or the three-hole 120-degree pattern.
A compatible tablet holder, laptop holder, cradle, dock, or device adapter is required and sold separately unless otherwise specified.
Depending on the vehicle configuration and installation position, the base may limit the overall adjustment range of the passenger seat.
Specifications
Tele-Pole Adjustment Range: 12"–18"
Swing Arm Reach: 12"
Plate Size: 2.5" diameter
Hole Pattern: Four-hole AMPS, 1.181" x 1.496"
Alternate Hole Pattern: Three-hole 120-degree, 1.812" diameter
Ball Size: C Size, 1.5" diameter
Weight Capacity: 4 lbs standard use; 3 lbs heavy-duty use
Materials: Powder-coated steel and marine-grade aluminum
Installation: Uses existing passenger-side seat rail hardware
Drilling Required: No
Product Weight: 9.6 lbs
What’s Included
-
Vehicle-specific RAM® No-Drill™ base
-
Telescoping RAM® Tele-Pole™
-
Dual articulating swing arms
-
C Size 1.5" ball with 2.5" round mounting plate
-
Tele-Pole™ hardware
-
One 1.75" washer
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-VB-194-SW2
Warranty: Manufacturer’s lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
