RAM No-Drill Laptop Mount for 1997 - 2003 Ford F-150 + More

No reviews

Sale price$339.49
Only 1 unit left

Manufacturer Part Number: RAM-VB-110-SW1

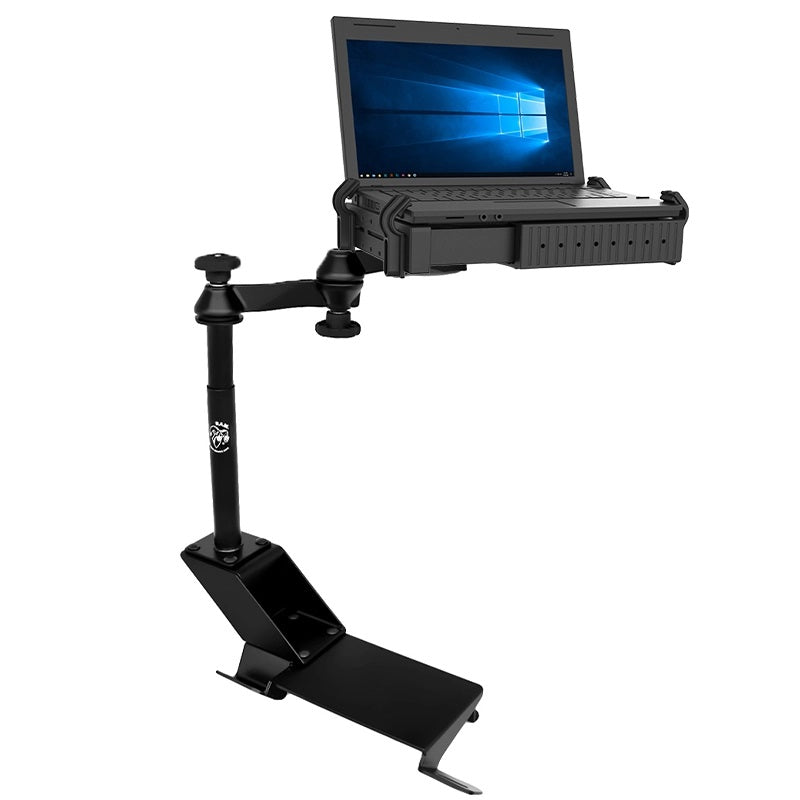

This RAM No-Dril mounting system installs quickly and easily into a range of Ford vehicles using the existing hardware of the passenger side seat rails. This configuration provides a secure and stable platform for mounting a laptop or netbook.

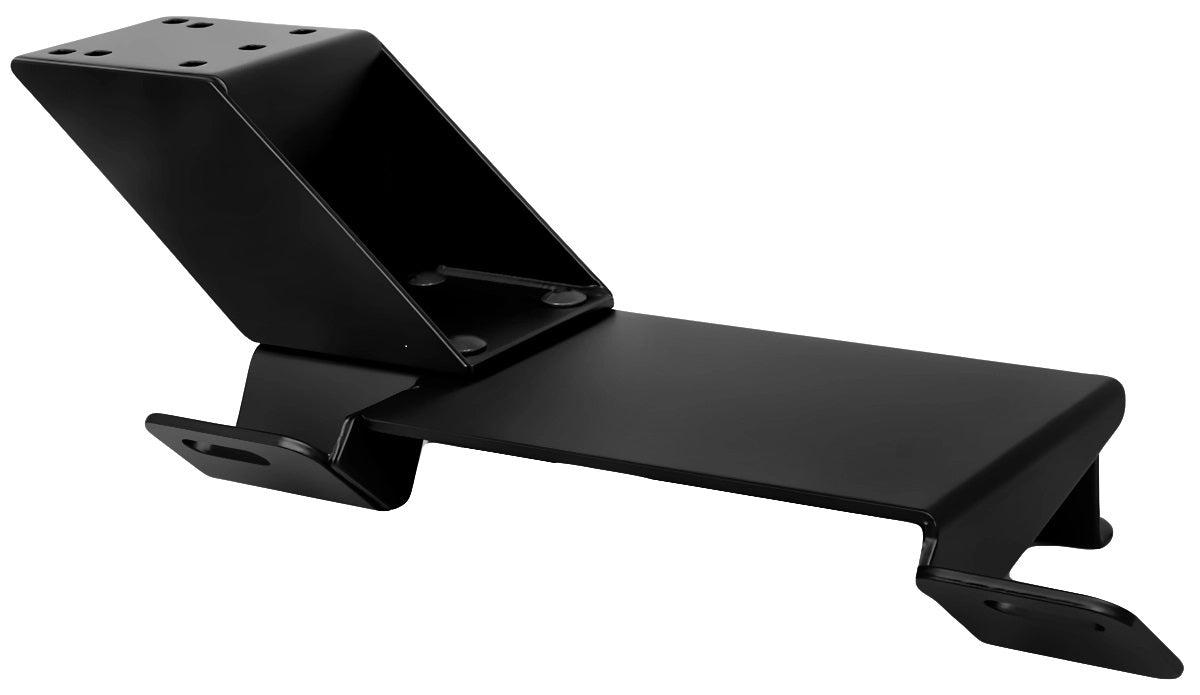

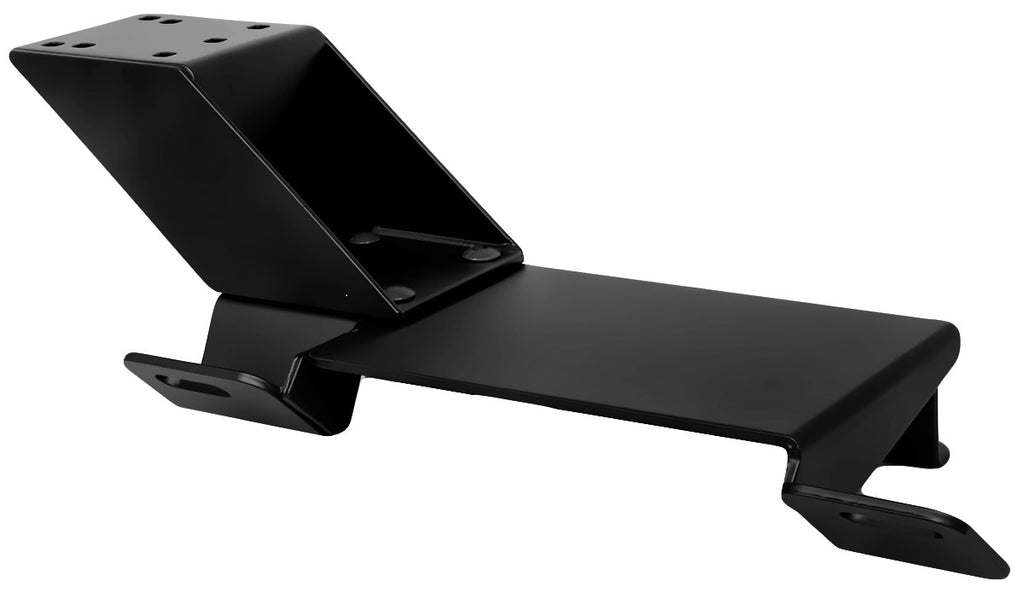

  • Heavy-duty steel mounting base custom designed to fit the Ford vehicles listed below perfectly - Installs quickly and easily - Uses the passenger side seat rail bolts as attachment points and existing hardware to secure the laptop mount base in the vehicle*
  • 9" tall female(lower) Tele-Pole with a 3.5" x 3.5" square plate base with 8" upper male Tele-Pole

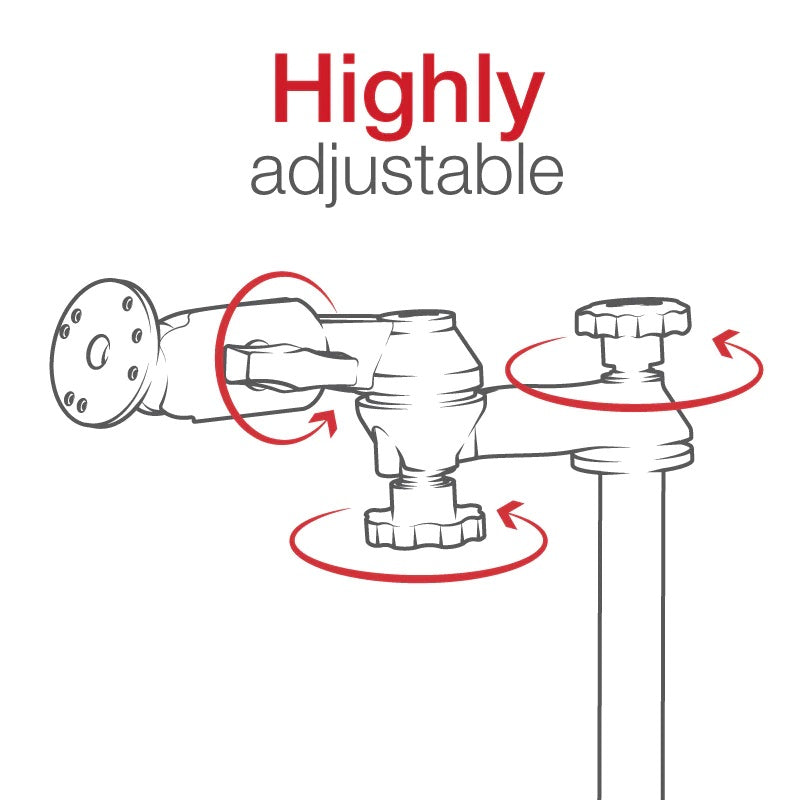

  • Height of the Tele-Poles combined can easily be adjusted by turning the knob at the top of the post - Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles

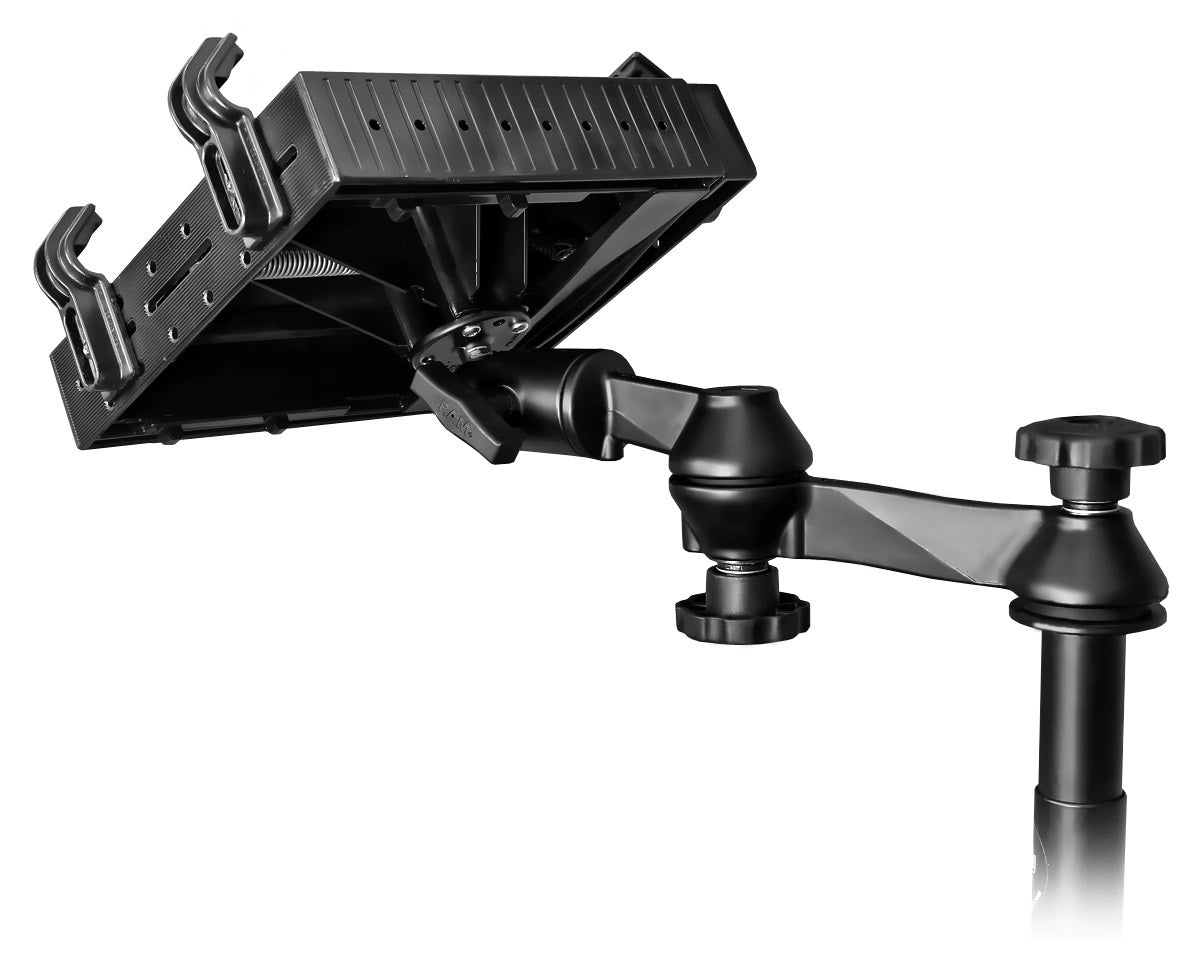

  • Double swing arm with each section measuring 6” long. Overall length: 12" - The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
  • 2.5" round AMPS base with 1.5” ball – Connects mount to laptop base

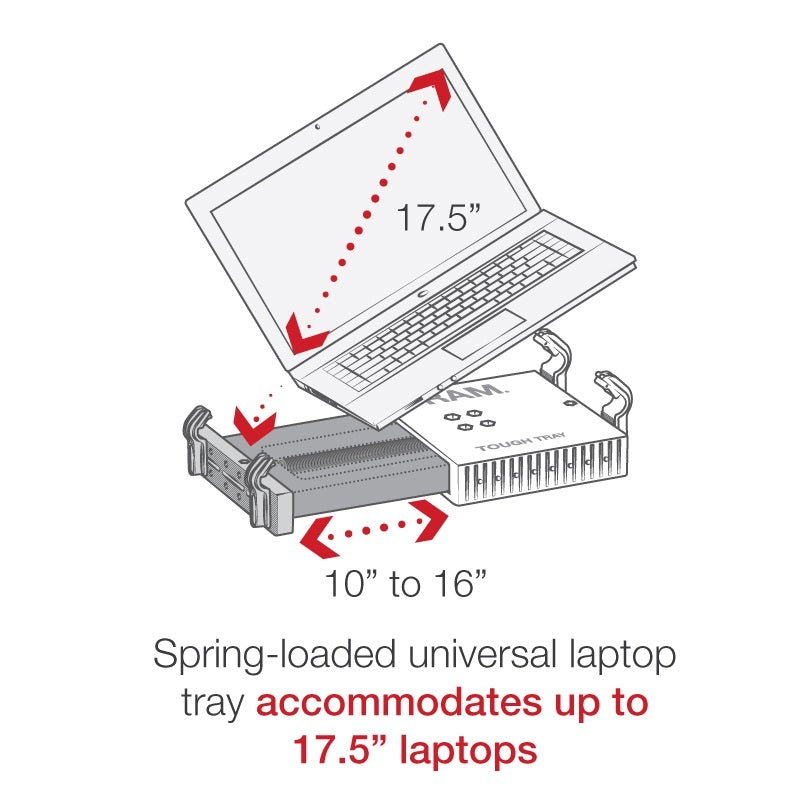

  • Spring loaded expandable laptop tray fits 10 to 16 inch wide laptops and 17 inch screens
  • Includes 4 side clamping fingers with rubber inserts to protect the laptop and adjust vertically and horizontally for varying thicknesses of laptops and to keep ports and drives free
  • Side hole patterns allows additional RAM systems to be attached to the Tough-Tray for mounting your smartphone, GPS, other electronics, etc.
  • Constructed heavy-duty powder coated steel, marine grade-aluminum and high strength composite
  • Weight: 19 lbs
  • Made in the USA

Tough Tray Dimensions:
Width Range: 10" - 16"

  • Side Arm Clamp Height: .5" - 1.75"
  • Tray Depth: 10"
  • Tray Thickness: 2.125"

Device Compatibly:

  • 10" to 16" Wide Laptops & (17" Wide Screens)


Included Hardware:

  • (2) 1" Stand-Offs
  • (2) 1.25" Fender Washers
  • (2) 3/8"-16 x 2" Hex Bolts

Compatible Vehicles:


  • Expedition (1997-2017)
  • F-150 (1997-2003)
  • F-150 Heritage (2004)
  • F-250 Light Duty (1997-2004)
  • Windstar (2004-2007)

* Seat Bolt Distance: 12.75" center to center

Brand: RAM Mounts
Part number: RAM-VB-110-SW1
Warranty: Manufacturer's lifetime warranty
