Description
Features:

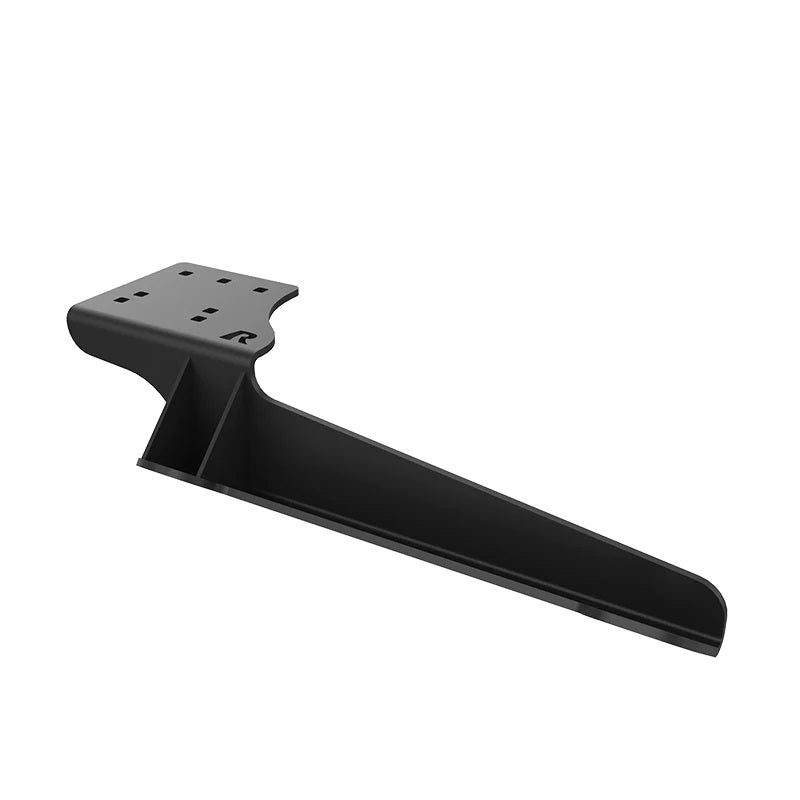

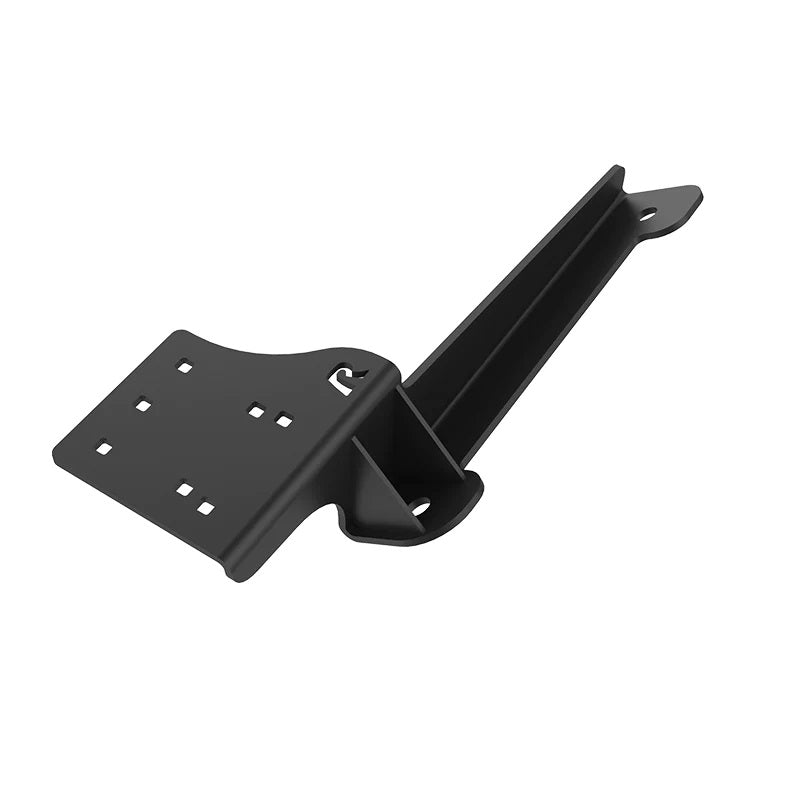

- No-Drill mounting base custom designed to fit the Ford vehicles listed below perfectly

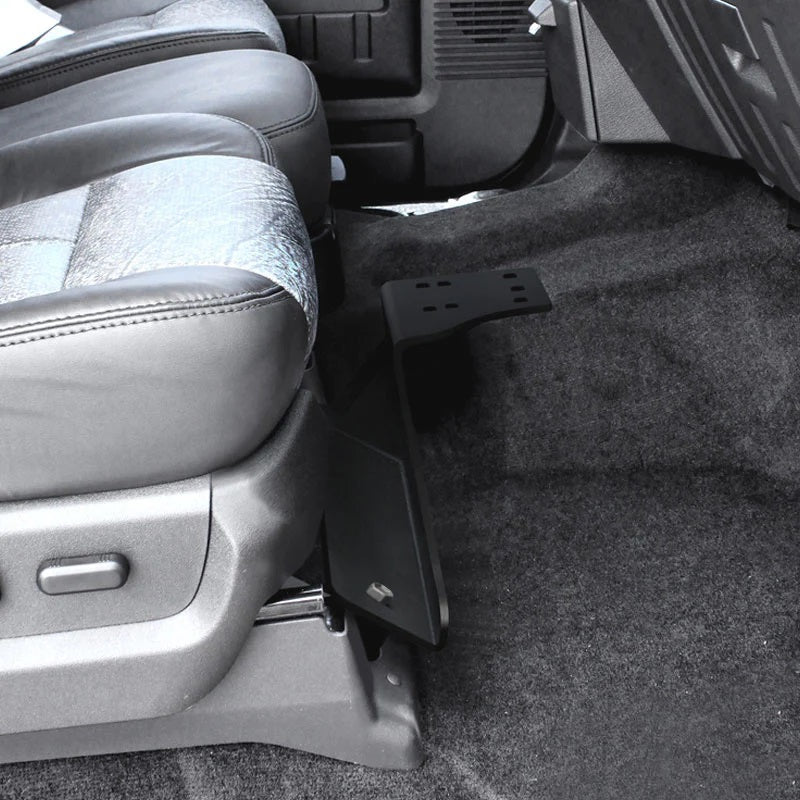

- Installs in minutes with no drilling required on passenger side floor, in front seat using existing seat bolts
- Low profile keeps mount away from passenger leg space
- 9" tall female(lower) Tele-Pole with a 3.5" x 3.5" square plate base with 8" upper male Tele-Pole providing a telescoping feature that ranges from 12 to 18 inches
- Height of the Tele-Poles combined can easily be adjusted by turning the knob at the top of the post - Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles

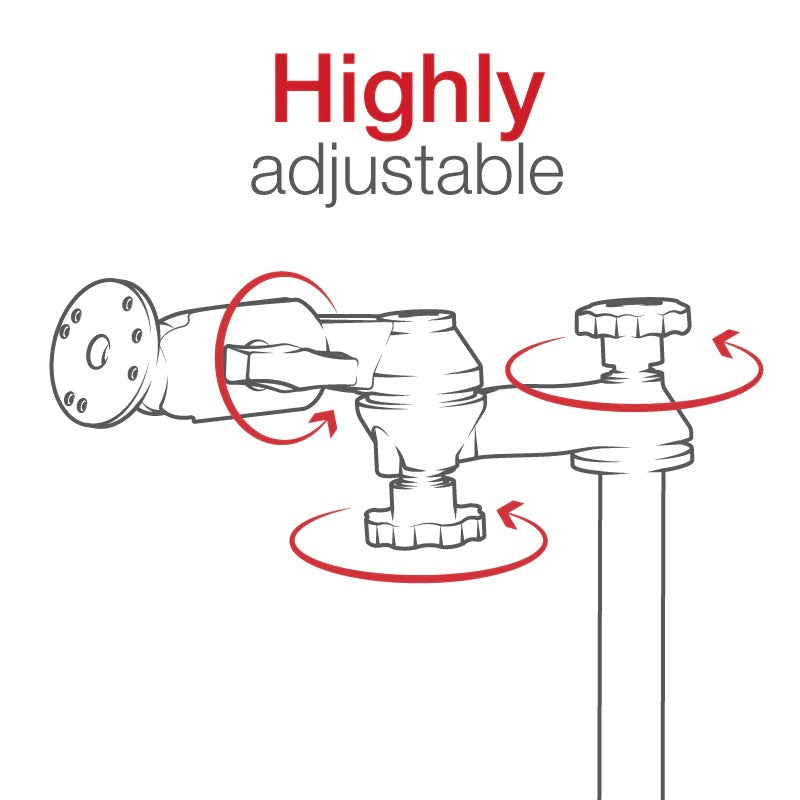

- Double swing arm with each section measuring 6” long. Overall length: 12" - The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
- 2.5" round AMPS base with 1.5” ball – Connects mount to laptop base

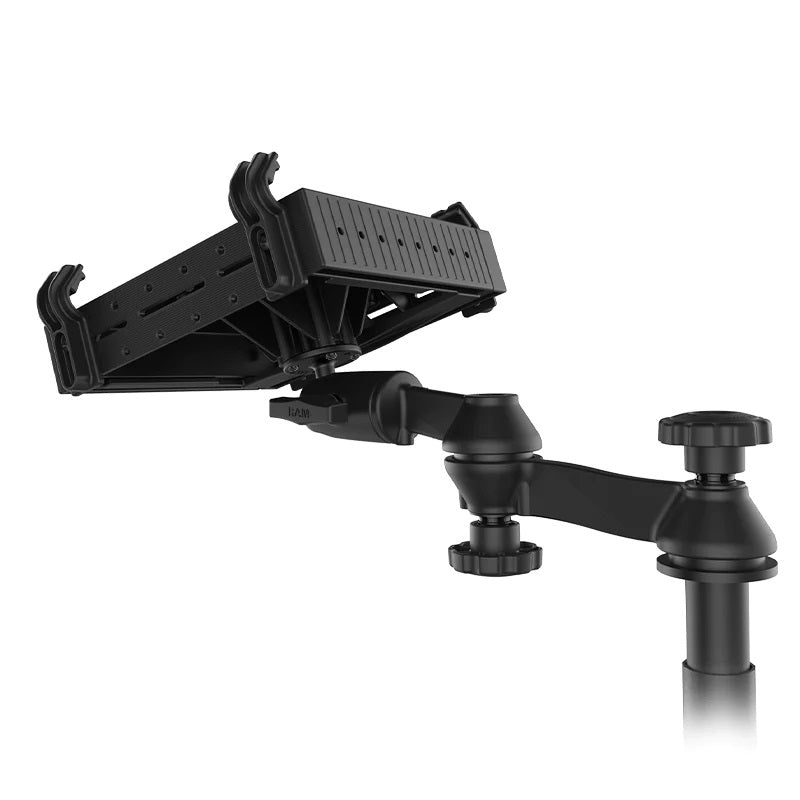

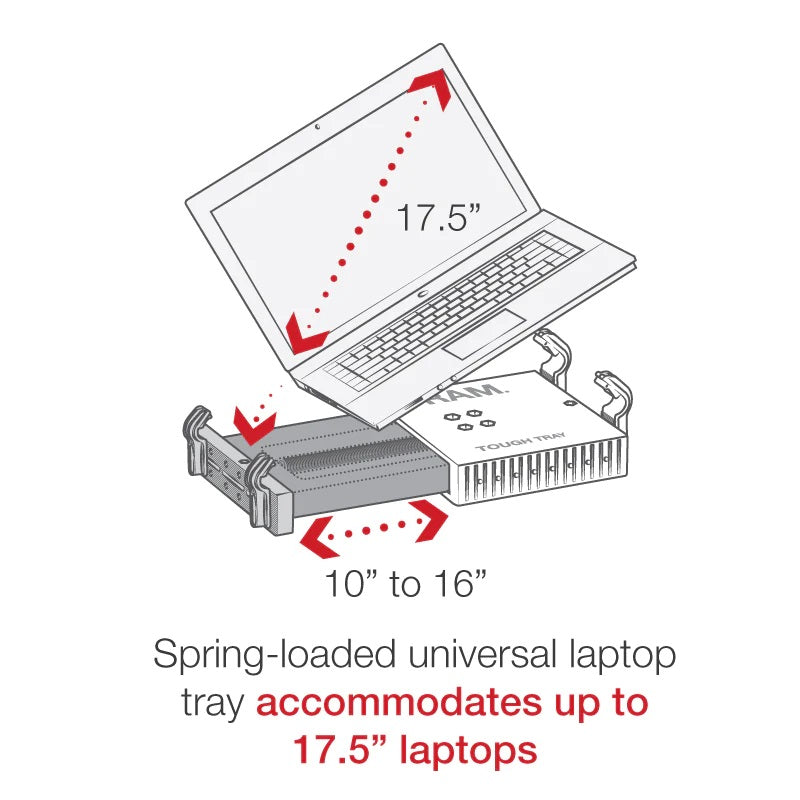

- Spring loaded expandable laptop tray fits 10 to 16 inch wide laptops and 17 inch screens
- Includes 4 side clamping fingers with rubber inserts to protect the laptop and adjust vertically and horizontally for varying thicknesses of laptops and to keep ports and drives free
- Side hole patterns allows additional RAM systems to be attached to the Tough-Tray for mounting your smartphone, GPS, other electronics, etc.
- Constructed of powder coated steel, marine grade-aluminum and high strength composite
- Weight: 17 lbs.
- Made in the USA
Included Hardware:
- (2) M12-1.75 x 100mm Hex Bolts
- (2) M12-1.75 x 60mm Hex Bolts
- (2) M12 Lock Washers
- (2) 3/8" Stand-Offs
- (2) 1" Stand-Offs
- Laptop Holder assembly hardware
Seat Bolt Distance: 11.5" center to center
Compatible Vehicles:
Ford
- F-250 (1999-2016)
- F-350 (1999-2016)
- F-450 (1999-2016)
- F-550 (1999-2016)
- F-650 (1999-2019, 2021)
- F-750 (1999-2019, 2021)
- Excursion (2000-2005)
Brand: RAM Mounts
Part number: RAM-VB-185-SW1
Warranty: Manufacturer's lifetime warranty
