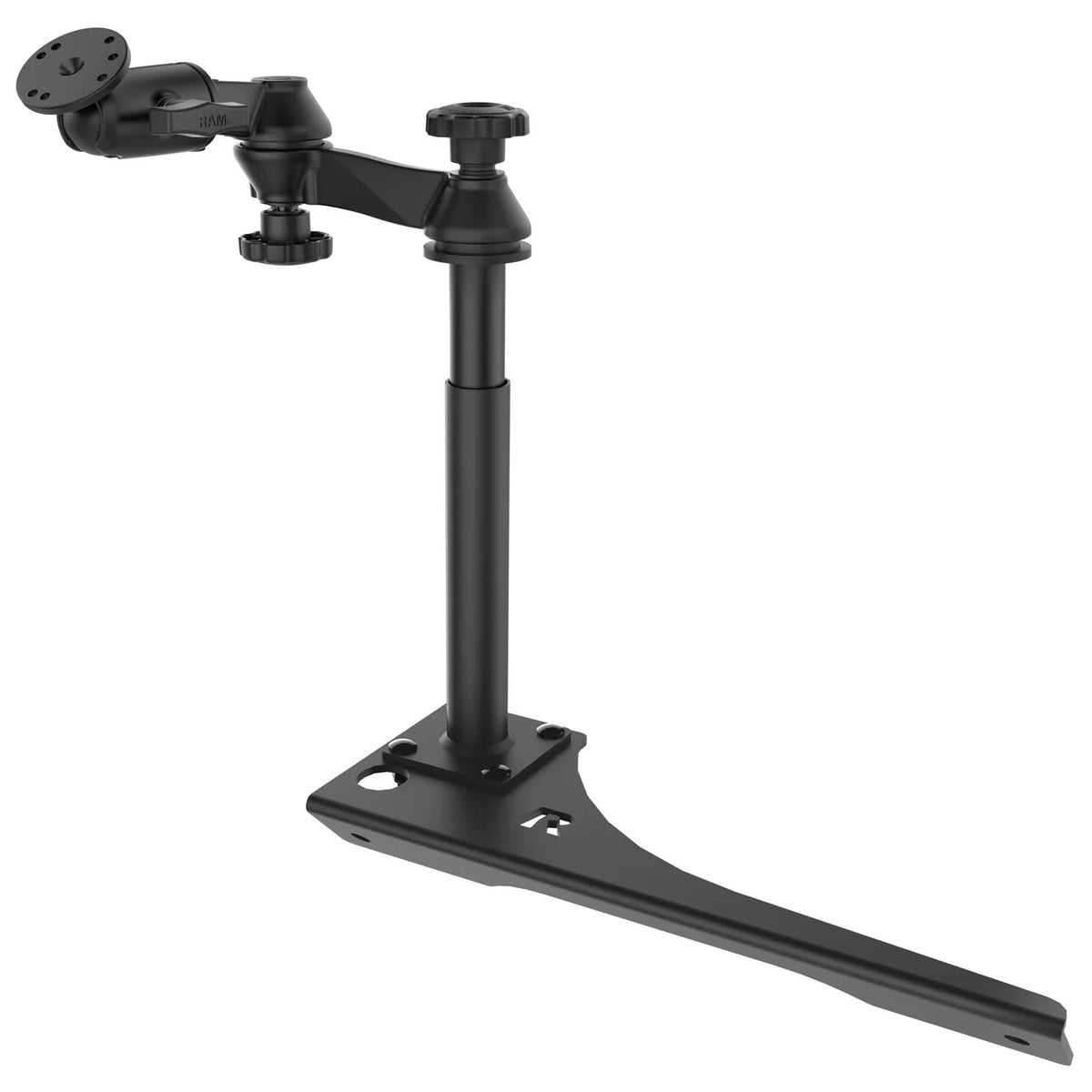

The RAM® No-Drill™ Vehicle Mount for the 2019–2026 Ram 1500 provides a rugged, adjustable mounting platform for adding a compatible laptop or tablet holder to the vehicle. Designed specifically for 5th Generation Ram 1500 pickup trucks, the system installs using the existing passenger-side seat rail mounting points without requiring drilling.

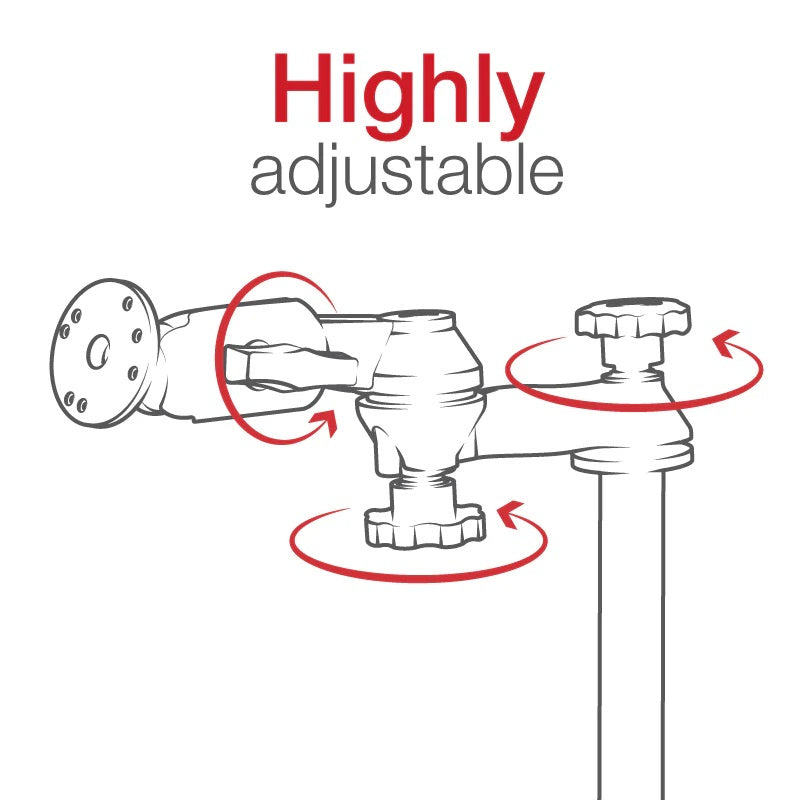

A telescoping pole provides height adjustment from 12" to 18", while dual articulating swing arms provide up to 12" of reach for convenient driver or passenger access. The mounting system terminates in a RAM® C Size 1.5" ball, allowing compatible RAM® laptop and tablet holders to be added as needed.
Key Features
-
Vehicle-specific RAM® No-Drill™ mounting system for 2019–2026 Ram 1500 pickup trucks
-
Installs using existing passenger-side seat rail hardware with no drilling required
-

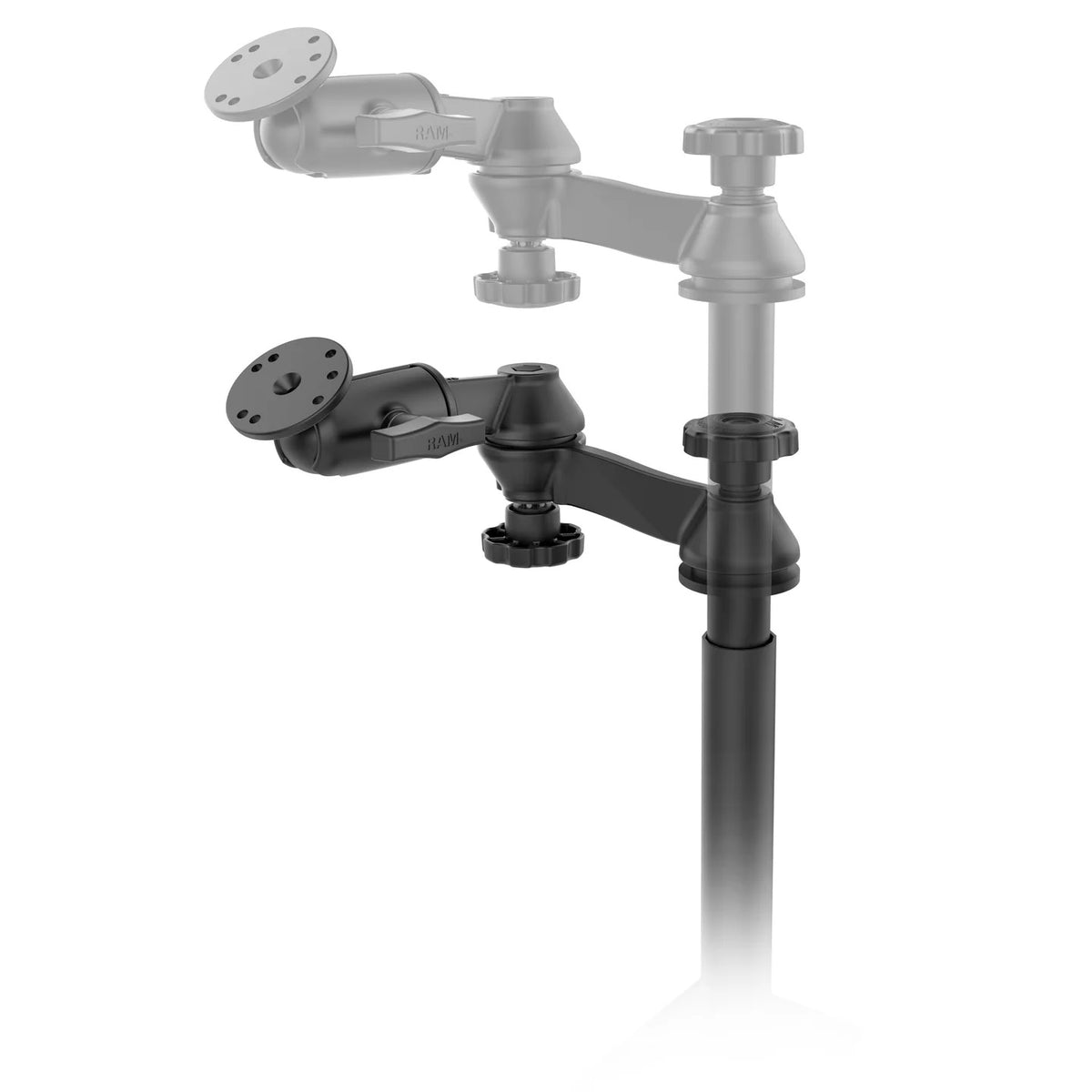

Telescoping pole adjusts from 12" to 18" in height
-

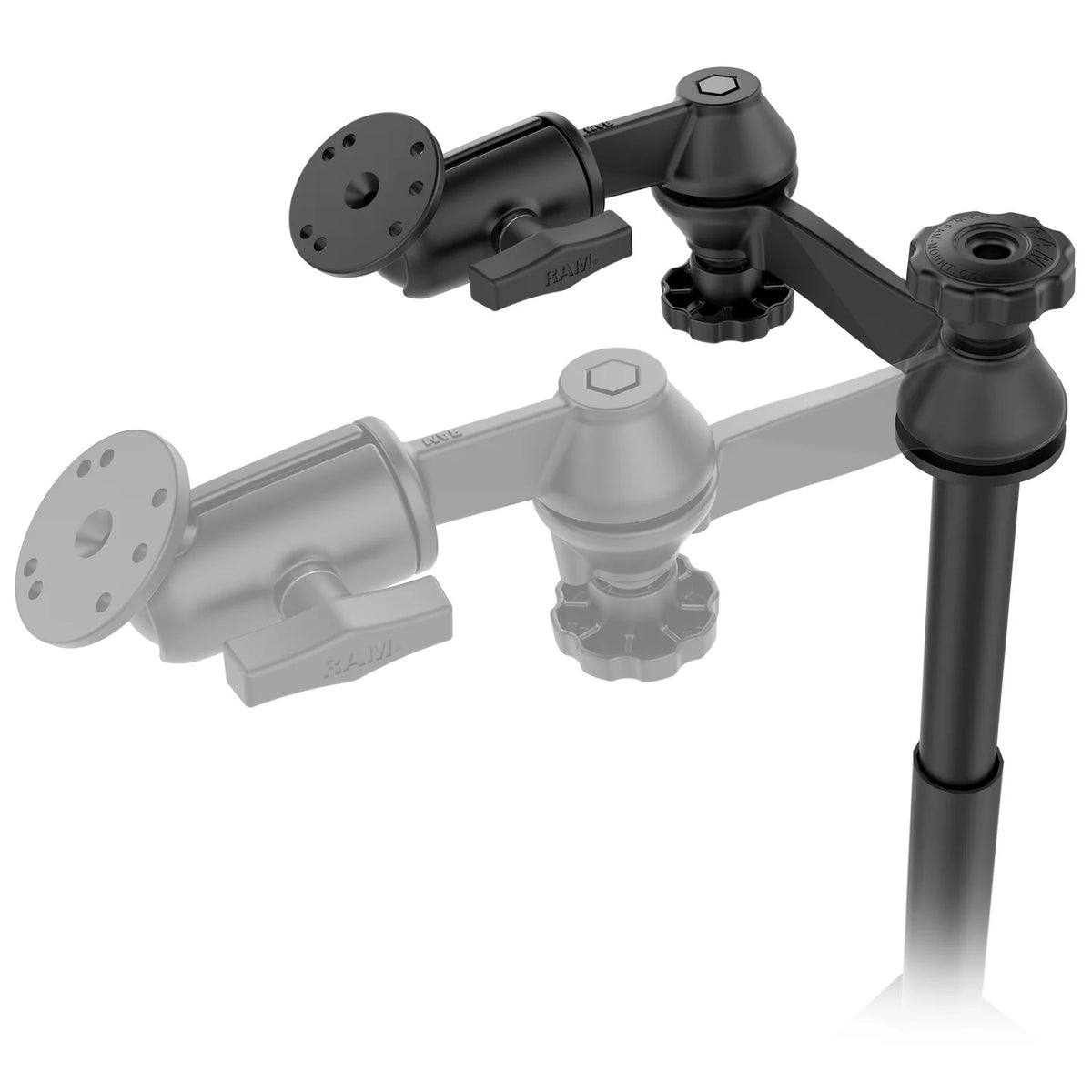

Dual articulating swing arms provide up to 12" of reach
-
C Size 1.5" RAM® ball provides an adjustable connection point for compatible holders
-
RAM® ball-and-socket design helps provide positioning flexibility and shock and vibration isolation
-
Constructed from powder-coated steel and marine-grade aluminum
-
Backed by RAM Mounts' lifetime warranty
Use Cases & Compatibility
Designed for 5th Generation 2019–2026 Ram 1500 pickup trucks.
The mounting platform can be paired with compatible RAM® laptop or tablet holders, making it well suited for fleet vehicles, service trucks, field-service applications, mobile workstations, and other in-vehicle computing installations.
Important: This mount is not compatible with Ram 1500 Classic models. RAM Mounts specifies RAM-VB-178A-SW2 for applicable Classic vehicles.
Specifications
-
Vehicle compatibility: 2019–2026 Ram 1500, 5th Generation
-
Ball size: C Size, 1.5"
-
Telescoping range: 12"–18"
-
Swing-arm reach: 12"
-
Seat bolt distance: 15.125" center to center
-
Plate size: 2.5" diameter
-
Hole patterns: 4-Hole AMPS, 1.181" x 1.496"; 3-Hole 120-degree, 1.812" diameter
-
Weight capacity: 4 lb standard use; 3 lb heavy-duty use
-
Materials: Powder-coated steel and marine-grade aluminum
-
Product weight: 12.0 lb
-
Packaging: Box
What’s Included
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-VB-186ST1-SW2
Warranty: Lifetime
Gadget Mounts is an authorized RAM Mounts dealer.
