Description

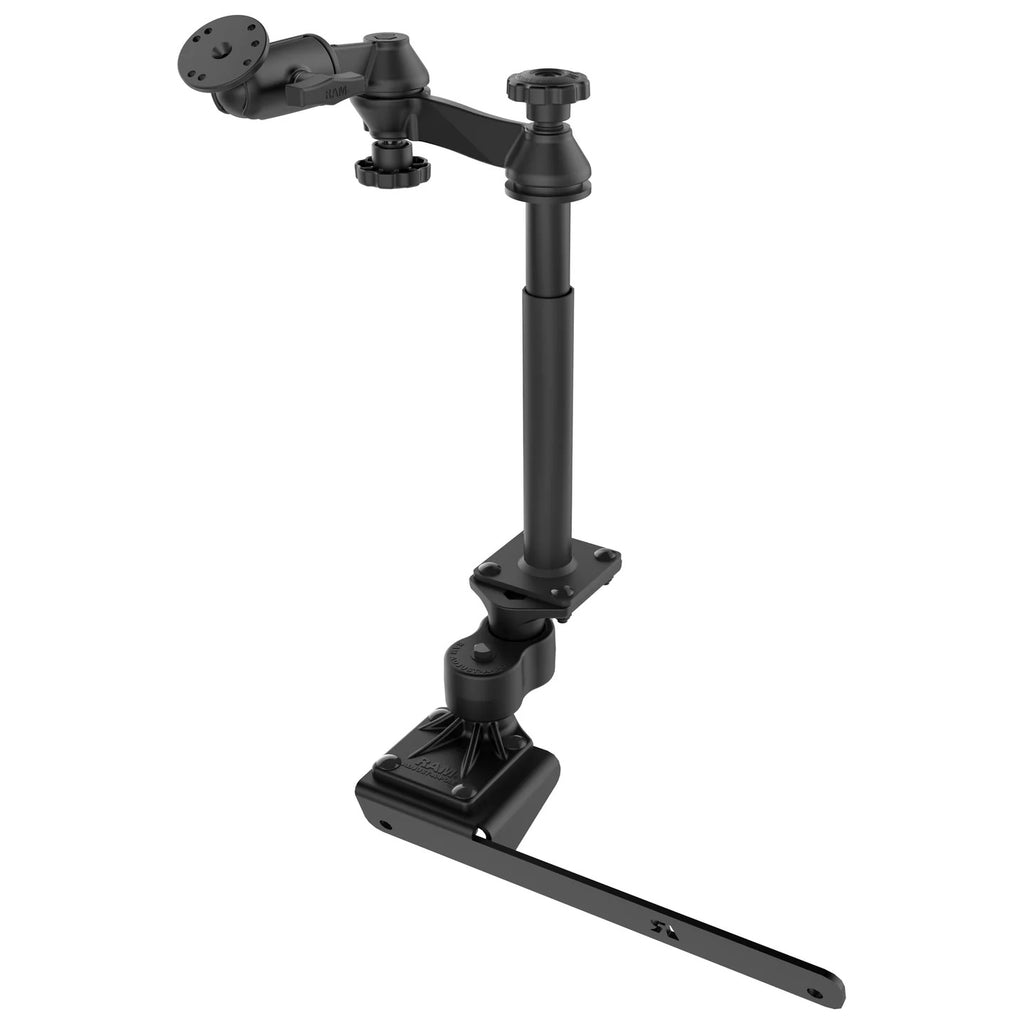

The RAM® No-Drill™ Telescoping Vehicle Mount for Ram Trucks is a rugged, professional-grade mounting solution designed specifically for 2012–2026 Ram 1500, 2500, 3500, 4500, and 5500 models. This no-drill system installs in minutes using existing passenger-side seat bolts—no permanent vehicle modifications required.
Built for demanding work environments, this mount features dual swing arms, a 12”–18” adjustable Tele-Pole, and RAM® ball-and-socket technology to securely support tablets, laptops, and other electronic devices while minimizing vibration and shock. Ideal for fleets, work trucks, service vehicles, and overland builds.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by a manufacturer lifetime warranty.
Key Features
-
Custom no-drill mounting solution for Ram trucks (2012–2026)
-
Attaches to passenger-side seat rails using factory hardware
-

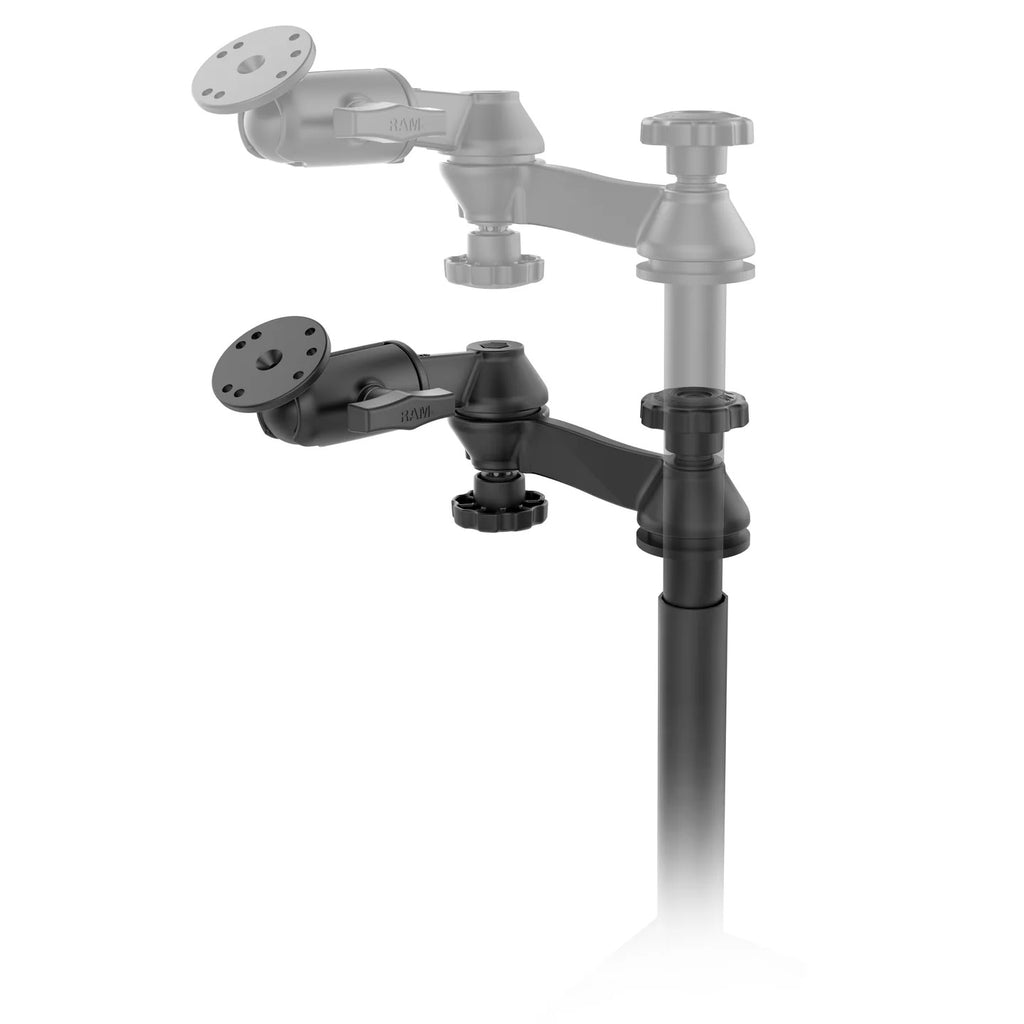

Telescoping Tele-Pole system adjusts from 12” to 18”
-
Knob-tightened pole locks solidly in place for maximum stability
-

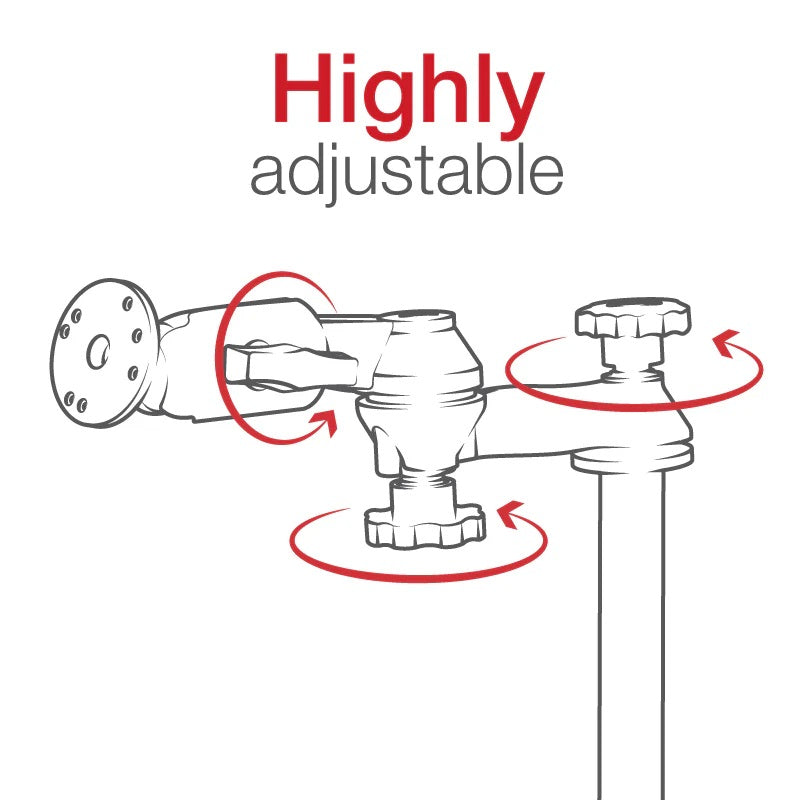

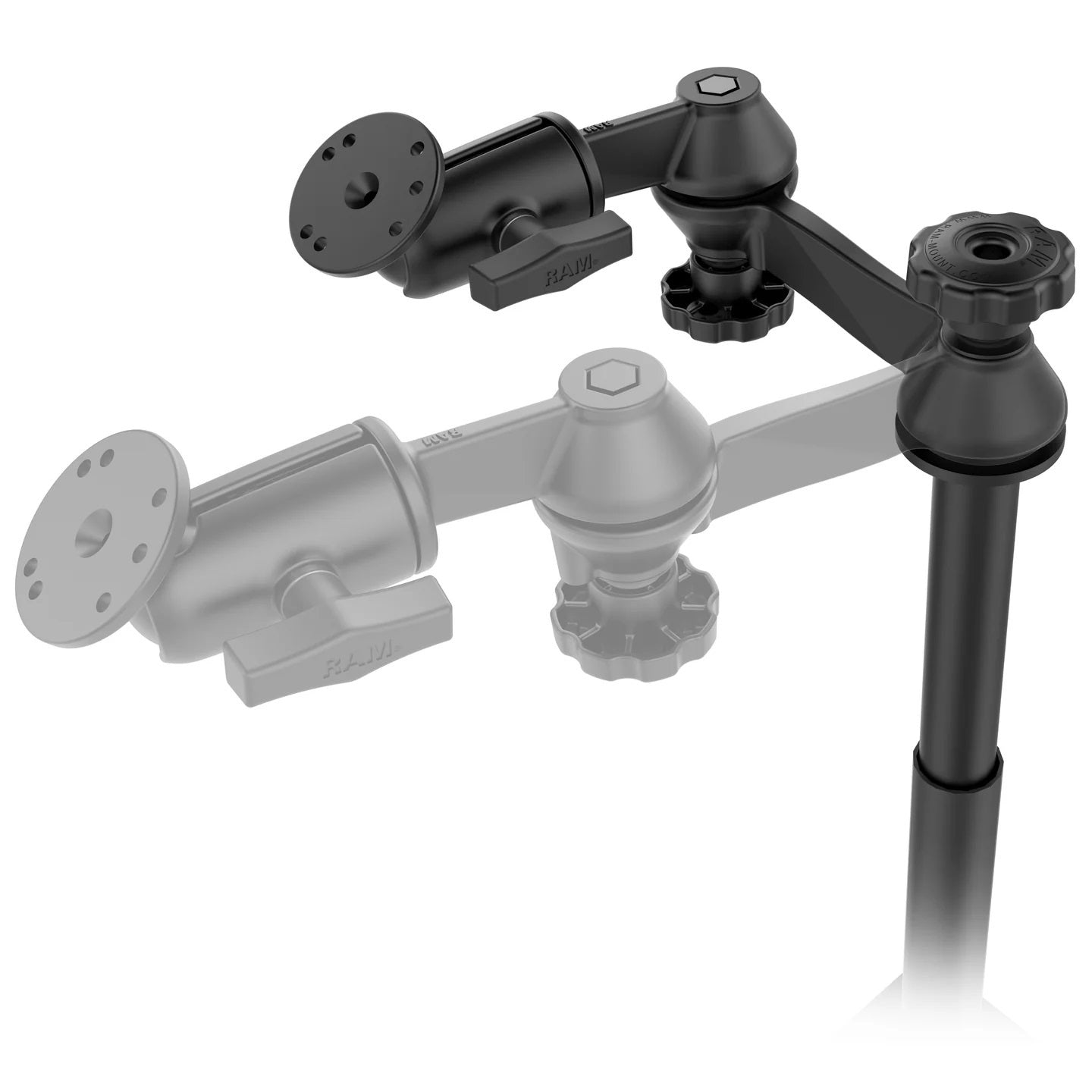

Dual 6” swing arms provide 12” of total reach and flexible positioning
-
1.5” RAM rubber ball offers shock and vibration dampening
-
Supports a wide range of RAM tablet and laptop cradles
-
Low-profile base preserves passenger legroom
-
Does not interfere with factory console, PTO, or 4WD lever
-
Made from powder-coated steel and marine-grade aluminum
-
Made in the USA
Compatibility
Compatible Vehicles
-
RAM 1500 (2012–2018)
-
RAM 1500 Classic (2019–2024)
-
RAM 2500–5500 (2012–2025)
Technical Specifications
-
Tele-Pole Height Range: 12”–18”
-
Lower Pole: 9” female
-
Upper Pole: 8” male
-
Swing Arms: (2) x 6” sections
-
Overall Swing Arm Length: 12”
-
Ball Size: 1.5” (Size B)
-
Base Plate Size: 3.5” x 3.5”
-
AMPS Plate: 2.5” round
-
Weight Capacity:
-
Standard Use: 4 lbs
-
Heavy-Duty Use: 3 lbs
-
-
Seat Bolt Distance: 13.25” center-to-center
-
Product Weight: 13.0 lbs
Hole Pattern
-
4-Hole AMPS: 1.181” x 1.496”
-
3-Hole 120-Degree: 1.812” diameter
Included Hardware
-
Assembly hardware
-
(2) M8-1.25 x 60mm hex bolts
-
(2) ¾” stand-offs
-
(2) 5/16” flat washers
Additional Information
The low-profile floor base is engineered to minimize intrusion into the passenger footwell while maintaining exceptional stability. This mount is also compatible with Ram trucks equipped with power take-off (PTO) systems.
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-VB-178A-SW2
-
Warranty: Manufacturer’s lifetime warranty
