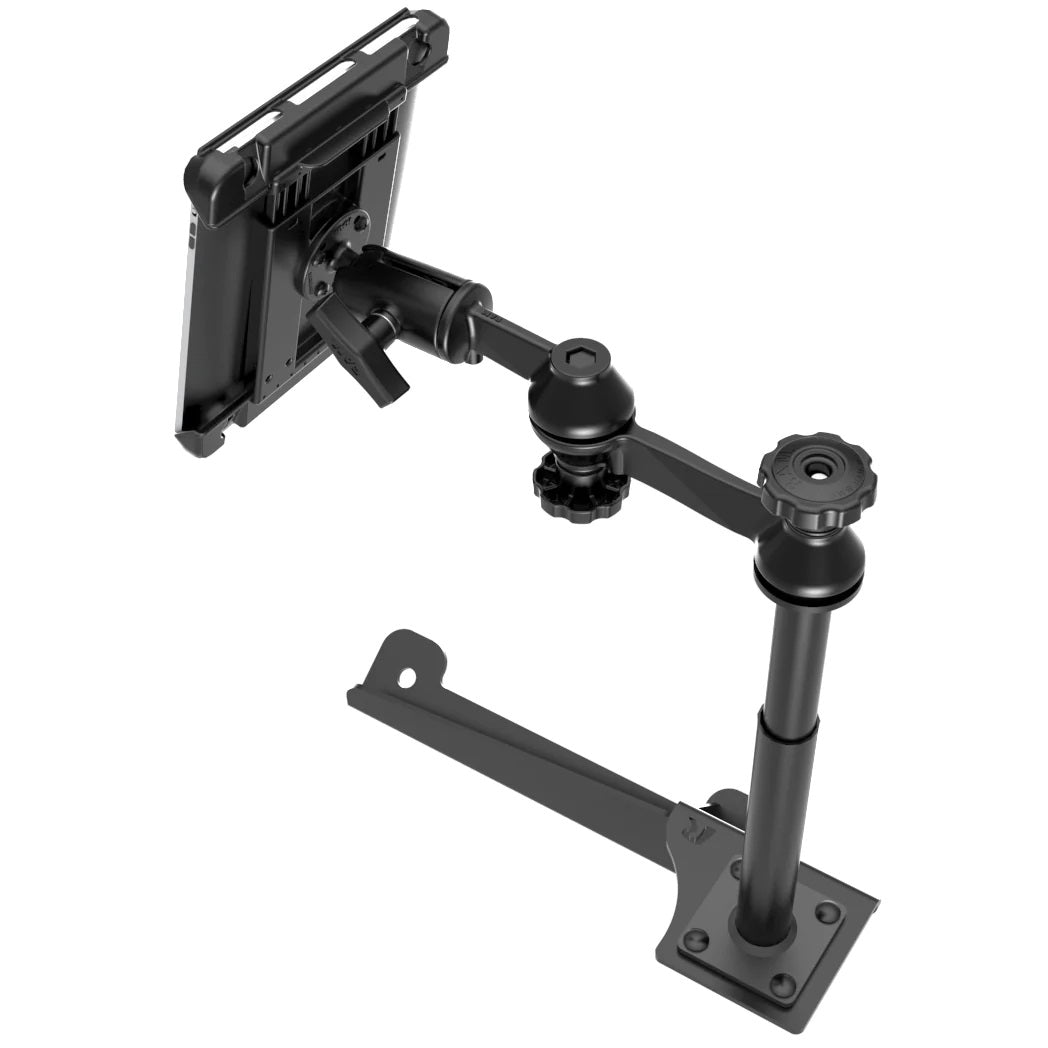

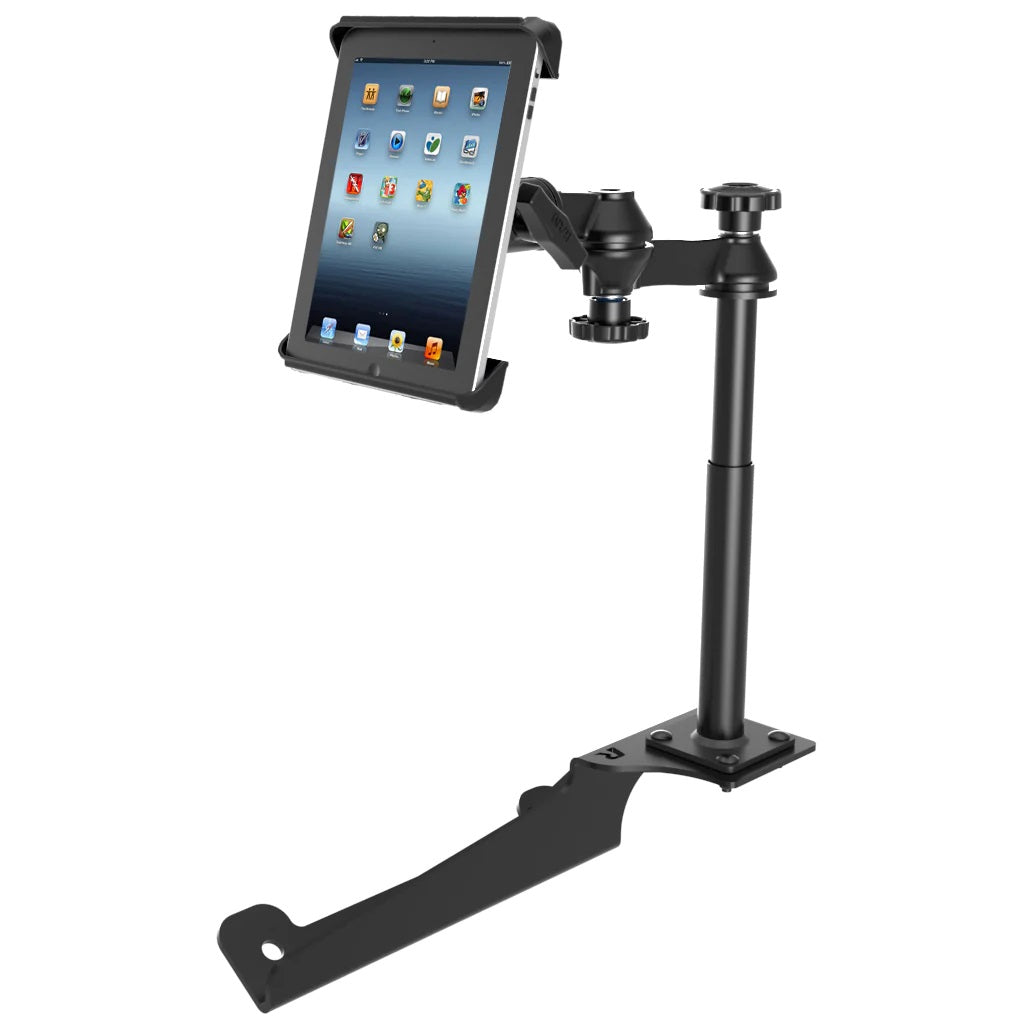

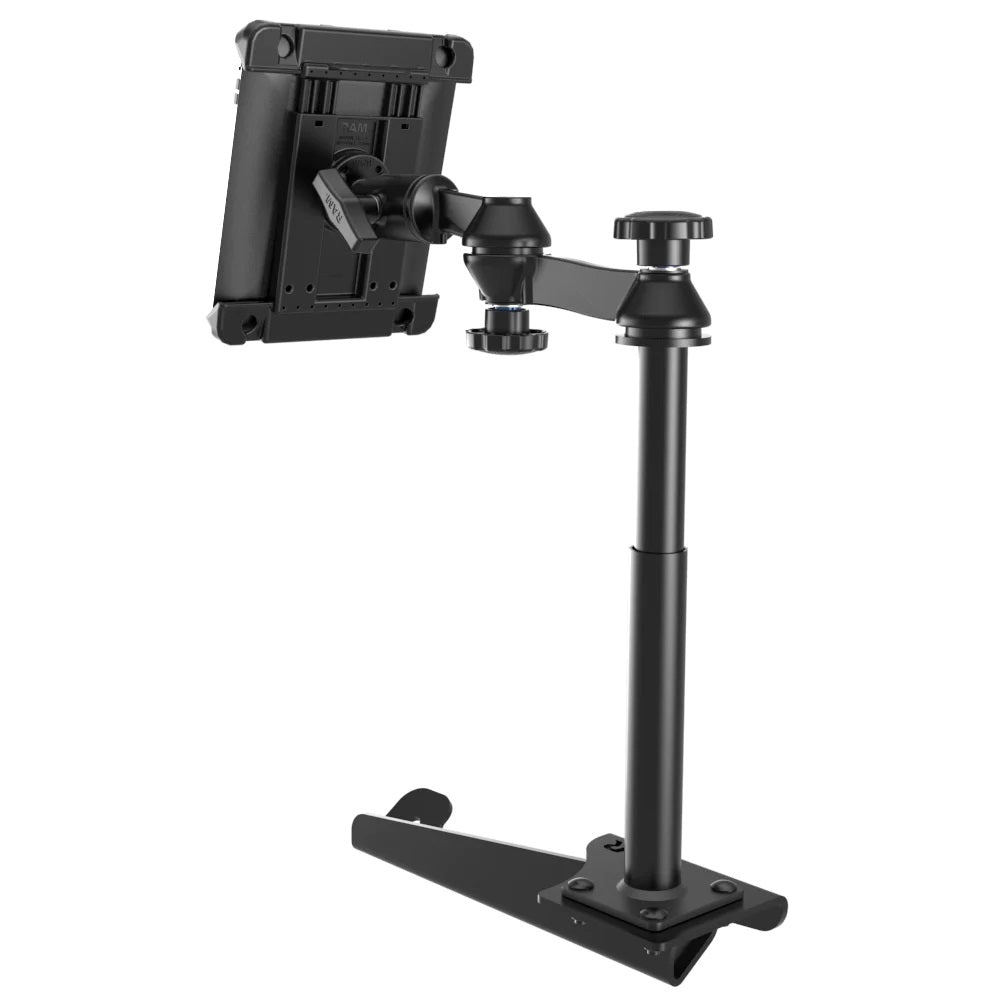

The RAM-VB-185-TAB3 is a RAM® No-Drill™ vehicle tablet mount designed for select Ford Super Duty, medium-duty truck, and Excursion models. This complete mounting kit includes a vehicle-specific No-Drill™ base, telescoping pole system, dual swing arms, and a spring-loaded RAM® Tab-Tite™ cradle for compatible iPad and tablet models.

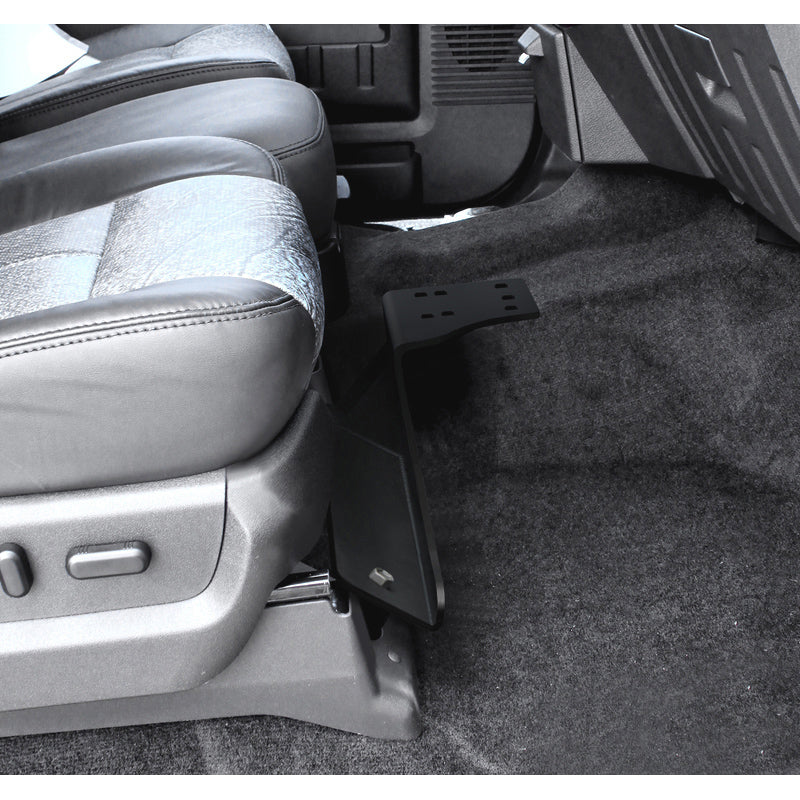

The No-Drill™ base installs using the existing passenger-side seat rail hardware, helping provide a secure mounting platform without drilling into the vehicle. The telescoping pole allows height adjustment, while the dual swing arms provide positioning flexibility and up to 12 inches of reach for driver or passenger access.
The included Tab-Tite™ cradle allows the tablet to be easily loaded and removed while helping keep it secure during vehicle use. Tablet compatibility should be confirmed using the Compatible Devices tab for the included Tab-Tite™ holder.
Key Features
• No-Drill™ vehicle base installs using existing passenger-side seat rail hardware
• Designed for select Ford F-250, F-350, F-450, F-550, F-650, F-750, and Excursion models
• Telescoping pole system allows adjustable mounting height

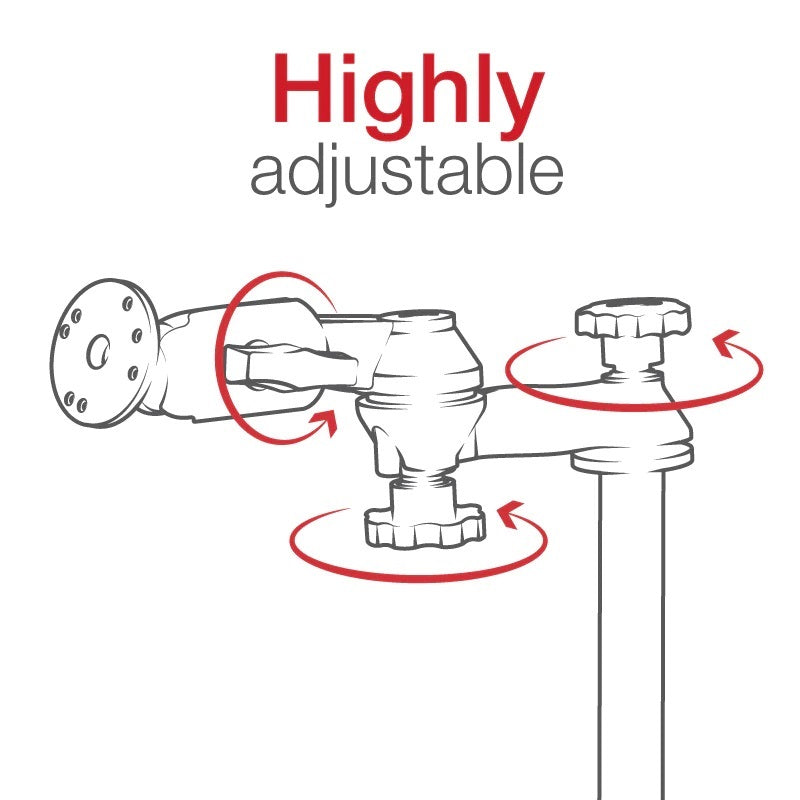

• Dual swing arms provide articulation and up to 12 inches of reach
• Includes spring-loaded RAM® Tab-Tite™ cradle for compatible iPad and tablet models
• RAM® rubber ball and socket system helps reduce shock and vibration
• Heavy-duty construction with powder-coated steel, marine-grade aluminum, and high-strength composite components
Use Cases & Compatibility
This RAM® No-Drill™ iPad and tablet mount is a good fit for work trucks, fleet vehicles, service trucks, utility vehicles, public safety vehicles, and commercial Ford truck applications where a secure in-vehicle tablet mounting solution is needed.
Vehicle compatibility is listed below in the Compatible Vehicles section below. Tablet compatibility should be confirmed using the Compatible Devices tab for the included Tab-Tite™ holder.
Compatible Vehicles
Ford
- F-250: 1999-2016
- F-350: 1999-2016
- F-450: 1999-2016
- F-550: 1999-2016
- F-650: 1999-2025
- F-750: 1999-2025
- Excursion: 2000-2005
Specifications
Product Type: No-Drill vehicle tablet mount
Material: Powder-coated steel, marine-grade aluminum, high-strength composite
Ball Size: C Size, 1.5" rubber ball
Weight Capacity: Not specified by manufacturer
Mount Type: Vehicle No-Drill seat rail mount with telescoping pole and dual swing arms
Vehicle Base: No-Drill passenger-side seat rail base
Device Holder: RAM® Tab-Tite™ spring-loaded tablet cradle
Tablet Size Range: Height 8.5"–11.125", width 6.38"–7.75", depth 0.13"–0.56"
Seat Bolt Distance: 11.5" center to center
Product Weight: 13.35 lb
Installation Tools Required: Ratchet wrench, 19mm socket with universal joint extension, 13/16" socket for seat leg bolt removal
What’s Included
• RAM® No-Drill™ vehicle base
• Telescoping pole assembly
• Dual swing arm assembly
• RAM® Tab-Tite™ tablet cradle
• Assembly hardware
• Two M12-1.75 x 100mm hex bolts
• Two M12-1.75 x 60mm hex bolts
• Two M12 lock washers
• Two 3/8" stand-offs
• Two 1" stand-offs
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-VB-185-TAB3
Warranty: Manufacturer’s lifetime warranty
