Description
Features:

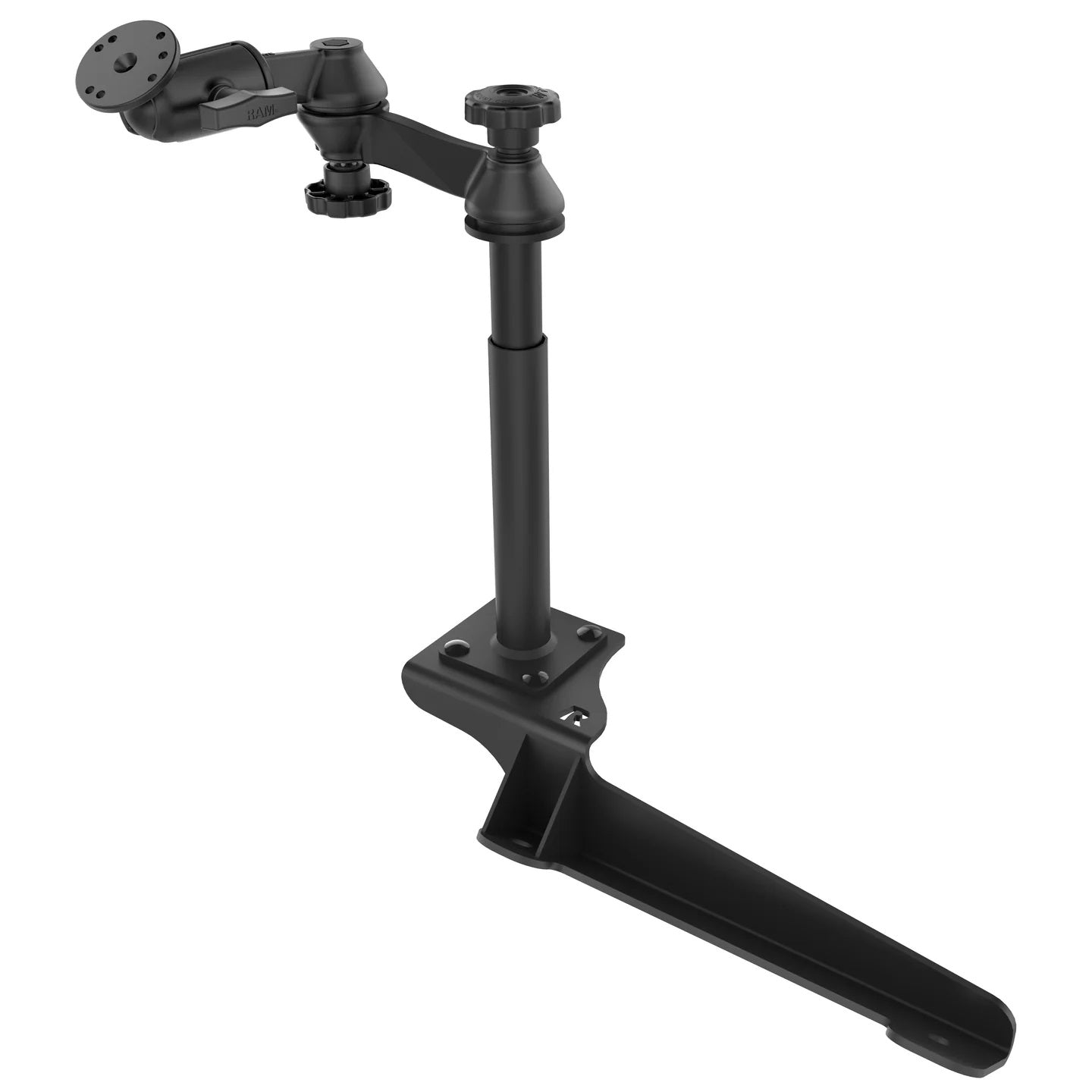

- No-Drill mounting base custom designed to fit the Ford vehicles listed below perfectly

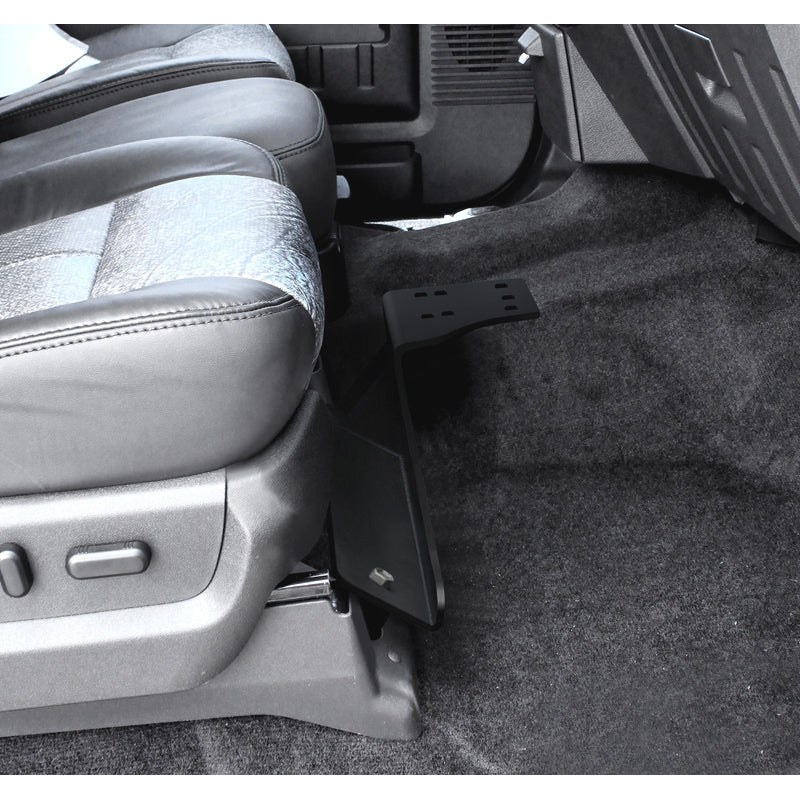

- Installs in minutes with no drilling required on passenger side floor, in front seat using existing seat bolts
- Low profile keeps mount away from passenger leg space

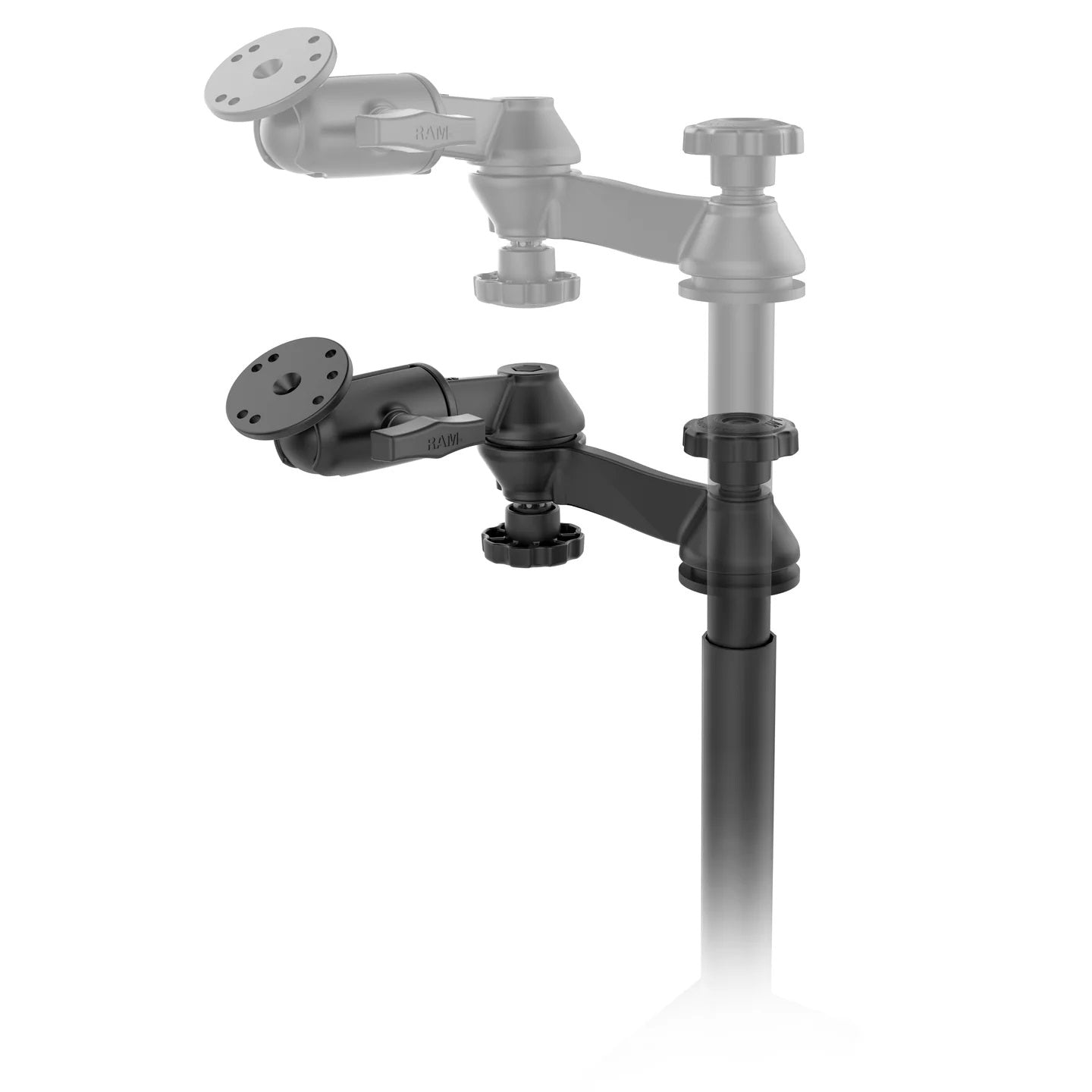

- 9" tall female(lower) Tele-Pole with a 3.5" x 3.5" square plate base with 8" upper male Tele-Pole providing a telescoping feature that ranges from 12 to 18 inches
- Height of the Tele-Poles combined can easily be adjusted by turning the knob at the top of the post - Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles

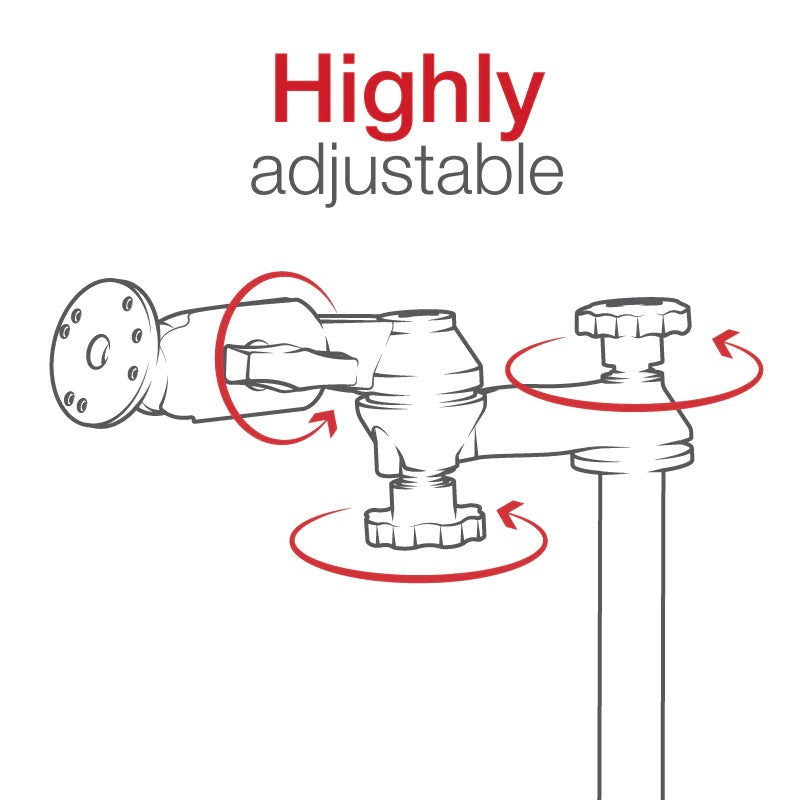

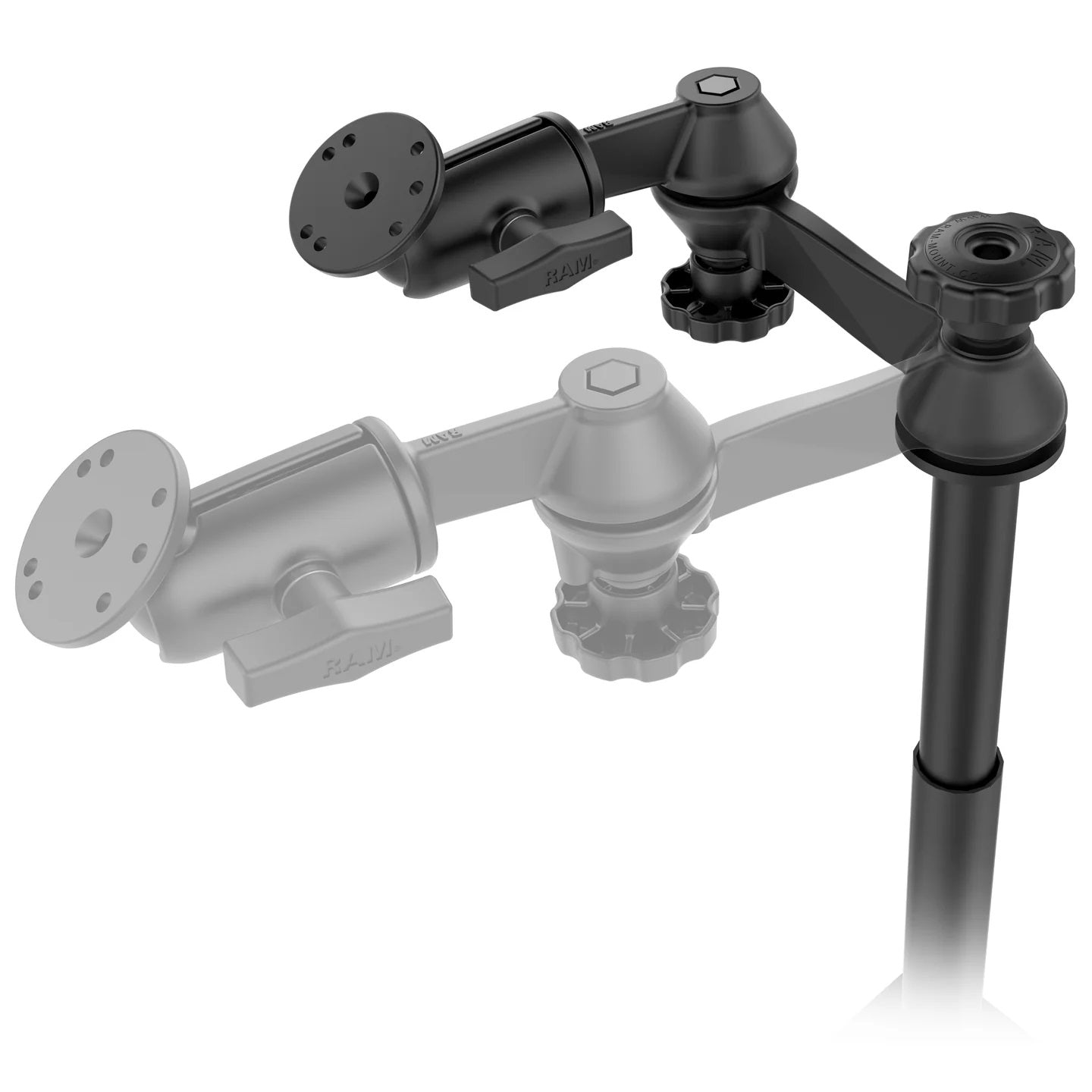

- Double swing arm with each section measuring 6” long. Overall length: 12" - The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
- 2.5" round AMPS base* with 1.5” ball – compatible with a variety of tablet and laptop holders
- Constructed of powder coated steel, marine grade-aluminum and high strength composite
- Weight: 15 lbs.
- Made in the USA
Seat Bolt Distance: 11.5" center to center
Assembly Hardware Included:
- (2) M12-1.75 x 100mm Hex Bolts
- (2) M12-1.75 x 60mm Hex Bolts
- (2) M12 Lock Washers
- (2) 3/8" Stand-Offs
- (2) 1" Stand-Offs
* Hole Patterns: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Compatible Vehicles:
Ford
- F-250 (1999-2016)
- F-350 (1999-2016)
- F-450 (1999-2016)
- F-550 (1999-2016)
- F-650 (1999-2019, 2021)
- F-750 (1999-2019, 2021)
- Excursion (2000-2005)
Brand: RAM Mounts
Part number: RAM-VB-185-SW2
Warranty: Manufacturer's lifetime warranty
