RAM No-Drill Vehicle Mount with X-Grip Holder for 12" Tablets

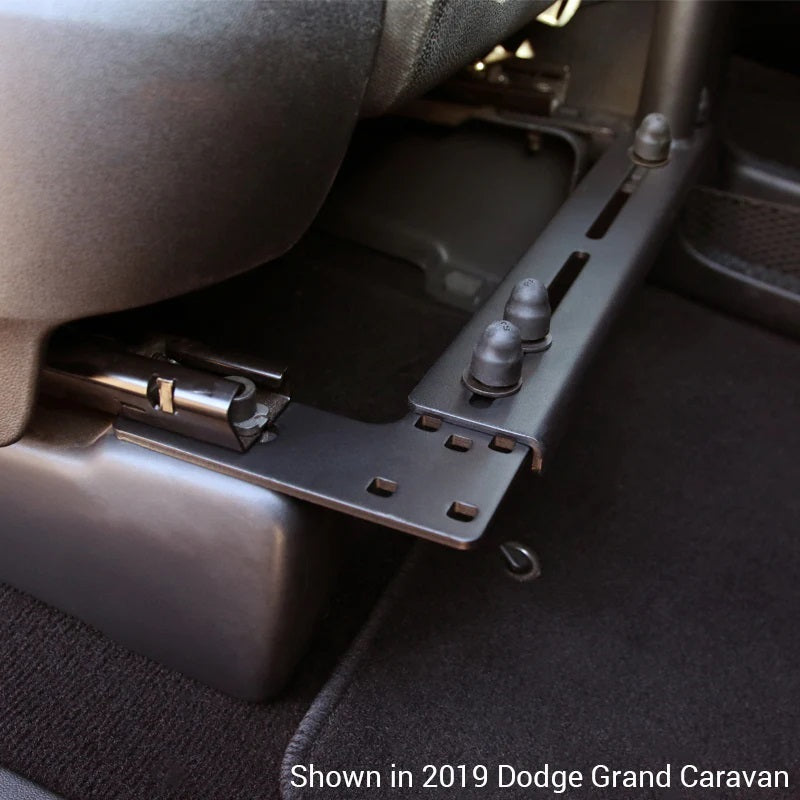

This RAM No-Drill mounting system installs quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a secure and stable platform for mounting your tablet.

Features:

• No-Drill  adjustable mounting base designed to fit a wide range of vehicles* Installs in minutes with no drilling required on passenger side floor, in front seat using existing seat bolts
• Low profile keeps mount away from passenger leg space - Includes Stabilizer Foot
• 8" upper male Tele-Pole - Consists of a wedge hardware assembly, threaded rod and tightening knob
• The male post is 8" long and has a diameter of 1.328" - fits into lower telescoping pole of the base

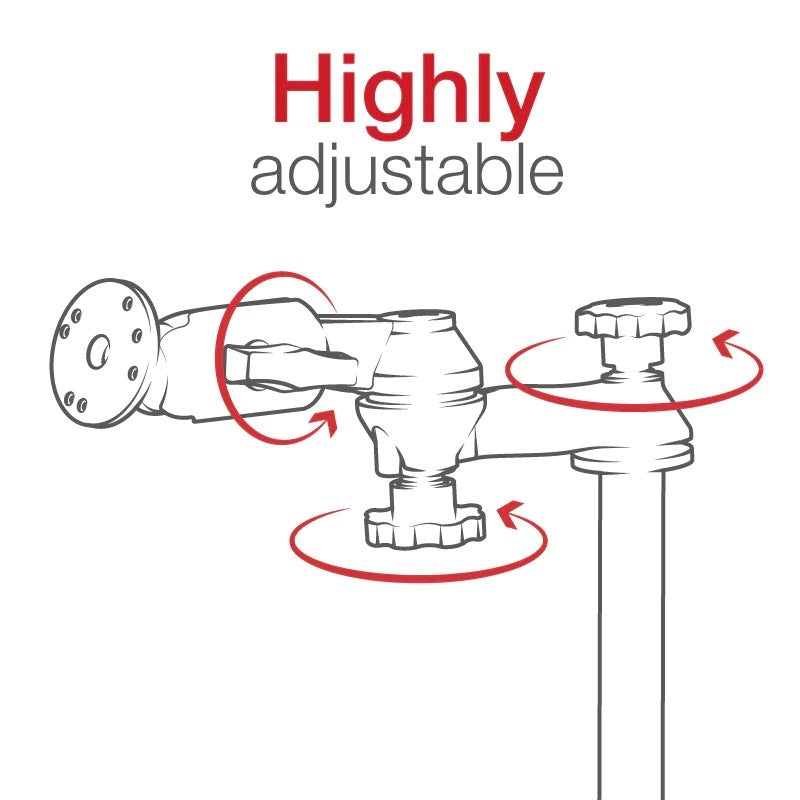

• Tightening knob has a swing arm connection point - Loosen the knob to adjust the swing arm and the height of the Tele-Pole, tighten to lock each into place
• Double swing arm with each section measuring 6” long – Overall length: 12"
• The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
• 2.5" round AMPS base with 1.5” ball – connect the tablet holder to the mount
• Spring loaded cradle with expandable arms - expands and contracts for perfect fit of your tablet - Simple to open, load and close
• Rubber coated tips hold your tablet firm and stable - Outer edges of your tablet  are almost completely free of obstructions
• Easy access grip knobs, located on the back of the cradle for quick release of your tablet
• Heavy duty -  Constructed of powder coated steel, marine grade-aluminum and high strength composite
• Weight: 13 lbs.
• Made in the USA

* Fits most tablets within the dimensions below. Verify the dimensions of your tablet for compatibility. If using with a case, measure your device with the case on to determine if it is within the holder's dimensions.



X-Grip Cradle Dimensions:

• Width Range: 7.25" - 8.75"
• Max Depth: 0.875"
• Maximum Length (only if using optional additional supports): 10.25"

Compatible Devices  (Partial list)*:



Apple

• iPad Pro 12.9 (1st Gen)
• iPad Pro 12.9 (2nd Gen)
• iPad Pro 12.9 (3rd Gen)
• iPad Pro 12.9 (4th Gen)
• iPad Pro 12.9 (5th Gen)
• iPad Pro 12.9 (6th Gen)



Dell

• Latitude 5285



Google

• Pixelbook



HP

• Elite X2 1012 G1
• Elite X2 1012 G2
• Pro X2 612
• Pro X2 612 G1



Lenovo

• IdeaTab Lynx K3011
• Miix 720
• Yoga A12



LG

• G Pad 10.1
• G Pad II 10.1
• G Pad X 10.1
• G Pad X II 10.1



Microsoft

• Surface 3
• Surface Book
• Surface Pro (2017)
• Surface Pro 3
• Surface Pro 4
• Surface Pro 5
• Surface Pro 6
• Surface Pro 7
• Surface Pro 8
• Surface Pro X



Samsung

• Galaxy Book 12"
• Galaxy Pro 12.2
• Galaxy TabPro S
• Galaxy Tab S8 Ultra



Zebra

• R12 XSLATE

Additional Information:  Seat Bolt Distance: 9" - 18.875" center to center

* Seat bolt range must have a center to center distance between 9" and 19". Not compatible with vehicles that have seat hooks instead of bolts. Depending on your vehicle, some installations may limit the adjustability of the passenger seat



Brand: RAM Mounts
Part number: RAM-VB-196-UN11
Warranty: Manufacturer's lifetime warranty
