Description

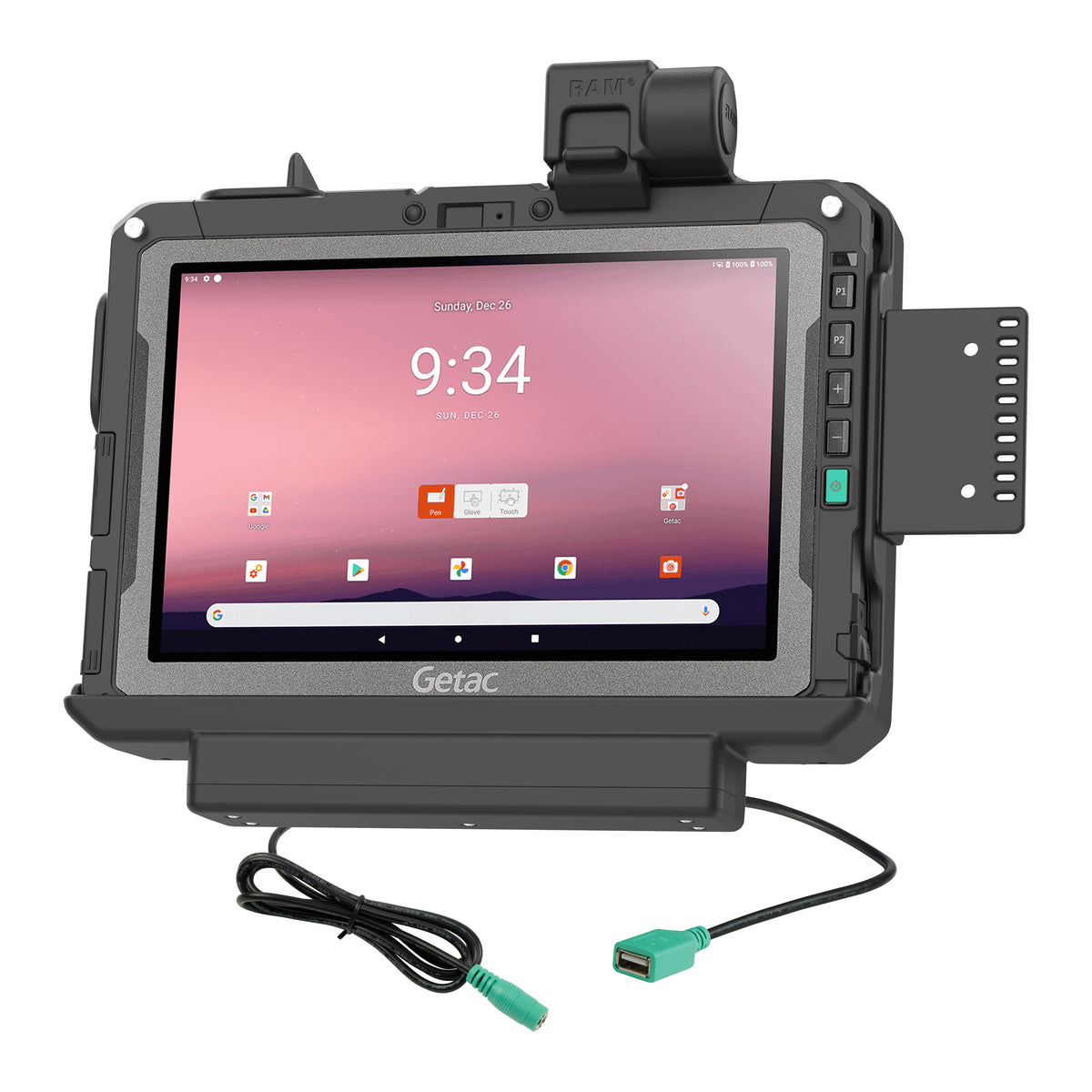

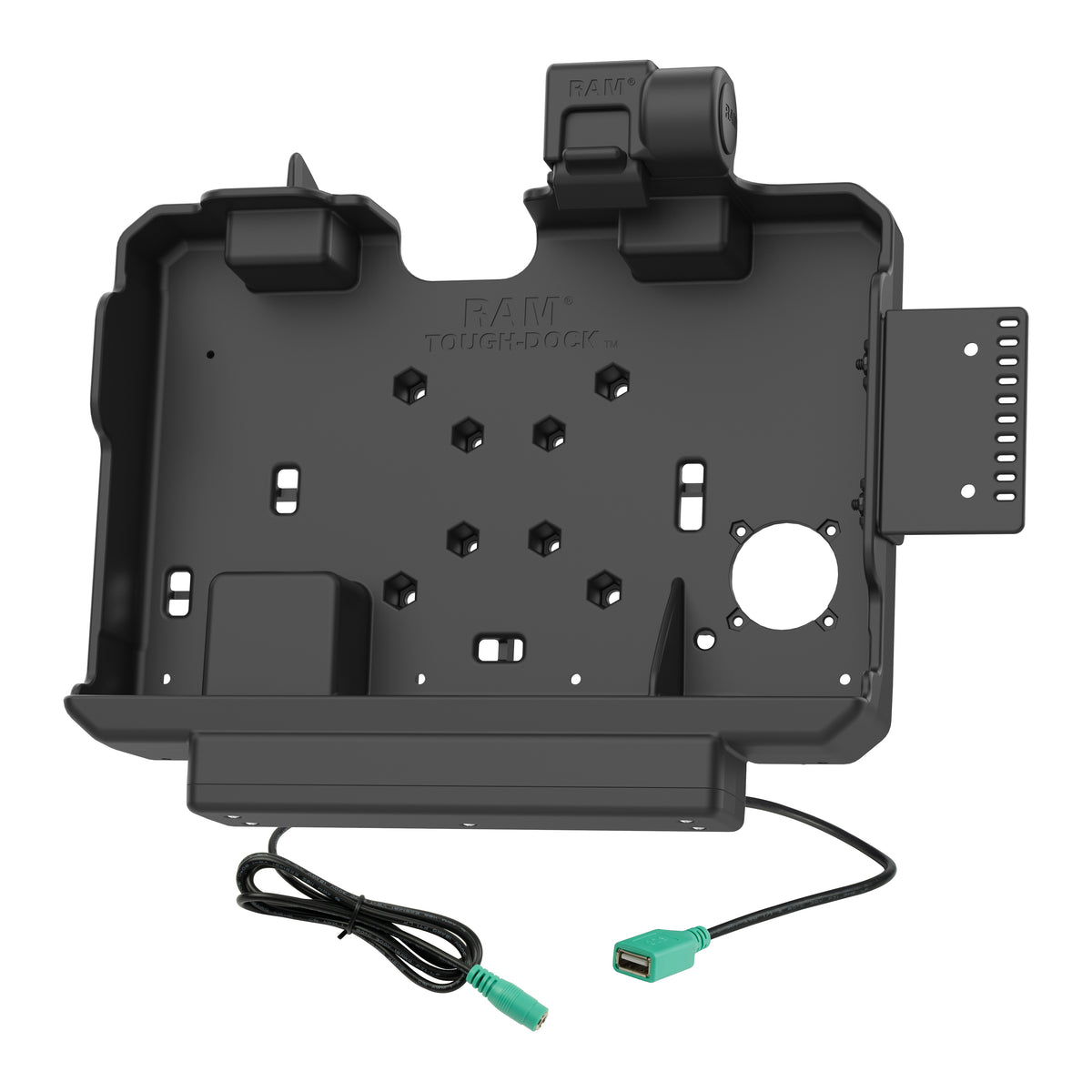

The RAM-HOL-GE4PDU Power + Data Dock is designed specifically for the Getac ZX10 rugged tablet, providing secure device retention, pogo-pin charging, and USB peripheral connectivity in one form-fit docking solution. Power is supplied through the dock's 5.5mm DC input, while the integrated USB Type-A connection supports a compatible keyboard, barcode scanner, printer, or other peripheral.
The dock also includes a 2-hole side bracket for attaching an additional device mount and supports compatible RAM accessories for expanded workstation configurations.
Key Features
-
Form-fit power and data dock designed specifically for the Getac ZX10 rugged tablet
-
Integrated pogo-pin contacts provide charging while the tablet is docked
-
5.5mm DC power input
-
Built-in USB Type-A connection supports one compatible peripheral
-
Supports accessories including RAM Vent-Temp™, Temp-Right™, RAM NFC Extender, and compatible D size VESA mounting components
-
Includes 2-hole side bracket for mounting an additional device such as a phone or handheld
-
Compatible with Getac standard and high-capacity batteries
-
Compatible with the Getac Hard Carry Handle
-

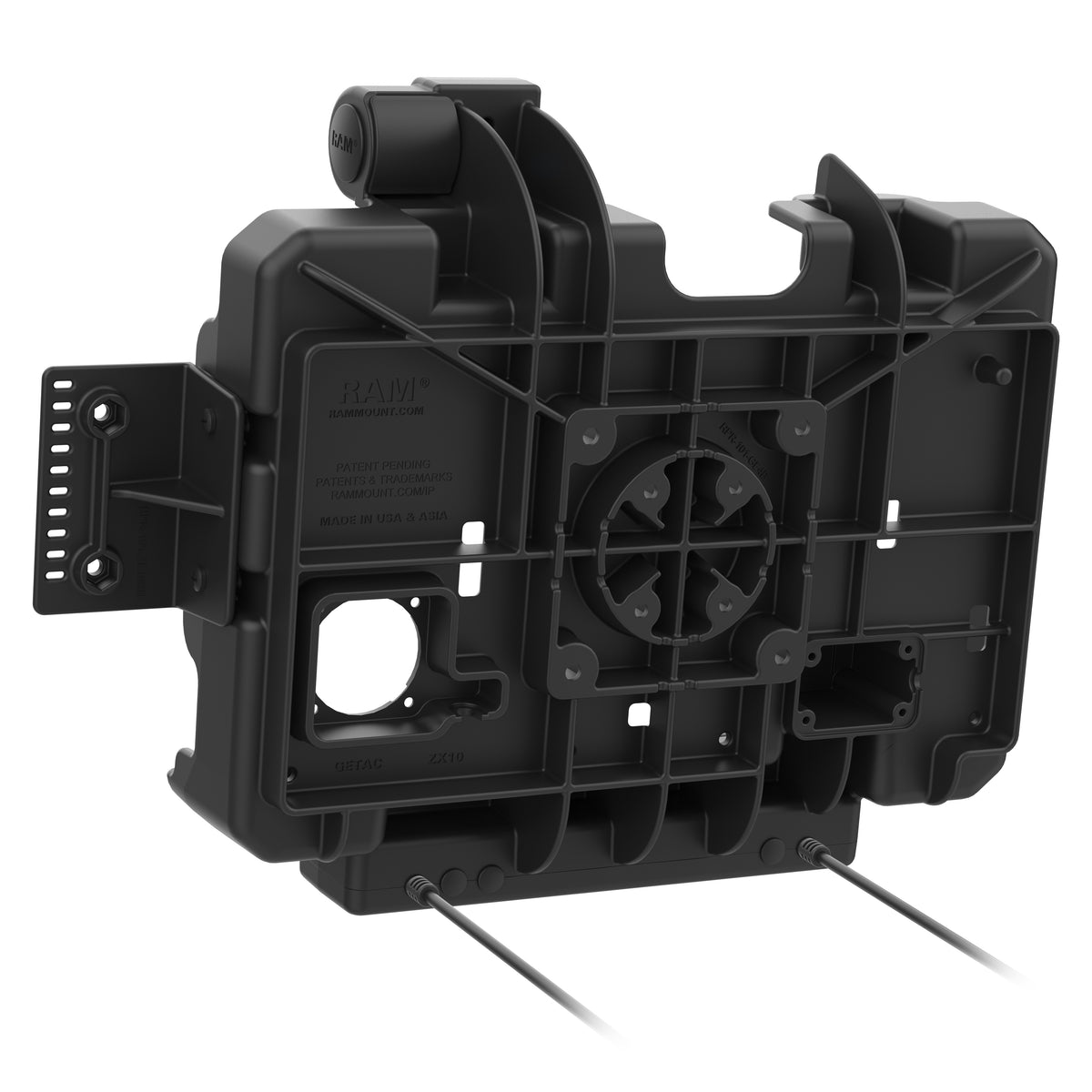

75 x 75mm VESA and 4-hole AMPS mounting patterns provide flexible mounting options
-
Backed by the manufacturer's 3-year warranty
Use Cases & Compatibility
Designed specifically for the Getac ZX10 rugged tablet.
The dock supports charging and USB peripheral connectivity for vehicle, warehouse, industrial, field-service, and other professional applications where the Getac ZX10 needs to remain secured and powered.
Compatible Getac accessories include:
-
Standard-capacity battery
-
High-capacity battery
-
Hard Carry Handle
Additional Information
This dock will not support the Getac hand strap accessory.
Specifications
-
Compatible device: Getac ZX10
-
Dock type: Power + Data
-
Power delivery: Integrated pogo-pin contacts
-
Input connector: 5.5mm DC connector
-
Input cable length: 1 meter
-
Output voltage: 19VDC
-
Peripheral connection: USB 2.0 Type-A
-
Peripheral output: 500mA
-
USB output cable length: 240mm
-
Hole patterns: 75 x 75mm VESA and 4-Hole AMPS
-
Material: High-strength composite
-
Product weight: 2.15 lb
-
Certifications: FCC, IC, CE, UKCA, WEEE, RoHS
What’s Included
-
RAM Power + Data Dock for Getac ZX10
-
Side bracket for accessory mounting and strain relief
-
Cable clamp
-
Large cable ties
-
Small cable ties
-
Mounting and assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-GE4PDU
Warranty: Manufacturer's 3-Year Warranty
