Description

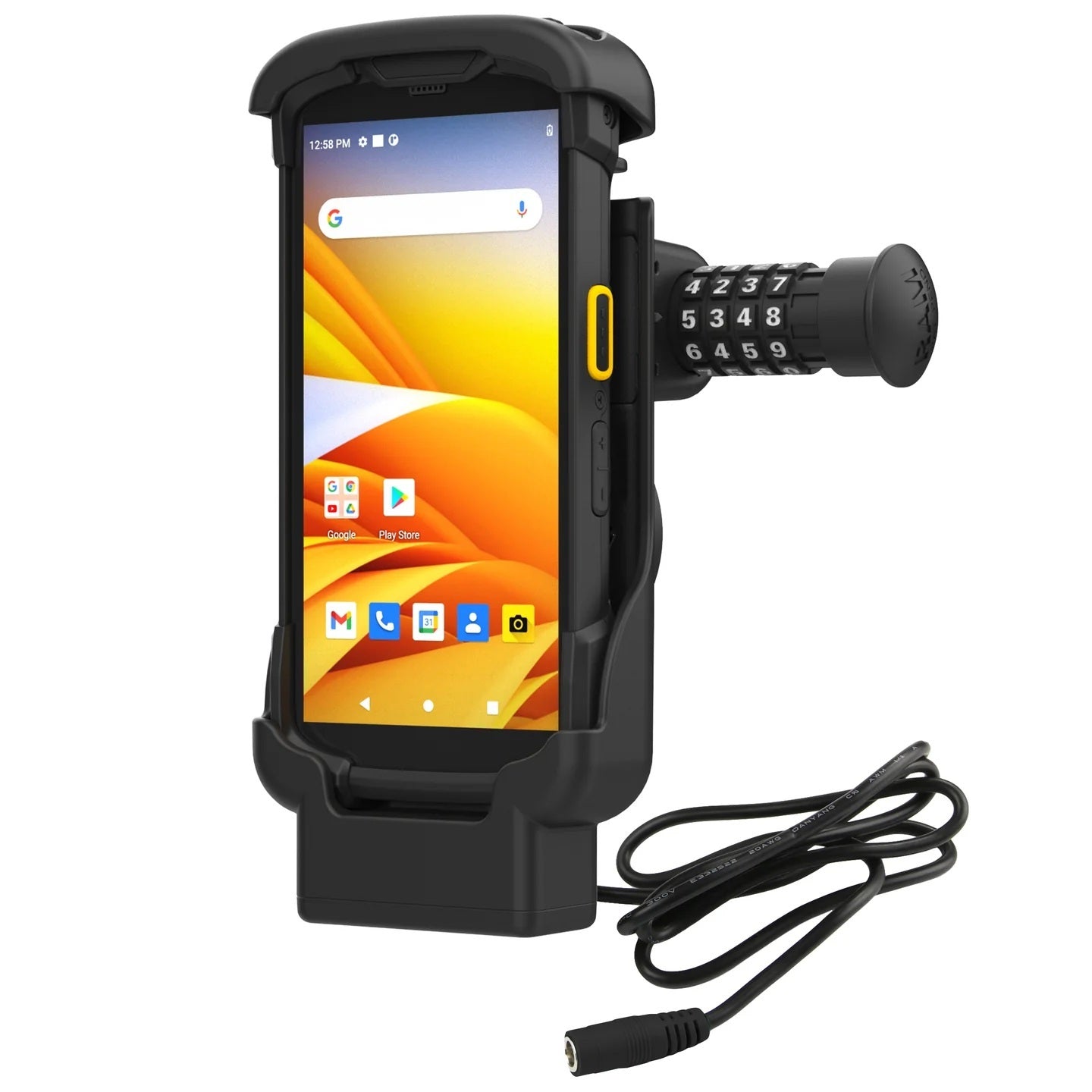

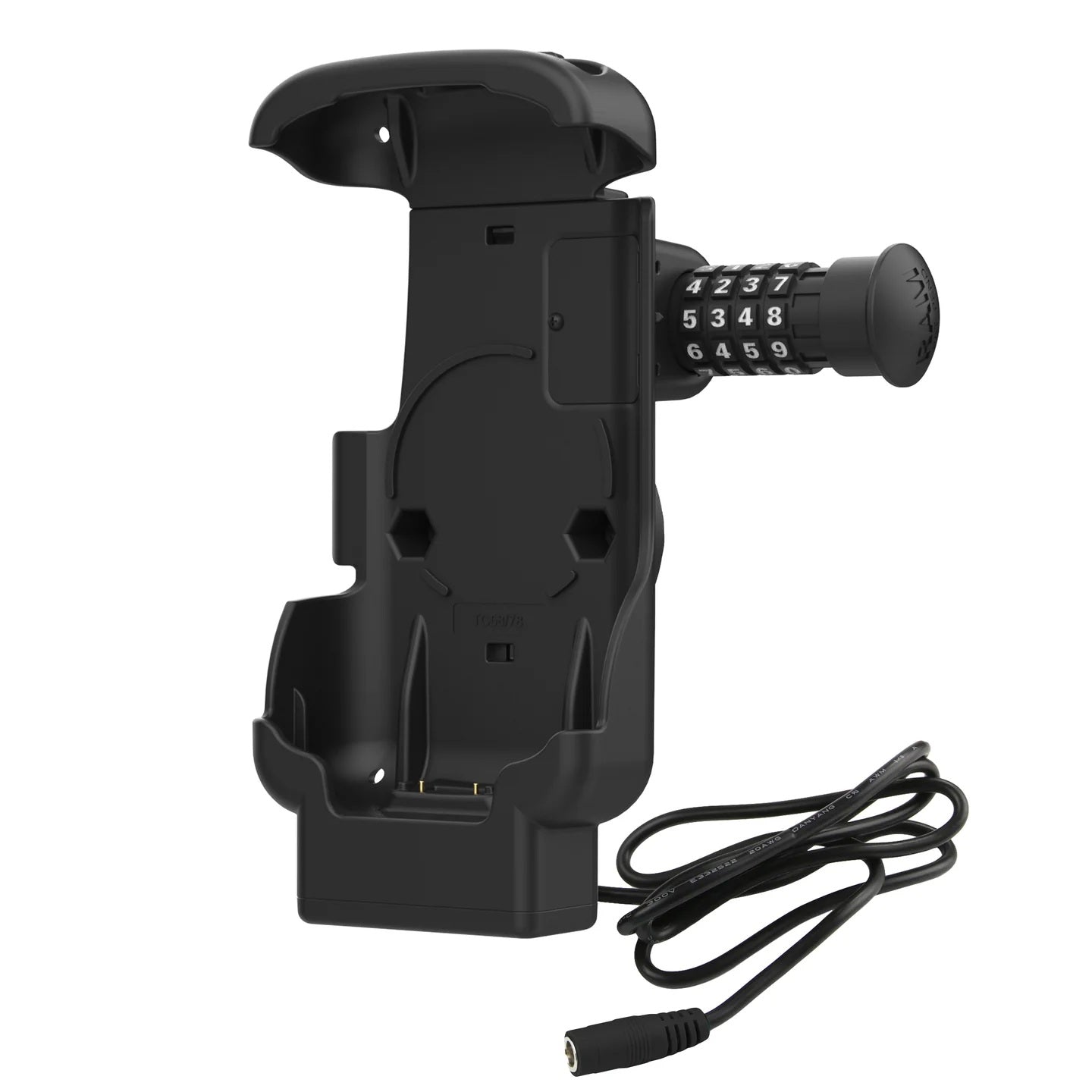

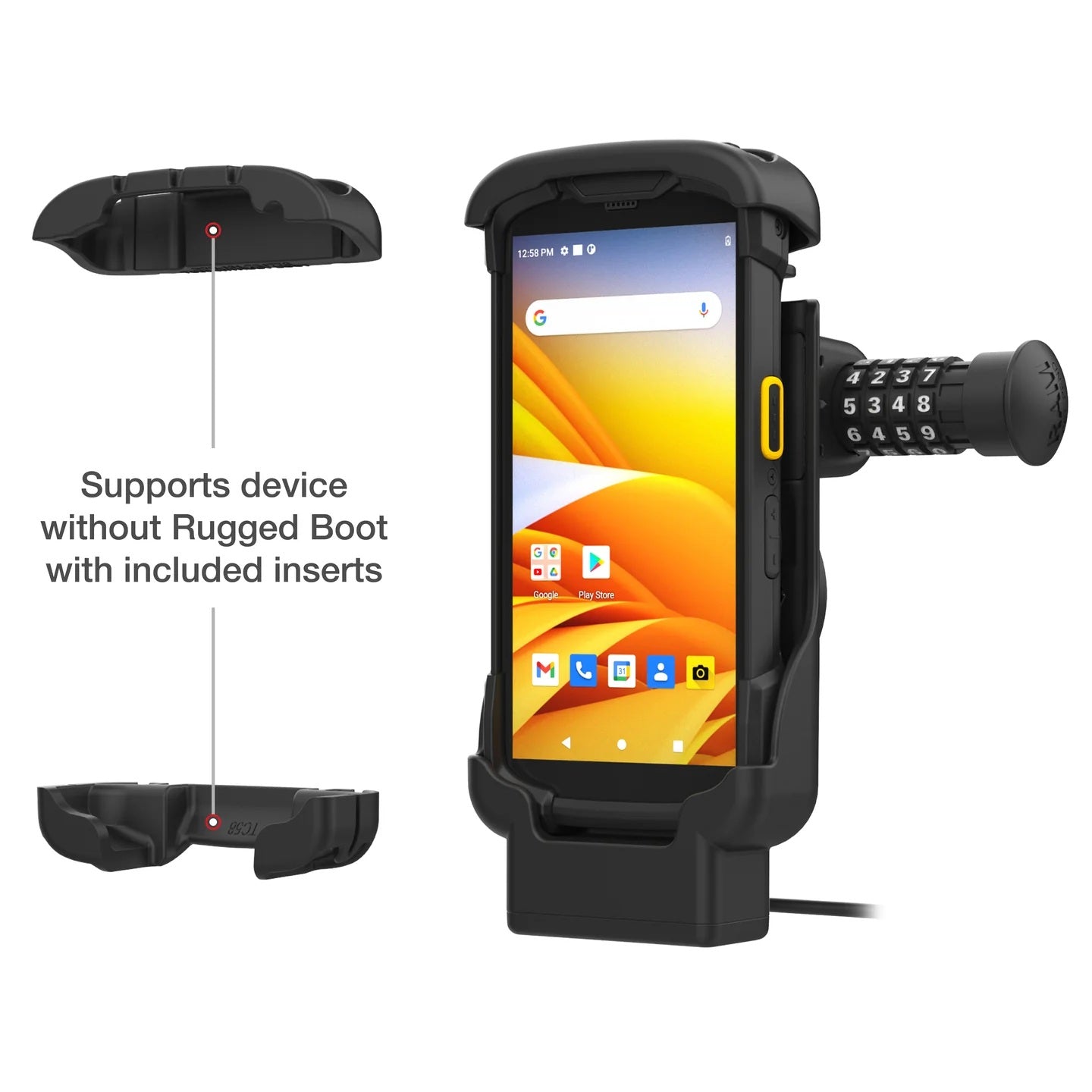

The RAM Combo-Locking Form-Fit Powered Dock for Zebra TC73 & TC78 (RAM-HOL-ZE17CL-1U) is a spring-loaded docking station designed to securely retain and provide charging connectivity for Zebra TC73 and TC78 rugged handheld computers. Its integrated combination-locking mechanism adds device security, while the form-fit cradle provides a device-specific mounting solution for demanding commercial and industrial applications.

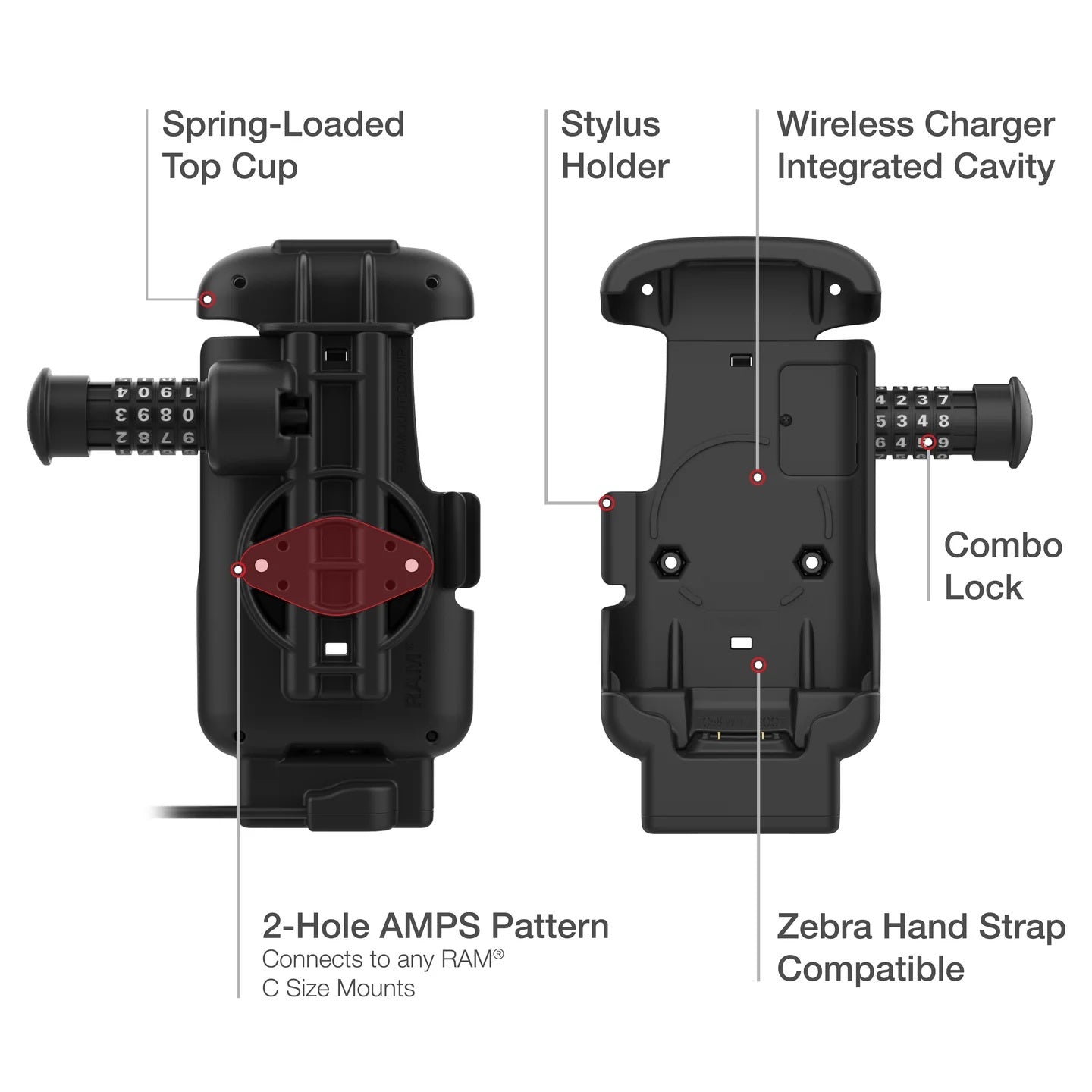

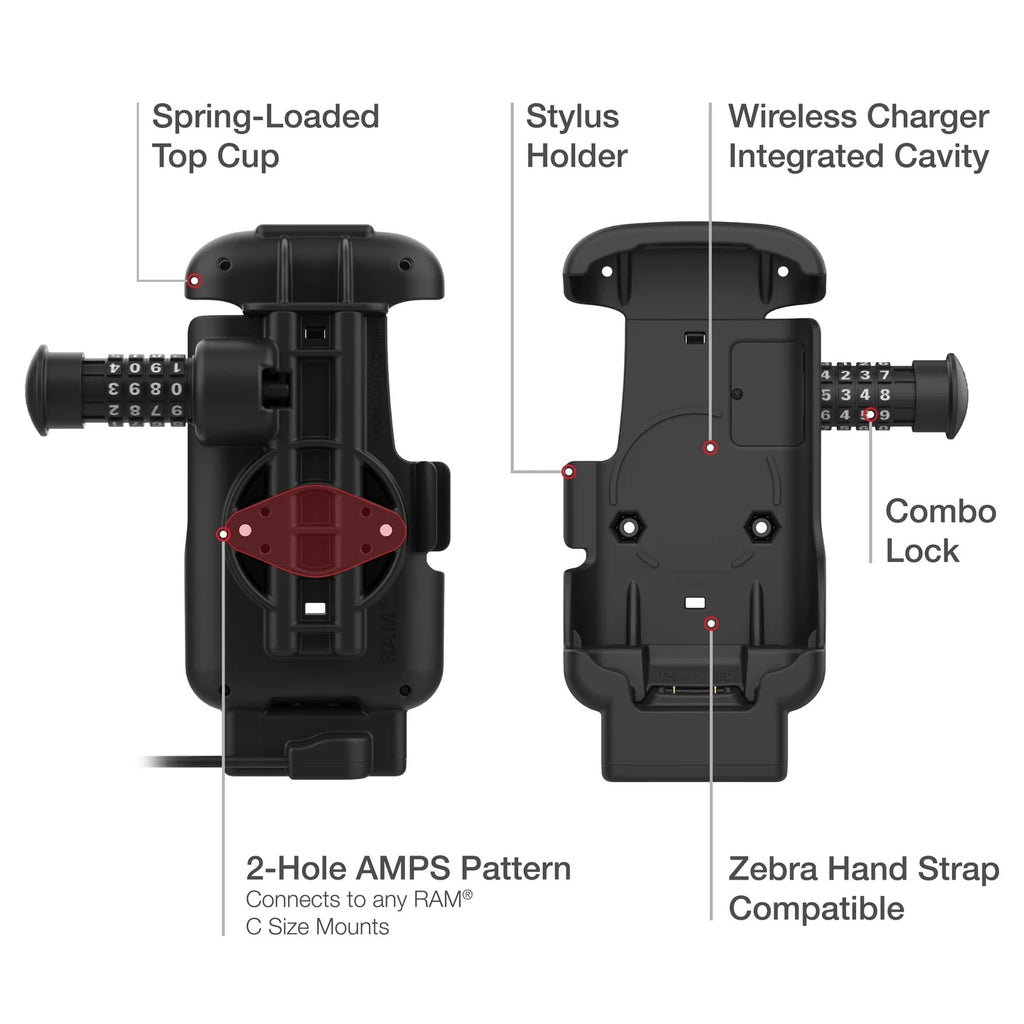

The dock features an integrated stylus holder and accommodates the Zebra hand strap accessory. Power connectivity is provided through a female 5.5mm DC barrel connector, and the 2-hole AMPS mounting interface allows attachment to compatible RAM diamond ball bases and adjustable B Size or C Size mounting systems.
Key Features
-
Combination-Locking Security: Integrated combination lock helps protect against unauthorized device removal.
-
Form-Fit Powered Dock: Designed specifically for Zebra TC73 and TC78 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the handheld computer while supporting convenient device insertion and removal.
-
Power Connectivity: Features a female 5.5mm DC barrel connector with a 1.25-meter input cable.
-
Integrated Stylus Holder: Snap-in holder stores a compatible stylus when not in use.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Attaches to compatible RAM 2-hole AMPS diamond ball bases for use with B Size (1") or C Size (1.5") ball-and-socket systems.
-
Adjustable Mounting Options: Compatible RAM socket arms and mounting components allow flexible device positioning.
-
Durable Construction: Made from high-strength composite material.
-
Manufacturer Warranty: Backed by RAM Mounts' 3-year warranty.
Use Cases & Compatibility
Designed for Zebra TC73 and TC78 rugged handheld computers, this combination-locking powered dock is suitable for warehouse operations, material handling, inventory management, logistics, fleet applications, and field service environments.
Device Compatibility:
-
Zebra TC73
-
Zebra TC78
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM 2-hole diamond ball bases
-
Compatible RAM B Size (1") and C Size (1.5") mounting systems
-
Compatible RAM double socket arms and mounting components
Power & Security:
-
Female 5.5mm DC barrel power connector
-
1.25-meter input cable
-
Integrated combination-locking mechanism
-
Compatible external charging accessories available separately
Chargers are not included. Compatible RAM charging accessories and mounting components can be selected separately to complete the installation.
Specifications
-
Compatible Devices: Zebra TC73, TC78
-
Dock Type: Spring-loaded, form-fit powered dock
-
Locking Mechanism: Combination lock
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1.25 meters
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Material: High-strength composite
-
Product Weight: 0.80 lb
What's Included
-
(1) RAM Combo-Locking Form-Fit Powered Dock for Zebra TC73 & TC78
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17CL-1U
Warranty: Manufacturer's 3-year warranty.
