Description

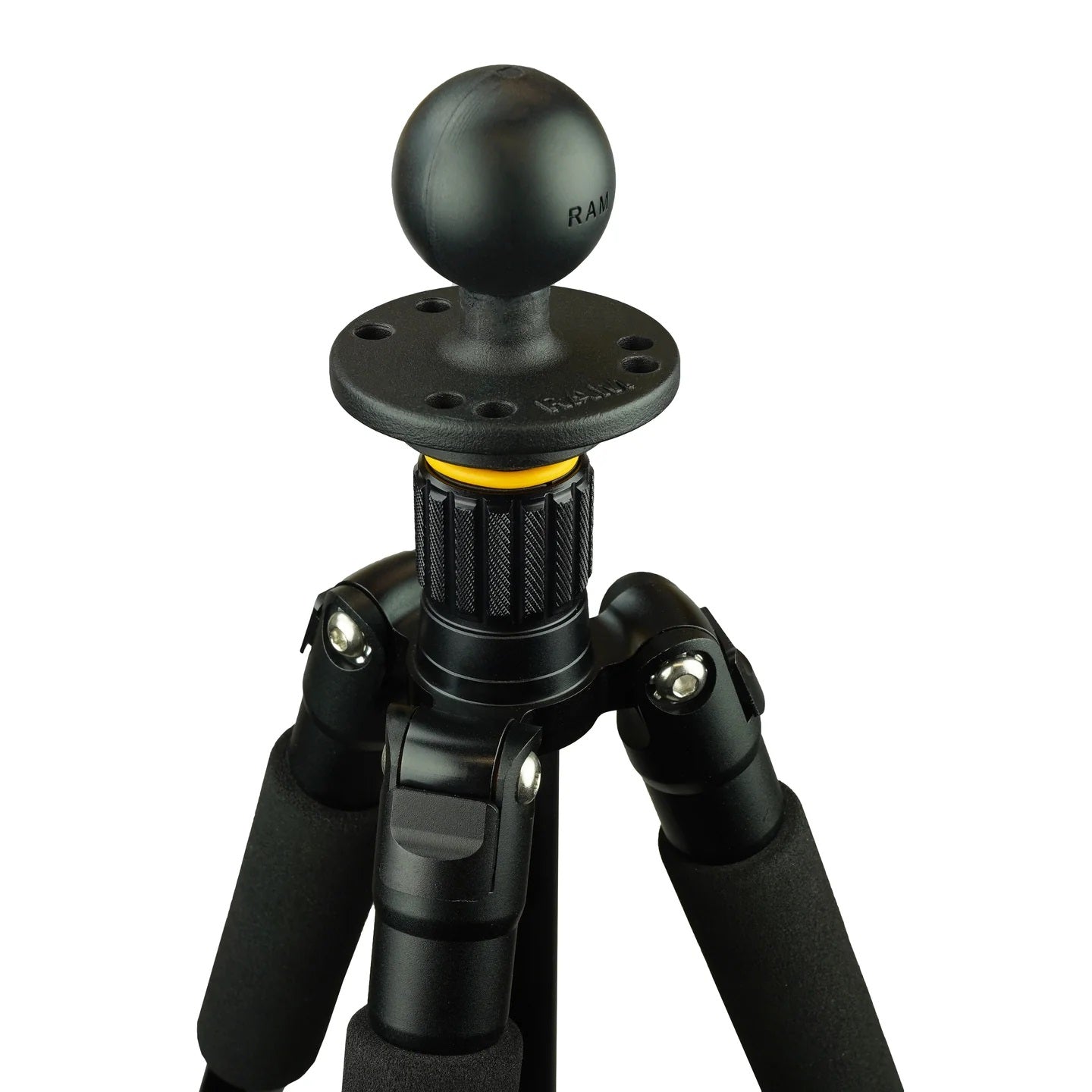

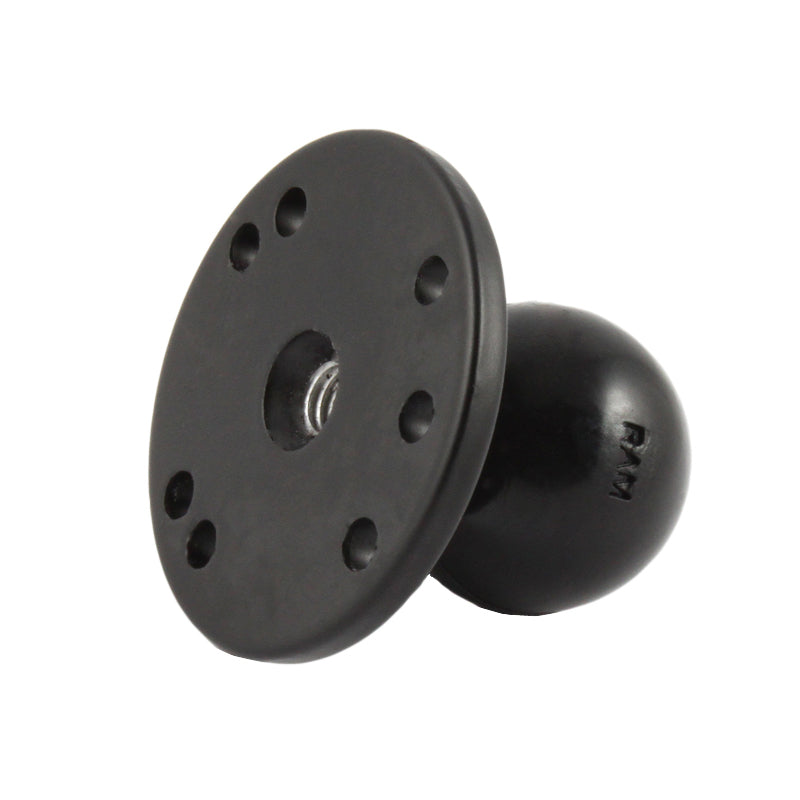

The RAM-202CNSU combines a RAM C Size 1.5-inch ball with a 2.5-inch round plate featuring a 3/8"-16 female threaded hole. The plate also includes both 4-hole AMPS and 3-hole 120-degree mounting patterns for integration with compatible equipment and mounting surfaces.
This standalone adapter provides a secure connection point for building or modifying a RAM C Size mounting system.
Key Features
-
RAM C Size 1.5-inch rubber ball
-
2.5-inch diameter round mounting plate
-
Integrated 3/8"-16 female threaded hole
-
Supports 4-hole AMPS and 3-hole 120-degree mounting patterns
-
Marine-grade aluminum construction
-
Supports up to 4 lbs under standard-use conditions
Use Cases & Compatibility
Designed for equipment, brackets, and mounting surfaces that use a compatible 3/8"-16 threaded connection, 4-hole AMPS pattern, or 3-hole 120-degree pattern.
This is a standalone adapter component compatible with a variety of RAM C Size 1.5-inch socket arms and mounting components.
Specifications
Ball Size: C Size (1.5")
Mounting Pattern: 4-Hole AMPS; 3-Hole 120-Degree
Hole Spacing: AMPS: 1.181" x 1.496"; 3-Hole Pattern: 1.812" diameter
Thread Size: 3/8"-16 female
Plate Dimensions: 2.5" diameter
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.23 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202CNSU
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
