Description

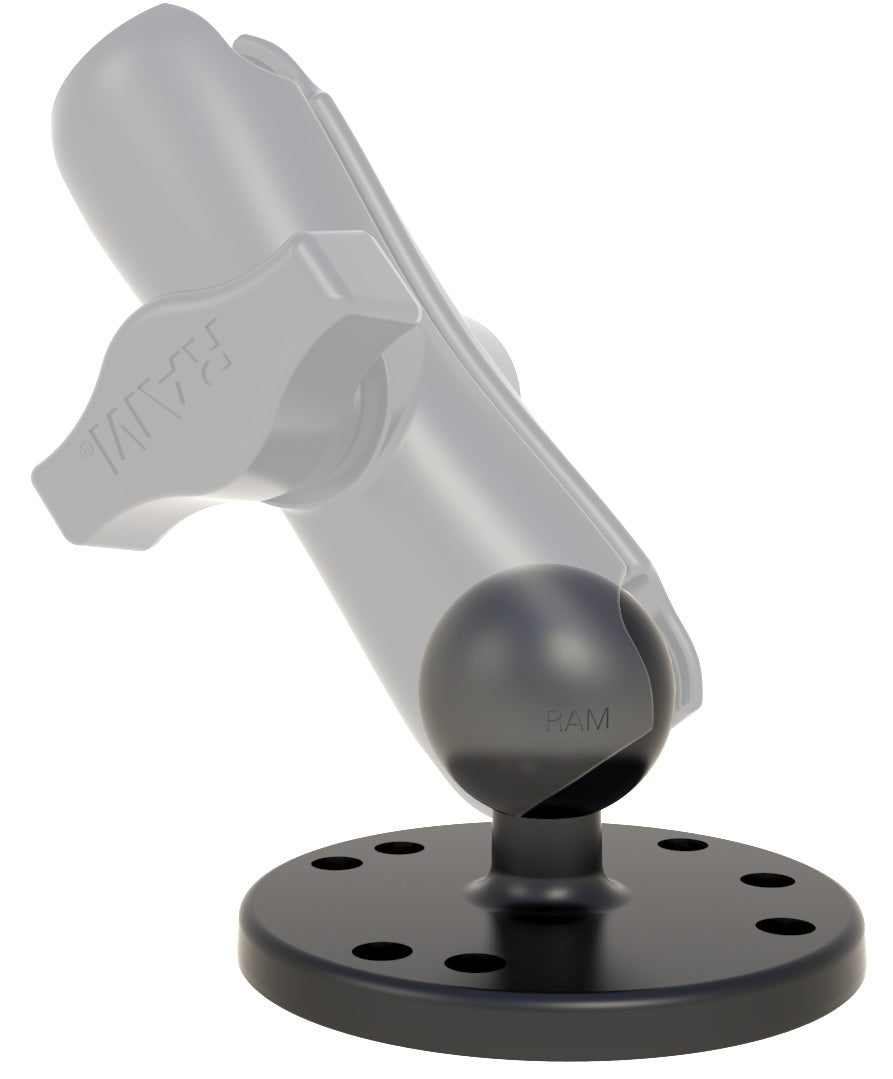

The RAM-B-202U Round AMPS Plate with Ball is a versatile RAM Mounts component that can be used as a drill-down mounting base or as an adapter plate for compatible RAM device holders. It features a 2.5" round plate with a built-in B size 1" rubber ball, allowing connection to RAM B size double socket arms.
With its universal AMPS hole pattern and marine-grade aluminum construction, this component is commonly used in custom RAM mounting systems for phones, tablets, GPS units, cameras, and other supported device holders.
Key Features
-
2.5" round plate with integrated B size 1" RAM rubber ball
-
Compatible with RAM B size double socket arms
-
Universal 4-hole AMPS pattern for compatible RAM device holders
-
Can be used as a drill-down base or adapter plate
-
Powder-coated marine-grade aluminum construction for durability
Use Cases & Compatibility
The RAM-B-202U is designed for use with RAM Mounts B size 1" ball-and-socket systems. The integrated ball connects to RAM B size double socket arms, while the 2.5" round plate can attach to RAM device holders with a compatible AMPS hole pattern.
This component can also be used as a drill-down base when mounting directly to a flat surface. Hardware is not included. When paired with many RAM holders, the holder typically includes the necessary hardware to connect to the mount. For drill-down installation, common screw sizes include #8, #10, M4, and M5 screws.
Specifications
Ball Size: B Size 1"
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Pattern / Hole Spacing: 4-Hole AMPS: 1.181" x 1.496"; 3-Hole 120-Degree: 1.812" diameter
Dimensions: 2.5" diameter round plate
Product Weight: 0.15 lb
Additional Details: Hardware not included
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-202U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
