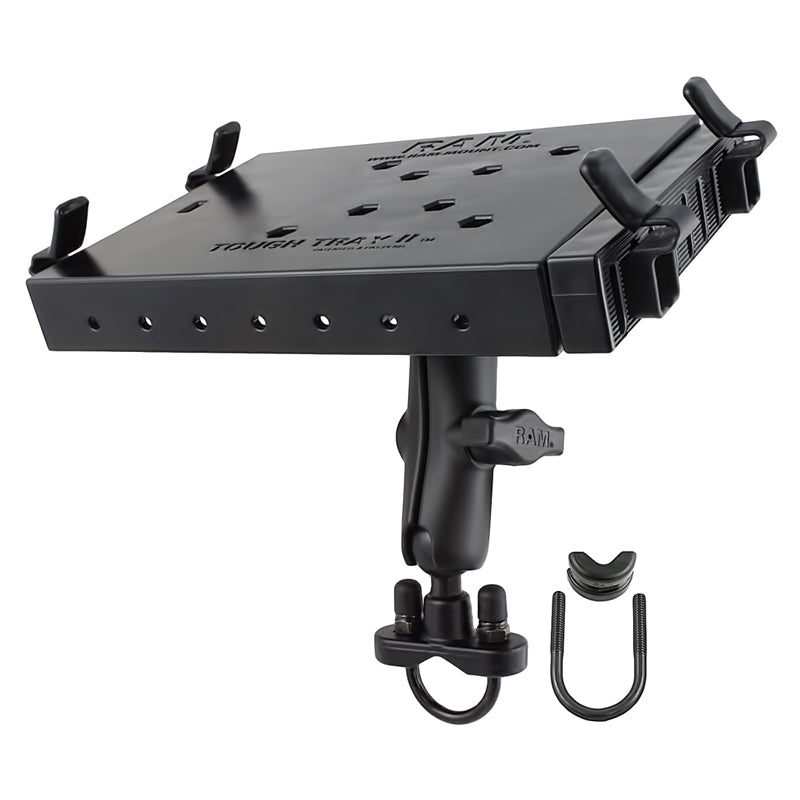

- Zinc coated u-bolt base with 1" ball - Includes hardware to fit rails from 0.50" to 1.25" in diameter
- Standard double socket arm - overall length: 3.73"; socket to socket: 3"
- Round AMPS base adapter with 1" ball - connects Tough Tray to the mount
- RAM Tough Tray spring loaded tablet holder - Easy loading and removal of your device
- Provides just the right amount of holding force to secure your device
- Simple installation and adjustable retaining arms insure a perfect fit without interfering with ports or functions - for compact laptops: retaining arms hold firm with the screen up or down
- Front and back integrated holes allow for additional mount add-ones such as cell phones, GPS, etc.
- RAM ball and socket system - easily move the mount to your optimum viewing position
- Constructed of powder coated marine grade aluminum and high strength composite
- Weight: 0.51 lbs.
- Holds up to 2 lbs.
- Made in the USA
Holds any device within the holder dimensions below. If using a case with your device measure it with the case on to determine the overall dimensions.
- Width Range: 8.56" - 11.2"
- Side Arm Clamp Height: 2.75" max
- Tray Depth: 6"
- Tray Thickness: 1"
- (1) 1/4"-20 U-Bolt for .5" - 1" Rails
- (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
- (2) 1/4"-20 Nylock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
Brand: RAM Mounts
Part number: RAM-B-149Z-234-6U
Warranty: Manufacturer's lifetime warranty
