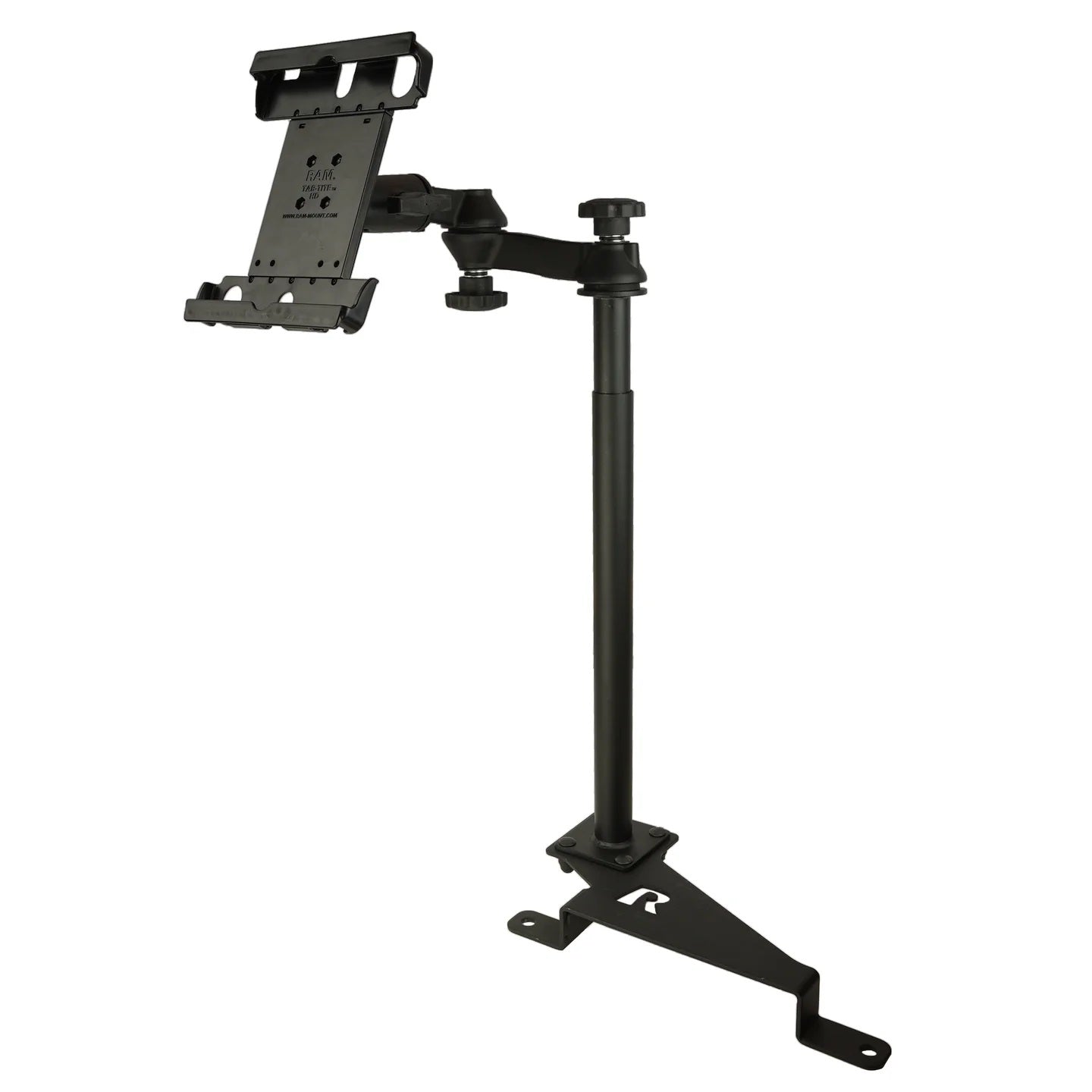

The RAM-VB-195-TAB20 is a complete RAM® vehicle tablet mounting kit designed for secure tablet use in select Ford, Dodge, and Jeep vehicles. This kit combines a RAM® No-Drill™ vehicle base, dual articulating swing arms, and a spring-loaded Tab-Tite™ holder for many 9" to 10.5" tablets with heavy-duty cases.

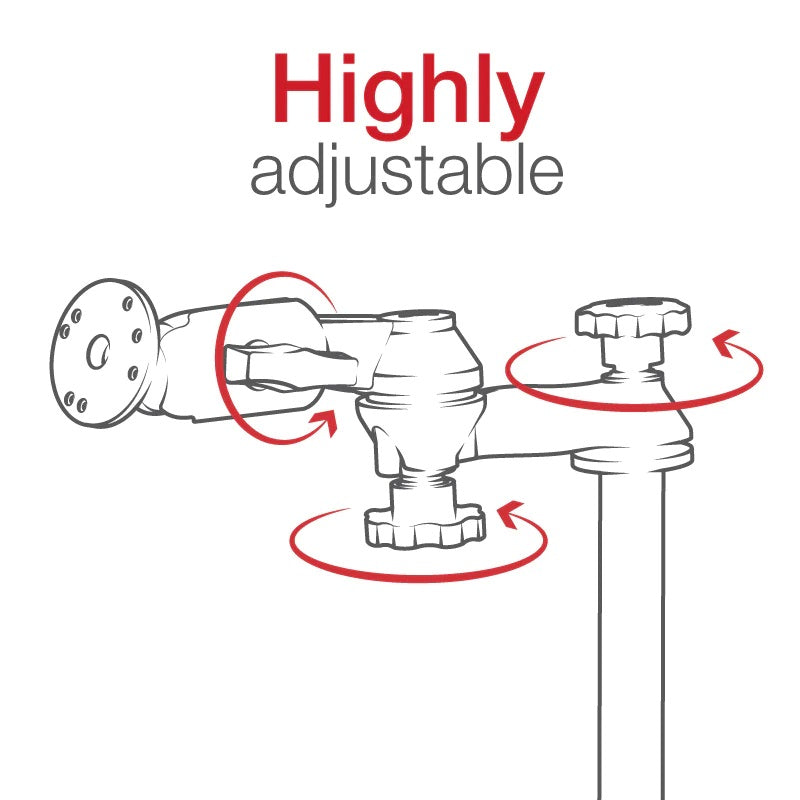

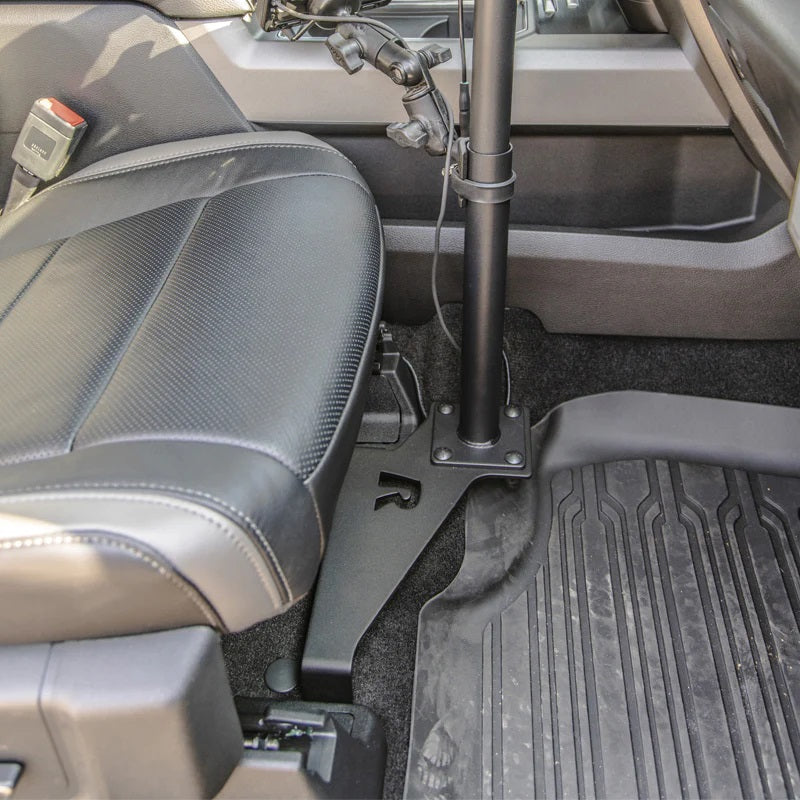

The No-Drill™ base installs using the existing passenger-side seat rail hardware, helping create a strong mounting platform without drilling into the vehicle. Dual swing arms provide 12" of reach and articulation, making it easier to position the tablet for driver or passenger access. The RAM® rubber ball and socket system helps provide adjustability while reducing shock and vibration.
Key Features
• Complete vehicle tablet mount kit with RAM® No-Drill™ base, swing arms, and Tab-Tite™ tablet holder
• Spring-loaded holder secures many 9" to 10.5" tablets with heavy-duty cases

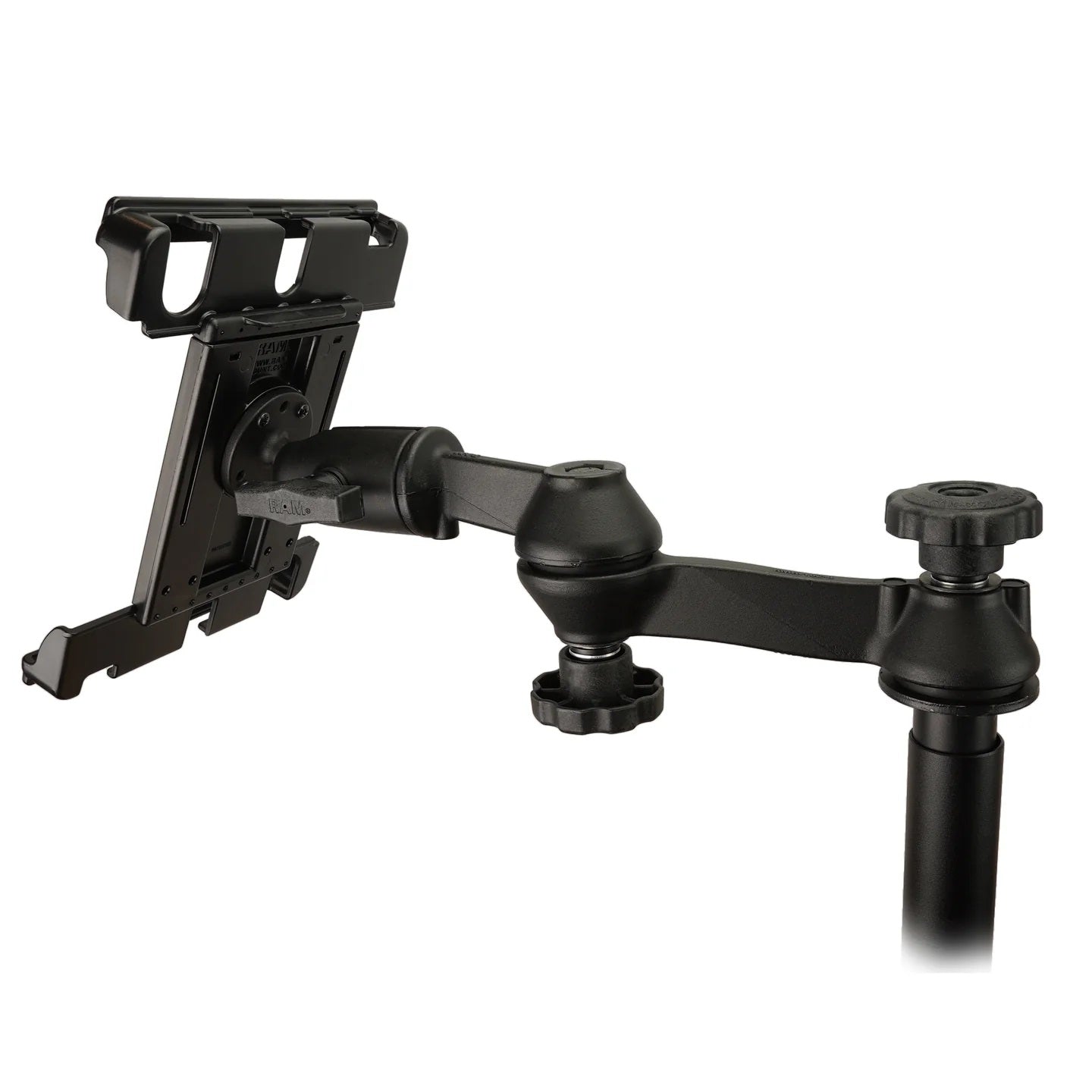

• Dual articulating swing arms provide 12" of reach for flexible tablet positioning
• Installs using existing passenger-side seat rail hardware in compatible vehicles
• Built from powder-coated steel, marine-grade aluminum, and high-strength composite materials
Use Cases & Compatibility
This tablet mount is well suited for work trucks, fleet vehicles, service vehicles, public safety vehicles, field service applications, and commercial vehicle use where a secure in-vehicle tablet mounting solution is needed.
The included Tab-Tite™ holder is designed for tablets within the listed size range. Compatible tablets should be listed in the reusable holder-specific compatibility accordion when available.
Tablet Holder Fit Range
This holder fits tablets within the following size range:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: 0.3" - 0.875"
If using a case, measure your tablet with the case installed to confirm proper fit.
Compatible Vehicles
Dodge
Ford
- F-150 (2015-2026)
- F-150 Lightning (2022-2026)
- F-250-F-550 (2017-2026)
- Escape (2013-2019)
- Expedition (2018-2026)
- Transit Connect (2014-2023)
- C-Max (2014-2018)
- Focus (2011-2018)
- Raptor (2015-2020)
Jeep
- Compass (2013-2018)
- Patriot (2013-2017)
Specifications
Product Type: Vehicle Tablet Mount Kit
Material: Powder-coated steel, marine-grade aluminum, high-strength composite
Ball Size: C Size 1.5" RAM® ball
Weight Capacity: Standard use: 4 lbs; Heavy-duty use: 3 lbs
Mount Type: No-Drill™ vehicle base with dual articulating swing arms
Vehicle Base: RAM® No-Drill™ passenger-side seat rail vehicle base
Device Holder: RAM® Tab-Tite™ spring-loaded tablet holder
Product Weight: 11.69 lb
Additional Specifications: For off-road environments or open cockpit applications, RAM® recommends using a tether to help secure the device.
What’s Included
• RAM® No-Drill™ vehicle mounting base
• Dual articulating swing arm system
• RAM® Tab-Tite™ spring-loaded tablet holder
• Assembly hardware
• Stabilizer foot
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-VB-195-TAB20
Warranty: Manufacturer’s lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
