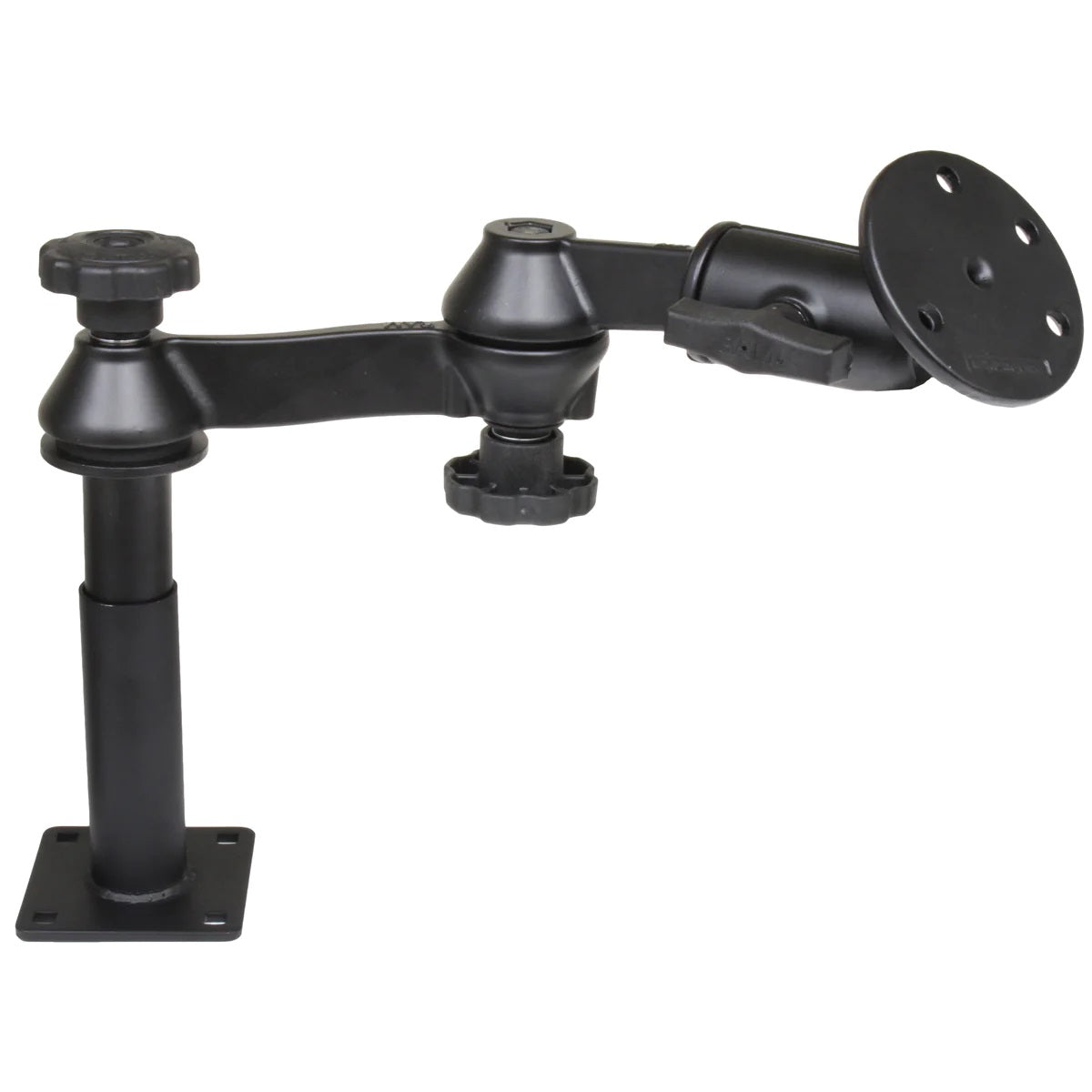

Description
Features:
- 5" tall female(lower) Tele-Pole with a 3.5" x 3.5" square plate base - will attach to all RAM vehicles bases that do not contain a welded female Tele-Poleupper male Tele-Pole
- 4" upper male Tele-Pole

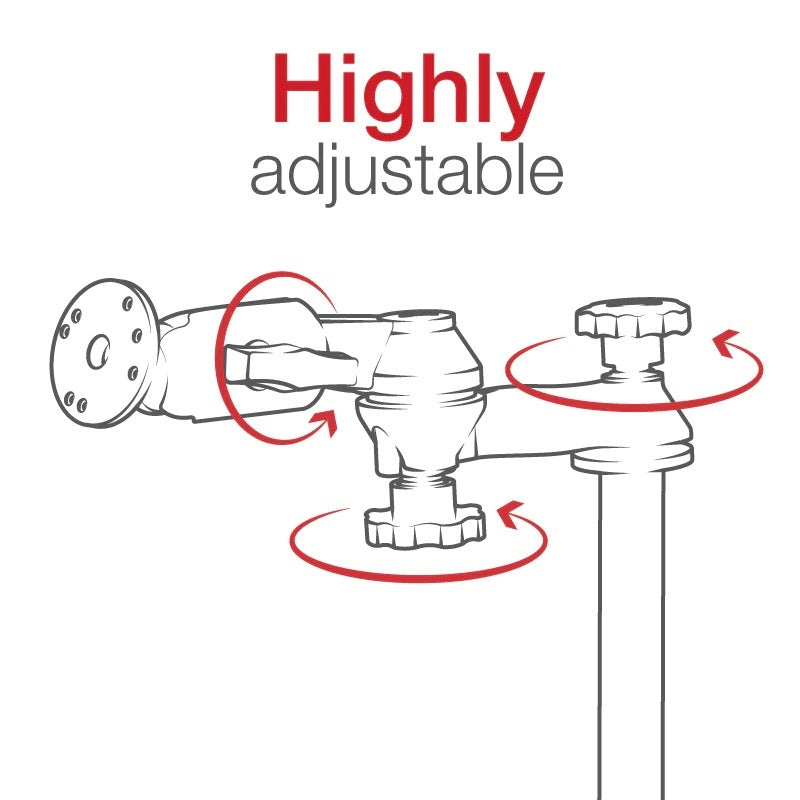

- Height of the Tele-Poles, combined, can easily be adjusted by turning the knob at the top of the post - Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles - minimum height: 12.3", maximum height: 13.3"
- Double swing arm with each section measuring 6” long – Overall length: 12"
- The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
- 3.68" diameter round base: .33" thick with 1.5" ball, 4 Pre-drilled .356" diameter holes including a three hole pattern at 120 degrees and 2 hole pattern at a distance of 2.75" center to center - fits RAM Tough-Dock
- Constructed of powder coated marine grade aluminum and steel
- Made in the USA
Height Adjustability:
- Minimum Height: 12.3"
- Maximum Height: 13.3"
Included Hardware:
- Assembly Hardware
- (4) 5/16"-18 x 1" Carriage Bolts
- (4) 5/16"-18 Hex Nuts
- (4) 5/16" Flat Washers
- (4) 5/16" Split Lock Washers
- (4) Rubber Caps
Brand: RAM Mounts
Part number: RAM-VP-SW1-45-240
Warranty: Manufacturer's lifetime warranty
