Description

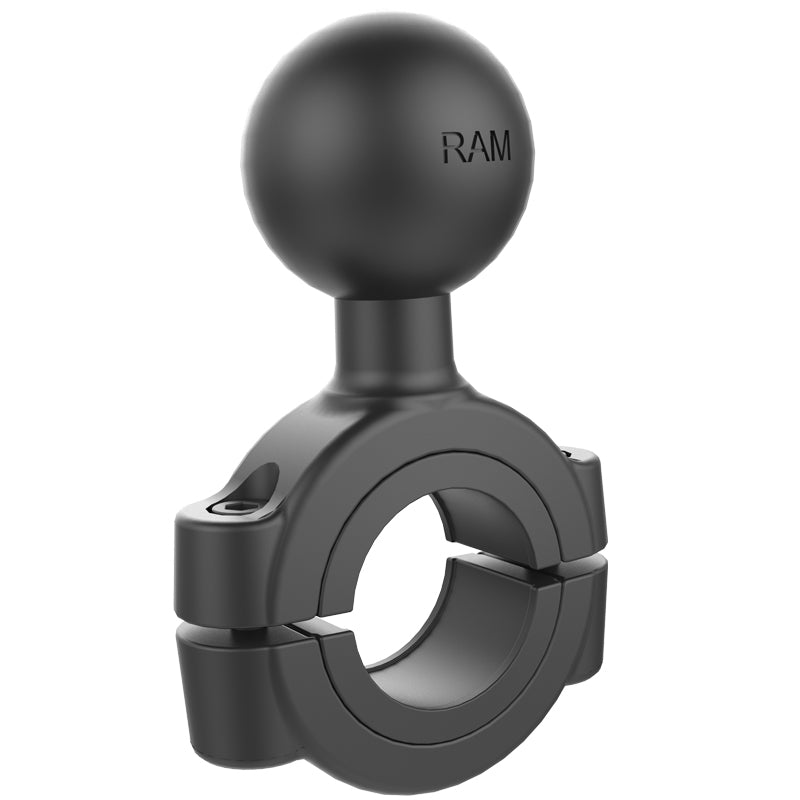

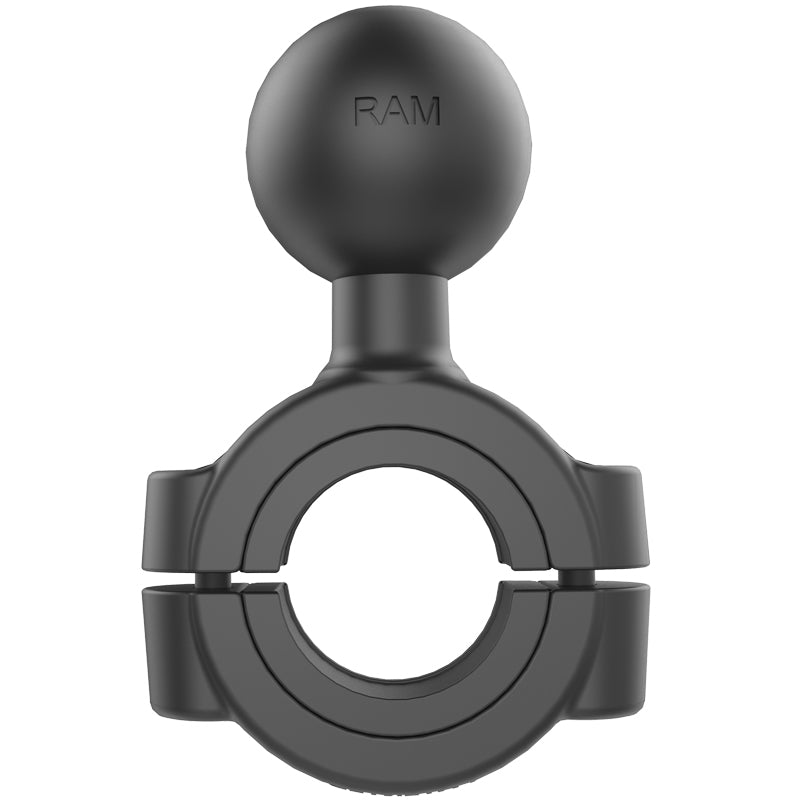

The RAM® Torque™ Large Rail Base creates a sturdy C Size mounting point on handlebars, roll bars, and round rails measuring 1.125" to 1.5" in diameter. Its integrated 1.5" rubber ball connects with compatible RAM® C Size socket arms and components for adjustable device or accessory positioning.

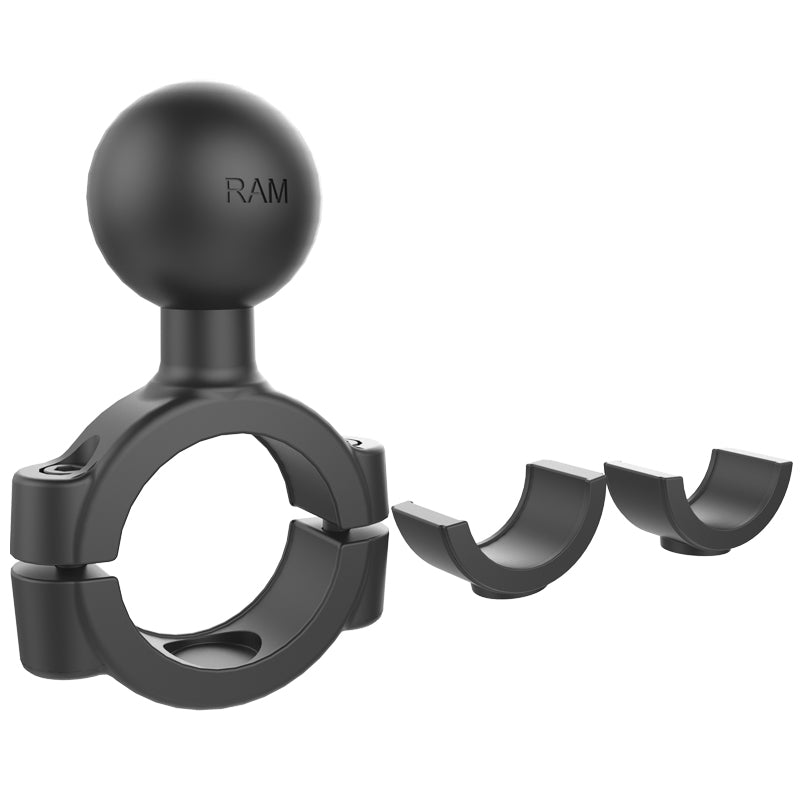

Included reducing bushings and a rubber adhesive strip help provide a close fit while protecting the mounting surface. Nylon-insert locknuts help resist loosening in applications exposed to vibration.
Key Features
-
Fits round rails and handlebars from 1.125" to 1.5" in diameter
-
Integrated C Size 1.5" RAM® rubber ball
-
Compatible with a variety of RAM® C Size socket arms and mounting components
-
Included reducing bushings accommodate multiple rail diameters
-
Rubber adhesive strip helps protect the rail and improve grip
-
Nylon-insert locknuts help prevent loosening in high-vibration environments
-
Powder-coated, marine-grade aluminum construction
-
Supports up to 4 lbs in standard-use applications and 3 lbs in heavy-duty applications
-
Backed by RAM Mounts' lifetime warranty
Use Cases & Compatibility
This rail base is designed for mounting to compatible round handlebars, roll bars, and equipment rails measuring 1.125" to 1.5" in diameter. It is suitable for vehicle, marine, powersports, industrial, and equipment applications where a secure clamp-style mounting point is needed.
The integrated 1.5" ball fits a variety of RAM® C Size socket arms and mounting components. Use the included reducing bushings and protective rubber strip to match the clamp to the rail diameter.
Specifications
Ball Size: C Size (1.5")
Clamp Range: 1.125" to 1.5" diameter
Material: Powder-coated, marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs

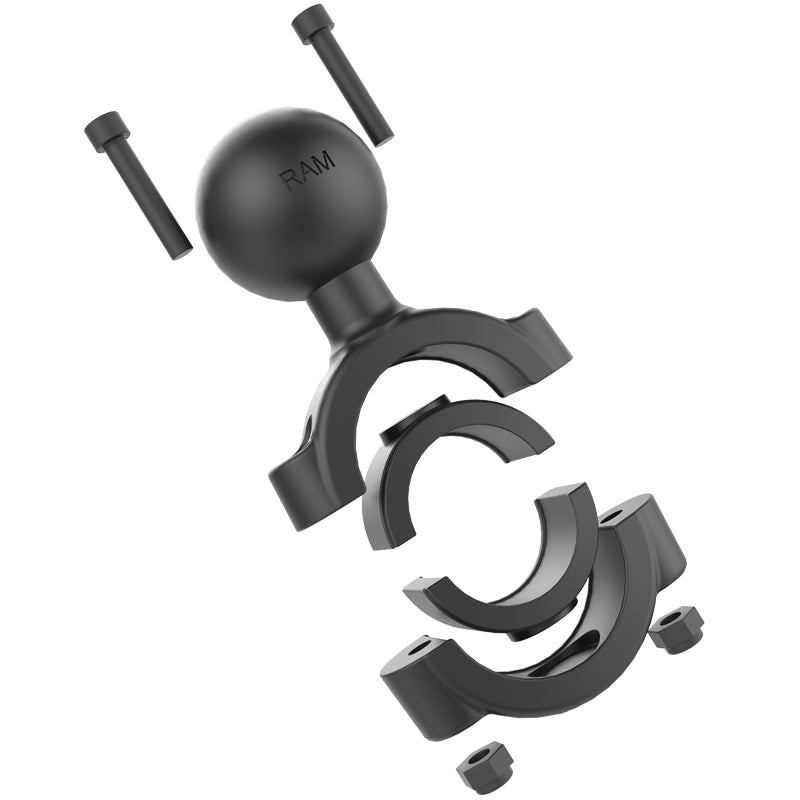

Included Hardware: Two #10-24 x 1" socket-head cap screws, two #10-24 Nylock nuts, two 1.12" split reducing bushings, two 1.27" split reducing bushings, one 5/32" hex key wrench, and one 127mm x 17mm rubber adhesive strip
Product Weight: 0.39 lb
Additional Details: Nylon-insert locknuts help resist loosening in high-vibration applications
What’s Included
-
RAM® Torque™ Large Rail Base with integrated C Size 1.5" ball
-
Two #10-24 x 1" socket-head cap screws
-
Two #10-24 Nylock nuts
-
Two 1.12" split reducing bushings
-
Two 1.27" split reducing bushings
-
One 5/32" hex key wrench
-
One 127mm x 17mm rubber adhesive strip
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-408-112-15U
Warranty: Manufacturer's lifetime warranty
