Description

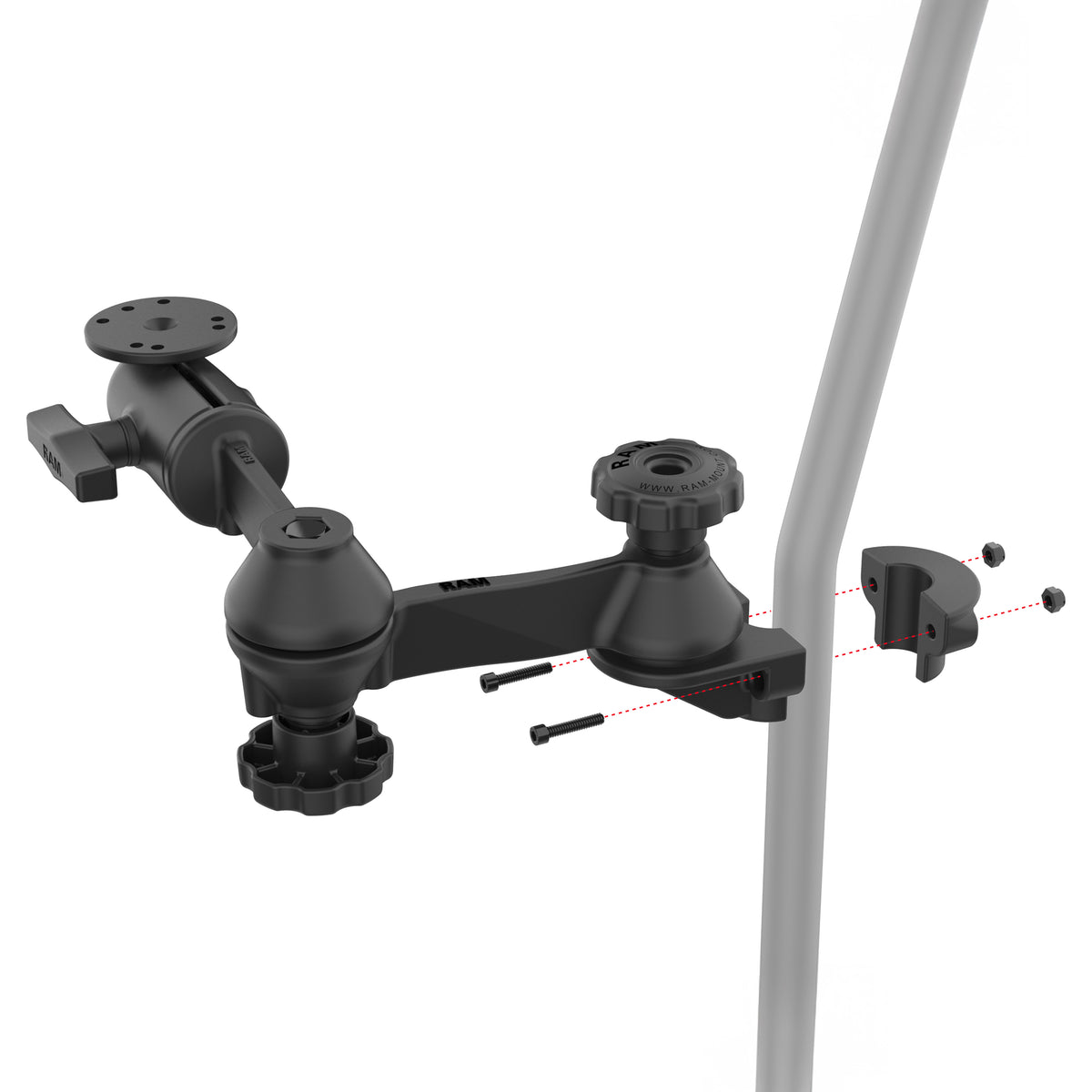

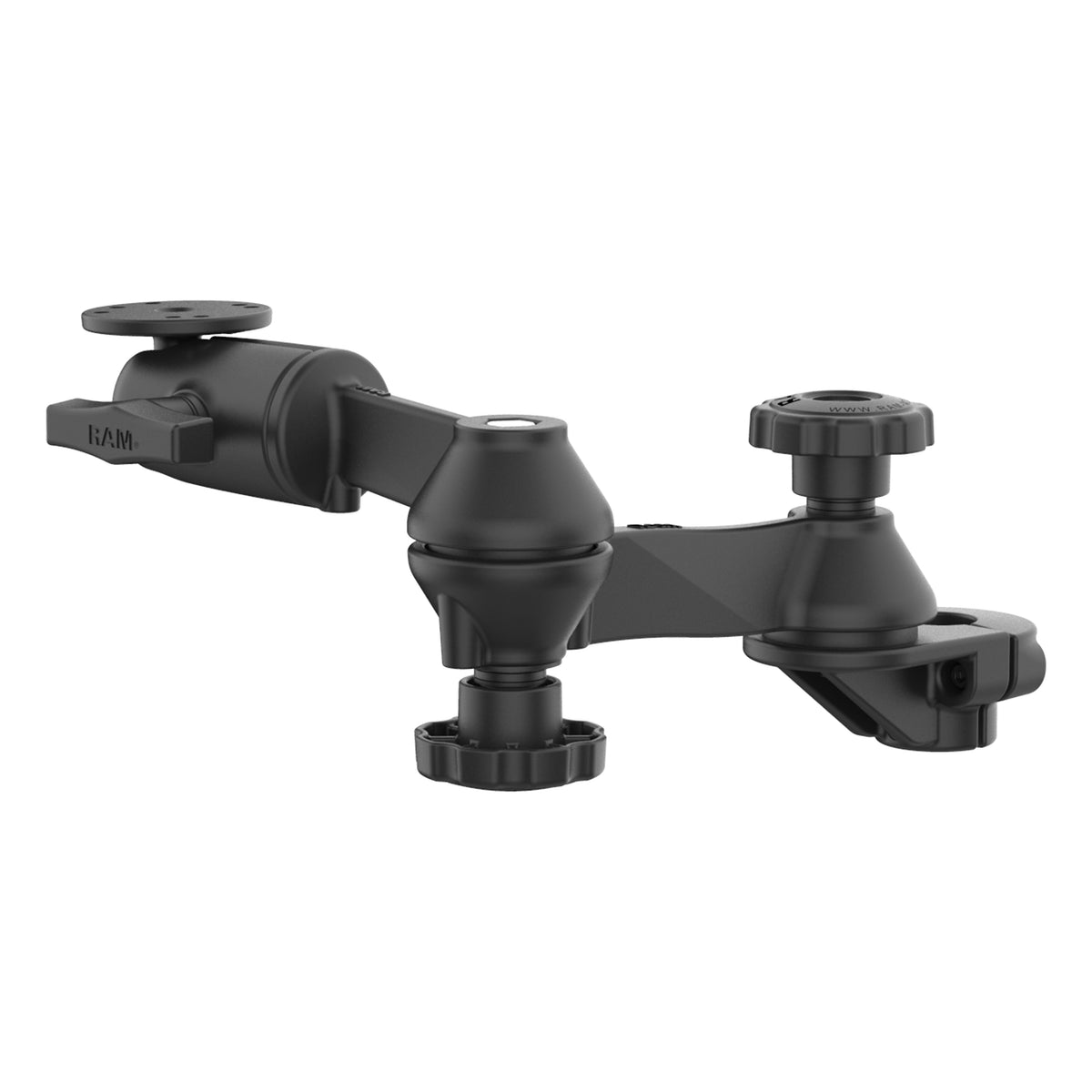

The RAM-TB-471-SW2BU is a dual swing arm attachment designed for the RAM Tough-Bar system, providing an adjustable mounting platform for a laptop or keyboard. Two 6" swing arms provide horizontal articulation, while the integrated C size RAM ball-and-socket connection allows additional tilt adjustment for comfortable positioning.
Each swing arm provides 360-degree horizontal rotation, making it possible to bring mounted equipment closer for use or move it aside when more cabin space is needed. An integrated RAM Collar-Lock system helps limit over-rotation to protect mounted equipment and nearby vehicle surfaces.
Key Features
-

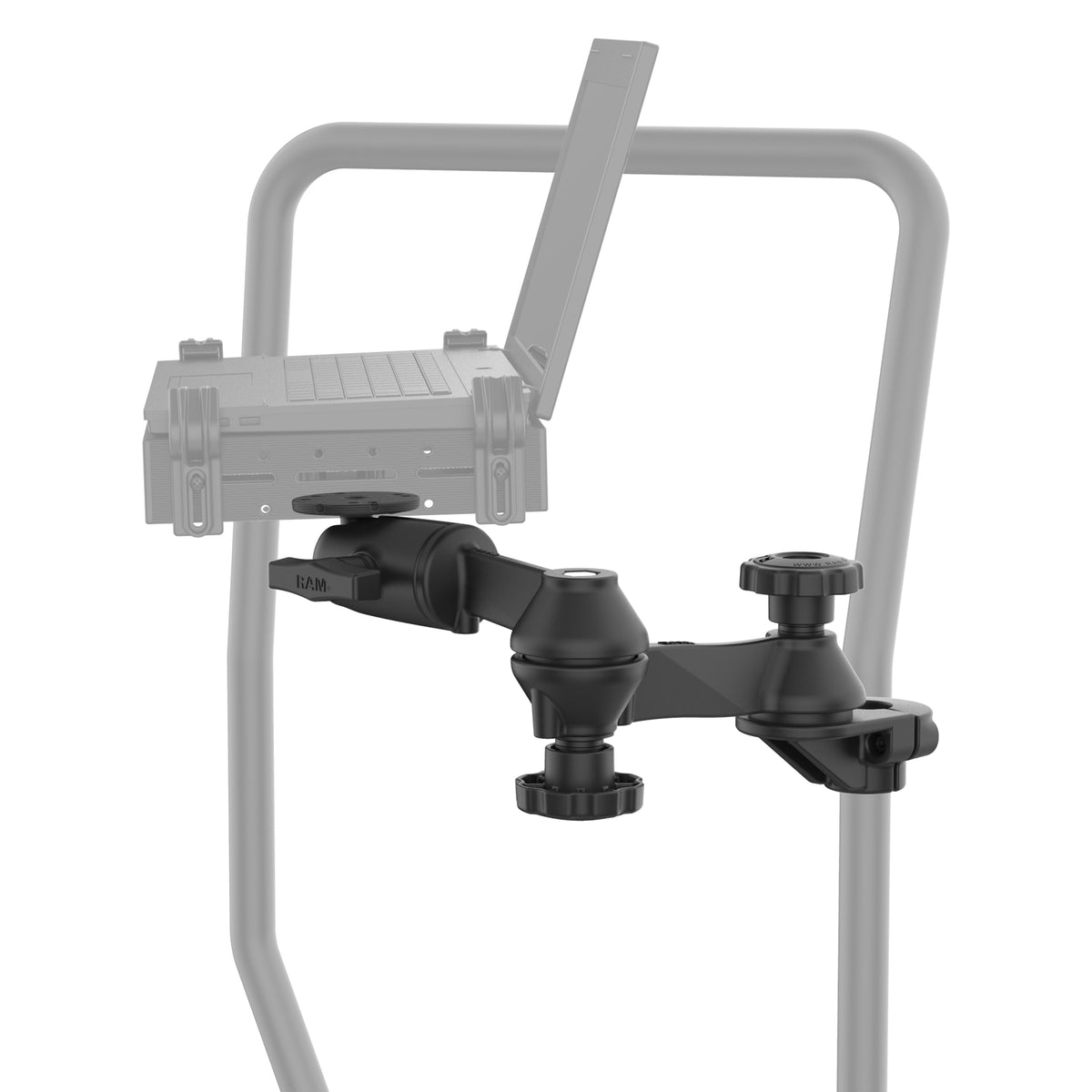

Designed for laptop mounting on the RAM Tough-Bar system
-
Two 6" articulating swing arms provide adjustable device positioning
-
Each swing arm provides full 360-degree horizontal rotation
-
Integrated C size 1.5" RAM ball-and-socket connection provides additional tilt adjustment
-
Collar-Lock system helps prevent excessive rotation during adjustment or impact
-
Supports standard loads up to 4 lb and heavy-duty use up to 3 lb
-
Compatible with 4-hole AMPS and 3-hole 120-degree mounting patterns
-
Designed for fleet, commercial, and personal vehicle applications
Use Cases & Compatibility
Designed as an adjustable Tough-Bar attachment for applications including:
-
Laptop mounting
-
Keyboard positioning
-

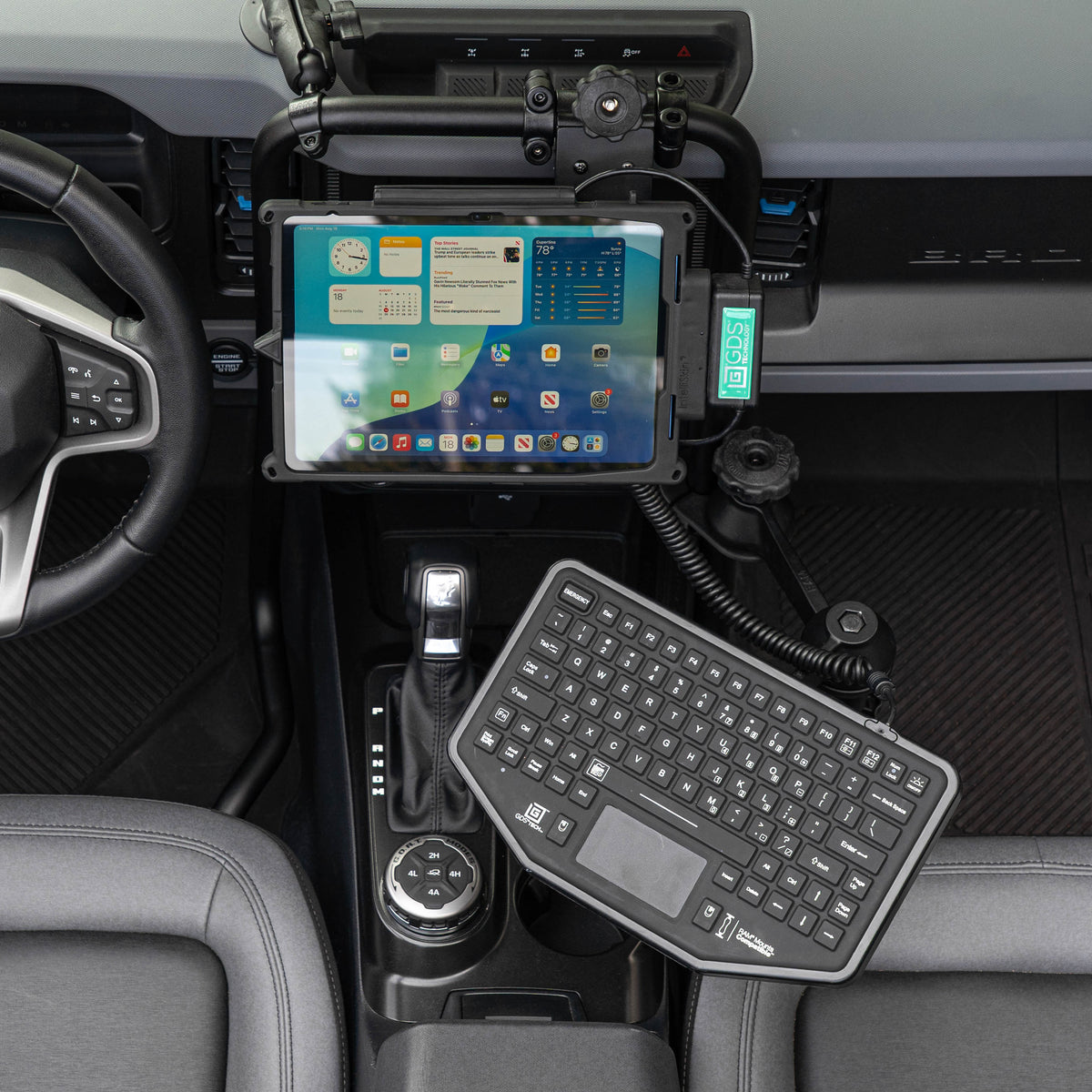

Fleet vehicle workstations
-
Commercial and service vehicle installations
-
Other compatible equipment within the specified weight capacity
This is a mounting component and does not include a laptop tray, keyboard tray, device holder, or Tough-Bar vehicle base.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 3.15 lb
-

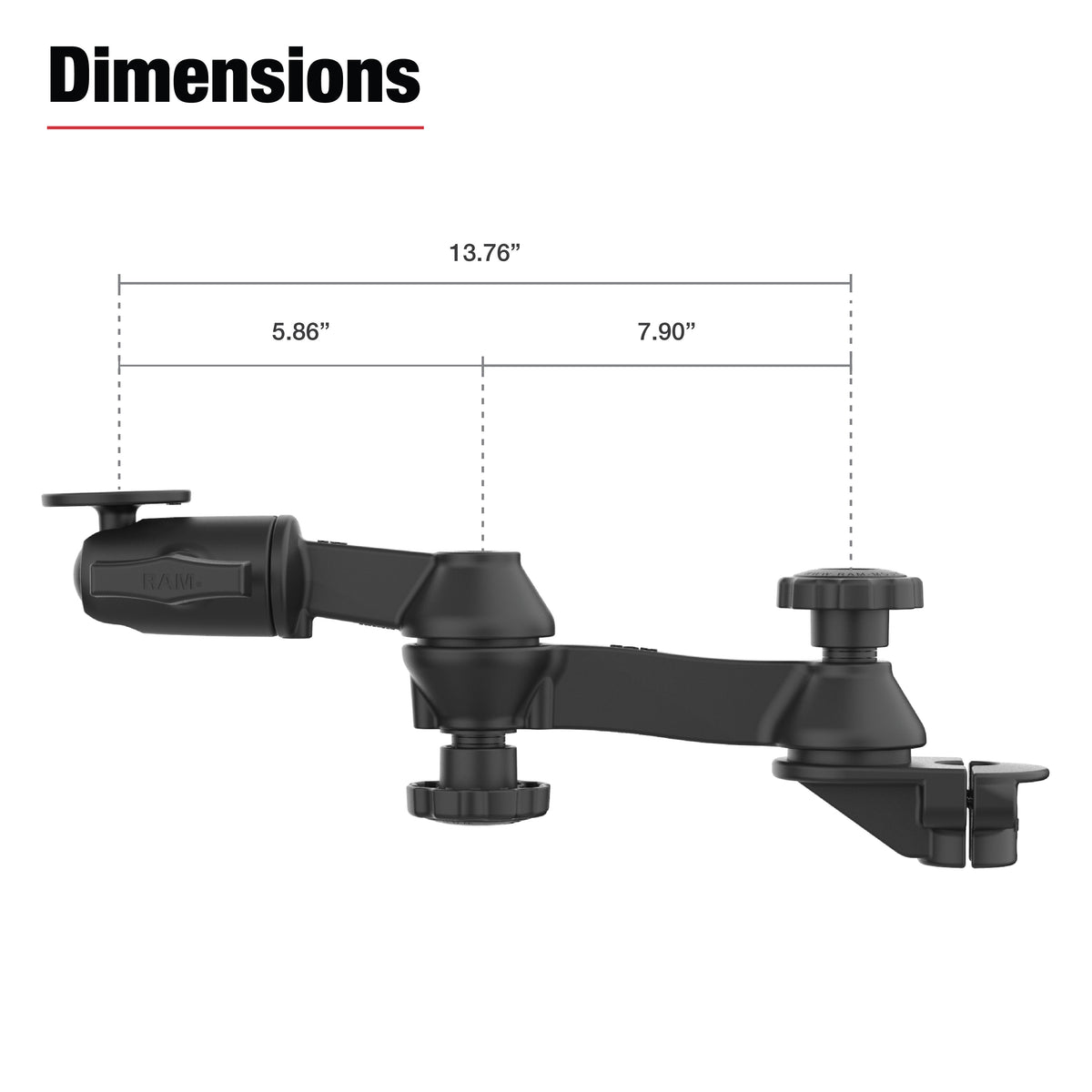

Overall Length: 13.76" from center clamp to center socket
-
Swing Arms: Two 6" articulating arms
-
Ball Size: C Size — 1.5"
-
Standard Weight Capacity: 4 lb
-
Heavy-Duty Weight Capacity: 3 lb
-
4-Hole AMPS Pattern: 1.181" x 1.496"
-
3-Hole Pattern: 120-degree, 1.812" diameter
-
Mount Function: Rail
-
Part Type: Swing Arm
What’s Included
-
RAM 90-Degree Dual Swing Arm Mount with C size ball
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-471-SW2BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
