Description

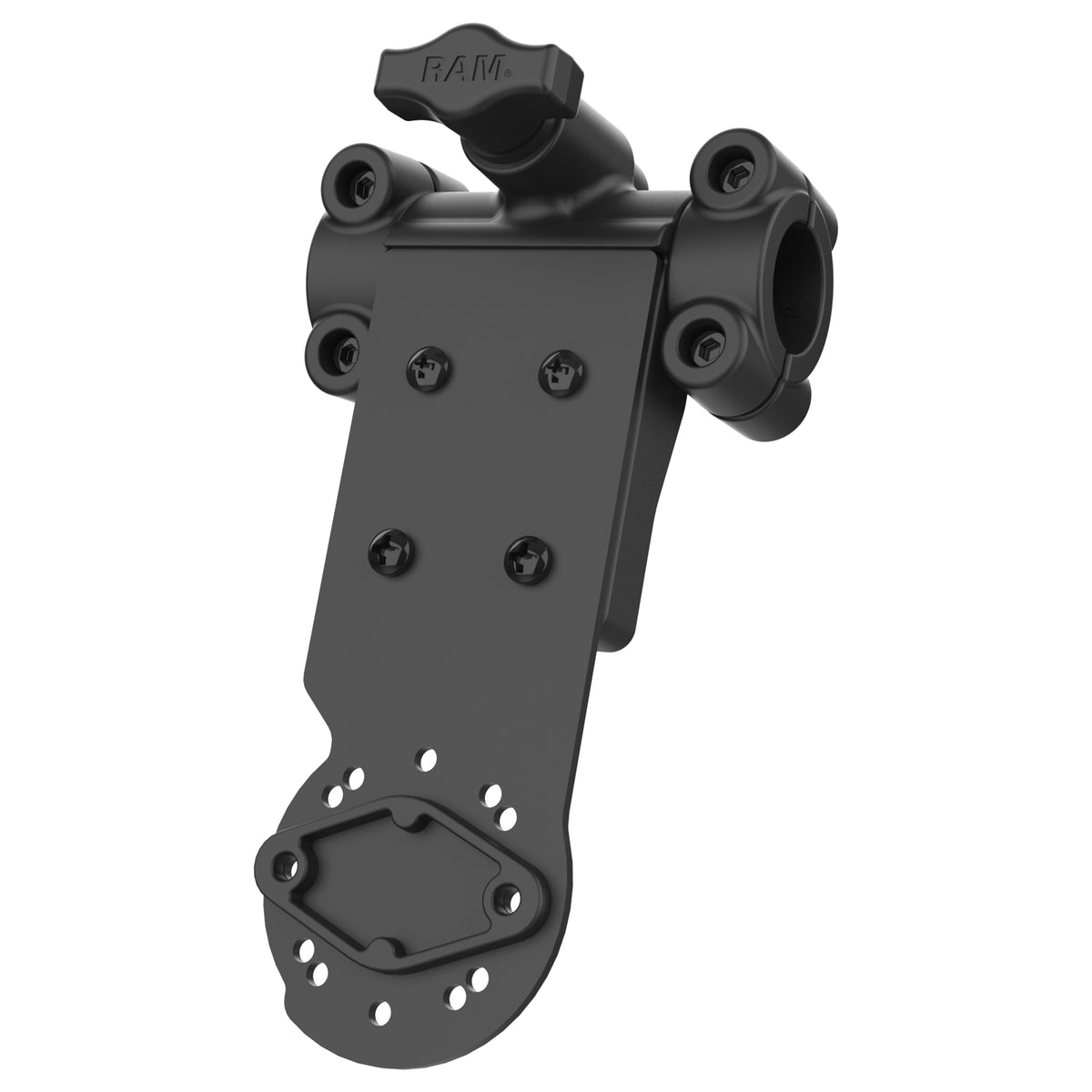

The RAM Friction Hinge Mount RAM-TB-FH1-1P1U attaches directly to a RAM Tough-Bar and provides an adjustable mounting point for compatible tablet holders, GDS Docks, and screens. Its friction hinge allows controlled single-axis movement so the attached device can be repositioned for visibility or access while remaining securely supported.

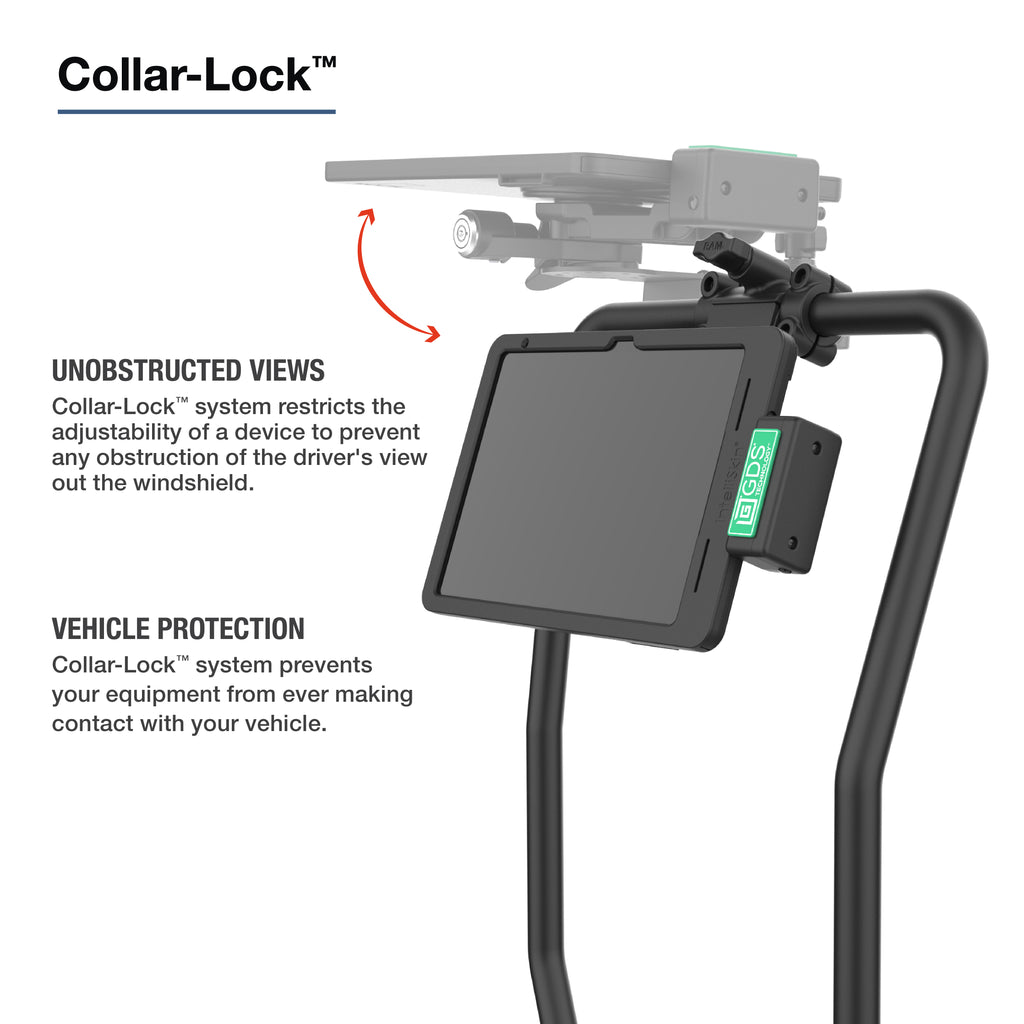

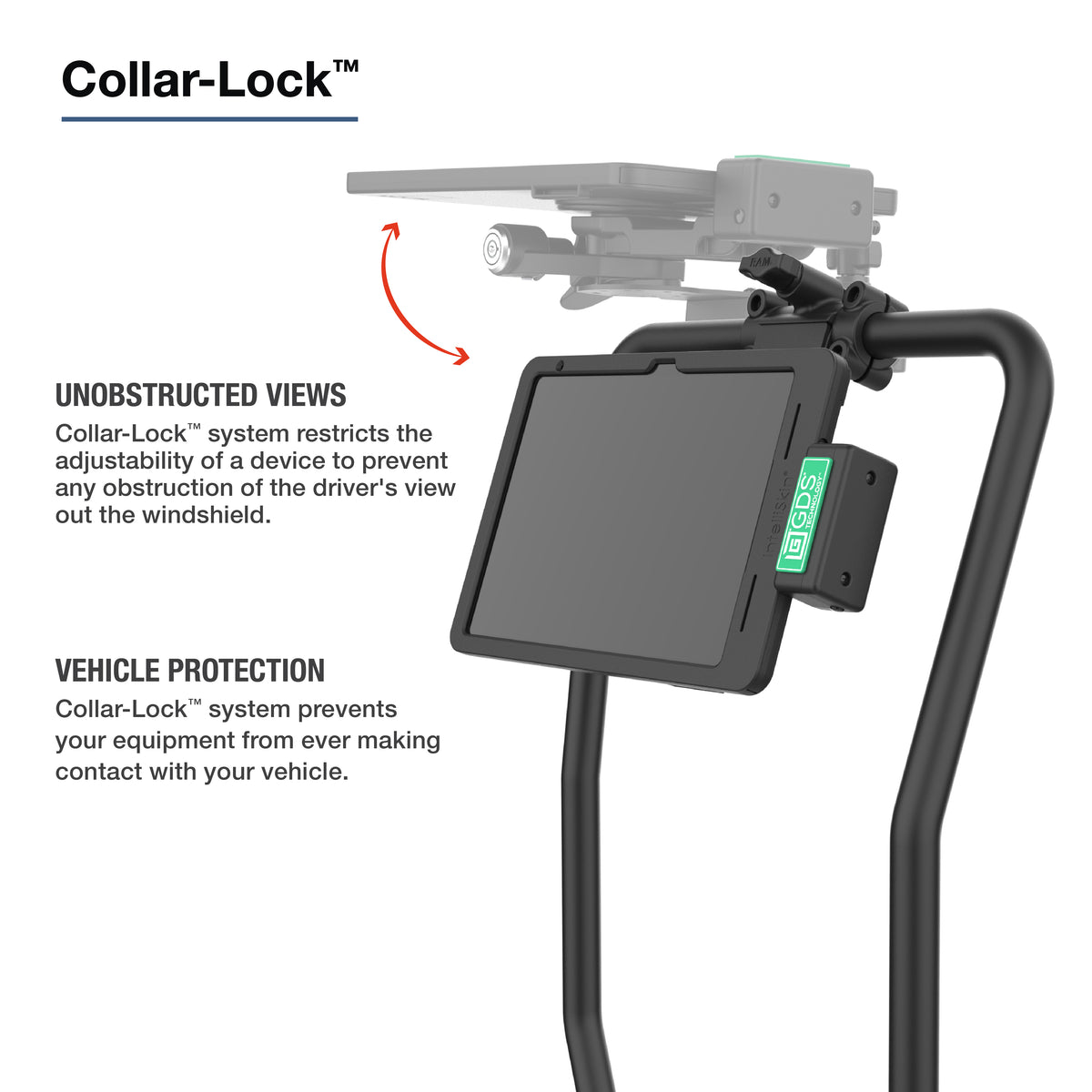

An integrated RAM Collar-Lock system limits over-rotation to help prevent the mounted device from contacting the windshield, dashboard, or other vehicle surfaces. The AMPS bracket supports both 2-hole and 4-hole AMPS mounting patterns for broad compatibility with RAM components and other AMPS-compatible equipment.
Key Features
-
Designed as an attachment accessory for the RAM Tough-Bar system
-

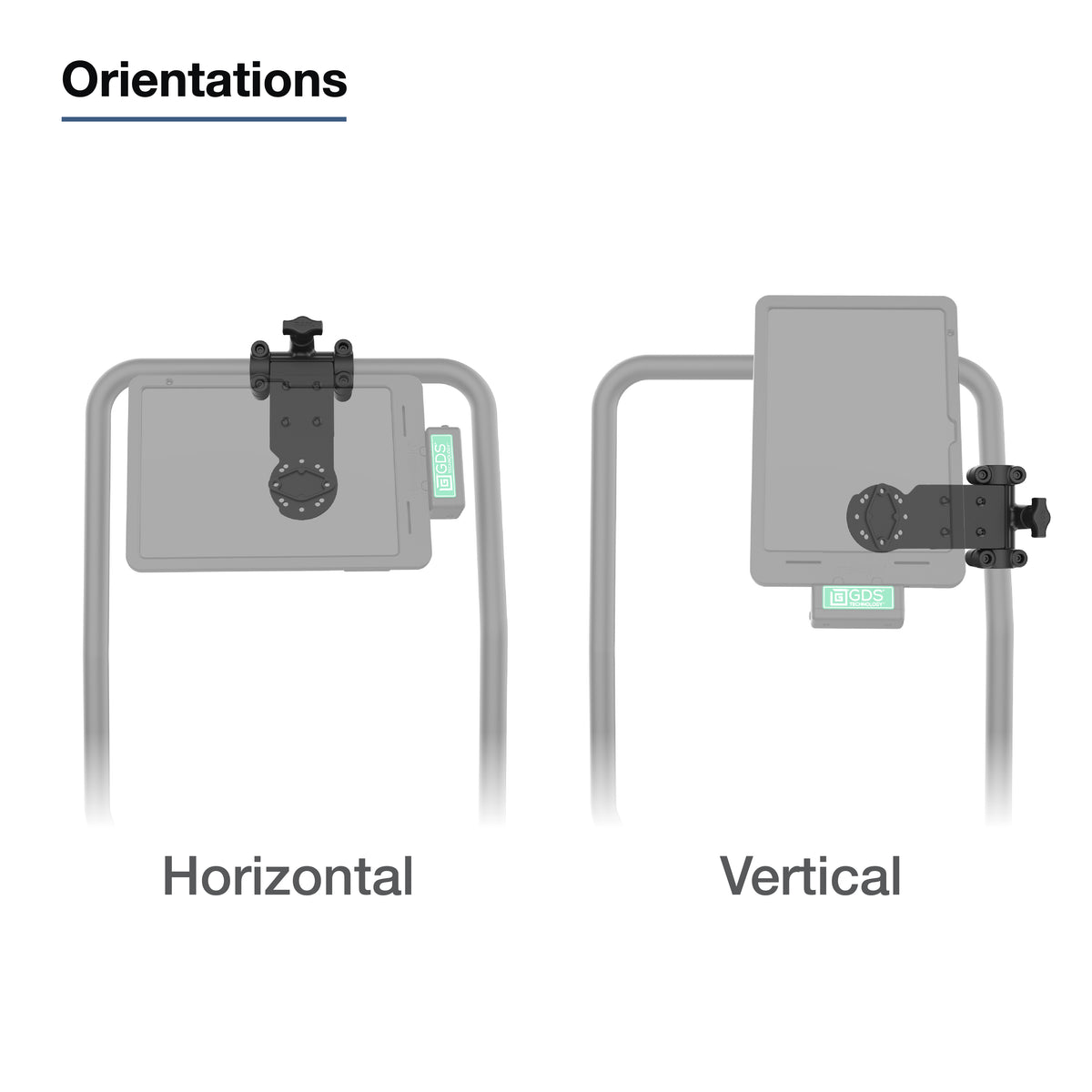

Friction hinge provides controlled single-axis tilt adjustment
-
Adjustment knob allows the mounted position to be secured or repositioned
-
Integrated Collar-Lock system helps prevent excessive hinge rotation
-
Supports both 2-hole and 4-hole AMPS mounting patterns
-
Compatible with RAM holders, GDS Docks, and AMPS-compatible screens
-
Designed to provide stable, vibration-resistant device positioning
-

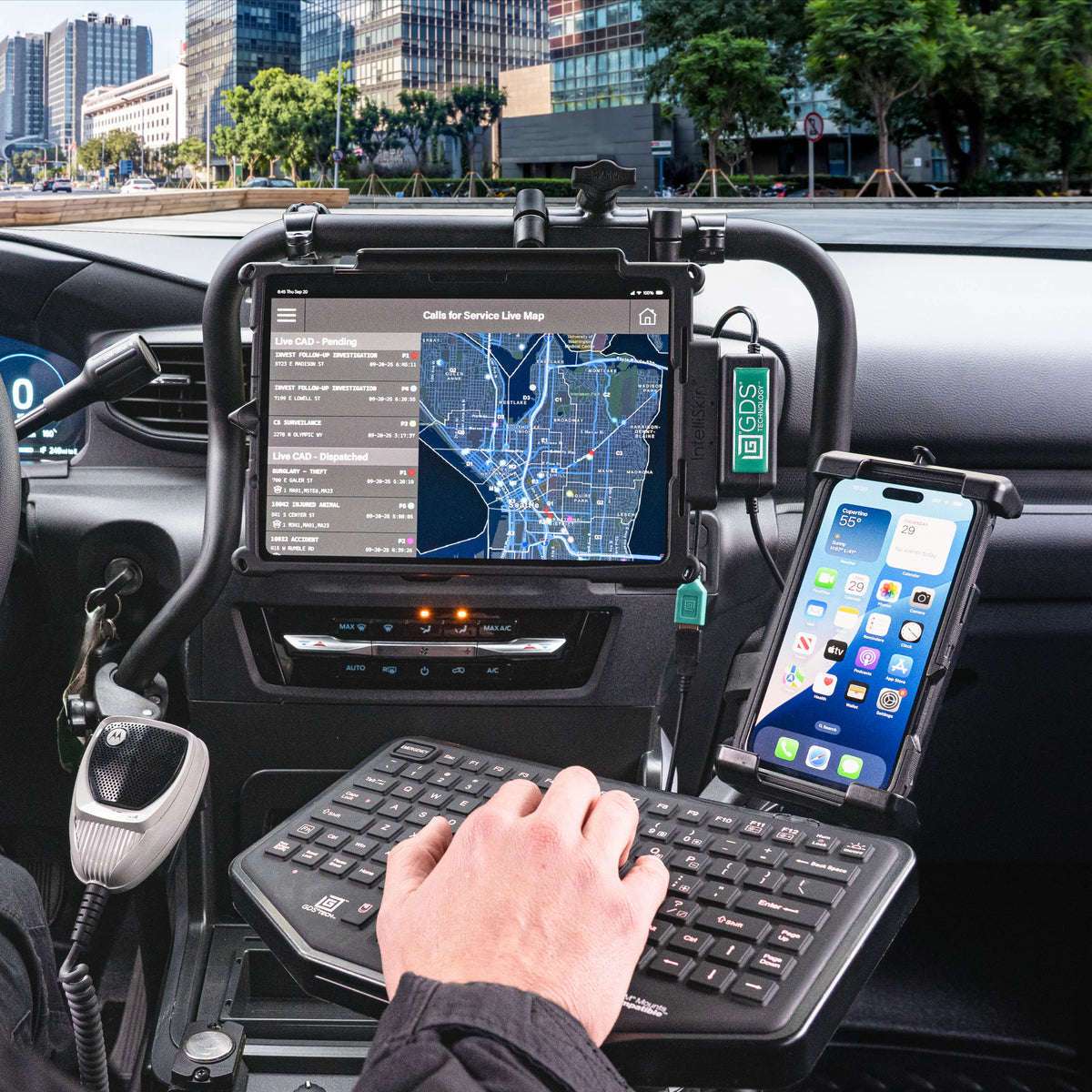

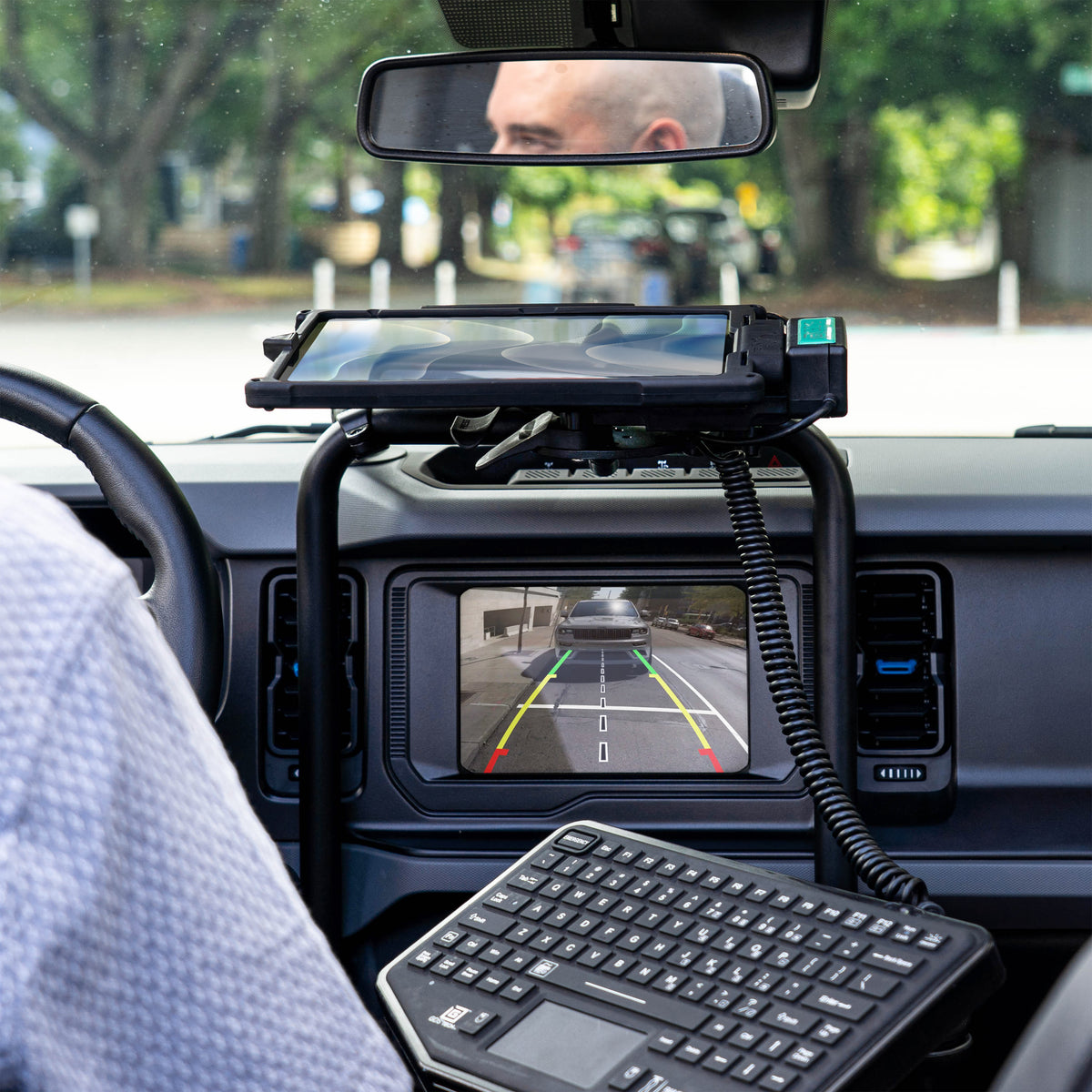

Suitable for fleet, service, and personal vehicle applications
Use Cases & Compatibility

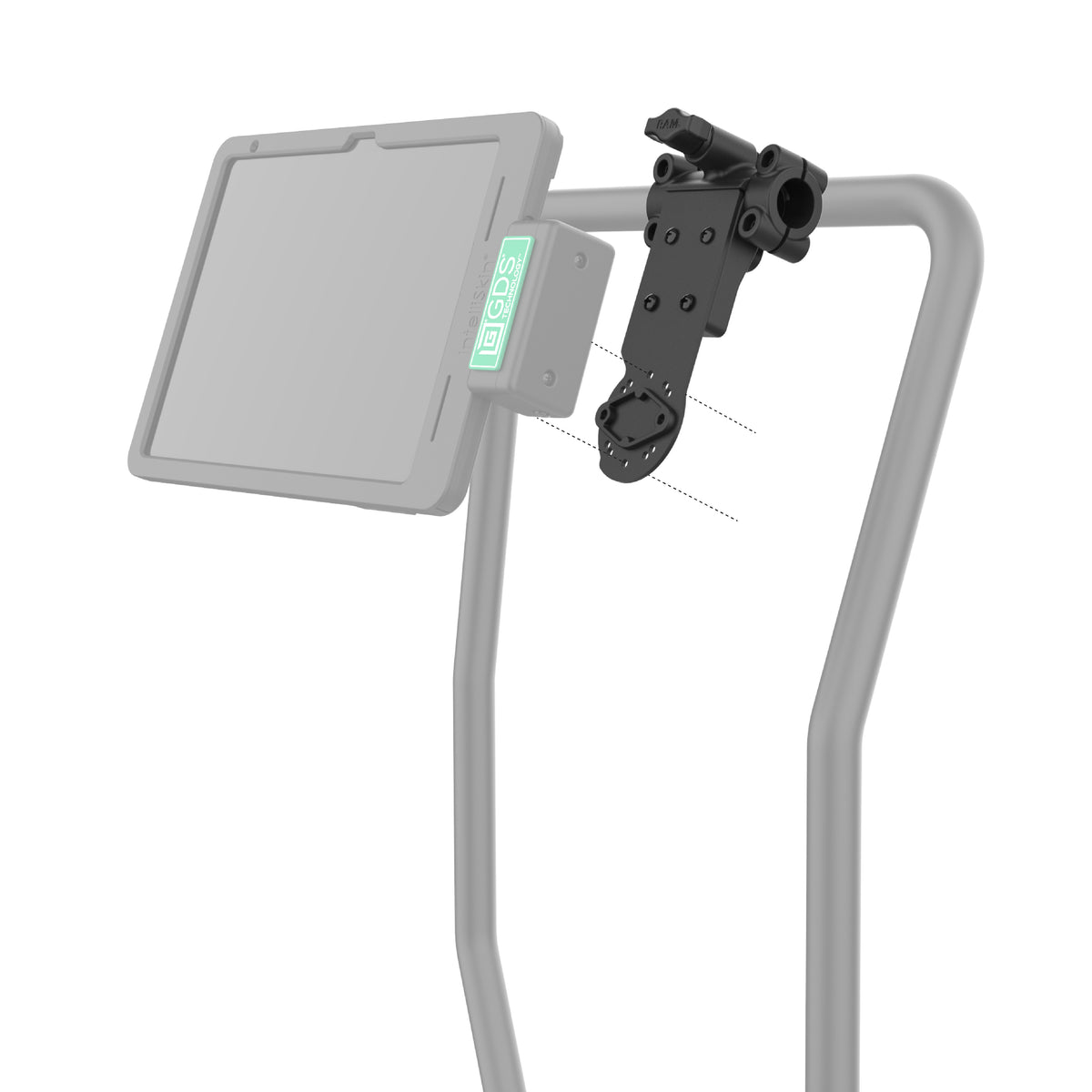

Designed for use with the RAM Tough-Bar mounting system as an adjustable attachment point for compatible equipment including:
-
RAM tablet holders
-
RAM GDS Docks
-
AMPS-compatible screens
-
Other equipment using supported 2-hole or 4-hole AMPS patterns
This product is a Tough-Bar attachment component and does not include a complete device holder or dock.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 1.57 lb
-
Mount Function: Rail
-
Part Type: Adapter Plate
-

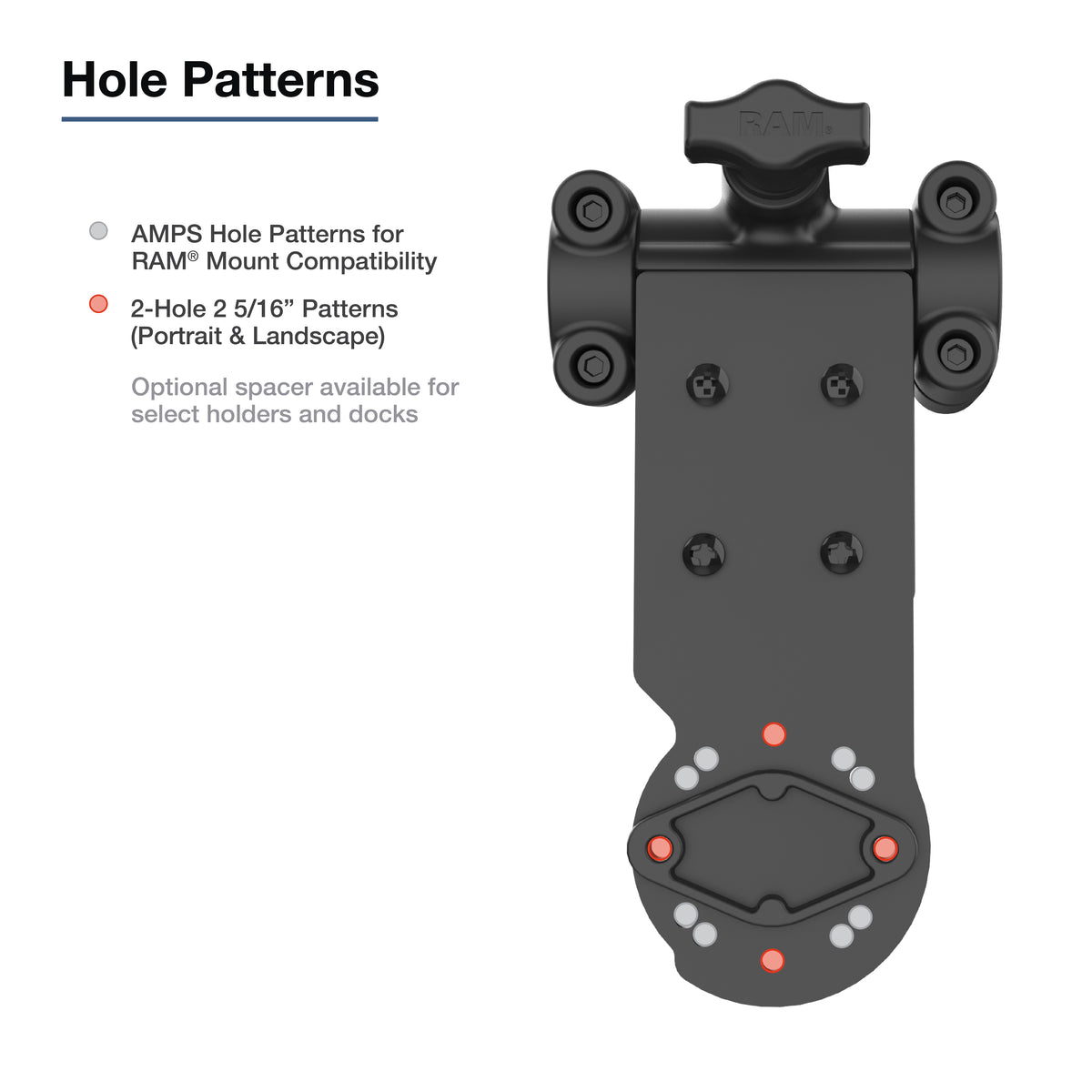

4-Hole AMPS Pattern: 1.181" x 1.496"
-
2-Hole AMPS Pattern: 1.912"
-
Materials: Powder-coated steel, marine-grade aluminum, high-strength composite
-
Adjustment Type: Friction hinge with controlled single-axis movement
-
Rotation Control: RAM Collar-Lock system
What’s Included
-
RAM Friction Hinge Mount with AMPS bracket
-
(1) Optional diamond spacer
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-FH1-1P1U
Warranty: Manufacturer's lifetime warranty
