Description

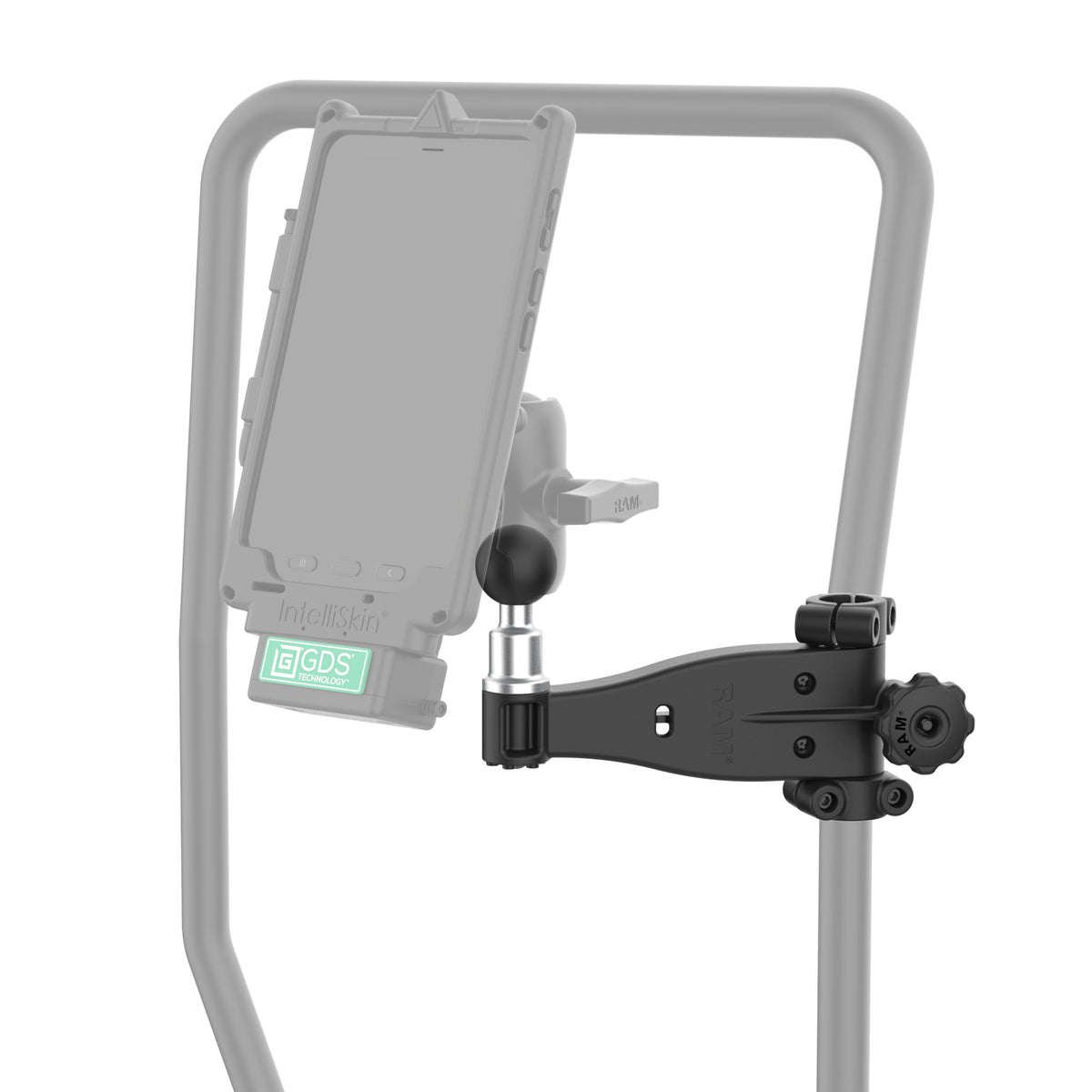

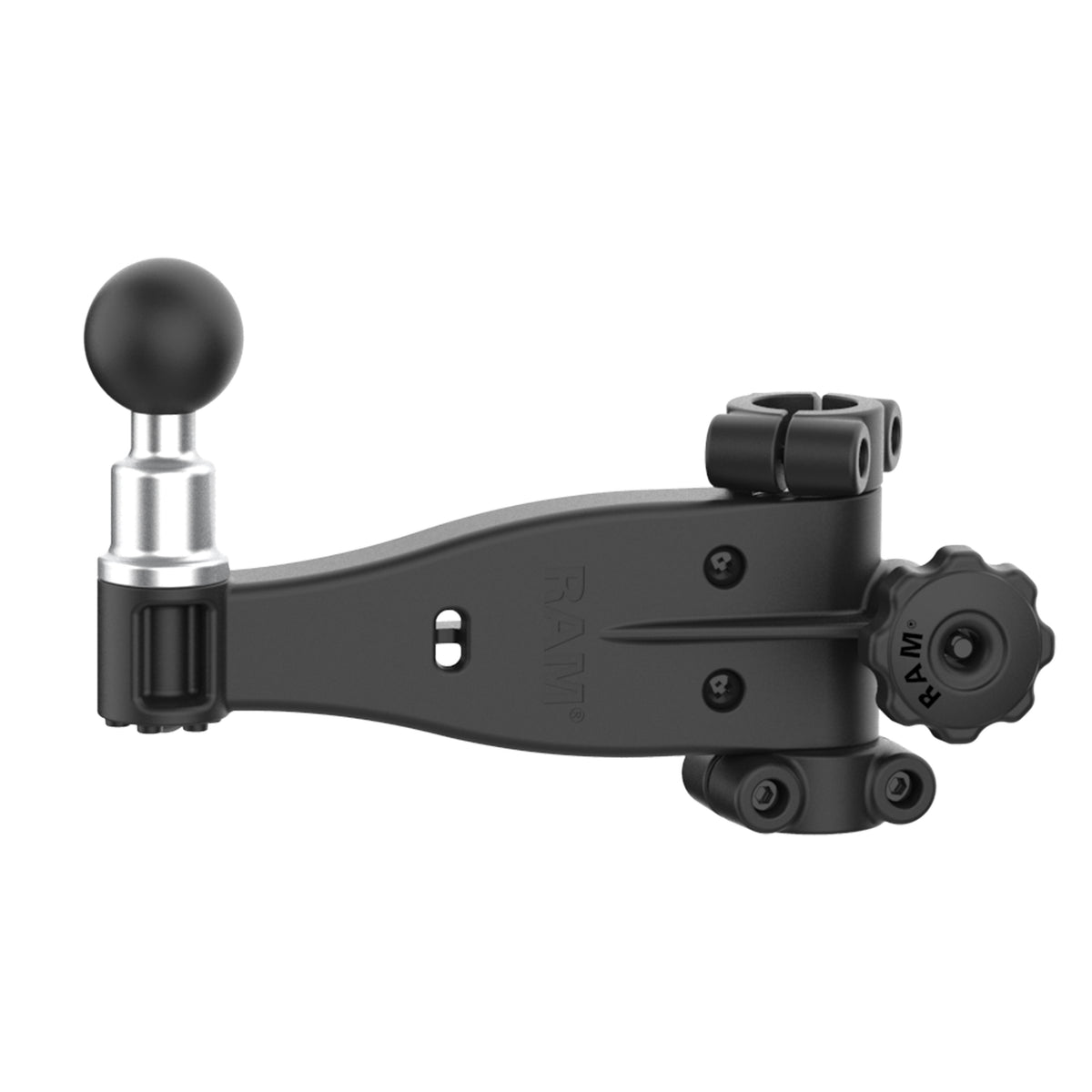

The RAM-TB-FHA2-1BU is a modular friction hinge arm designed for the RAM Tough-Bar system. It features a C size 1.5" RAM Pin-Lock ball, allowing you to connect a compatible C size double socket arm and device holder to build a customized mounting solution.

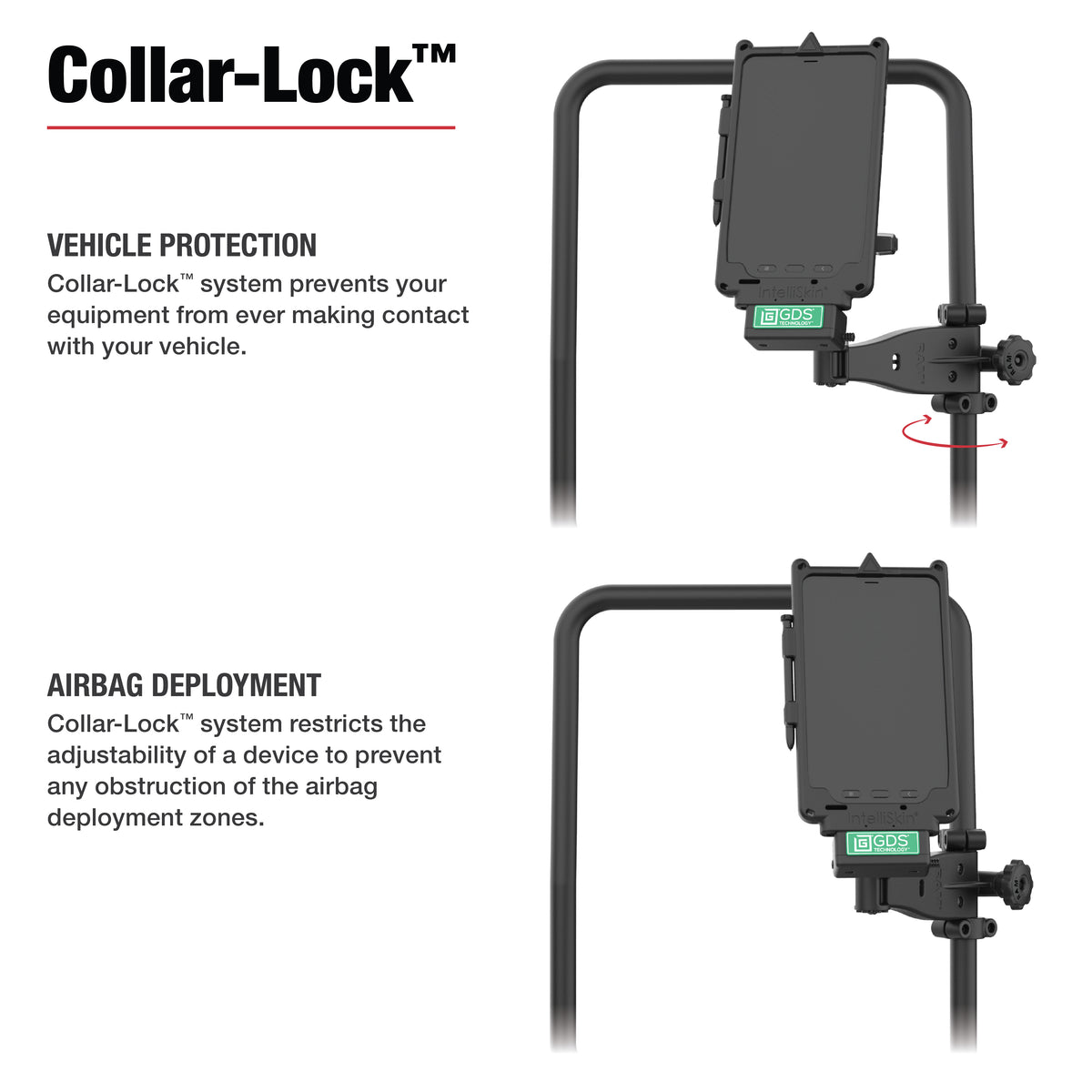

The integrated friction hinge provides smooth single-axis side-to-side adjustment, while the RAM Collar-Lock system helps prevent excessive rotation that could allow the attached arm or device to contact the dashboard. Built-in cable retention helps keep connected cords organized and secured during adjustment.
Key Features
-
Designed as a modular attachment for the RAM Tough-Bar
-
Includes C size 1.5" RAM Pin-Lock ball
-
Compatible with C size double socket arms and device holders
-
Friction hinge provides smooth single-axis side-to-side adjustment
-
Integrated Collar-Lock system helps prevent over-rotation
-

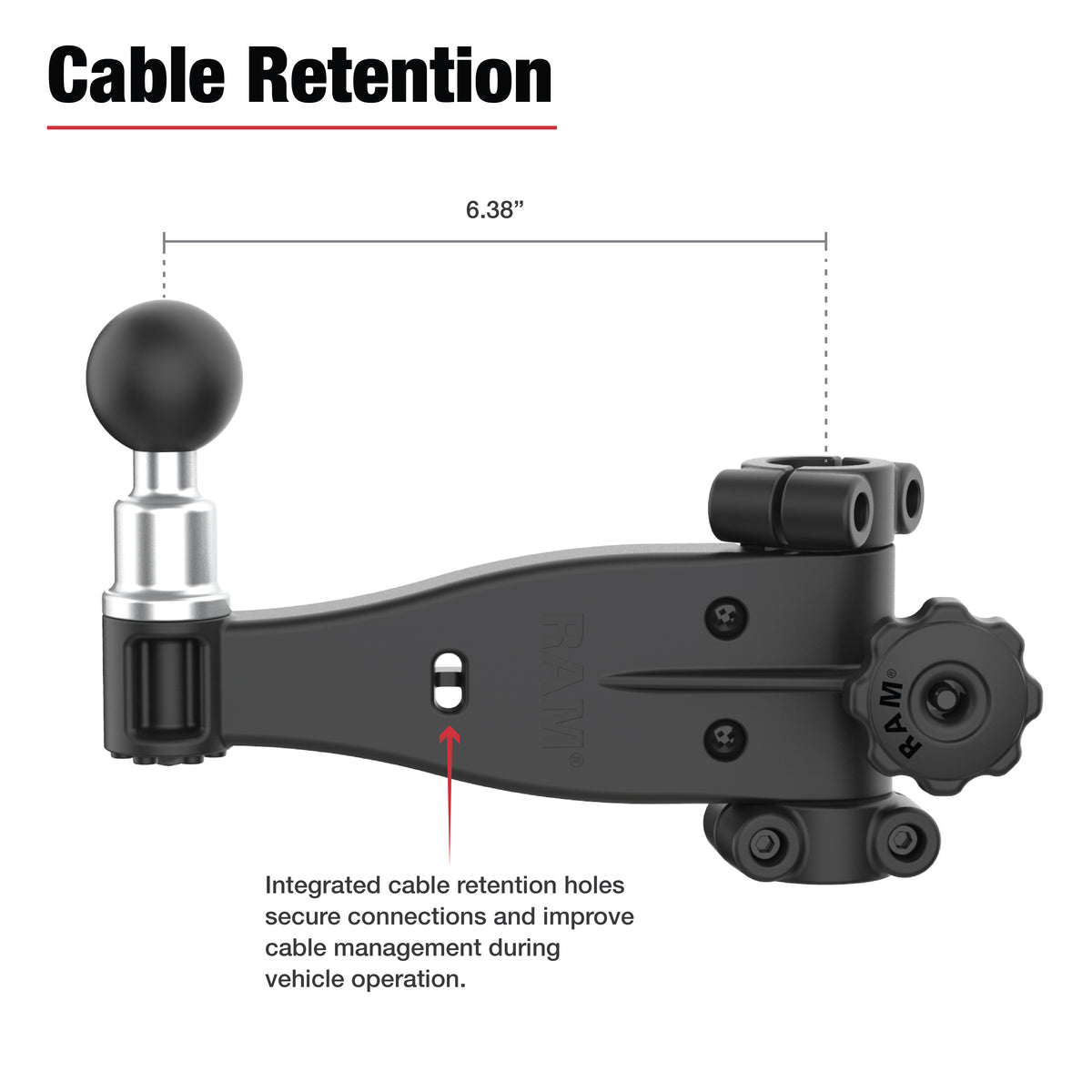

Built-in cable retention helps organize connected cords
-
Supports up to 4 lb in standard-use applications
-
Marine-grade aluminum and high-strength composite construction
Use Cases & Compatibility

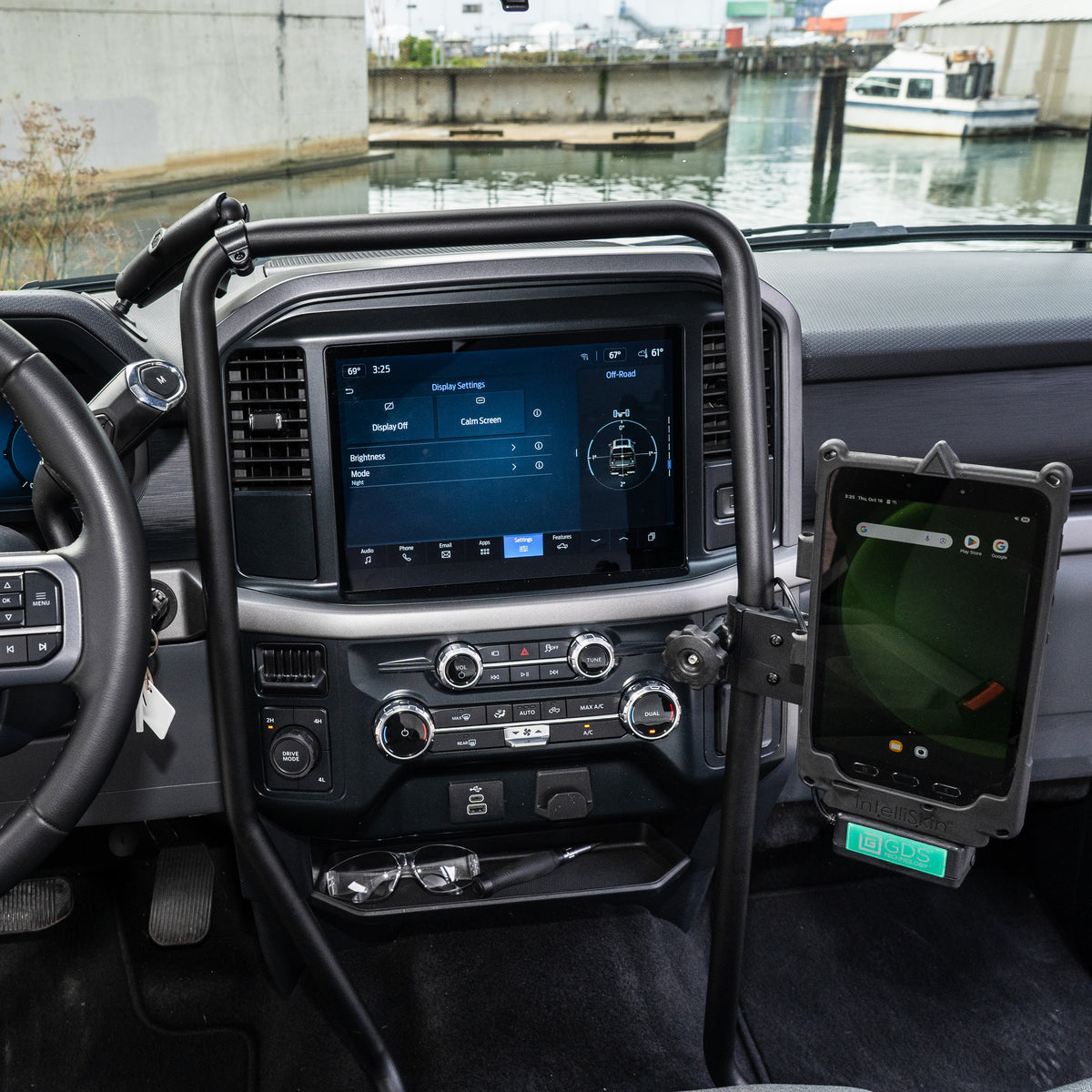

Designed for use with the RAM Tough-Bar system as the starting point for a C size mounting assembly.
The included C size 1.5" ball connects to compatible C size double socket arms. A holder or other mounting accessory is then selected separately based on the device being installed.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 0.95 lb
-
Length: 6.38" from center clamp to center ball
-
Ball Size: C Size, 1.5"
-
Weight Capacity — Standard Use: 4 lb
-
Weight Capacity — Heavy-Duty Use: 3 lb
-
Adjustment: Single-axis friction hinge
-
Safety Feature: RAM Collar-Lock system
-
Cable Management: Built-in cable retention
-
Materials: Marine-grade aluminum, high-strength composite
What’s Included
-
RAM friction hinge arm
-
C size 1.5" Pin-Lock ball
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-FHA2-1BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
