Description

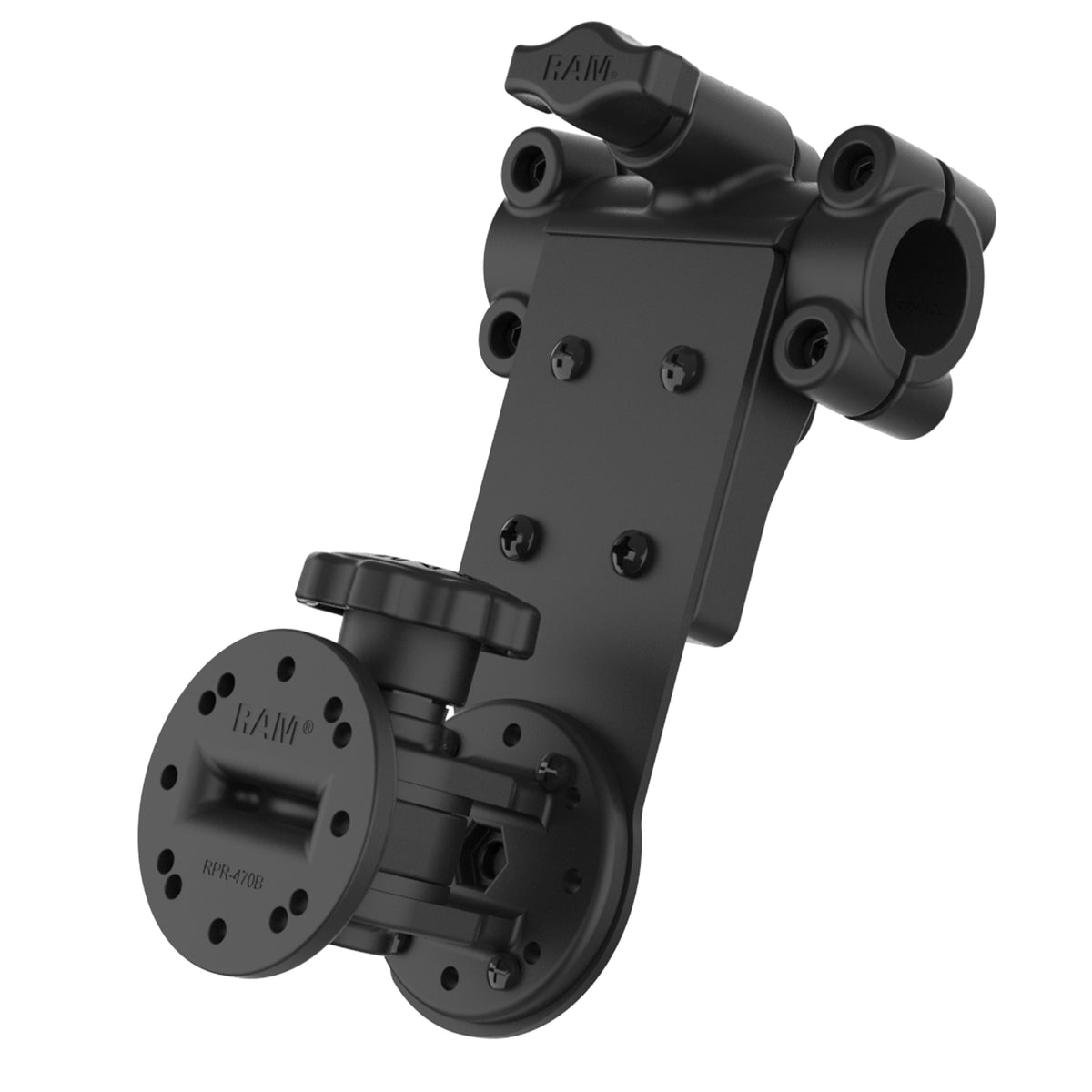

The RAM-TB-FH1-PV4U is an adjustable mounting component designed to secure compatible tablet holders and GDS Docks directly to the RAM Tough-Bar system. It combines a friction hinge, RAM Collar-Lock system, and single pivot mount to provide controlled positioning and added device adjustability.

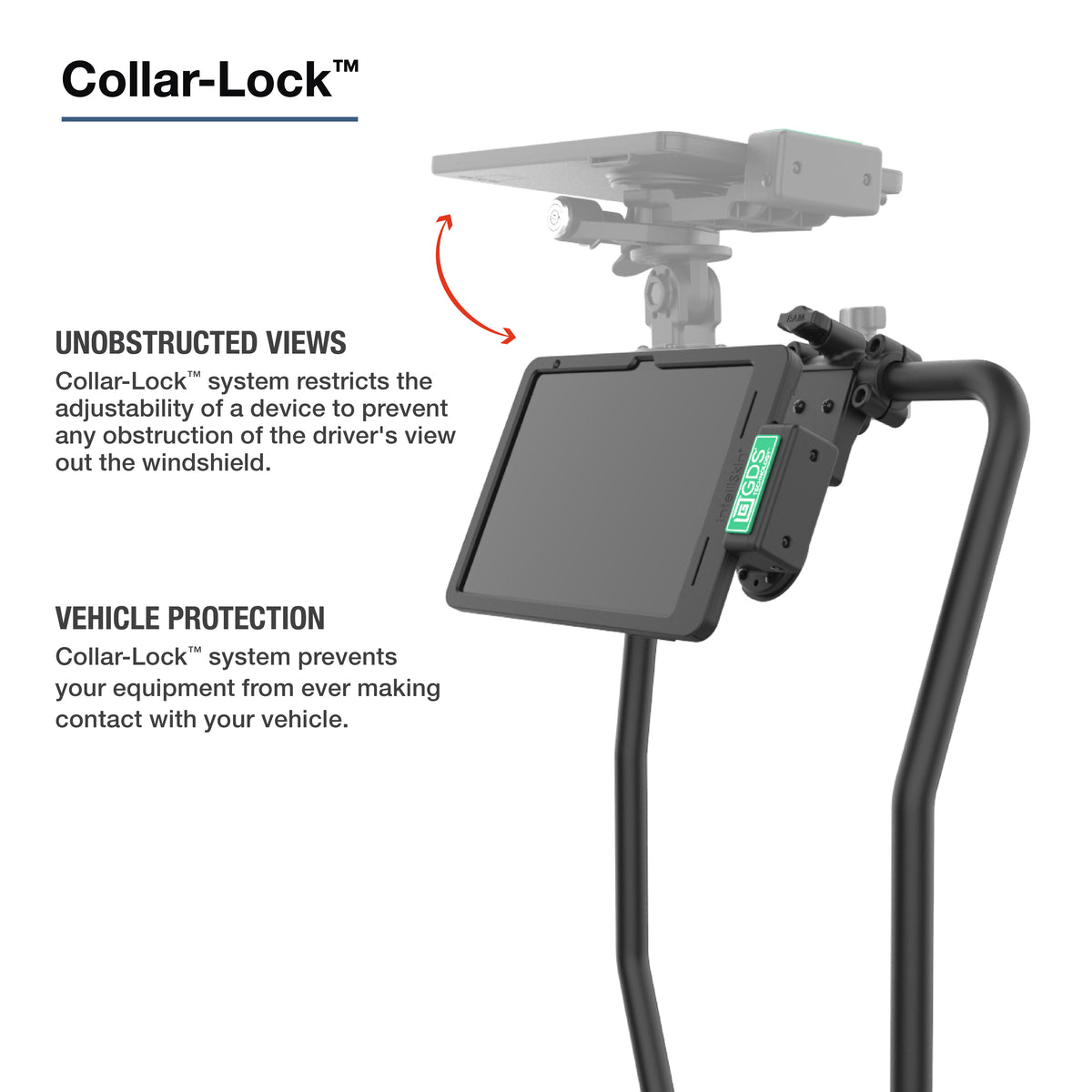

The friction hinge provides smooth single-axis movement, while the attached pivot joint adds up to 180 degrees of additional adjustment. A barrel-nut design provides added tamper resistance, and the integrated Collar-Lock system helps prevent excessive rotation that could allow the mounted device to contact the dashboard or windshield.
Key Features
-
Friction hinge provides smooth, controlled single-axis adjustment
-

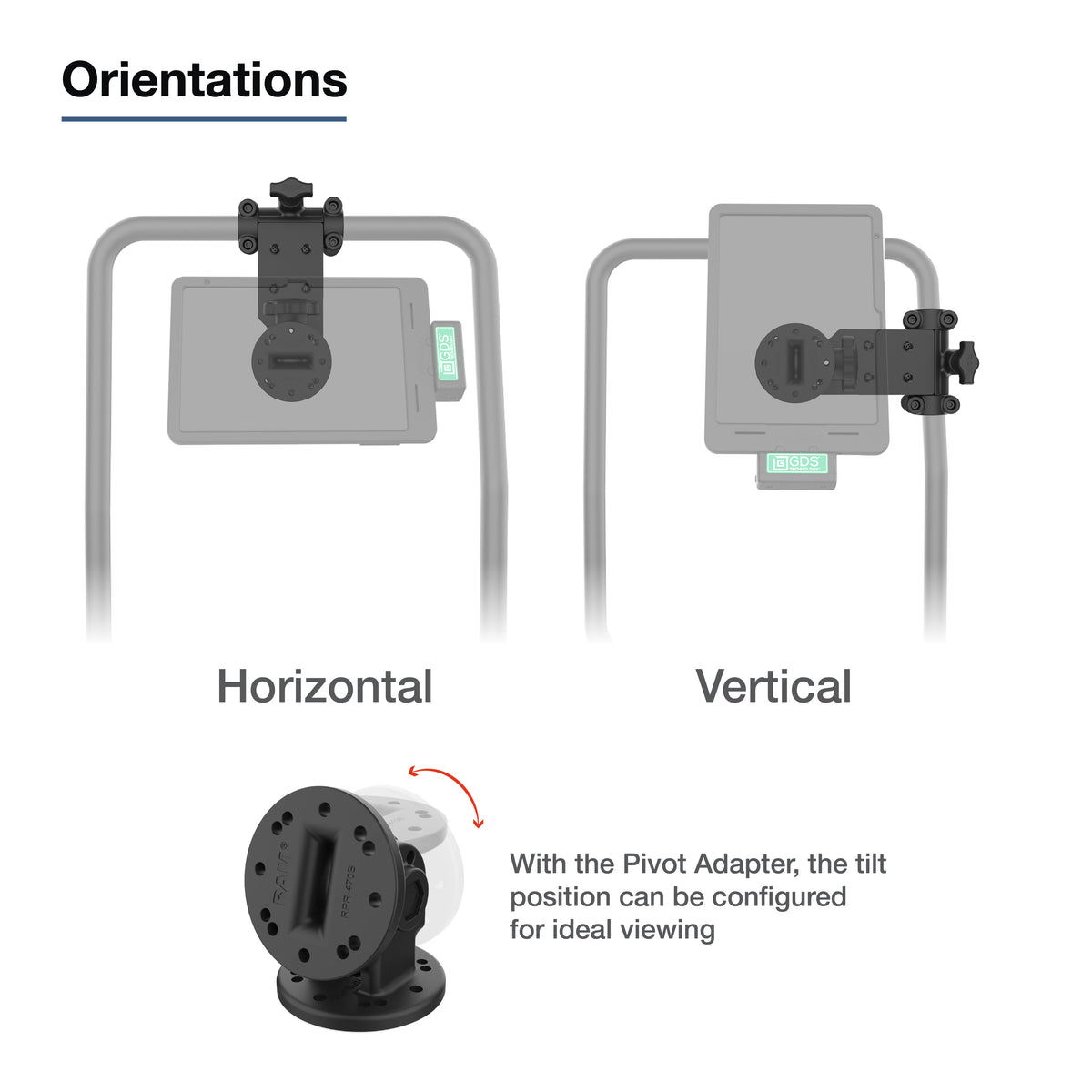

Single pivot joint provides up to 180 degrees of additional positioning
-
Integrated Collar-Lock system helps prevent over-rotation
-
Barrel-nut design provides added tamper resistance
-
Tooth-lock washers help maintain pivot positioning
-
Supports both 2-hole and 4-hole AMPS mounting patterns
-
Compatible with RAM holders and GDS Docks
-
Designed for direct attachment to the RAM Tough-Bar mounting system
-
Provides stable, vibration-resistant positioning for mounted devices
Use Cases & Compatibility
Designed as an adjustable attachment component for the RAM Tough-Bar system.

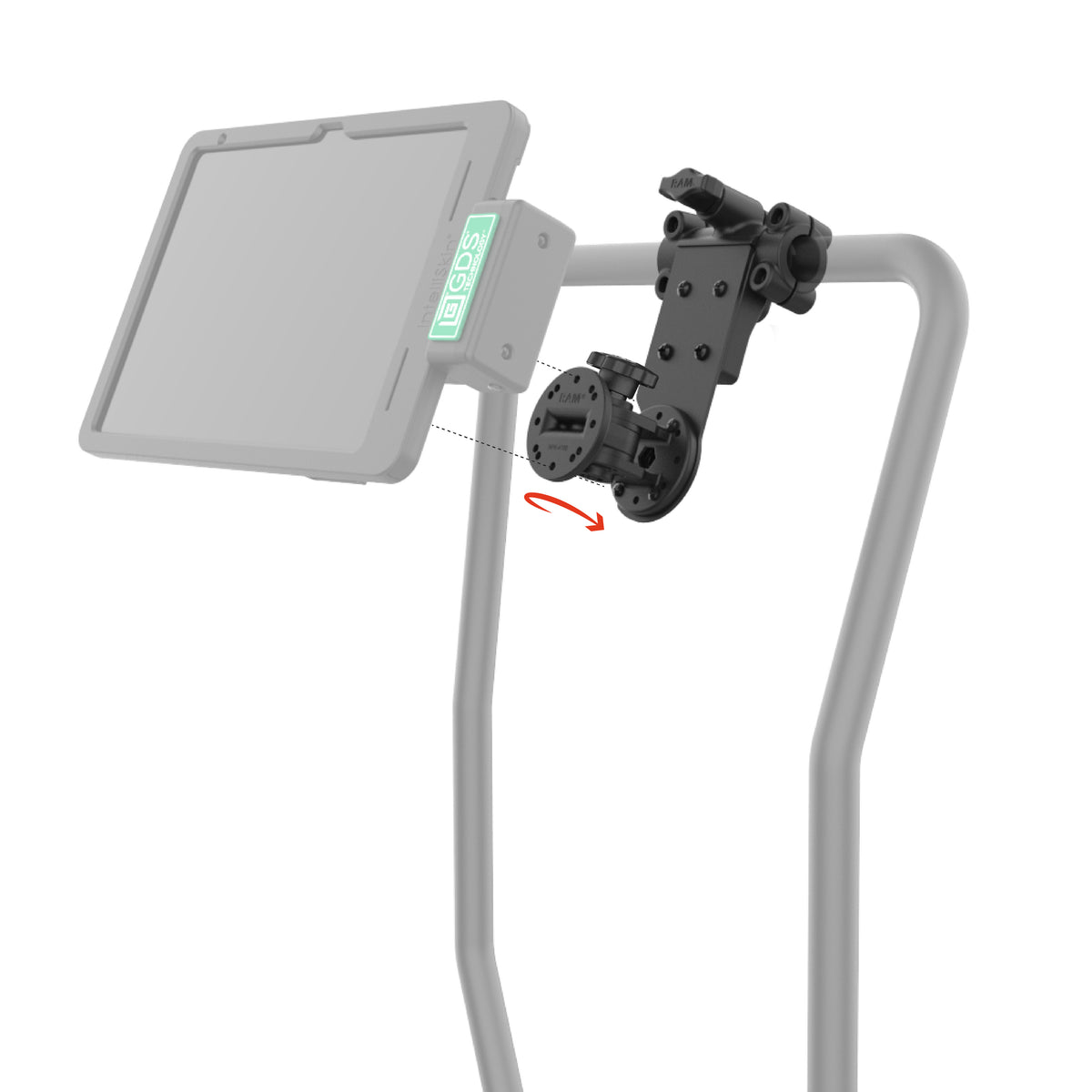

The mount supports compatible RAM holders and GDS Docks using either 2-hole or 4-hole AMPS mounting patterns. The combination of friction hinge and pivot joint allows a mounted device to be tilted and repositioned for improved viewing, access, and vehicle ergonomics.
This is a mounting component and does not include a tablet holder or GDS Dock.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 1.82 lb
-

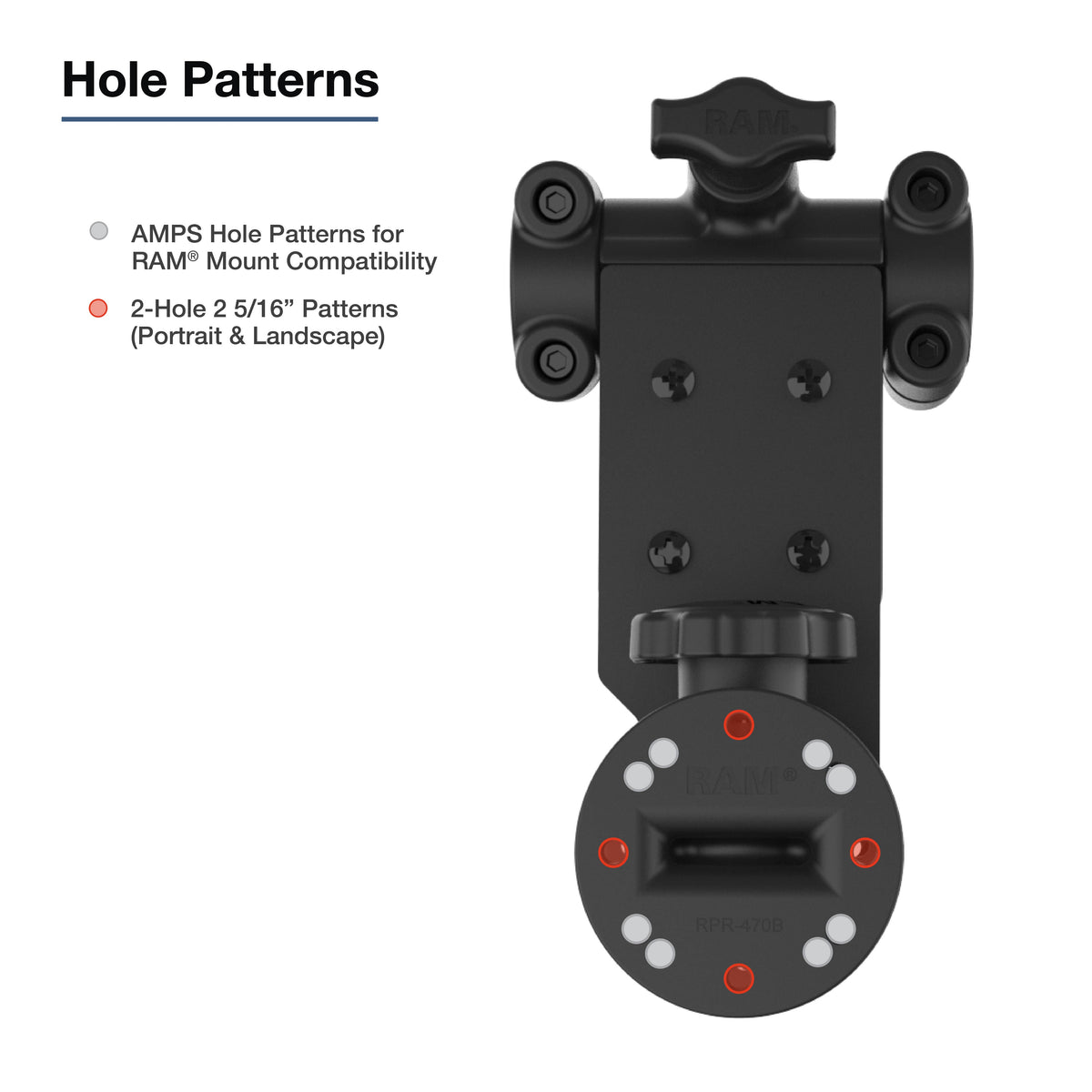

Hole Pattern: 4-Hole AMPS, 1.181" x 1.496"; 2-Hole AMPS, 1.912"
-
Friction Hinge Adjustment: Controlled single-axis movement
-
Pivot Adjustment: Up to 180 degrees
-
Safety Feature: RAM Collar-Lock system
-
Security Feature: Barrel-nut design
-
Materials: Powder-coated steel, marine-grade aluminum, high-strength composite
-
Mounting Application: RAM Tough-Bar attachment component
What’s Included
-
RAM Tough-Bar friction hinge mount
-
RAM single pivot mount
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-FH1-PV4U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
