Description

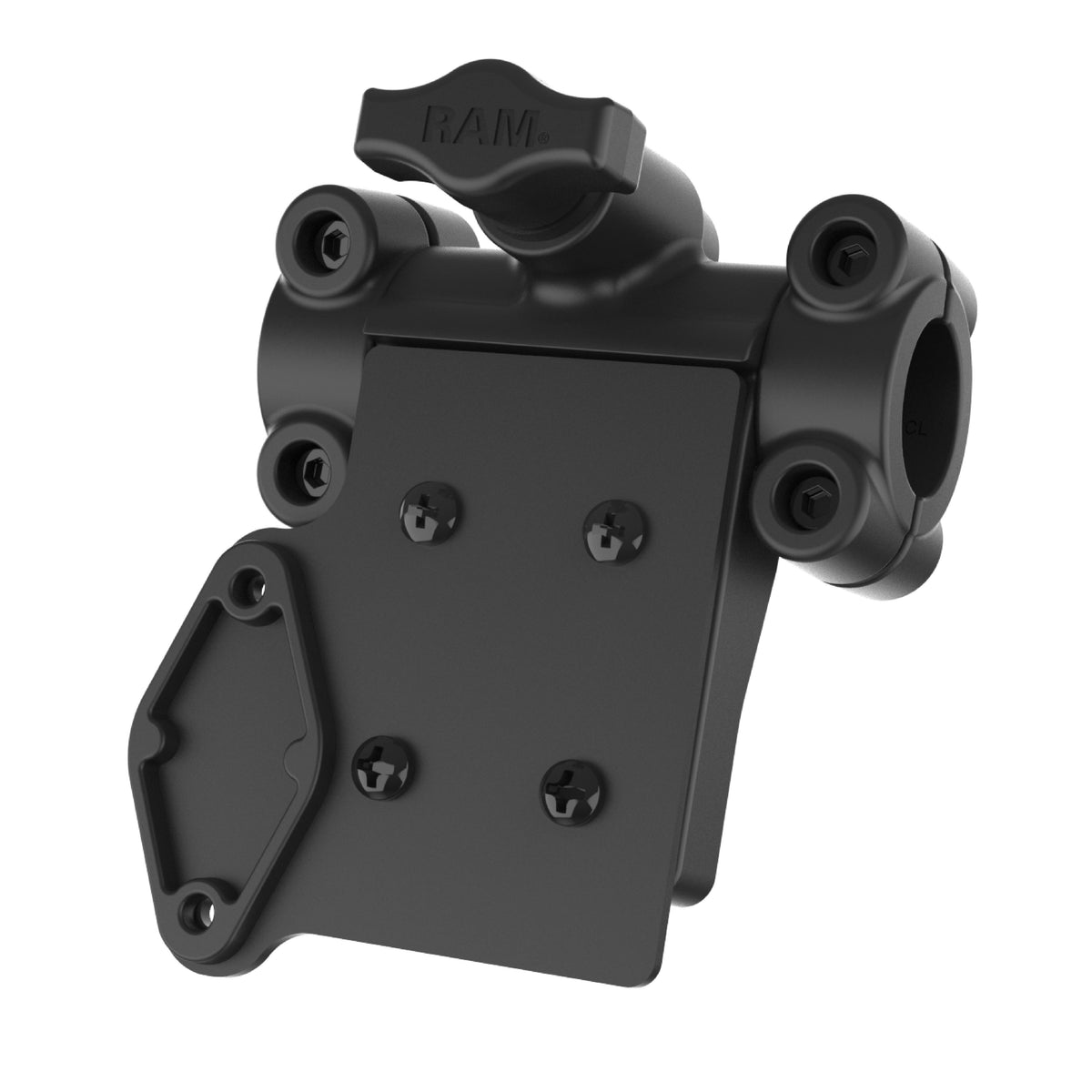

The RAM-TB-FH1-1P2U is a friction hinge mounting component designed to attach compatible tablet holders, GDS Docks, and screens to the RAM Tough-Bar system. Its adjustable friction hinge provides controlled single-axis movement, allowing the attached device to be repositioned for viewing or access and then secured in place.

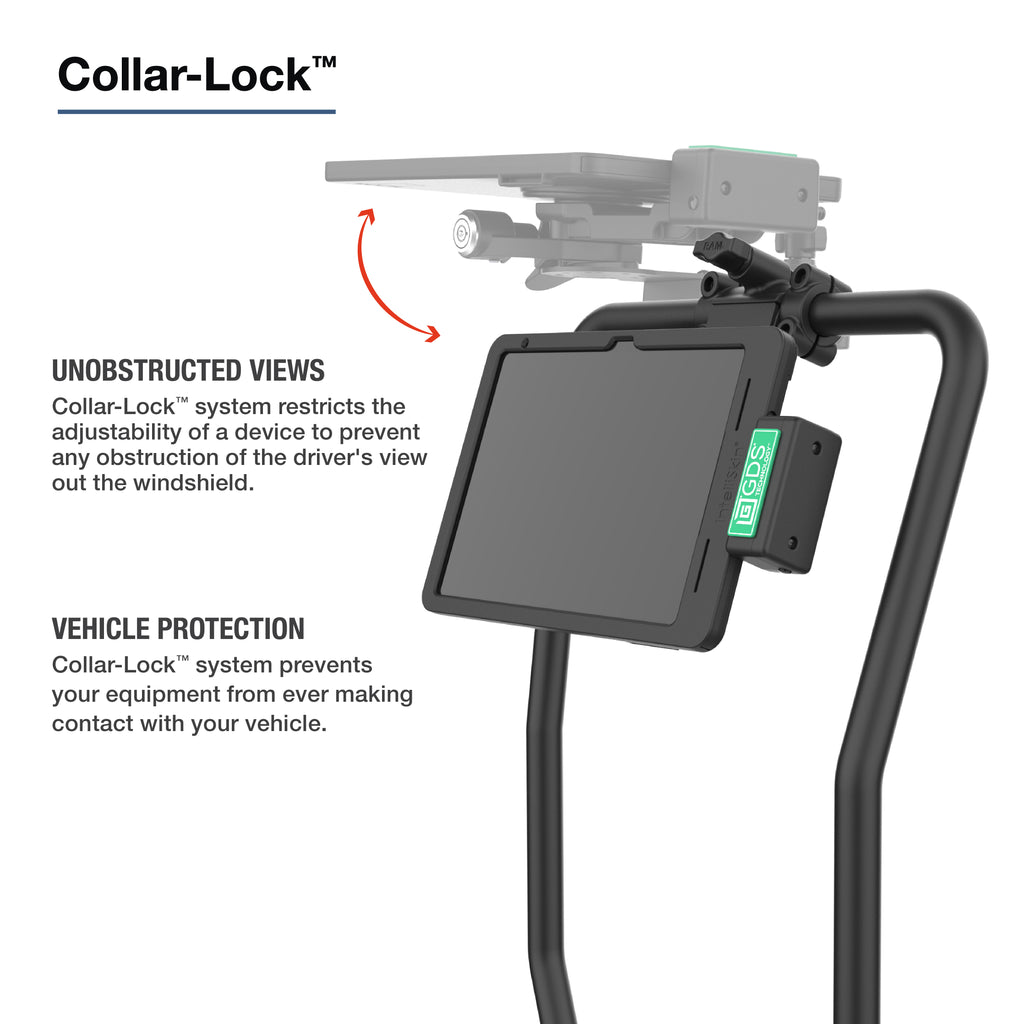

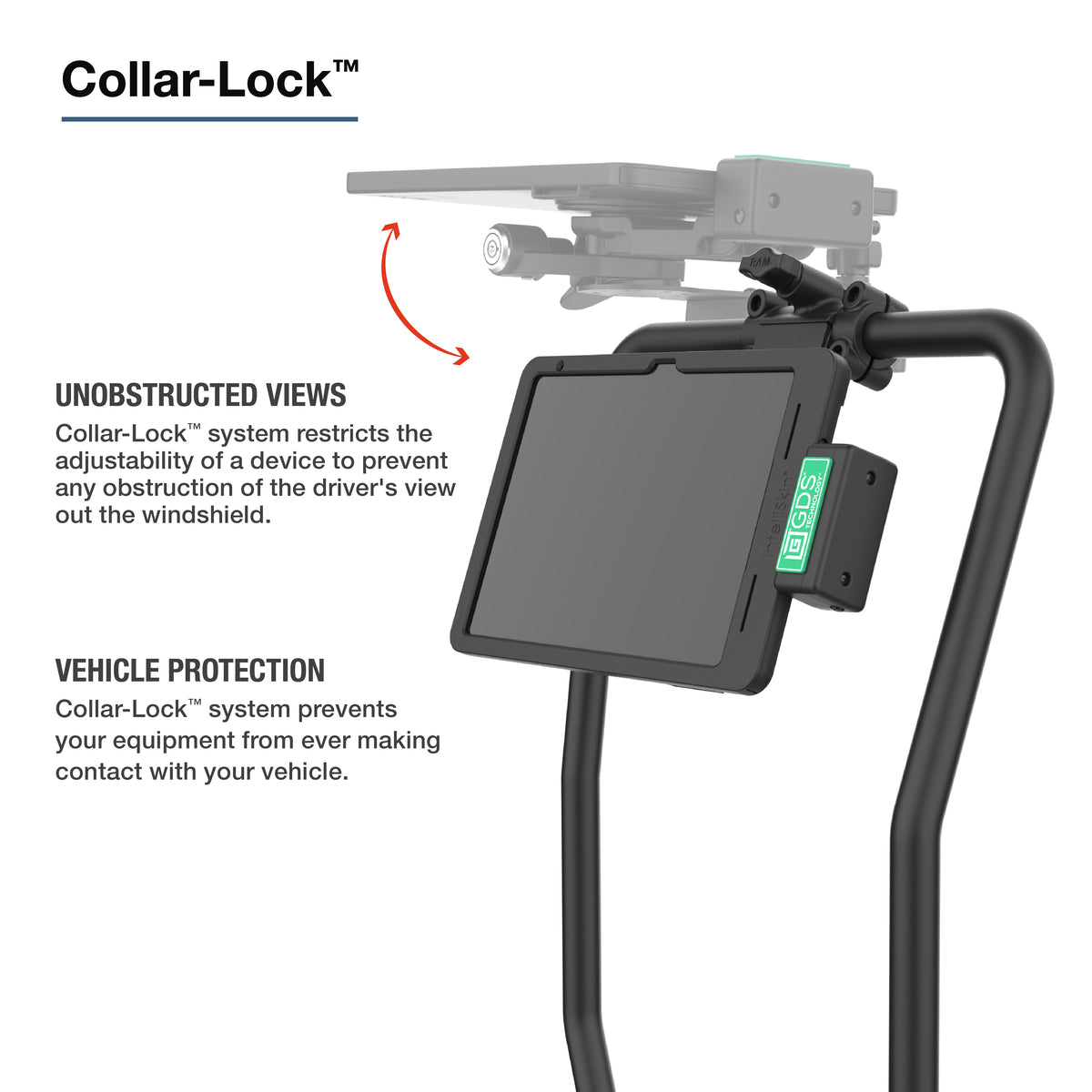

An integrated RAM Collar-Lock system helps limit over-rotation, protecting the mounted device and surrounding vehicle interior during adjustment or impact. The short bracket uses a 2-hole AMPS pattern for compatibility with a range of RAM and third-party mounting equipment.
Key Features
-
Friction hinge provides smooth, controlled single-axis adjustment
-
Short-bracket configuration for use with RAM Tough-Bar
-
Integrated Collar-Lock system helps prevent excessive rotation
-
Tightening mechanism allows the selected viewing position to be secured
-
2-hole AMPS mounting pattern
-
Compatible with RAM holders, GDS Docks, and compatible third-party screens
-
Designed for stable, vibration-resistant mounting in vehicle applications
Use Cases & Compatibility

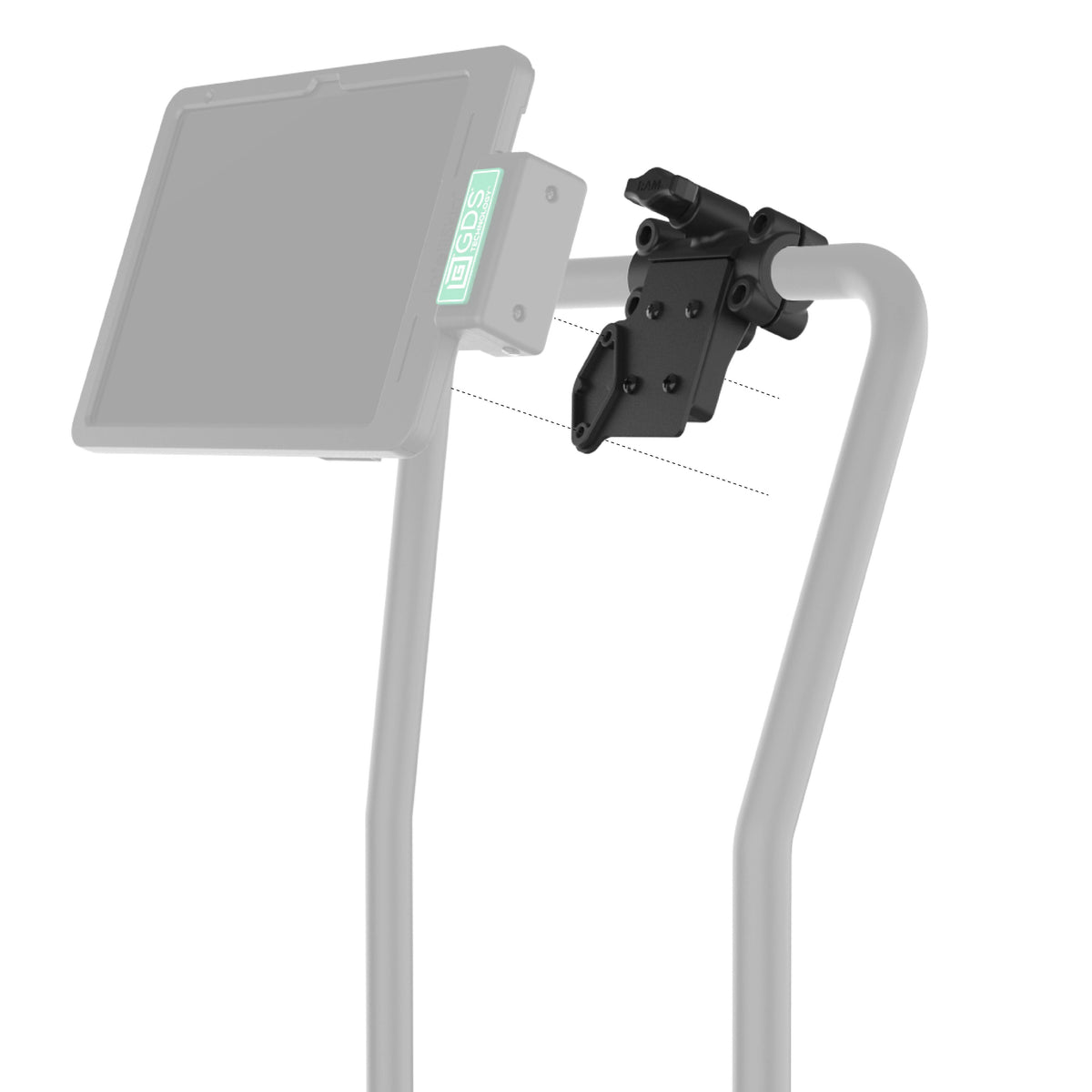

Designed as an attachment component for the RAM Tough-Bar mounting system.
The 2-hole AMPS pattern supports compatible RAM holders, GDS Docks, and third-party screens. The friction hinge can be positioned for up/down or side-to-side adjustment depending on its orientation on the Tough-Bar.
This is a mounting component and does not include a device holder or dock.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 1.54 lb
-

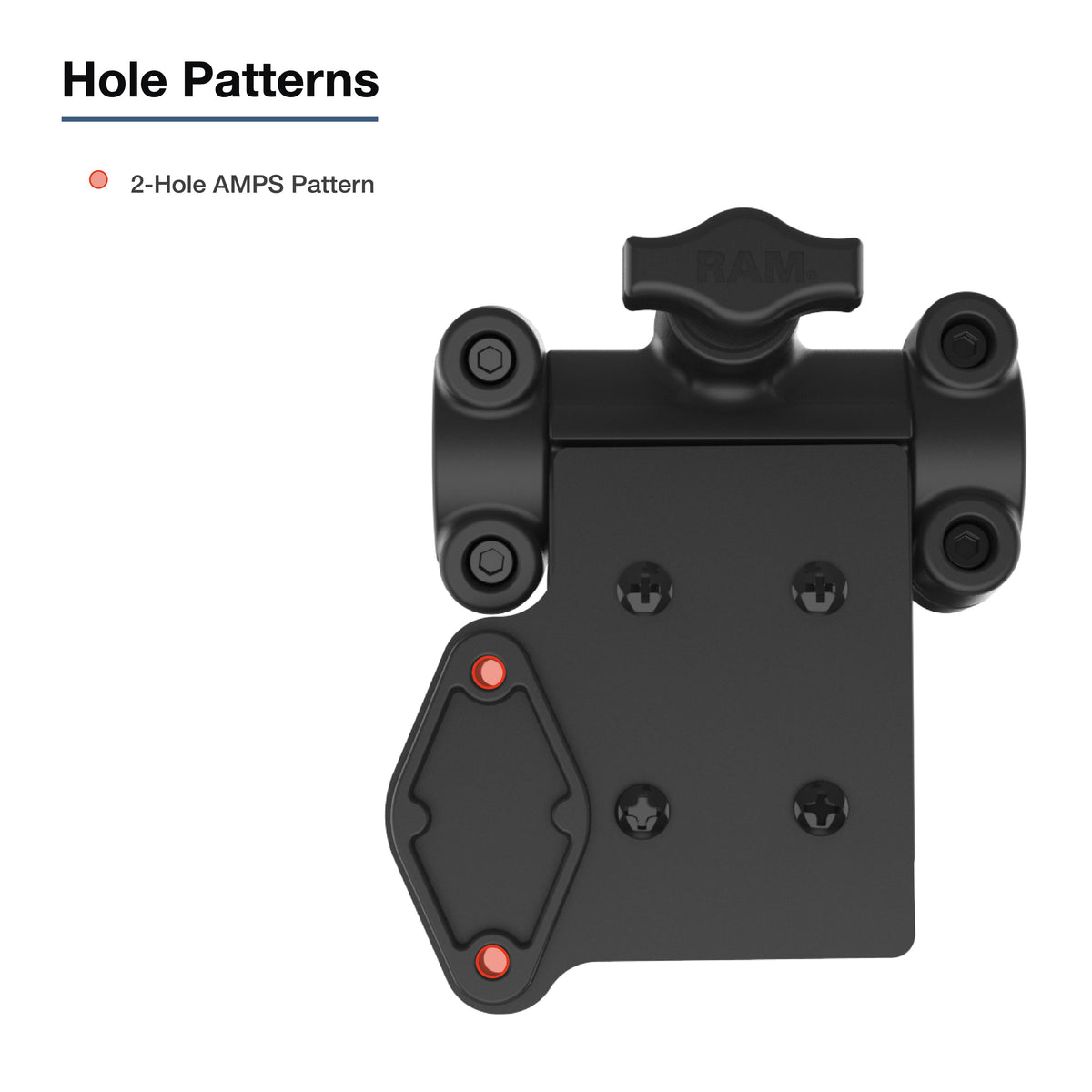

Hole Pattern: 2-Hole AMPS, 1.912"
-
Adjustment: Controlled single-axis friction hinge
-
Safety Feature: RAM Collar-Lock system
-
Materials: Powder-coated steel, marine-grade aluminum, high-strength composite
-
Mounting Application: RAM Tough-Bar attachment component
What’s Included
-
RAM friction hinge mount with short bracket
-
(1) Optional diamond spacer
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-FH1-1P2U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
