Description

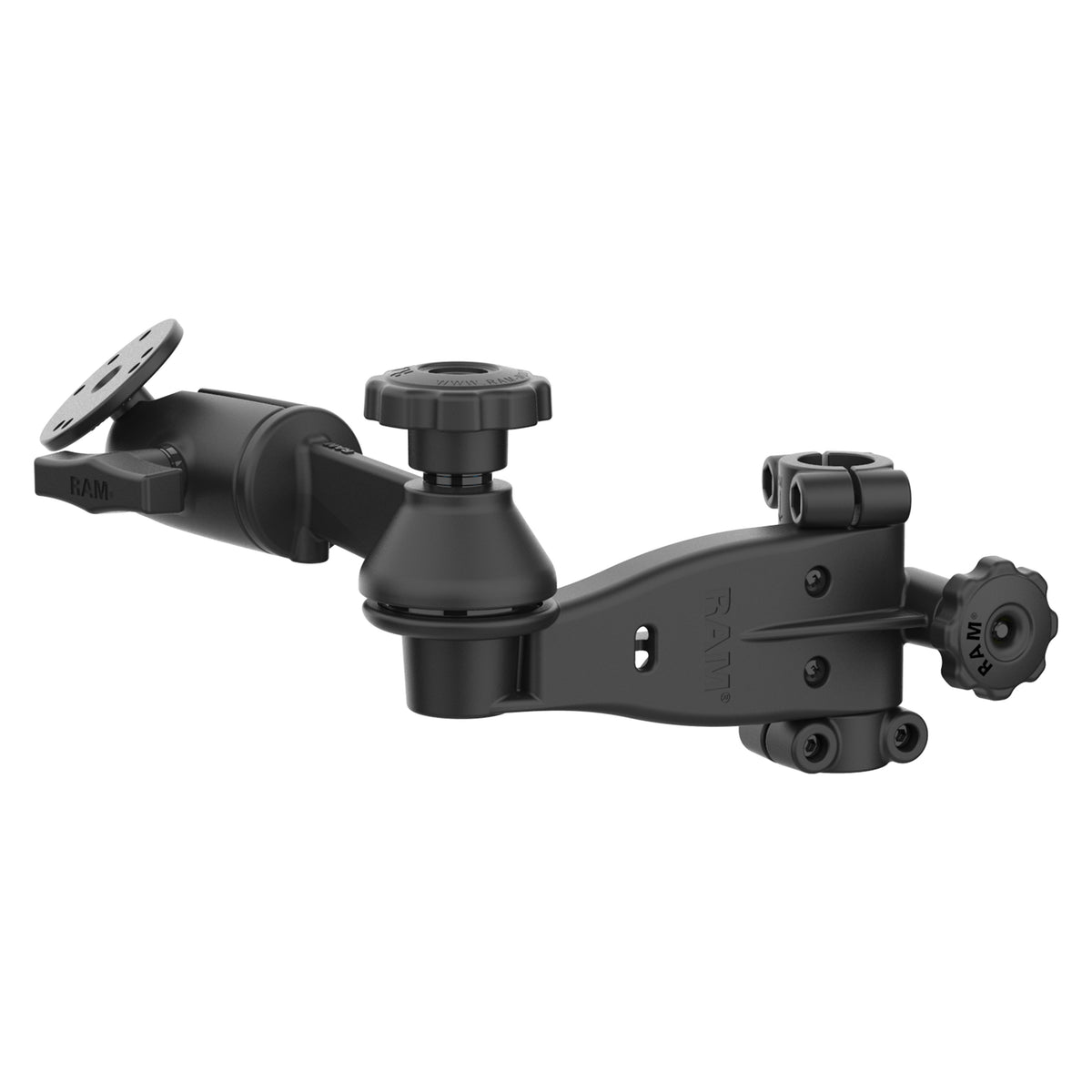

The RAM-TB-FHA3-SW1BU is an adjustable Tough-Bar mounting component designed for keyboards and other compatible accessories. It combines a 6" friction hinge arm, 6" swing arm, and C size 1.5" ball connection to provide multiple points of adjustment in vehicle installations.
The friction hinge provides controlled single-axis movement, while the swing arm adds 360-degree horizontal rotation. The ball-and-socket connection provides additional tilt adjustment, allowing mounted accessories to be positioned for use or moved aside for access to vehicle controls. Built-in cable retention helps keep cords organized, while the RAM Collar-Lock system helps limit excessive rotation.
Key Features
-
Combines a 6" friction hinge arm and 6" swing arm
-
Designed for mounting keyboards and other compatible accessories to RAM Tough-Bar
-
Friction hinge provides controlled single-axis adjustment
-
Swing arm provides full 360-degree horizontal rotation
-
C size 1.5" ball connection provides additional positioning
-

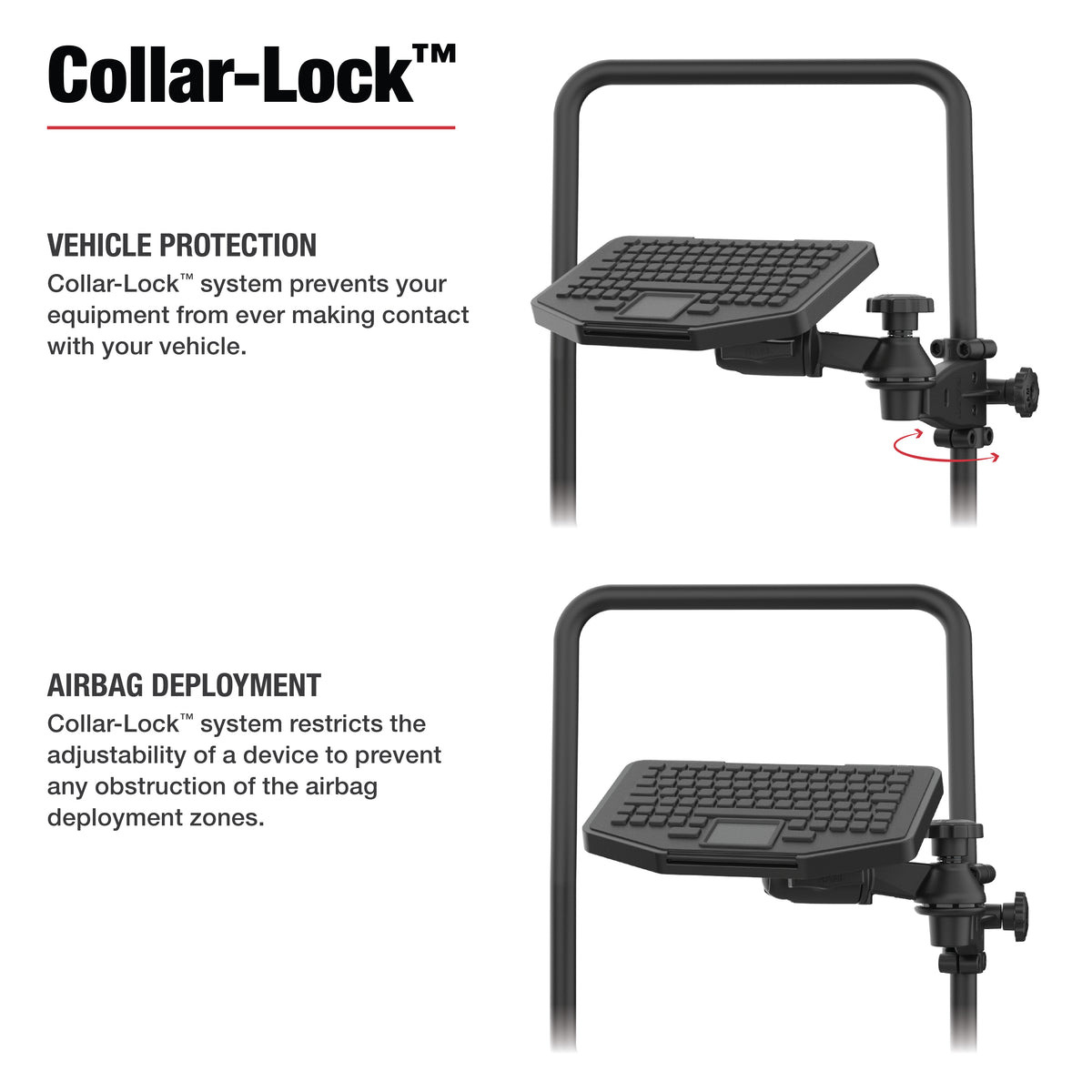

Integrated Collar-Lock system helps prevent over-rotation
-
Built-in cable retention helps organize connected cords
-
Supports up to 4 lb in standard-use applications
-
Compatible with RAM mounting components using the included ball/base interface
Use Cases & Compatibility

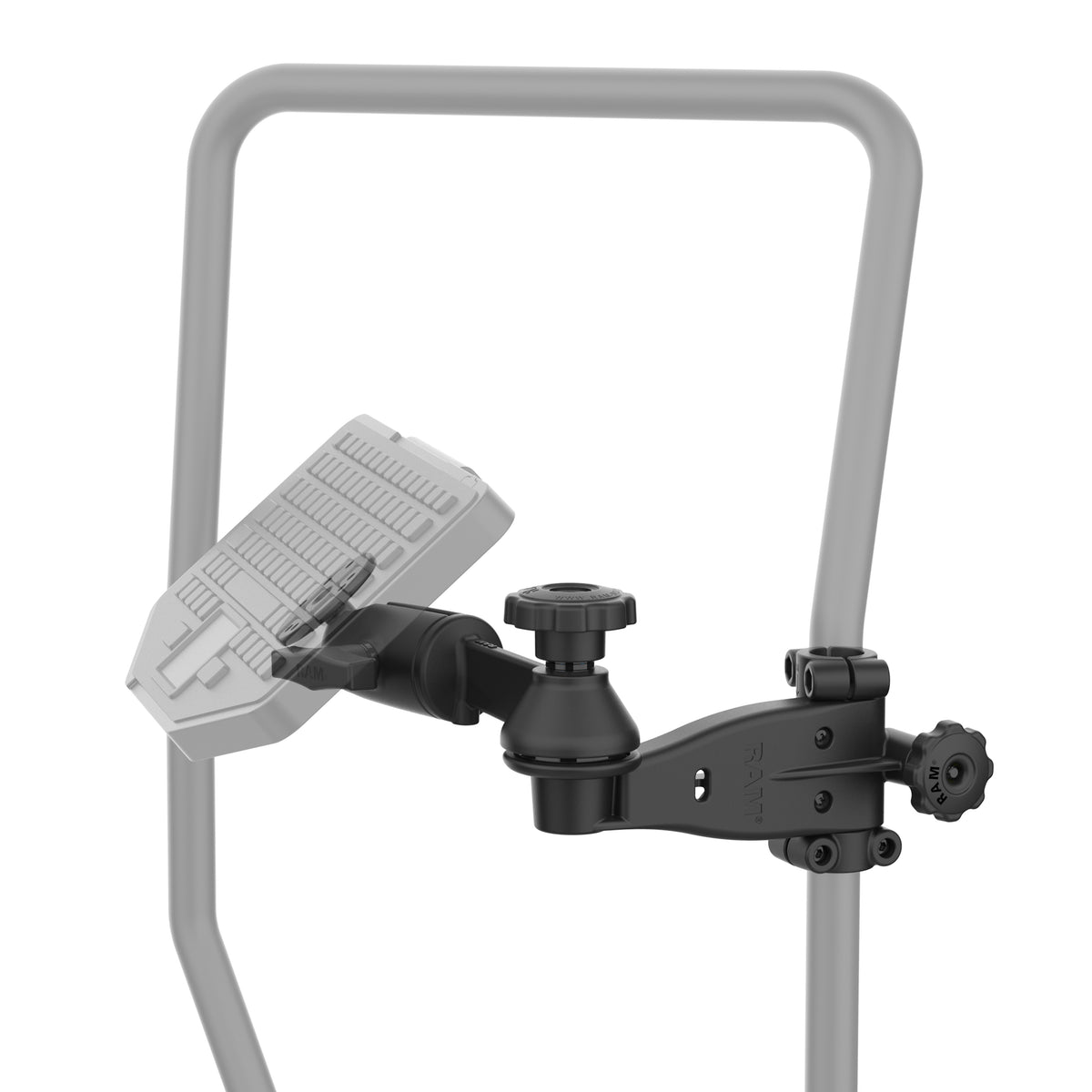

Designed as a dual-arm attachment component for the RAM Tough-Bar system.

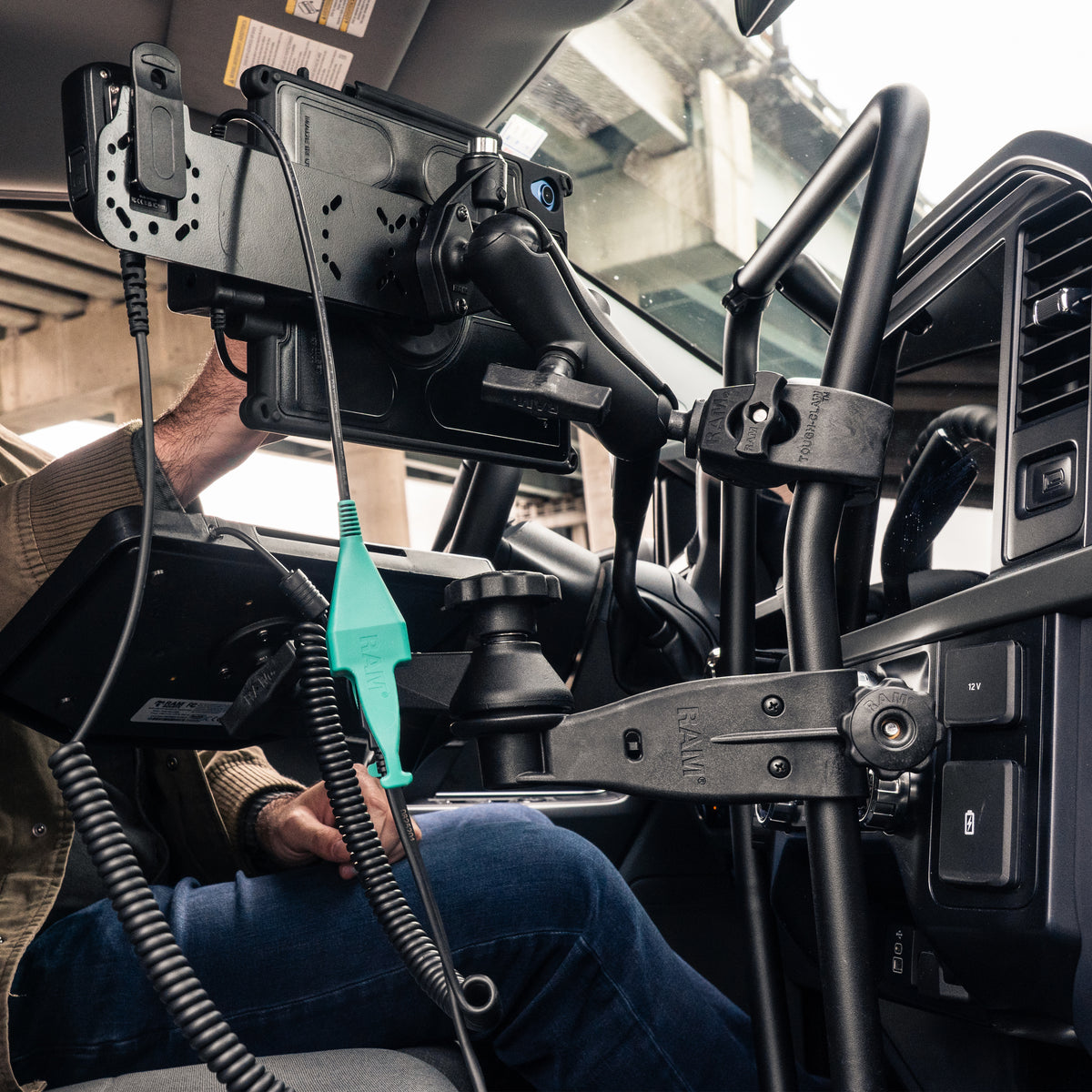

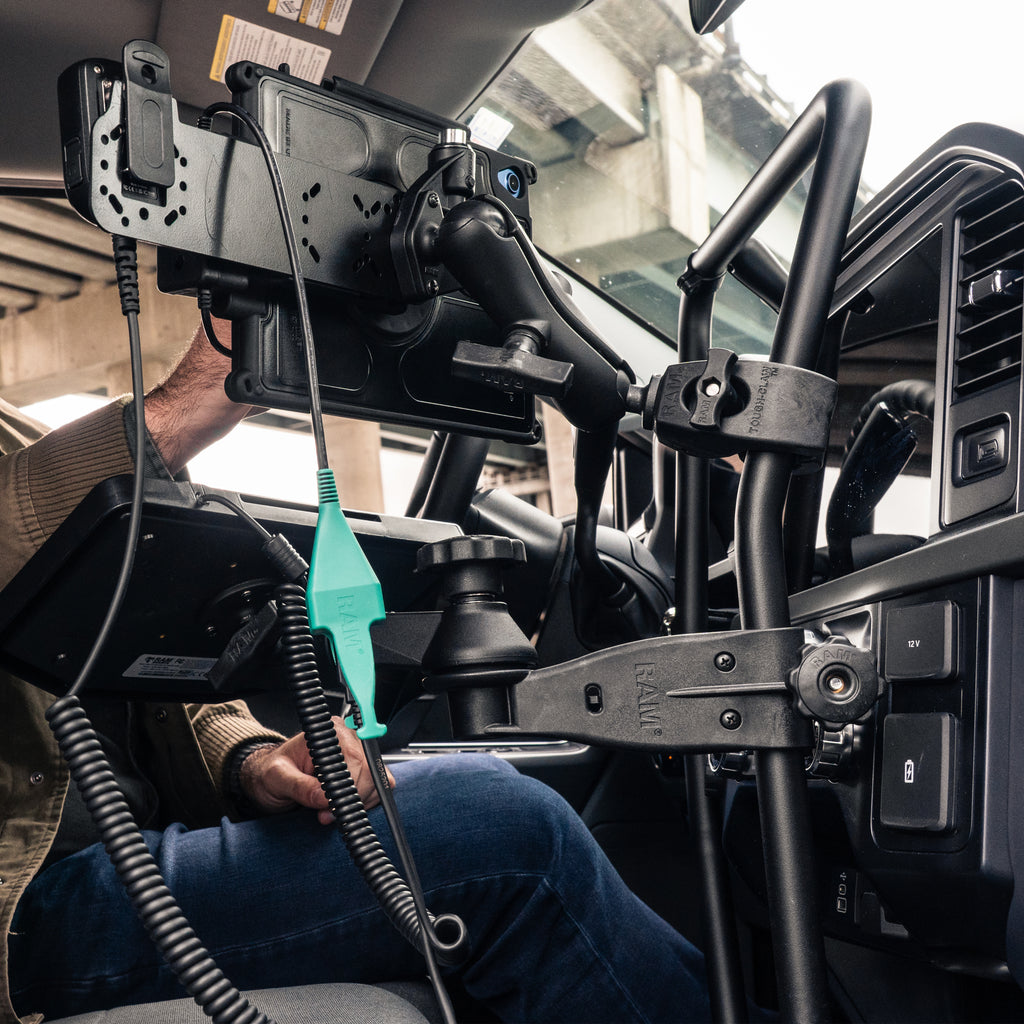

The combination of friction hinge, swing arm, and C size ball connection allows a keyboard or other compatible accessory to be repositioned for use and moved aside when access to vehicle controls is needed.
The mounting plate supports both 4-hole AMPS and 3-hole 120-degree mounting patterns.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 2.20 lb
-

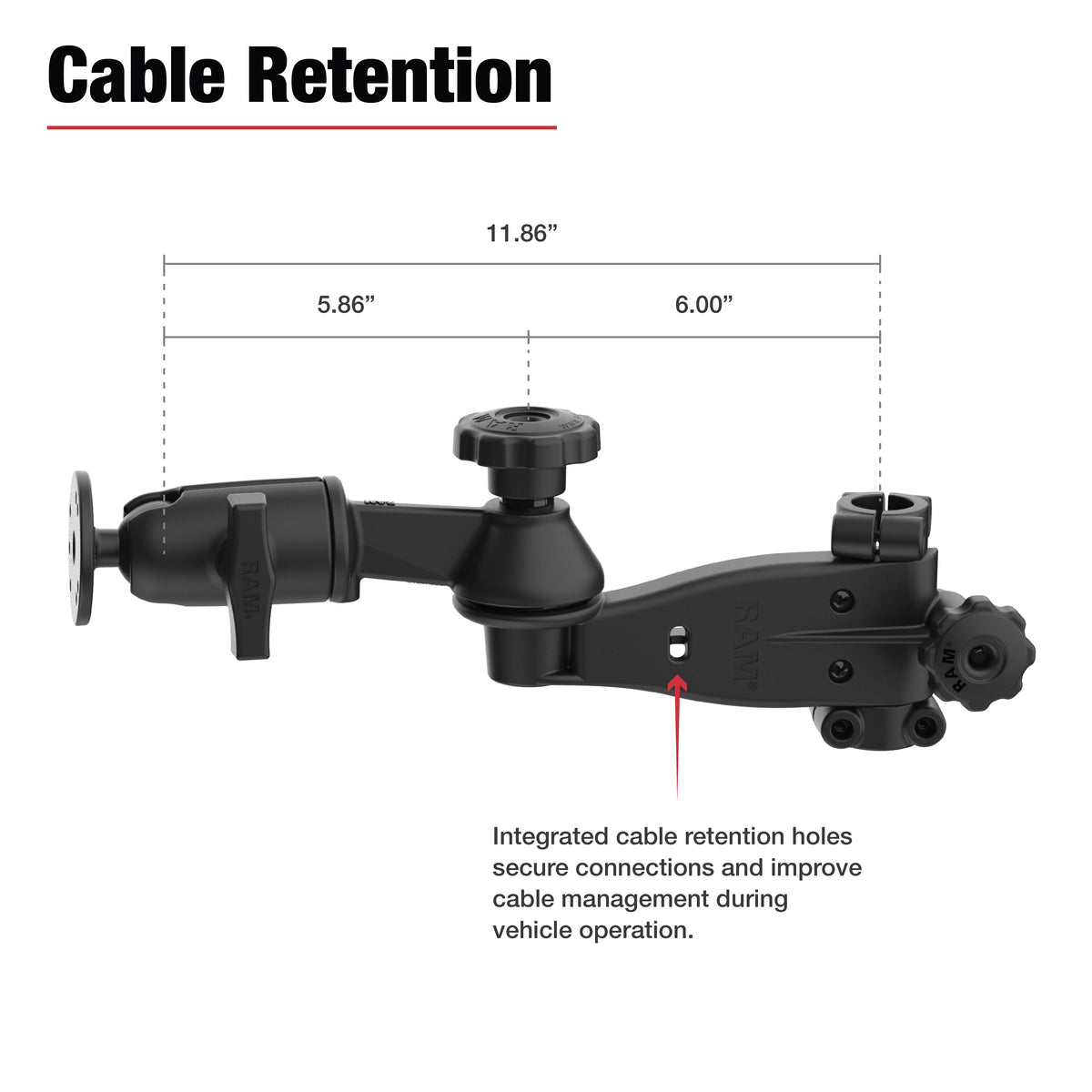

Overall Length: 11.86" from center clamp to center socket
-
Arm Configuration: 6" friction hinge arm and 6" swing arm
-
Ball Size: C Size, 1.5"
-
Hole Patterns: 4-Hole AMPS, 1.181" x 1.496"; 3-Hole 120-Degree, 1.812" diameter
-
Weight Capacity — Standard Use: 4 lb
-
Weight Capacity — Heavy-Duty Use: 3 lb
-
Swing Arm Rotation: 360 degrees horizontal
-
Adjustment: Single-axis friction hinge with ball-and-socket positioning
-
Safety Feature: RAM Collar-Lock system
-
Cable Management: Built-in cable retention
-
Materials: Marine-grade aluminum, high-strength composite
What’s Included
-
RAM 6" friction hinge arm
-
RAM 6" swing arm
-
C size 1.5" ball/base connection
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-FHA3-SW1BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
