Description

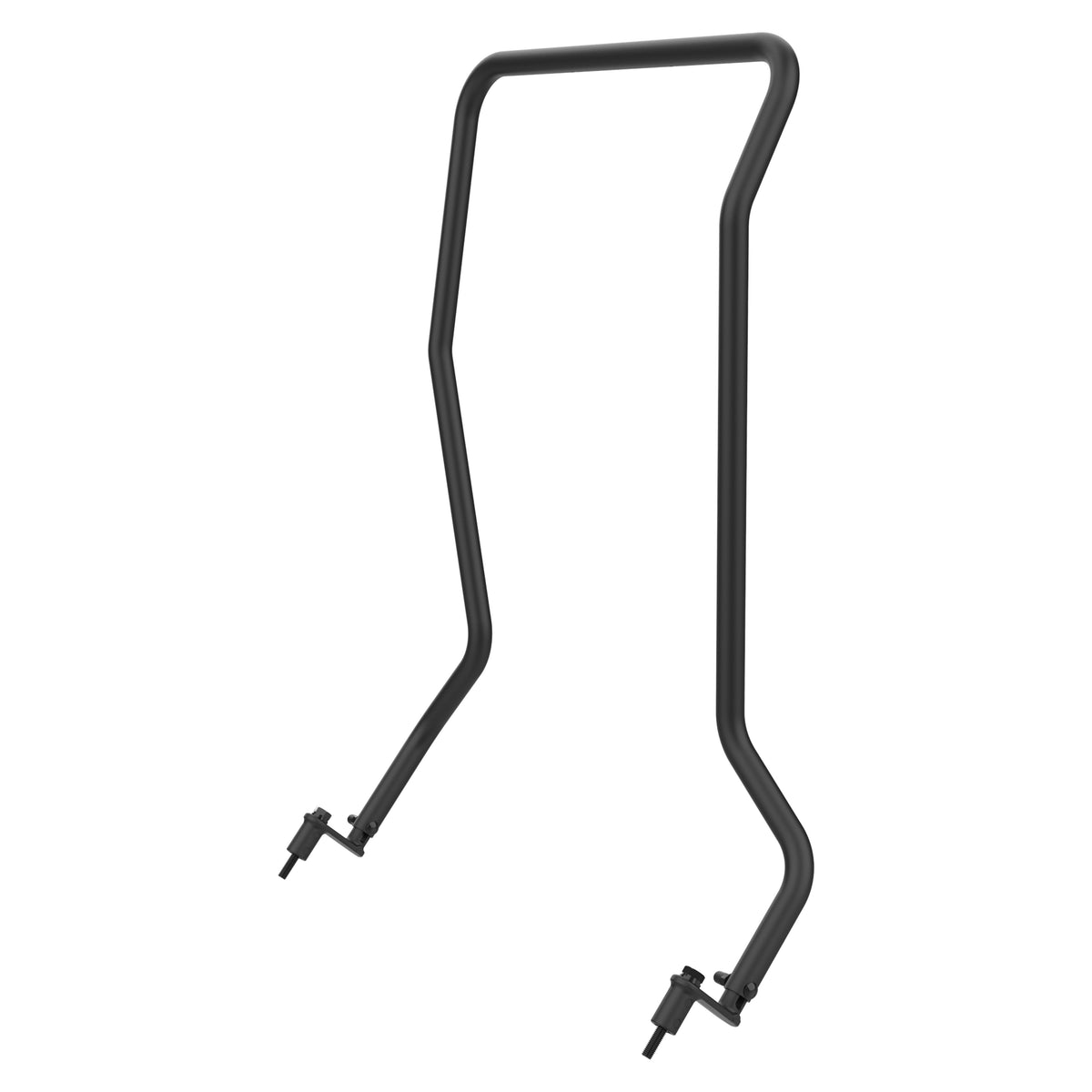

The RAM Tough-Bar RAM-TB-40 is a vehicle-specific mounting base designed for 2019-2026 Ram 1500 models equipped with a bench seat and either an 8.4" or 12" display. Its precision-bent construction follows the contours of the dashboard and center console area to create a stable platform for mounting multiple devices and accessories.
The Tough-Bar secures at three points—the driver seat bolt, passenger seat bolt, and center dashboard—to help minimize vibration and movement. Two included RAM Flex Adhesive Ball Bases support a no-drill dashboard installation, while the included hardware also allows for a more permanent setup.
Key Features
-
Vehicle-specific RAM Tough-Bar for 2019-2026 Ram 1500
-
Designed for bench-seat configurations with 8.4" or 12" display
-
Not compatible with Ram 1500 models equipped with the 14.4" display
-
Precision-bent construction follows the vehicle dashboard and center console contours
-

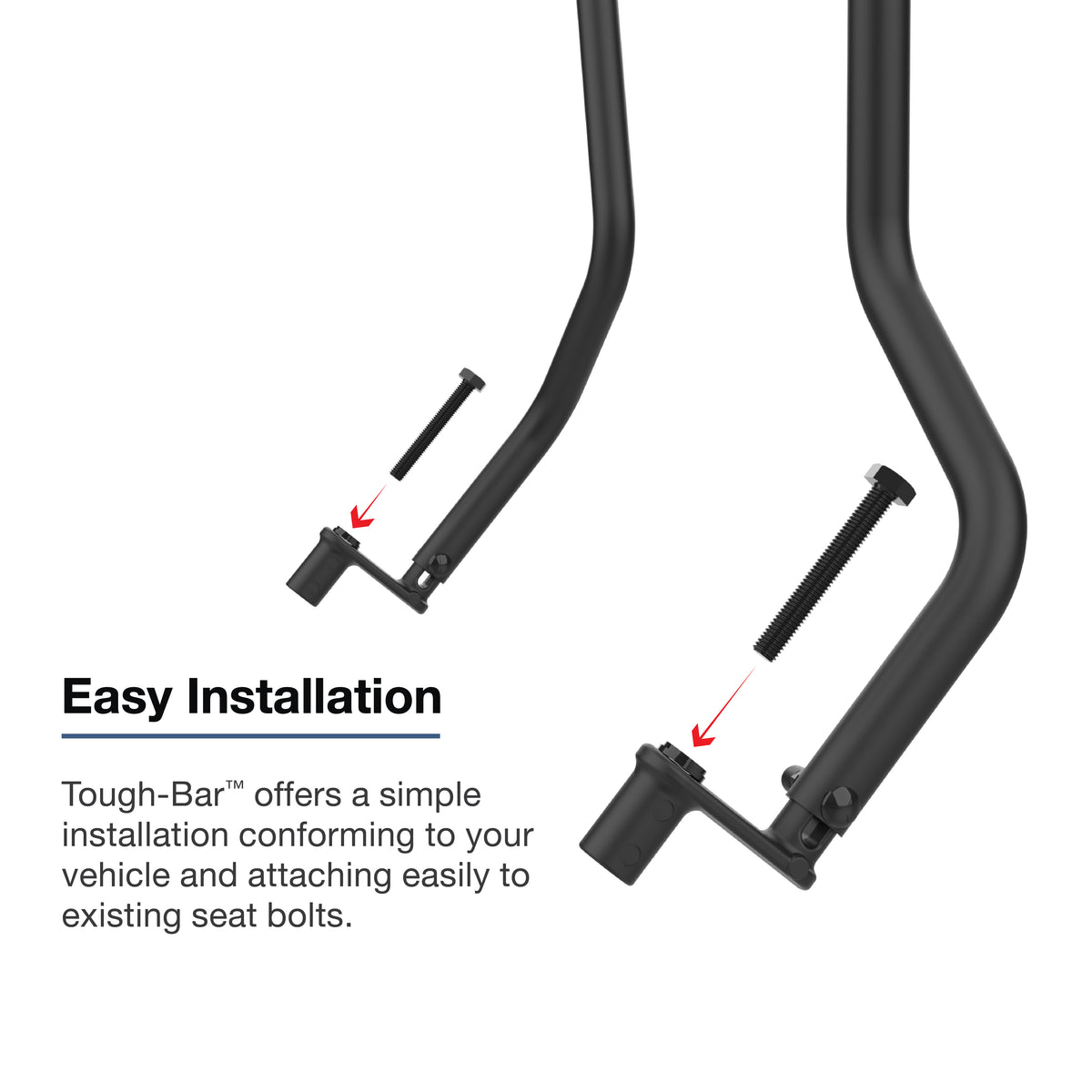

Three-point mounting system attaches at the driver seat bolt, passenger seat bolt, and center dashboard
-
Includes two RAM Flex Adhesive Ball Bases for a no-drill dashboard installation
-
Included hardware also supports a permanent installation option
-
Low-profile design helps preserve passenger legroom
-
Compatible with RAM rail mounting bases including Tough-Claw, U-Bolt, and Torque bases
-

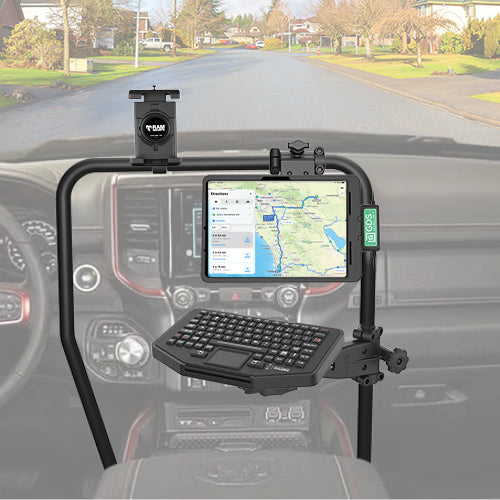

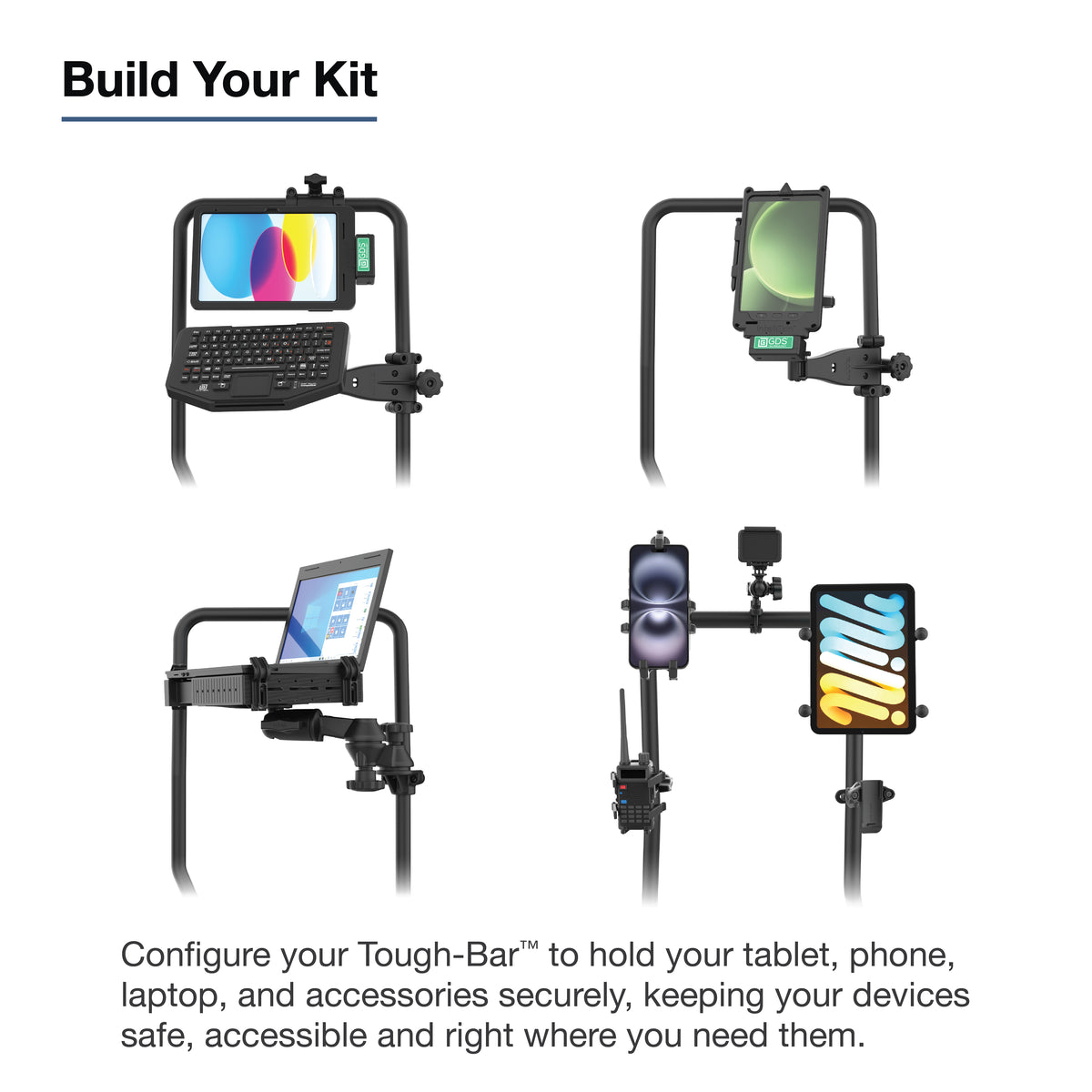

Provides a configurable platform for mounting multiple devices and accessories
Use Cases & Compatibility
Designed specifically for:
-
Ram 1500 — 2019-2026
Vehicle configuration: Bench seat with 8.4" or 12" display.
Not compatible with: Ram 1500 models equipped with the 14.4" display.
The RAM-TB-40 serves as the vehicle mounting foundation. Compatible RAM rail bases, arms, device holders, and other mounting components are selected separately based on the equipment being installed.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 9.20 lb
-
Materials: Powder-coated steel, marine-grade aluminum, high-strength composite
-
Installation Points: Driver seat bolt, passenger seat bolt, and center dashboard
-
Installation Options: No-drill adhesive dashboard mounting or permanent installation with included hardware
-
Vehicle Fitment: 2019-2026 Ram 1500
-
Vehicle Configuration: Bench seat
-
Display Compatibility: 8.4" or 12" display
-
Display Exclusion: 14.4" display
What’s Included
-
RAM Tough-Bar vehicle mounting base
-
(2) Dash adhesive mounts
-
(2) M10-1.5 x 75mm hex bolts
-
(2) M10 flat washers
-
(2) M10 lock washers
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-40
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
