Description

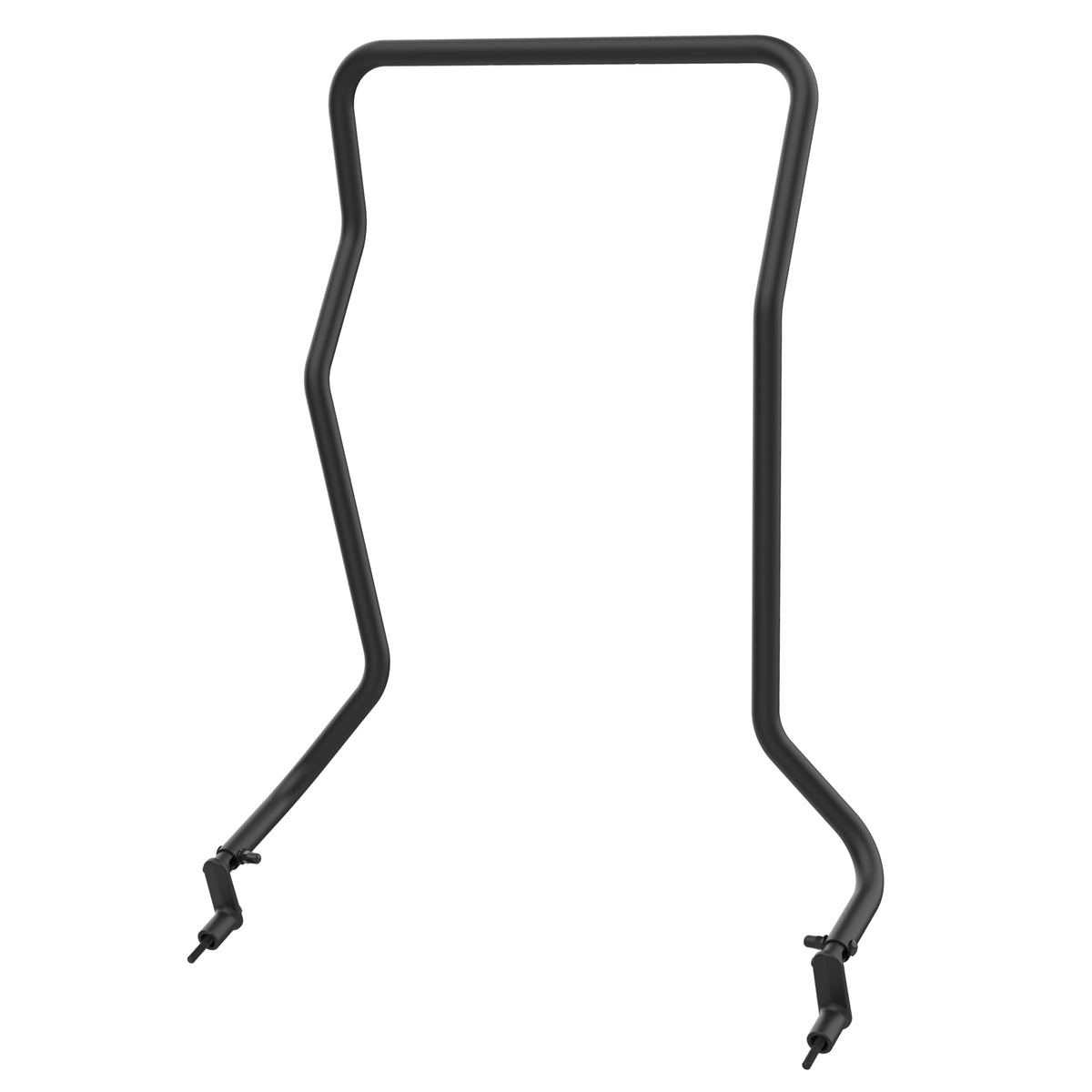

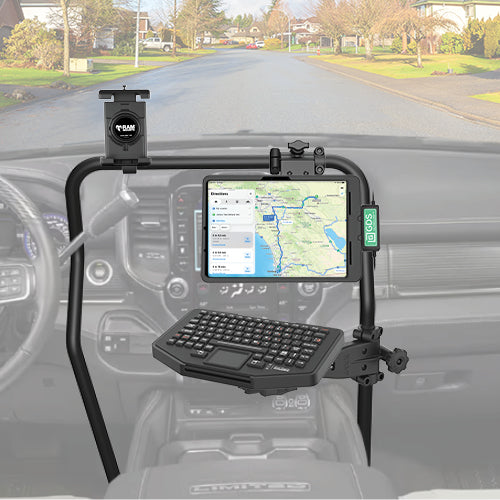

The RAM Tough-Bar RAM-TB-41 is a vehicle-specific mounting base identified by RAM for 2019-2026 Ram 2500 through 5500 applications. RAM's formal product title lists compatibility with 5", 8.4", and 12" displays. Its precision-bent construction follows the contours of the dashboard and center console area to create a stable platform for mounting multiple devices and accessories.

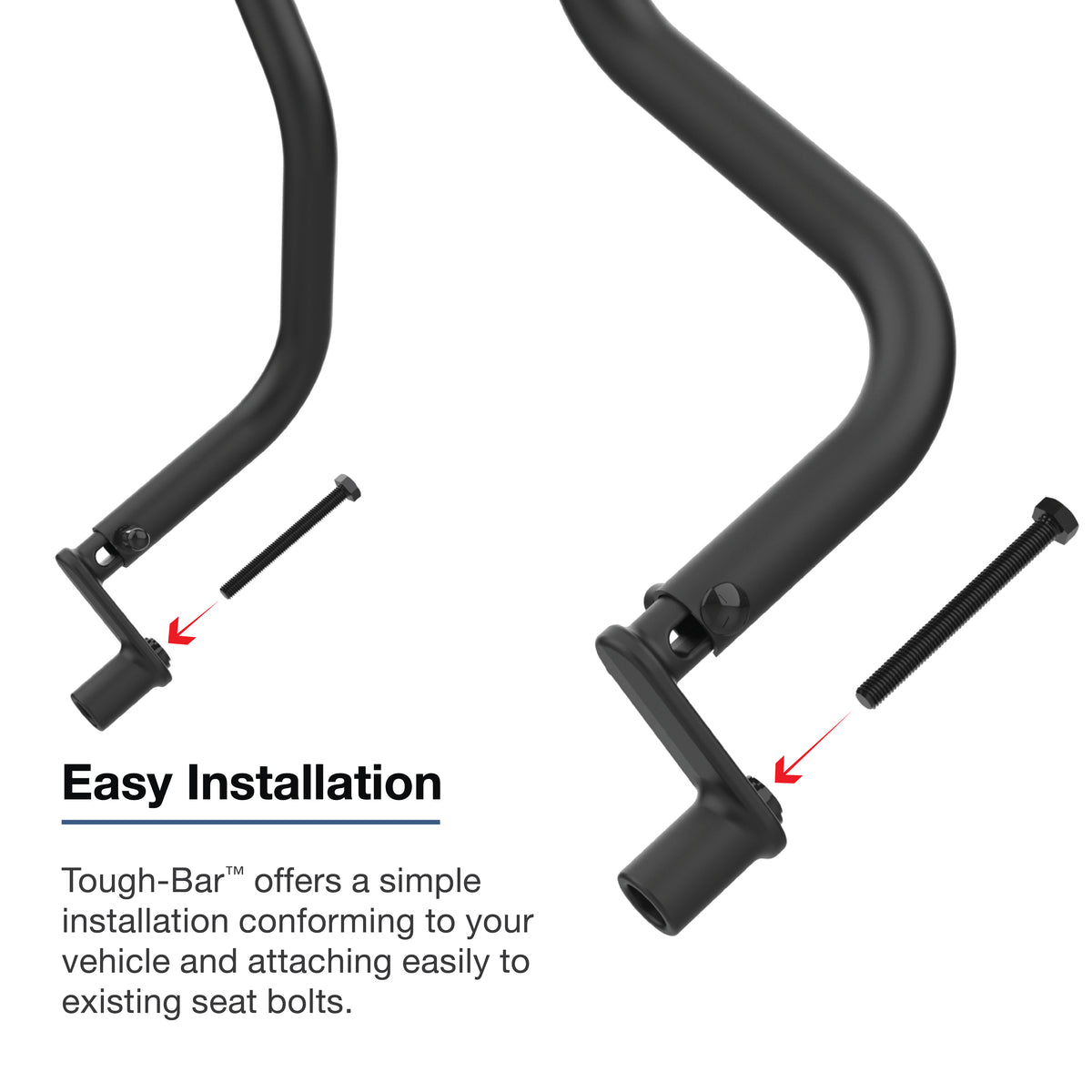

The Tough-Bar secures at three points—the driver seat bolt, passenger seat bolt, and center dashboard—to help minimize vibration and movement. Two included RAM Flex Adhesive Ball Bases support a no-drill dashboard installation, while the included hardware also allows for a more permanent setup.
Key Features
-
Vehicle-specific RAM Tough-Bar for 2019-2026
-
5", 8.4", and 12" display compatibility
-
Precision-bent construction follows the vehicle dashboard and center console contours
-
Three-point mounting system attaches at the driver seat bolt, passenger seat bolt, and center dashboard
-
Includes two RAM Flex Adhesive Ball Bases for a no-drill dashboard installation
-
Included hardware also supports a permanent installation option
-
Low-profile design helps preserve passenger legroom
-
Compatible with RAM rail mounting bases including Tough-Claw, U-Bolt, and Torque bases
-

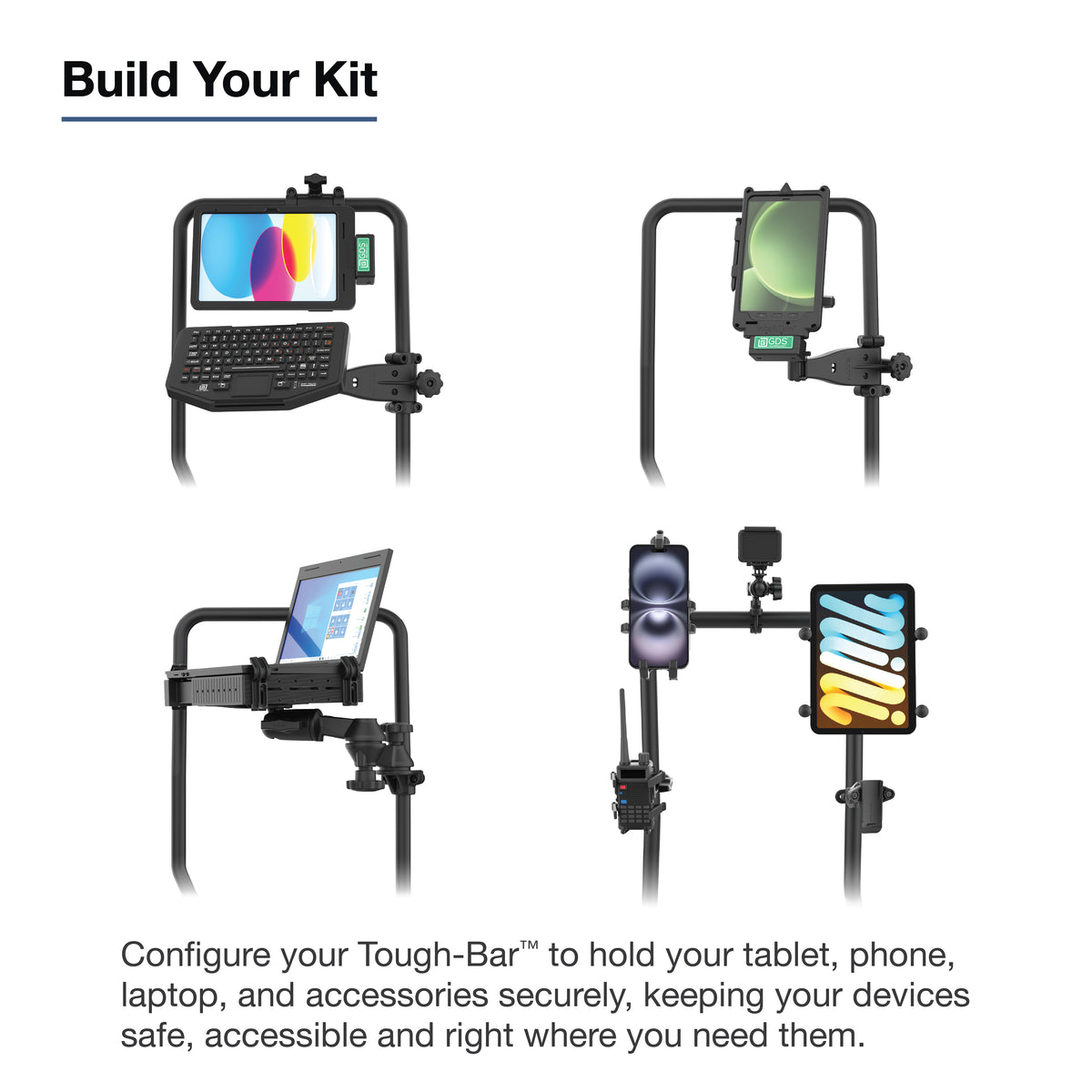

Provides a configurable platform for mounting multiple devices and accessories
Use Cases & Compatibility
Designed specifically for:
-
Ram 2500 — 2019-2026
-
Ram 3500 — 2019-2026
-
Ram 4500 — 2019-2026
-
Ram 5500 — 2019-2026
Display compatibility: 5", 8.4", and 12" displays.
The RAM-TB-41 serves as the vehicle mounting foundation. Compatible RAM rail bases, arms, device holders, and other mounting components are selected separately based on the equipment being installed.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 9.20 lb
-
Materials: Powder-coated steel, marine-grade aluminum, high-strength composite
-
Installation Points: Driver seat bolt, passenger seat bolt, and center dashboard
-
Installation Options: No-drill adhesive dashboard mounting or permanent installation with included hardware
-
Vehicle Fitment: 2019-2026 Ram 2500-5500
-
Display Compatibility: 5", 8.4", and 12"
What’s Included
-
RAM Tough-Bar vehicle mounting base
-
(2) Dash adhesive mounts
-
(2) M8-1.25 x 80mm hex bolts
-
(2) M8 flat washers
-
(2) M8 lock washers
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-41
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
