Description

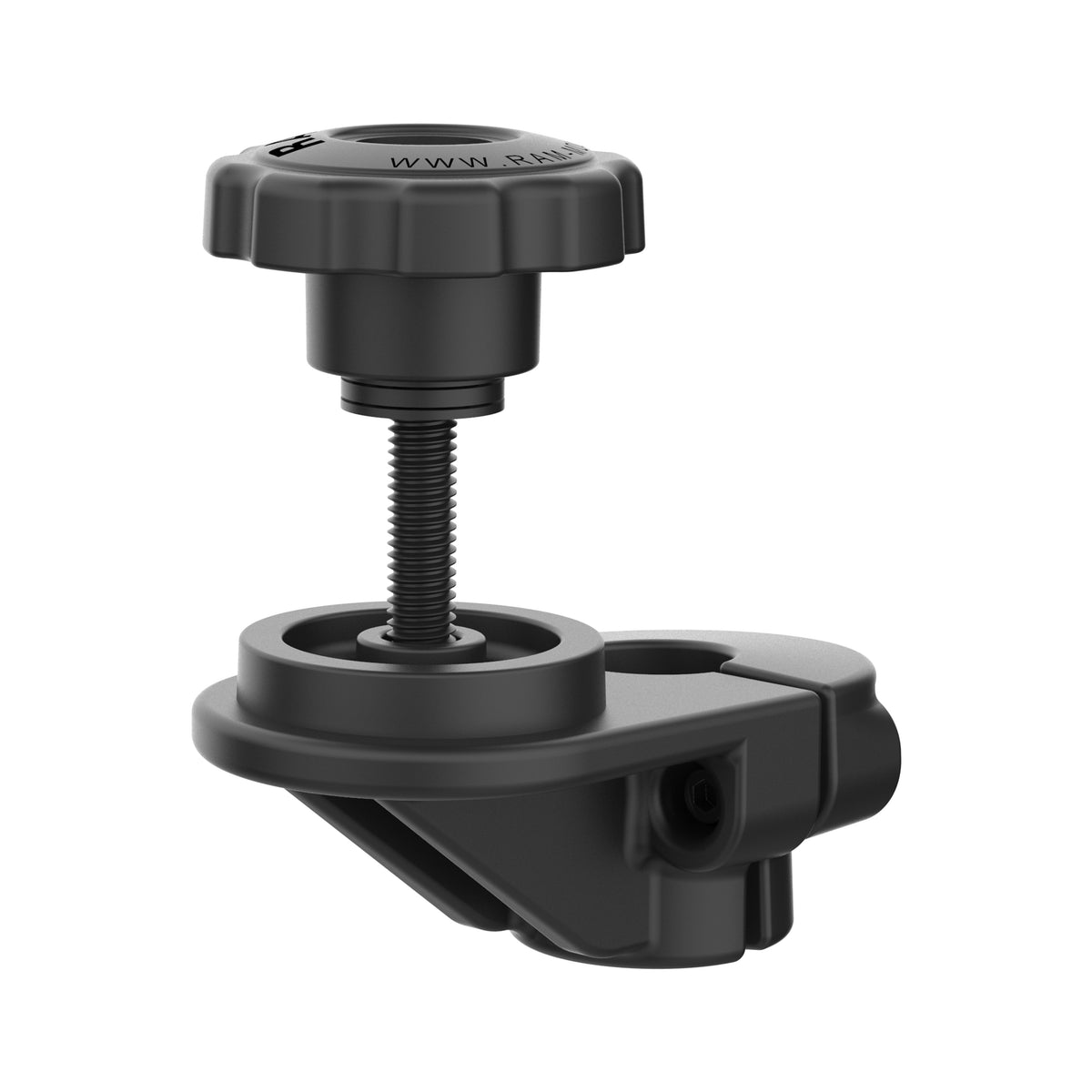

The RAM-TB-471U is a 90-degree flange base designed to adapt an existing RAM laptop swing arm mount for use with the RAM Tough-Bar system. It provides a secure connection point between the Tough-Bar and a compatible RAM swing arm, allowing existing laptop mounting hardware to be reused on the Tough-Bar platform.

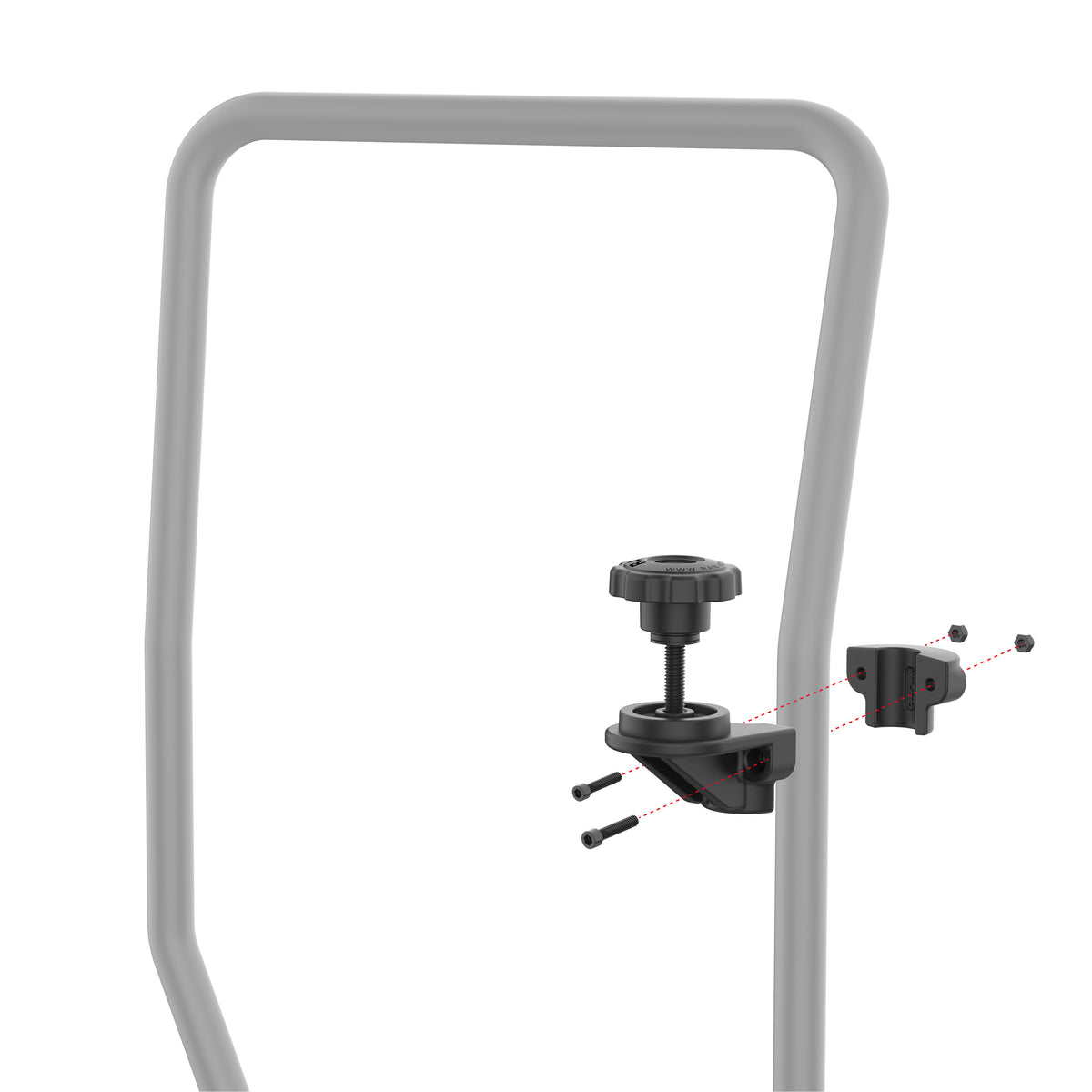

Installation is straightforward: slide the existing swing arm onto the base hardware and tighten the adjustment knob to secure it in place. The marine-grade aluminum construction provides the strength and stability needed for rugged laptop mounting applications while helping minimize vibration during use.
Key Features
-
Adapts compatible RAM laptop swing arm mounts for use with RAM Tough-Bar
-
90-degree flange connection provides a secure mounting point
-
Designed for quick installation with existing RAM swing arm hardware
-
Marine-grade aluminum construction
-
Helps support rugged laptop mounting applications
-
Designed to minimize vibration in vehicle environments
-
Compatible with select RAM swing arm mounting components
Use Cases & Compatibility

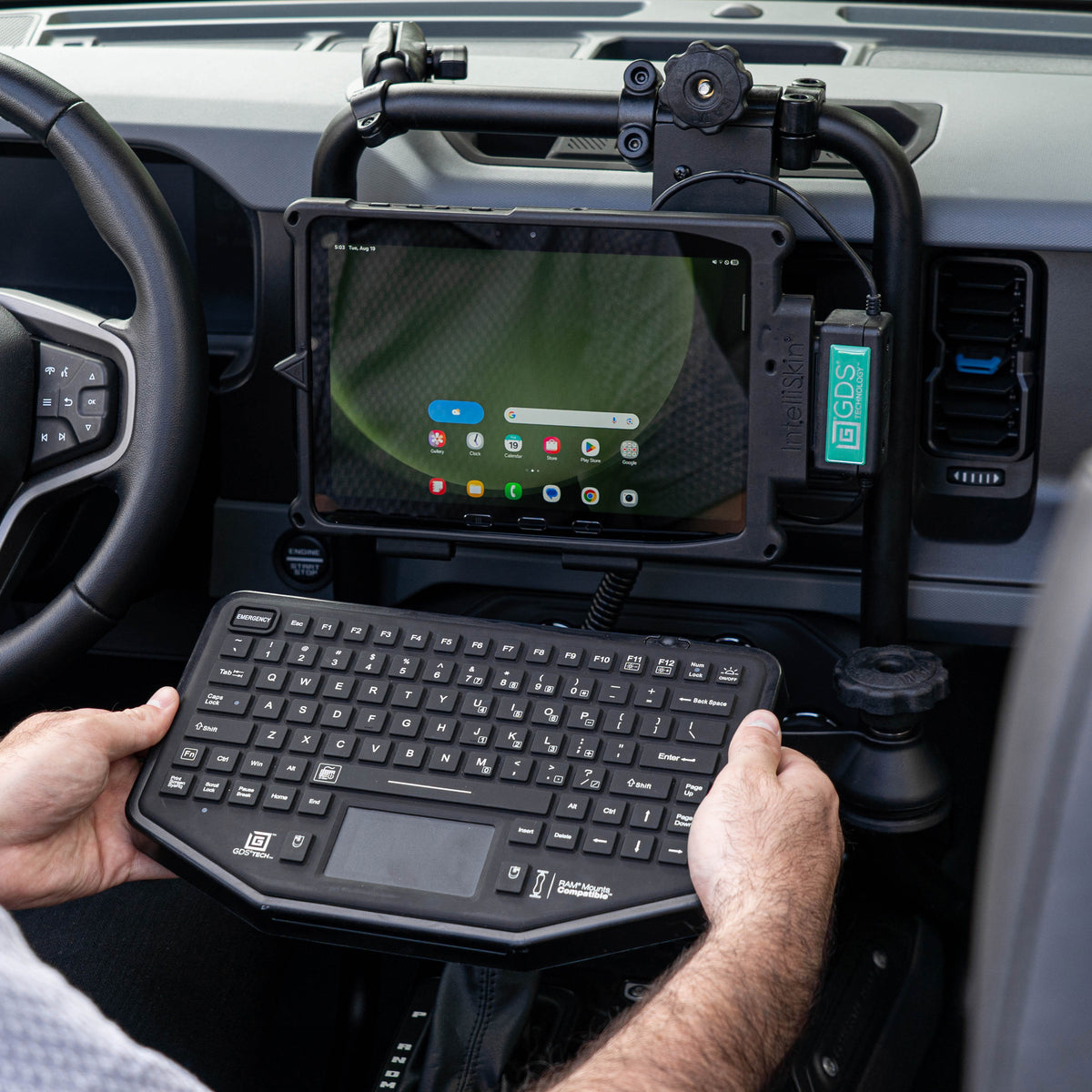

Designed for upgrading an existing RAM laptop swing arm mounting system to the RAM Tough-Bar platform.

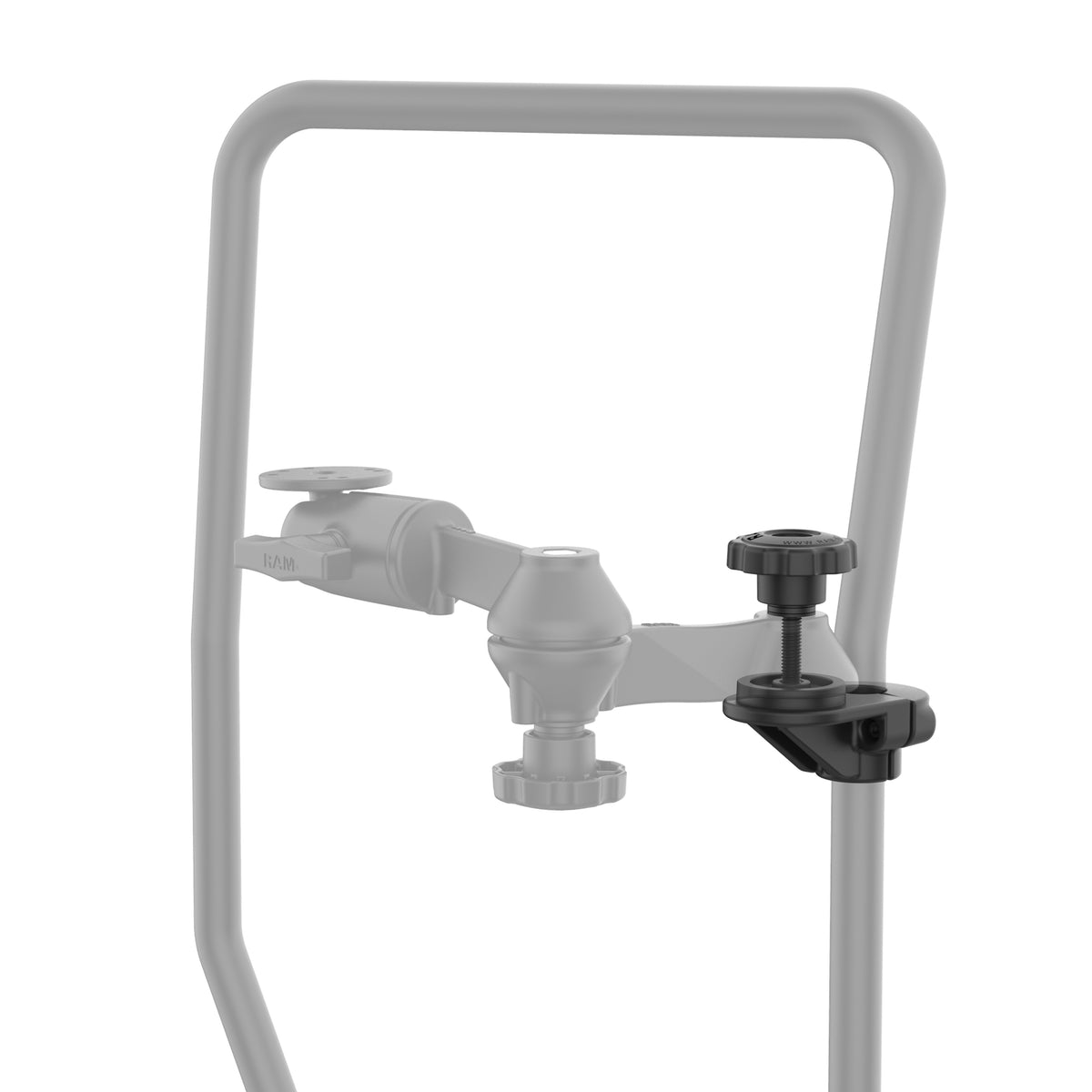

The flange base serves as the connection point between the Tough-Bar and compatible RAM swing arm hardware.
Compatible swing arm components are selected separately.
Specifications
-
Product Line: RAM Tough-Bar
-
Product Weight: 0.84 lb
-
Base Type: 90-degree swing arm flange base
-
Mount Function: Rail
-
Primary Application: Adapts existing RAM laptop swing arm mounts to RAM Tough-Bar
-
Material: Marine-grade aluminum
What’s Included
-
RAM 90-degree swing arm flange base
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-TB-471U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
