Description

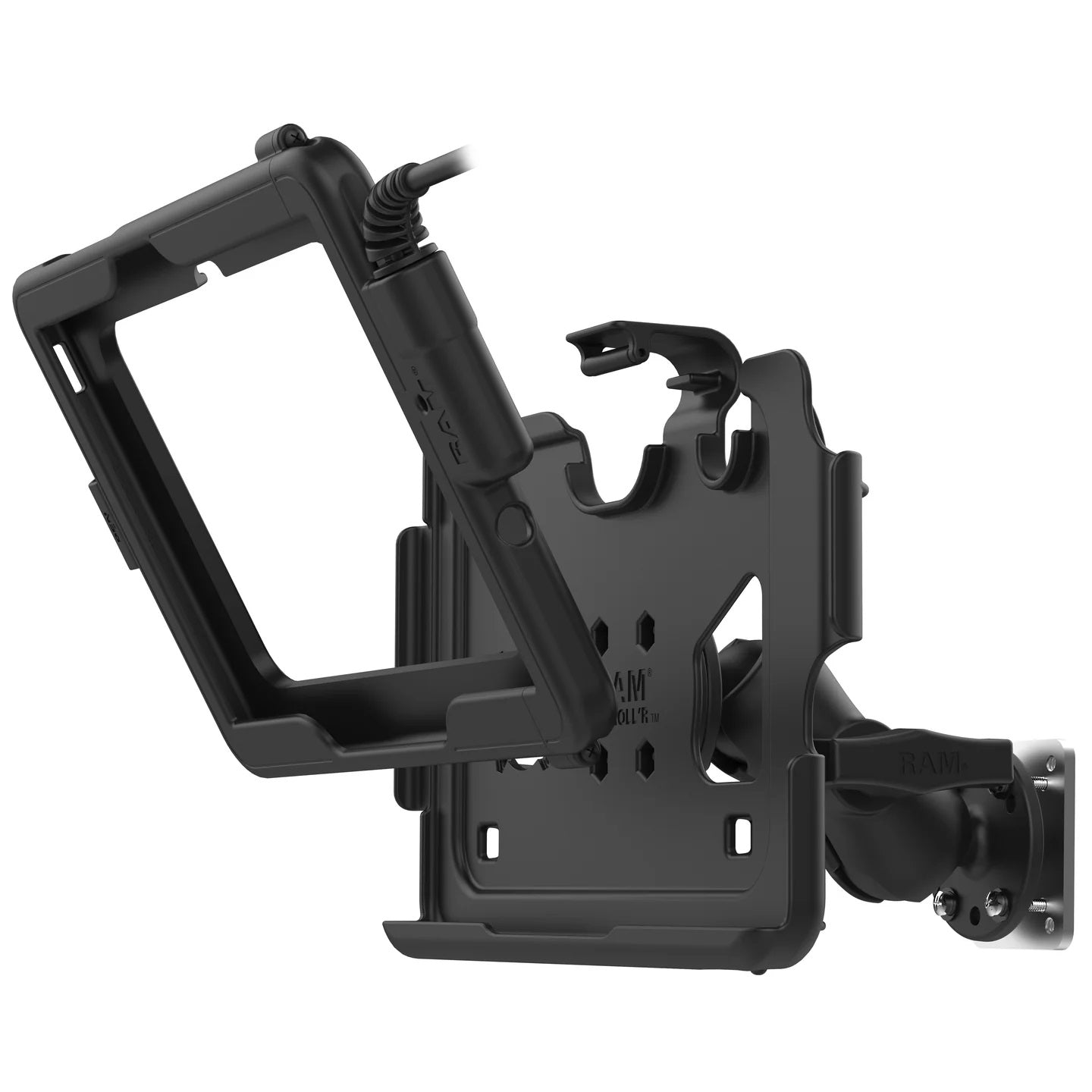

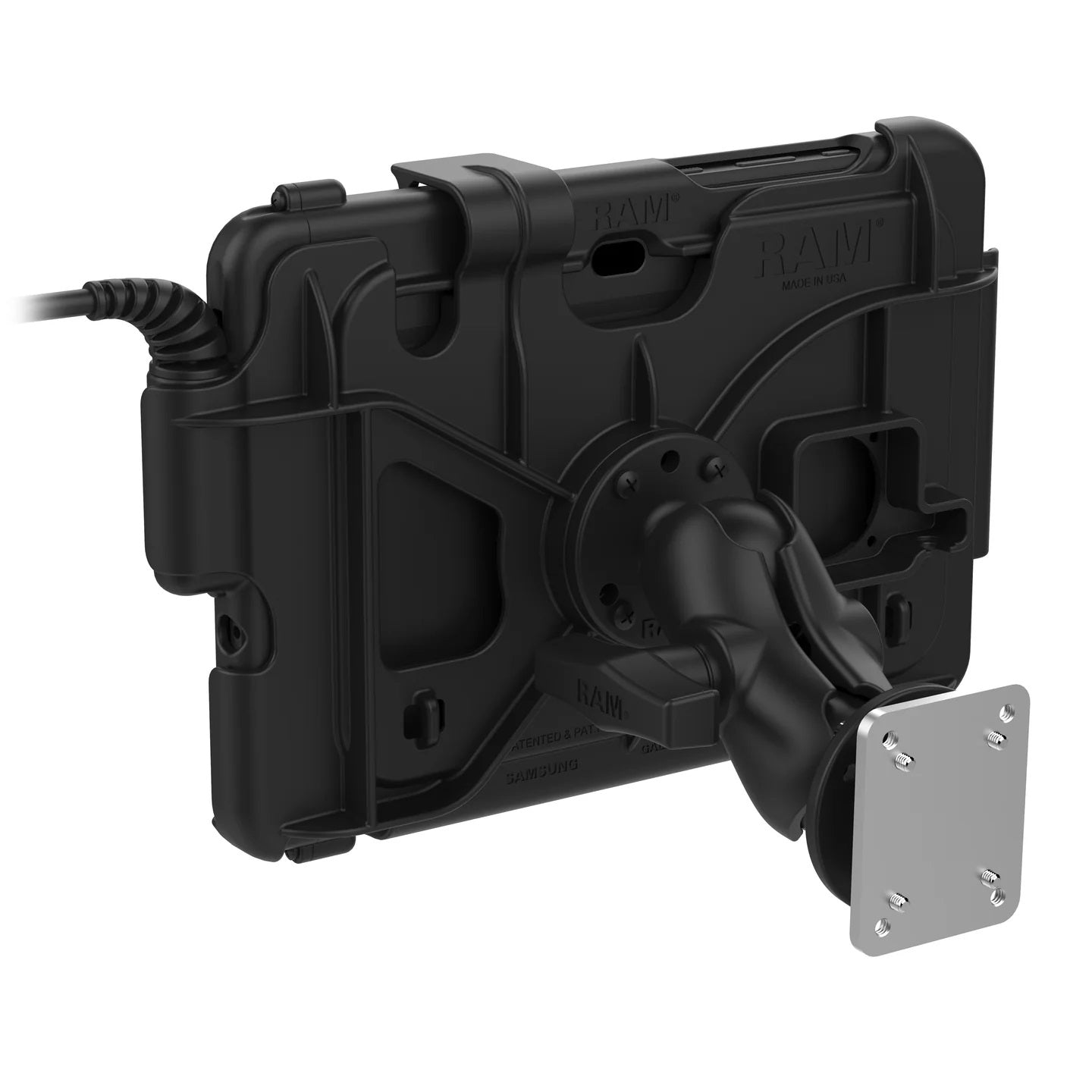

This Locking GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCKL-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-The RAM® Tough-Case™ bundle is a rugged mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing plate and Power Delivery Hardwire Charger. The RAM® Tough-Case™ bundle is a two-piece enclosure for the Samsung Galaxy Tab Active4 Pro that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance and supports the device in No Battery Mode. This ultra-low cost bundle provides power to the device through a USB Type-C Male connector. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® Power Delivery Hardwire Charger – an ideal solution for providing power to the Samsung Galaxy Tab Active4 Pro. Get the Heat Out!™ with RAM® Tough-Case™
Features:
- RAM® Tough-Case™ holder provides charging capabilities for the Samsung Galaxy Tab Active4 Pro in a RAM® Tough-Case™
- Includes RAM® C size double mount, backing plate and Power Delivery Hardwire Charger for dashboard installation
- Tethered connection of tablet to vehicle with coiled cable and durable oversized strain relief
- Compartment on the back of the holder for optional cooling fan
- Integrated S Pen holder
- Mounting hole pattern: 4-Hole AMPS: 1.181" x 1.496" and 3-Hole 120-Degree: 1.812" Diameter
- Constructed of marine-grade aluminum and high strength composite
Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- Modular Hardwire Charger
- Cable Clamp Assembly
Compatible Devices:
- Samsung
- Tab Active Pro
- Tab Active4 Pro
Specifications:
- Input Voltage: 12-24VDC
- Output Voltage: 5V @ 3A (15W); 9V @ 3A (27W); 12V @ 3A (36W); 15V @ 2.5A (37.5W)
- Power Output: 37.5W Total
- Output Current: 3A max
- Input Connector: Female USB Type-C
- Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length: 150mm
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
Regulatory:
- Meets SAE J-1113 5a
- Integrated Short Circuit Protection (SCP)
- Integrated Over Voltage Protection (OVP)
Certifications:
- FCC
- IC
- CE RCM
- WEEE
- RoHS Compliant
- USB Power Delivery 2.0 and 3.0 Support
Brand: RAM Mounts
Part number: RAM-101B2-TC-SAM54C-V3FCU
Warranty: Manufacturer's 3-year warranty
