Description
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones.

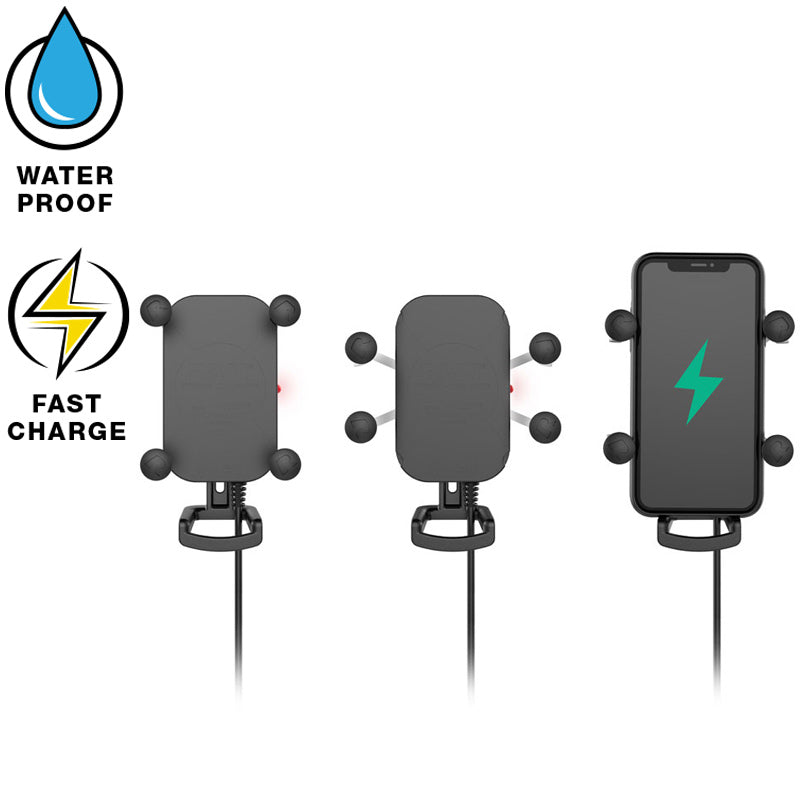

Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging.
All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones.
To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at.
For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.
In addition, a support leg can be adjusted to the ideal position or removed altogether.

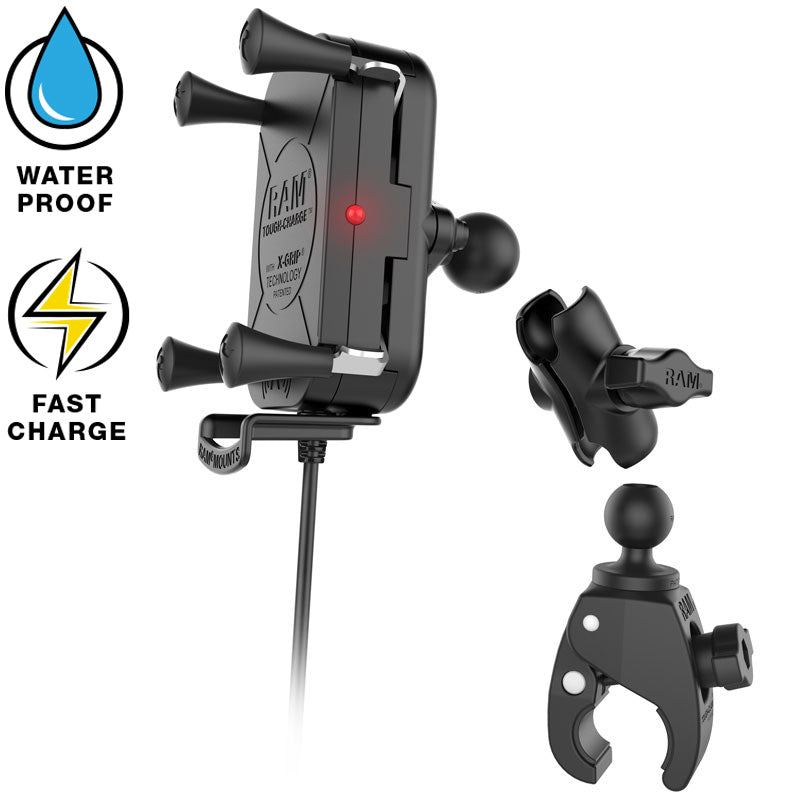

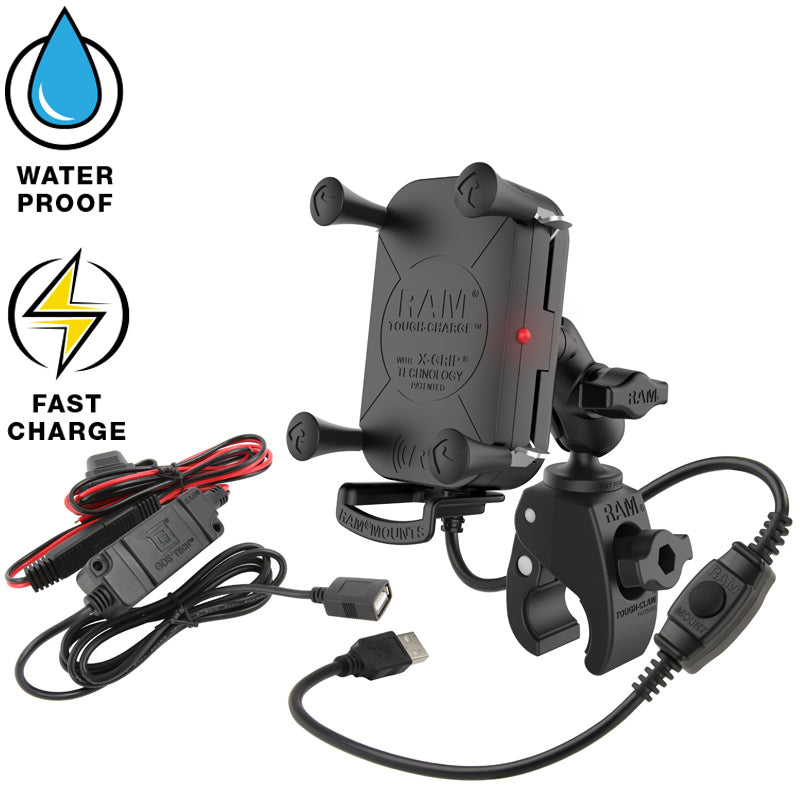

This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Features:
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
Included Hardware:
- (1) Safety Tether
- (1) Glue Tube for Rubber Caps
- (1) Cradle Leg
- (1) Cradle Leg Cover
- (1) Silicon sleeve for USB waterproof connection

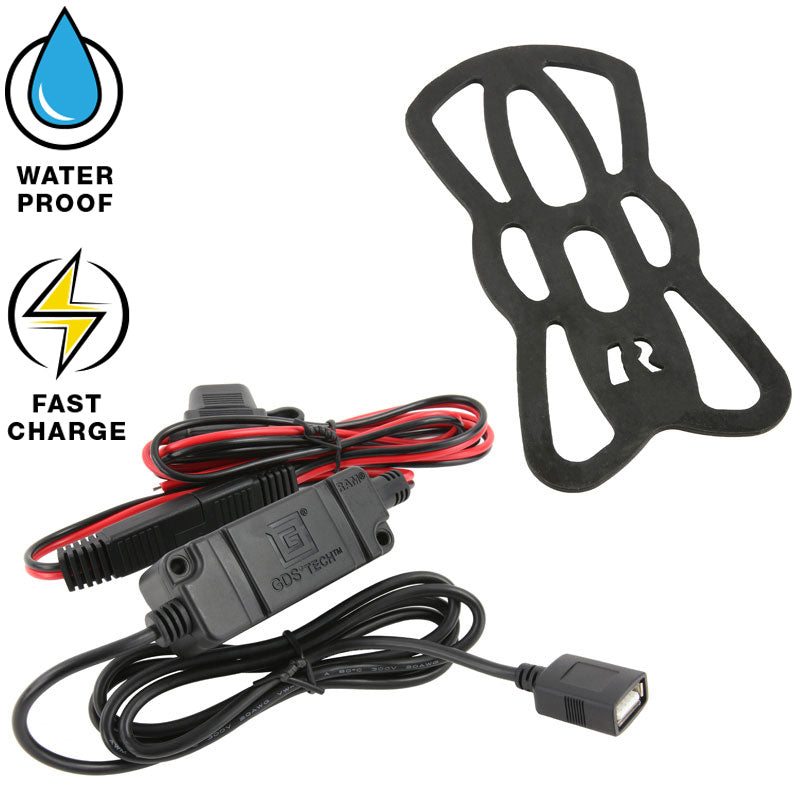

- (1) Hardwire Charger with Cable
- (4) Small zip ties
- (4) Large zip ties
Power Specifications:
- Input Power:5V-2A; 9V-1.67A
- Output: 15W
- Conversion Efficiency: 85% Max
- Maximum Case Thickness: 6mm
- Working Frequency: 110-205KHZ
- Product Standard: WPC v.1.2.4
- QI Compatible
- Compatible with QC2.0/QC3.0 power supplies
Operating Temperature:
- 0°C to +37.7°C
Compliance:
- Over Voltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
- RoHS Compliance
- WEEE Compliance
- SAE J-1113-5 Load Dump (Transient Voltage)
- Moisture Resistant
Certifications:
- CE Certification
- KC
- e-Mark Certification
- RCM Certification
- FCC Certification
IMPORTANT:
- For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.
- Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
- Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
- iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
** The holder will fit devices that are within the dimensions listed below. If using a case measure your device with the case on to make sure that the overall size is within the holder's dimensions.
Holder Dimensions:
- Width Range: 2.375" - 3.25"
- Depth Range: .875" max
Compatible Devices:
Apple
- iPhone 11
- iPhone 11 Pro
- iPhone 11 Pro Max
- iPhone 8
- iPhone 8 Plus
- iPhone SE
- iPhone X
- iPhone Xr
- iPhone Xs
- iPhone Xs Max
Blackberry
- Evolve X
Blackview
- BV9900
- BV9900 Pro
- Pixel 3
- Pixel 3 XL
- Pixel 4
- Pixel 4 XL
- Pixel 5
- Pixel 6
- Pixel 6 Pro
- Pixel 7
- Pixel 7 Pro
- Pixel 8
- Pixel 8 Pro
- Pixel 9
- Pixel 9 Pro
- Pixel 9 Pro XL
- Pixel 9a
Huawei
- Mate 20 Pro
- P30 Pro
LG
- G6
- G6+
- G7 ThinQ
- G8 ThinQ
- G8S ThinQ
- V30
- V35 ThinQ
- V40 ThinQ
- V50 ThinQ
Nokia
- 8 Sirocco
- 9 PureView
Razer
- Phone 2
Samsung
- Galaxy Note 10
- Galaxy Note 10 Plus
- Galaxy Note 5
- Galaxy Note 8
- Galaxy Note 9
- Galaxy S10
- Galaxy S10 5G
- Galaxy S10+
- Galaxy S10e
- Galaxy S20
- Galaxy S20+
- Galaxy S20 Ultra 5G
- Galaxy S21 5G
- Galaxy S21+ 5G
- Galaxy S21 Ultra 5G
- Galaxy S22 5G
- Galaxy S22+ 5G
- Galaxy S22 Ultra 5G
- Galaxy S23
- Galaxy S23+
- Galaxy S23 Ultra
- Galaxy S24
- Galaxy S24+
- Galaxy S24 Ultra
- Galaxy S25
- Galaxy S25+
- Galaxy S25 Ultra
- Galaxy S6
- Galaxy S6 Edge
- Galaxy S6 Edge+
- Galaxy S7
- Galaxy S7 Active
- Galaxy S7 Edge
- Galaxy S8
- Galaxy S8+
- Galaxy S8 Active
- Galaxy S9
- Galaxy S9+
Sony
- Xperia XZ2
- Xperia XZ2 Compact
- Xperia XZ3
Xiaomi
- Mi 9
- Mi 9 Explorer
- Mi Mix 2S
- Mi Mix 3
ZTE
- Axon 10 Pro
- Axon 9 Pro
Brand: RAM Mounts
Part number: RAM-B-400-A-UN12W-V7M
Warranty: Manufacturer's lifetime warranty(mount), 1 year warranty(electronics)
