Description

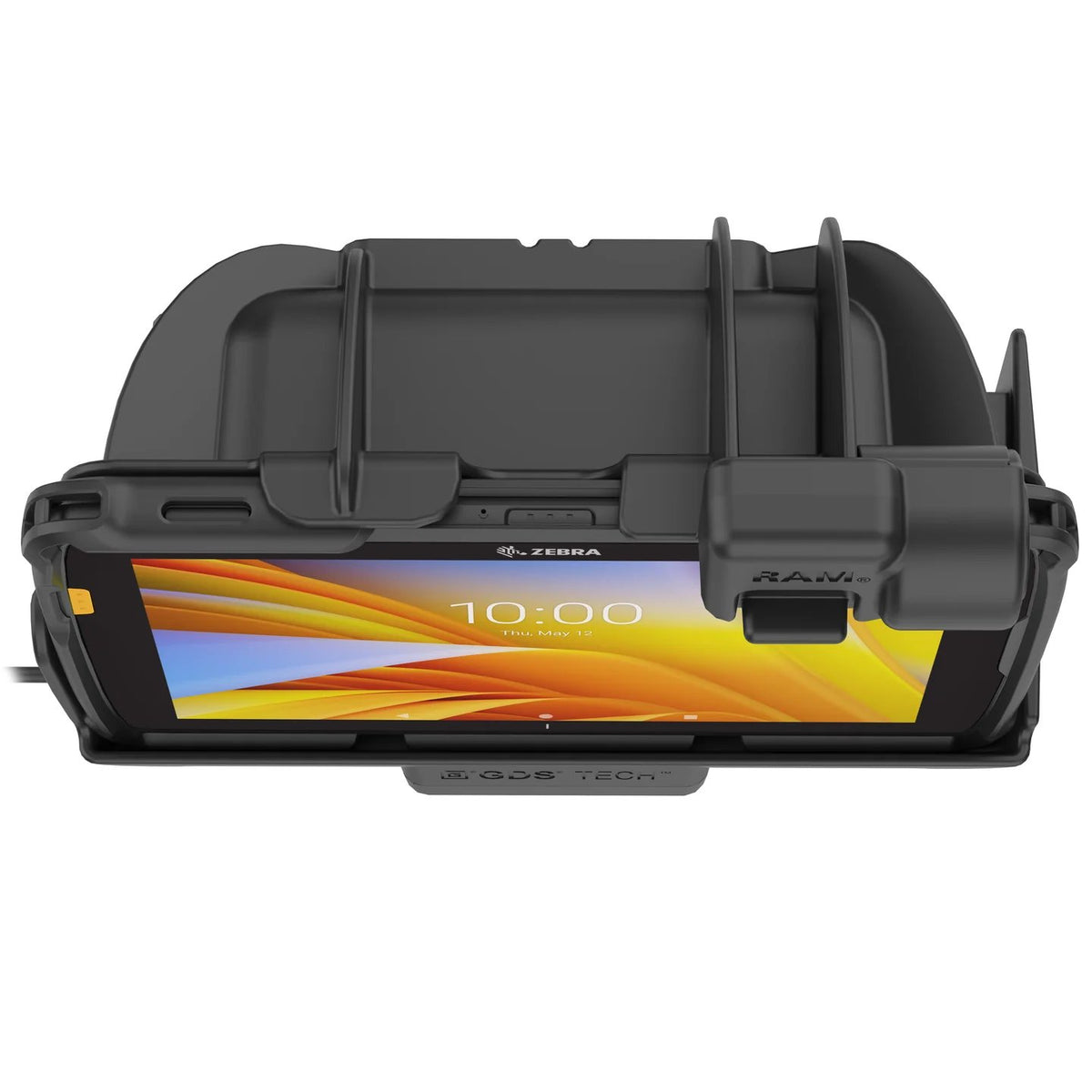

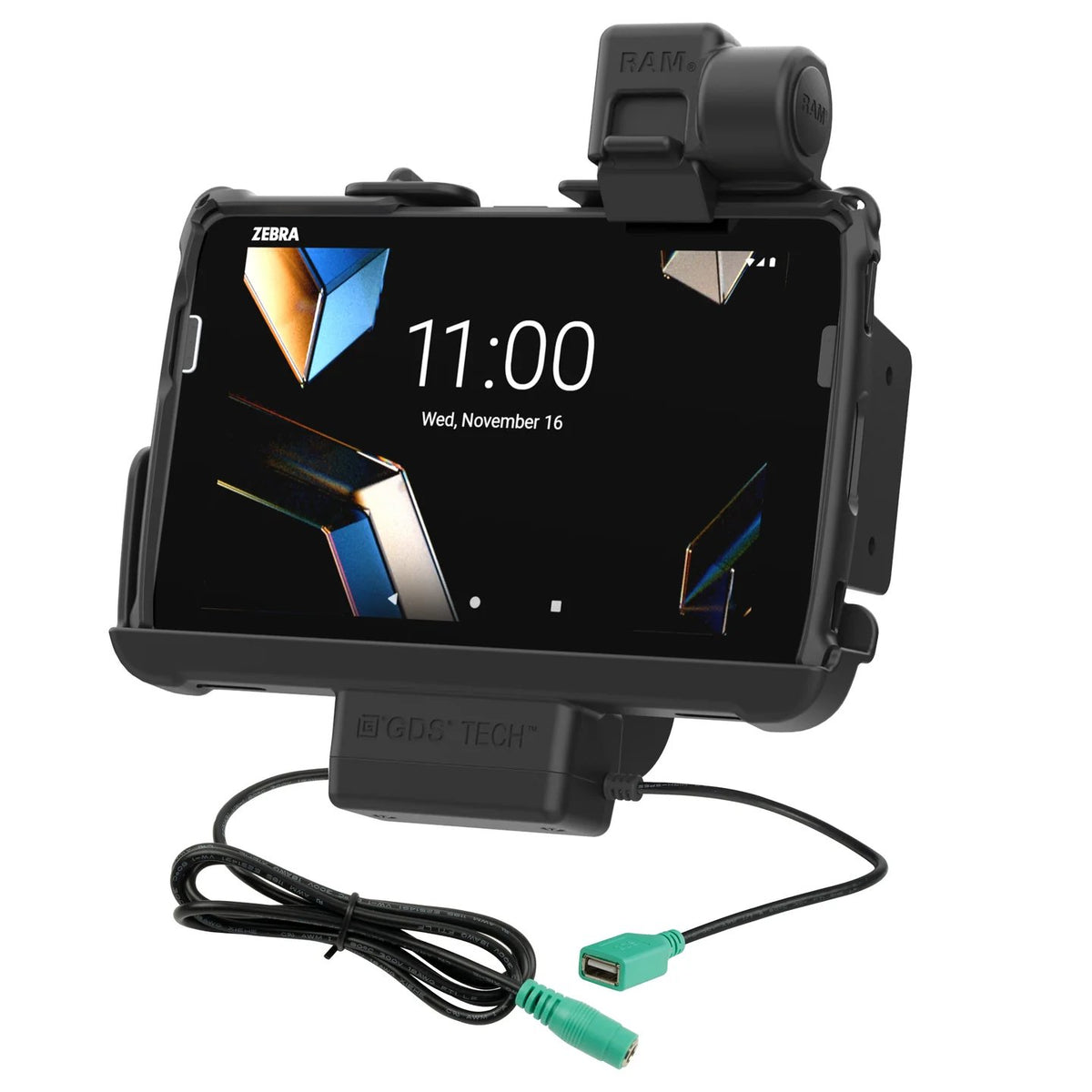

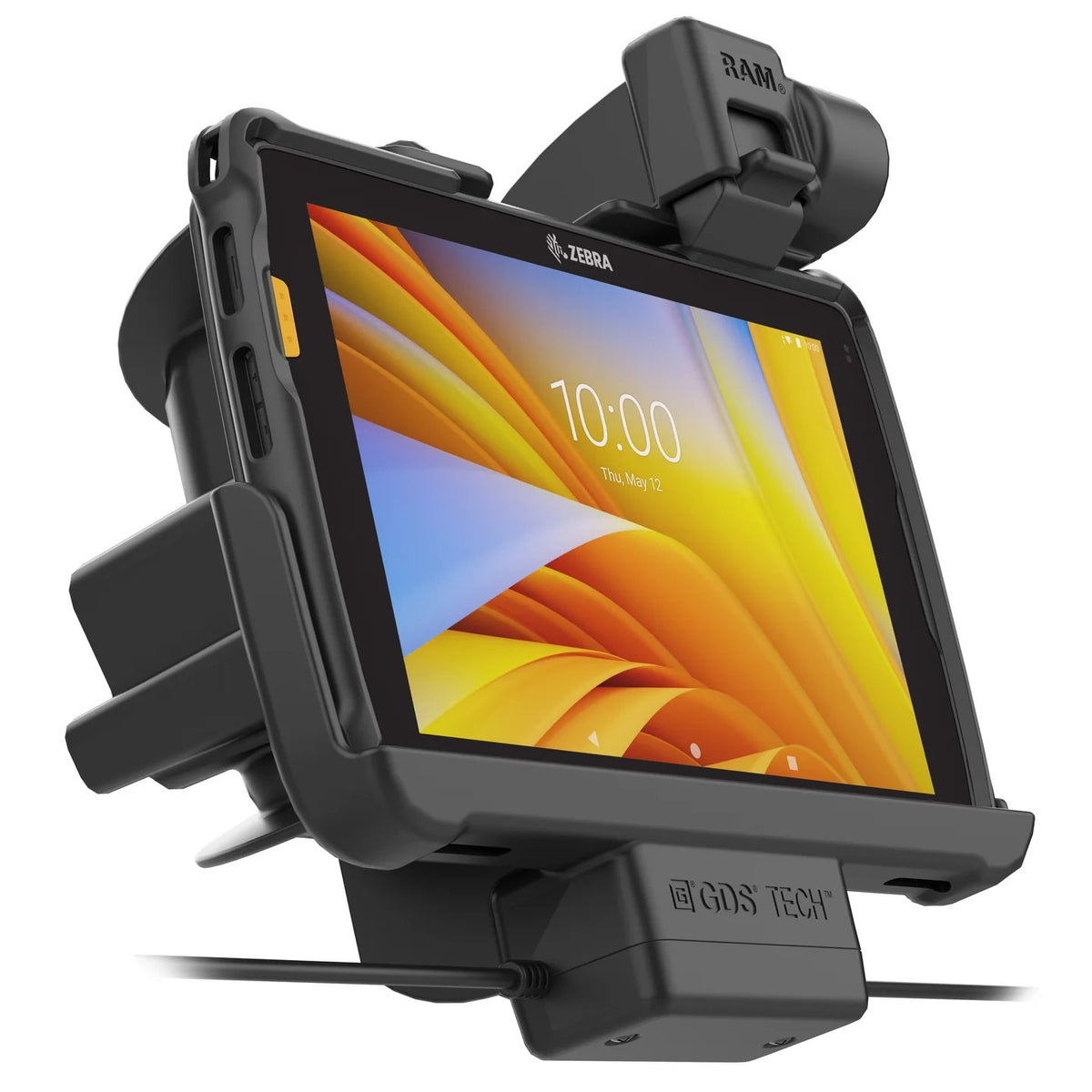

The RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401, ET40 and ET45 8" tablets is designed for demanding applications where devices are frequently docked and removed. The top-latch design secures the tablet while reducing wear on the dock during repeated use, making it well suited for fleet, warehouse, material handling and mobile-workstation environments.

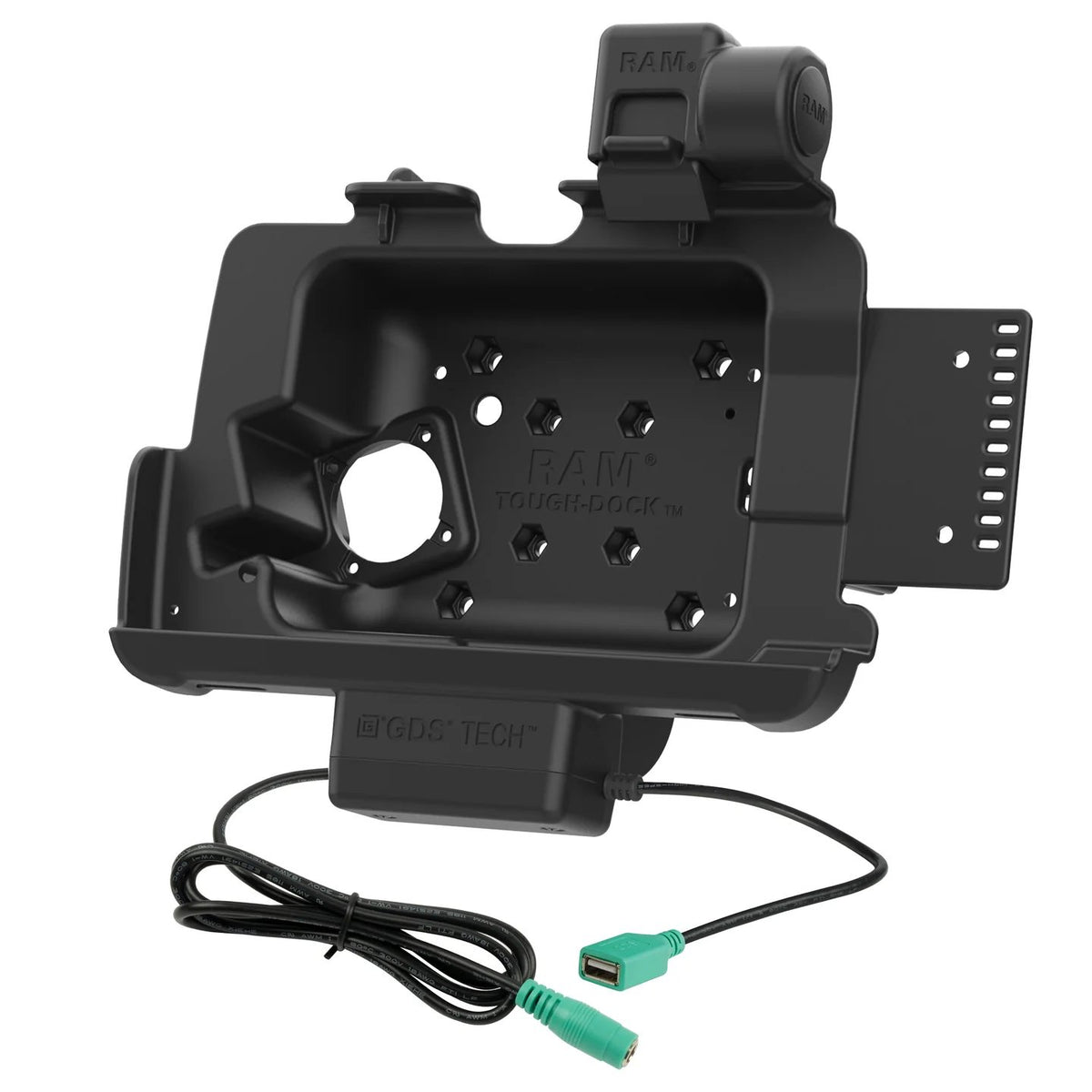

Integrated pogo-pin contacts provide charging while the tablet is docked, and the built-in USB Type-A connection supports one compatible peripheral. The dock also provides clearance for select Zebra and GDS® accessories and includes an accessory mounting area for adding compatible RAM components.
Key Features
-
Powered RAM® Tough-Dock™ with data connectivity for compatible Zebra 8" enterprise tablets
-
Top-latch design supports frequent docking and undocking
-
Integrated pogo-pin contacts provide device charging while docked
-
USB 2.0 Type-A connection supports one compatible peripheral
-
Accommodates select Zebra Expansion Back, PowerPack Battery and GDS® Ergo™ accessories
-
Compatible with RAM® C Size and D Size mounting systems using 4-hole AMPS or 75 x 75mm VESA pattern bases
-

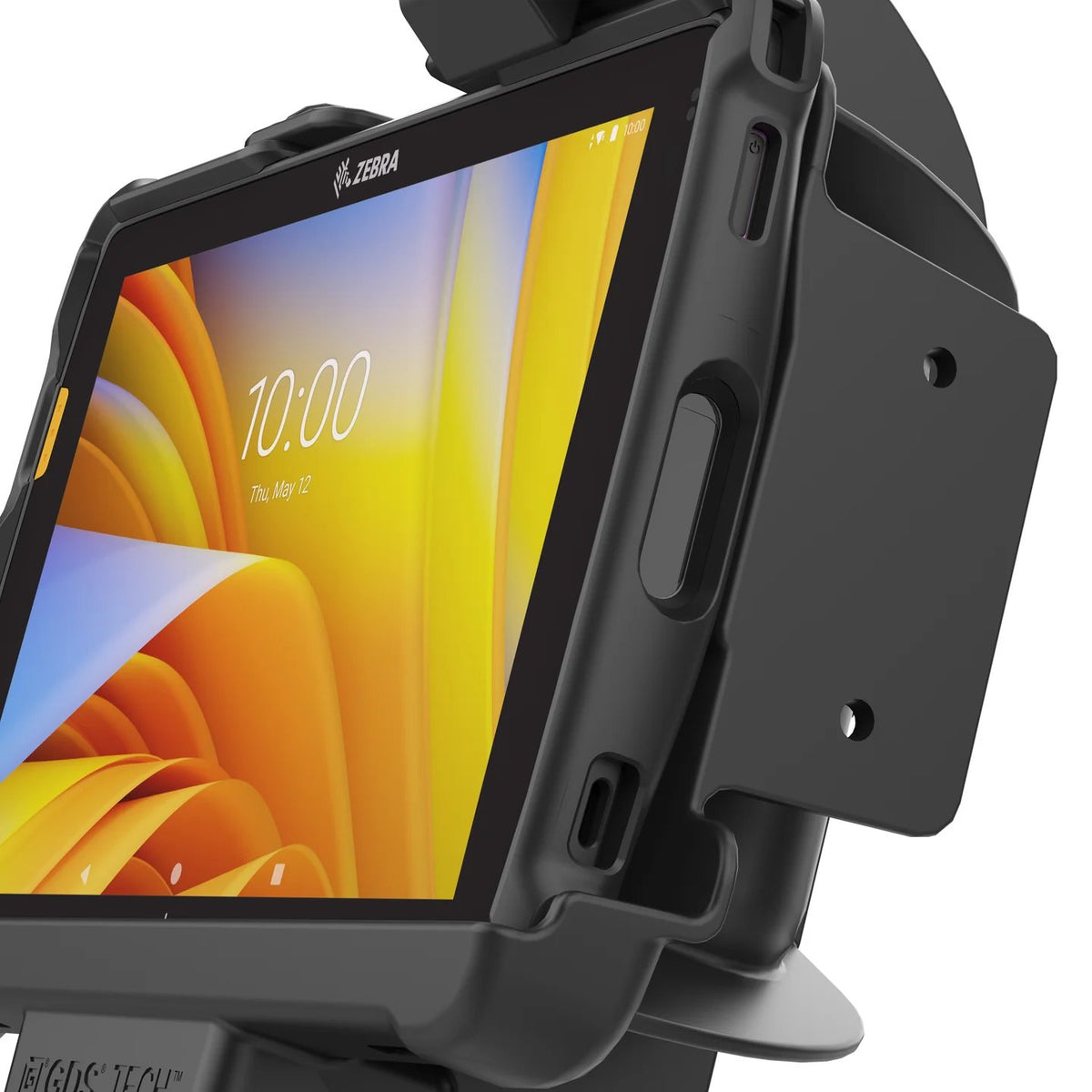

Built-in 2-hole mounting plate supports additional RAM-mounted devices and accessories
-
High-strength composite construction
-
Backed by a 3-year manufacturer warranty
Use Cases & Compatibility
Compatible with:
-
Zebra ET401 8" Tablet with RAM® Skin™
-
Zebra ET40 8" Tablet with Rugged Frame
-
Zebra ET45 8" Tablet with Rugged Frame
To use the ET40 or ET45 without the Rugged Frame, RAM part RAP-INSERT-ZE20LU is required.
This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, use the appropriate compatible GDS® dock.

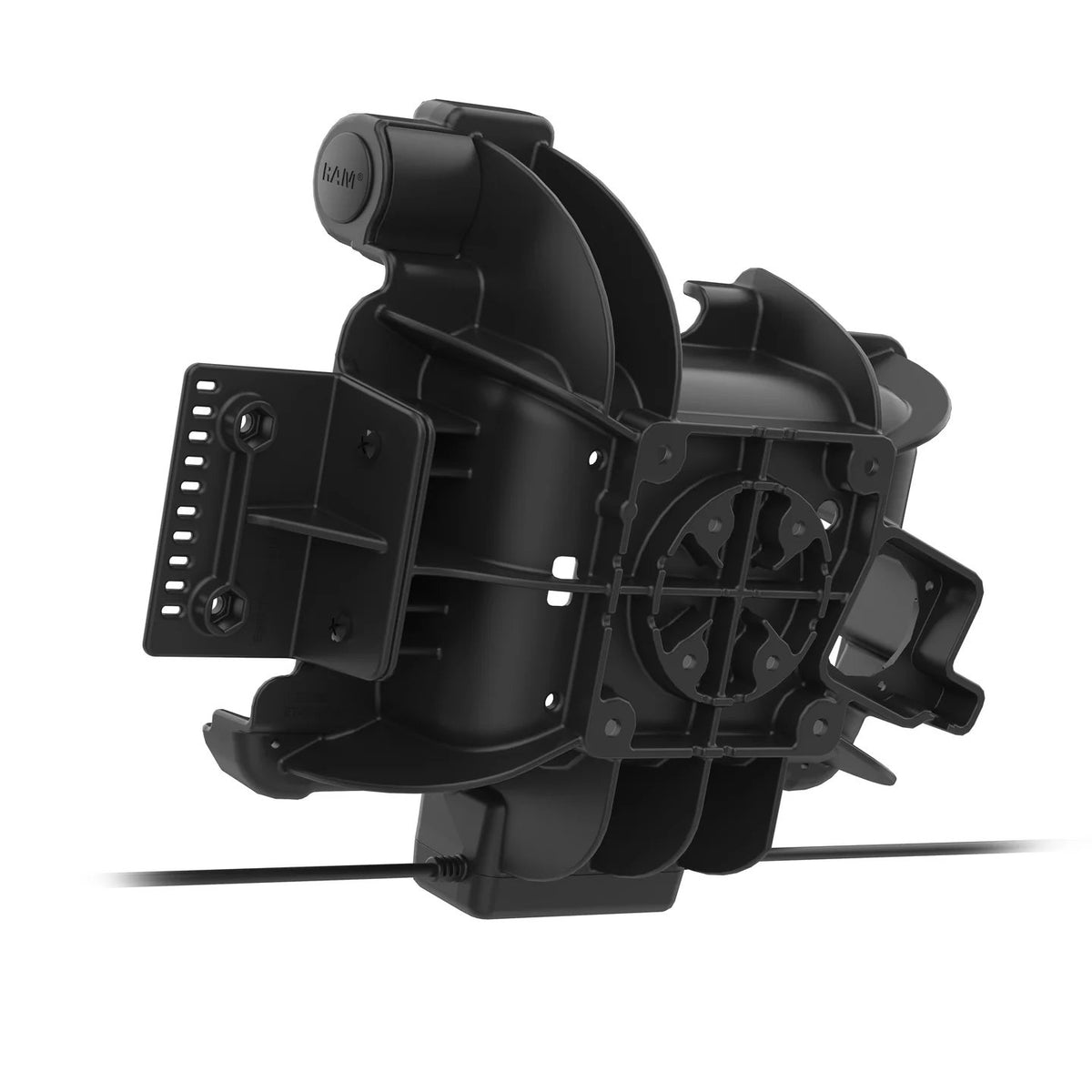

The rear mounting interface accepts compatible RAM® C Size or D Size 4-hole AMPS and 75 x 75mm VESA pattern bases. Mounting arms and ball bases are sold separately.
Specifications
-
Hole Pattern: 75 x 75mm VESA; 4-Hole AMPS 1.181" x 1.496"
-
Material: High-strength composite
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1 meter
-
Output Connector: USB 2.0 Type-A
-
Output Cable Length: 242mm
-
Peripheral Output: 500mA
-
Transfer Speed: 12Mbps
-
Certifications: RoHS, WEEE, CE, UKCA
-
Product Weight: 1.43 lb
What’s Included
-
RAM® Tough-Dock™ Power + Data with Latch
-
(1) side bracket for accessory mounting
-
(4) #8-32 x 5/8" machine screws
-
(2) #8-32 x 1/2" machine screws
-
(6) #8-32 Nyloc nuts
-
(4) #10-24 x 5/8" machine screws
-
(4) #10-24 Nyloc nuts
-
(2) small cable ties
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE20PDNLLU
Warranty: 3-year manufacturer warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
