Description
The RAM-B-238-MAG88U is a RAM® Tough-Mag™ magnetic base with an 88mm diameter rubber-coated magnetic base and a RAM® B Size 1" diamond ball base. It provides a removable magnetic mounting point for compatible RAM® B Size socket arms, holders, cradles, and adapters.
The magnetic base includes M4 threaded inserts and a 2-hole AMPS pattern for attaching compatible RAM® diamond ball bases. Its rubber exterior helps protect the mounting surface from scratches, making it useful for temporary or repositionable mounting on suitable ferrous metal surfaces.
Key Features
- RAM® Tough-Mag™ 88mm diameter magnetic base with B Size 1" ball
- Includes RAM® B Size 2-hole AMPS diamond ball base
- Magnetic base includes M4 threaded inserts for attaching compatible RAM® B or C Size 2-hole AMPS diamond ball bases(B Size Included)
- Rubber exterior helps protect the mounting surface from scratches

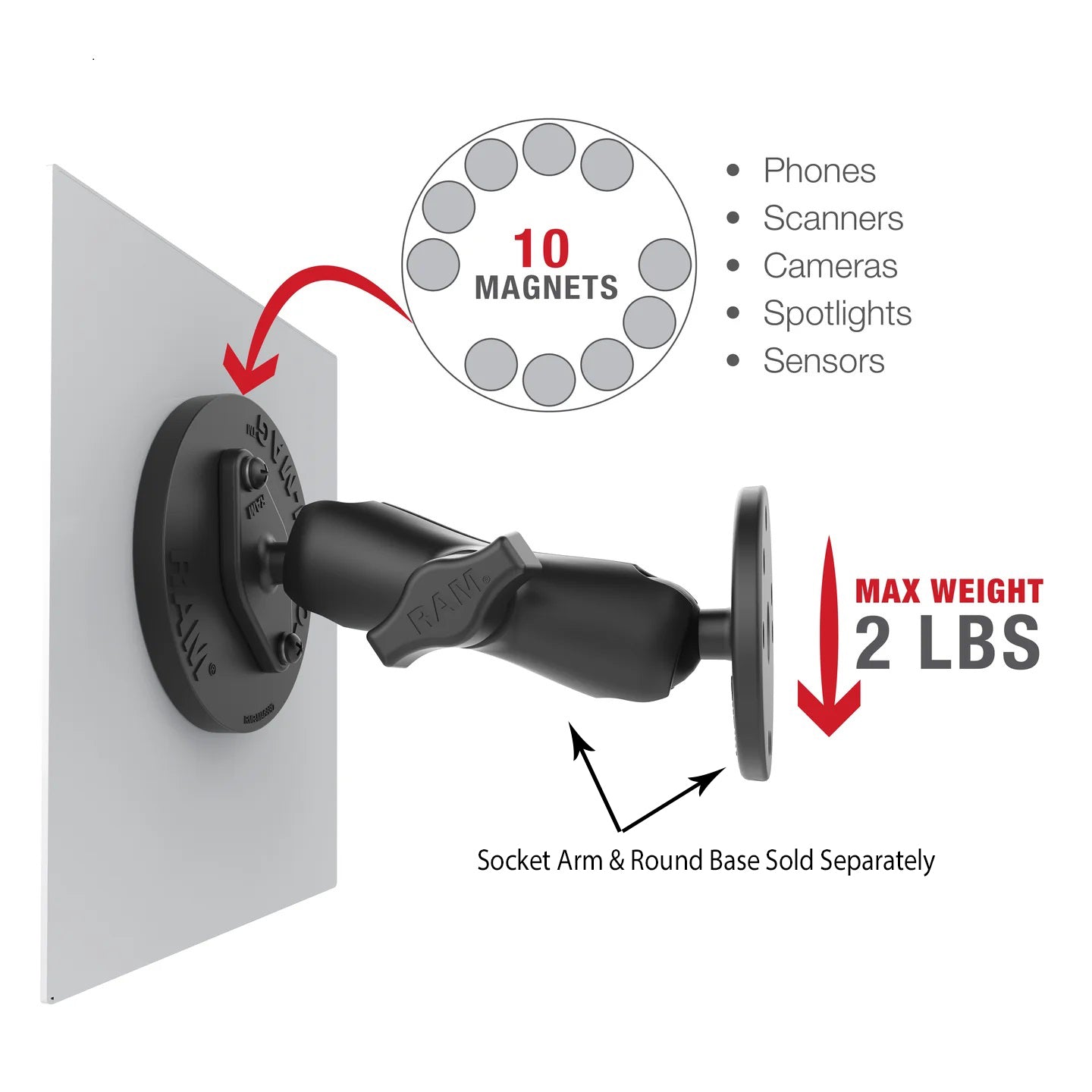

- Uses ten N52 magnets for strong magnetic holding power
- Compatible with RAM® B Size double socket arms and related 1" ball components
- Made from marine-grade aluminum, rubber, and N52 magnets
- Manufacturer-rated weight capacity: 2 lbs standard use, 1 lb heavy-duty use
- Backed by RAM Mounts’ manufacturer’s lifetime warranty
Use Cases & Compatibility
The RAM-B-238-MAG88U is commonly used when a removable RAM® mounting base is needed on a compatible metal surface. It can be used for temporary mounting of phones, GPS units, cameras, small tablets, radios, or other devices when paired with the proper RAM® B Size arm and holder.
This base includes a RAM® B Size 1" ball and works with compatible RAM® B Size socket arms and adapters. The magnetic base contains M4 threaded inserts and a 2-hole AMPS pattern for use with compatible RAM® B or C Size 2-hole AMPS diamond ball bases. B Size Included
Specifications
Ball Size: B Size 1" Ball
Material: Marine-grade aluminum, rubber, and N52 magnets
Color: Black
Hole Pattern: 2-hole AMPS pattern, 1.912" spacing; M4 threaded inserts in magnetic base
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.71 lb
Additional Details: Magnetic base diameter: 88mm / 3.46"; includes ten N52 magnets; rubber exterior helps protect mounting surface
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-238-MAG88U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
