Description

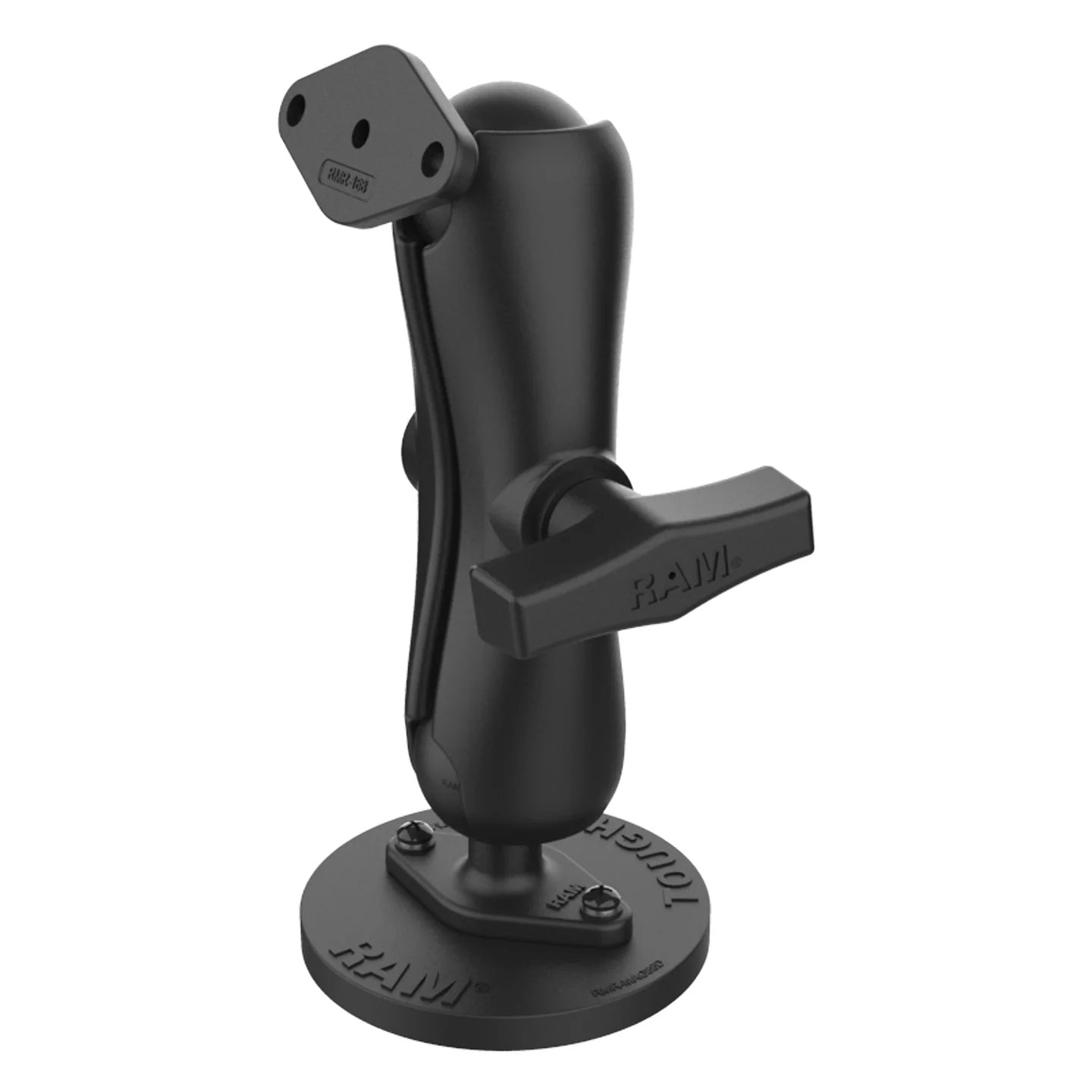

The RAM® Tough-Mag™ Heavy-Duty Magnetic Mount with Diamond Plate – Medium is a rugged, no-drill mounting solution engineered for demanding environments. Designed with RAM Mounts’ proven C-size 1.5" ball and socket system, this mount delivers exceptional holding strength, shock absorption, and near-infinite adjustability.

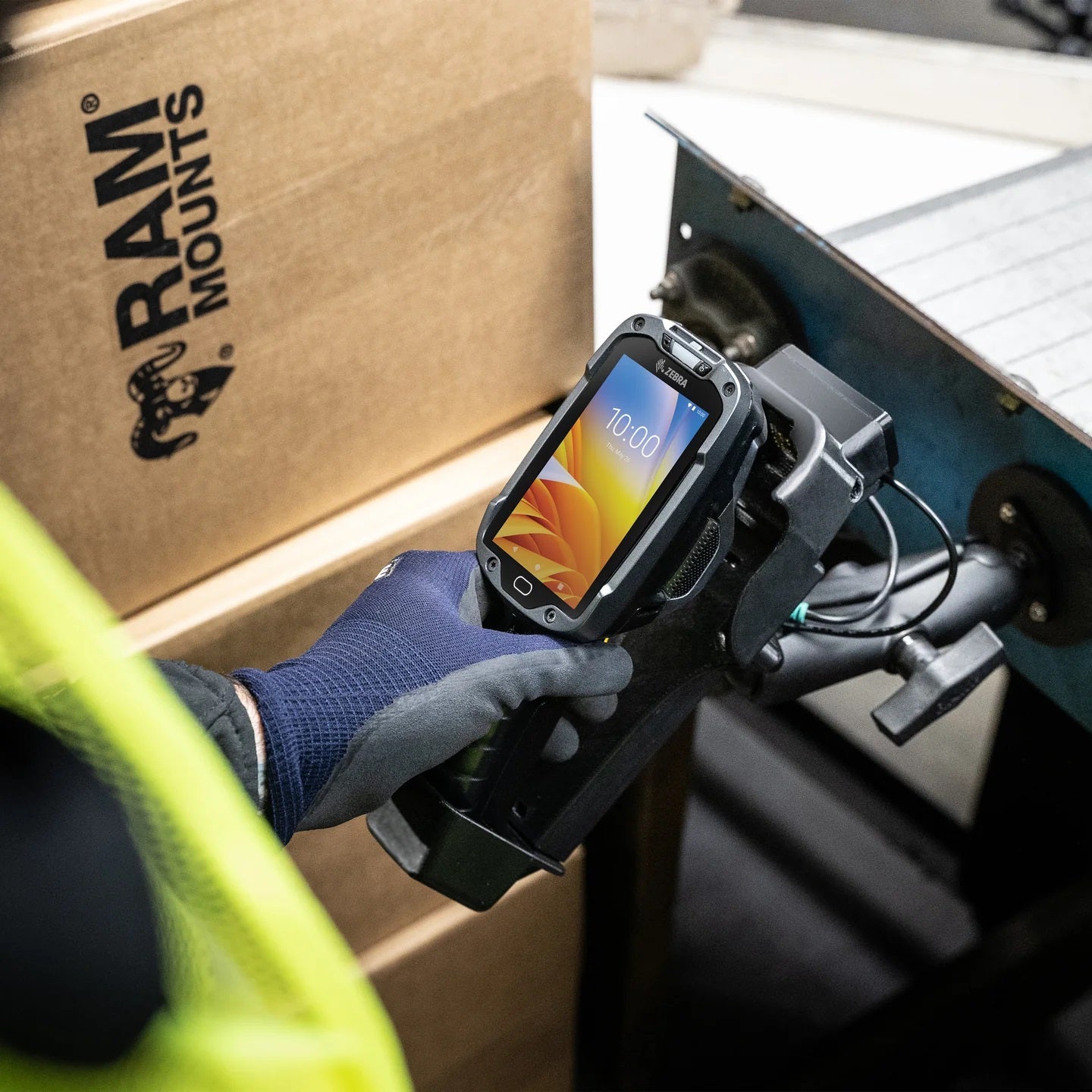

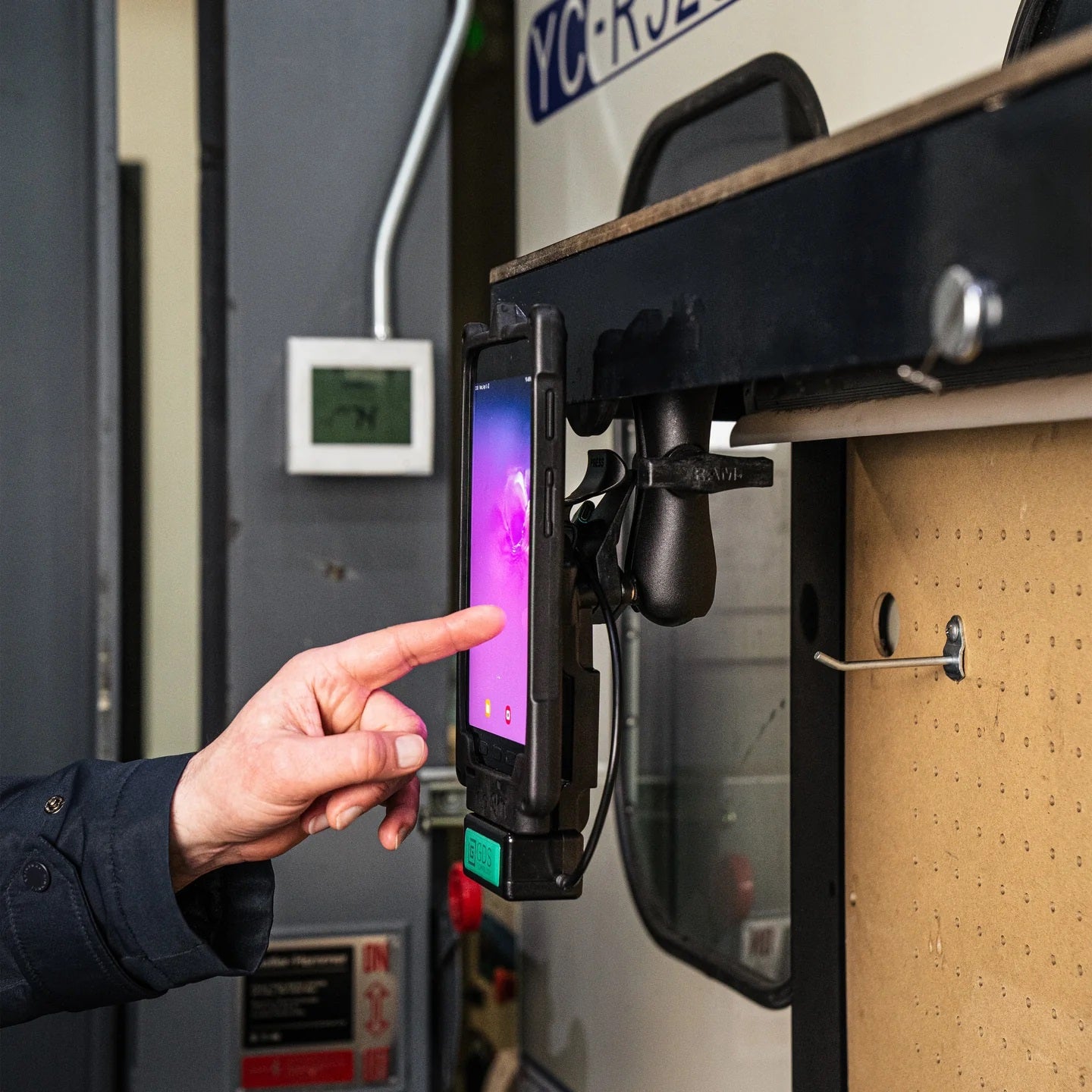

At the core of this system is the RAM Tough-Mag™ magnetic base, featuring 10 industrial-strength N52 magnets wrapped in a protective rubber coating. This allows secure attachment to any ferrous metal surface while preventing scratches or surface damage. Paired with a medium-length double socket arm and an AMPS-compatible diamond plate, this mount is ideal for tablets, rugged computers, and heavier devices used in vehicles, warehouses, workshops, and field operations.
Built from powder-coated, marine-grade aluminum and proudly made in the USA, this magnetic mount is designed for professionals who need strength, reliability, and flexibility—without permanent installation.
Key Features
-
Heavy-duty Tough-Mag™ magnetic base with rubberized exterior for surface protection
-
10 N52-grade industrial magnets for maximum holding power
-
C-size 1.5" RAM ball and socket system for superior strength and vibration damping
-
Medium-length double socket arm allows precise positioning and easy adjustment
-
Diamond plate with AMPS hole pattern supports a wide range of device cradles
-
Ideal for vehicles, equipment racks, workbenches, forklifts, and metal dashboards
-
Designed for professional and industrial use
Technical Specifications
-
Magnetic Base Diameter: 3.46" (88mm)
-
Top Plate Size: 2.43" x 1.31"
-
Ball Size: 1.5" (C-Size)
-
Arm Length (Overall): 5.69"
-
Socket-to-Socket Length: 4.66"
-
Product Height: 7.67"
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Weight Capacity:
-
Up to 4 lbs (standard use)
-
Up to 3 lbs (heavy-duty use)
-
-
Product Weight: 1.44 lbs
-
Materials: Powder-coated marine-grade aluminum, rubber-coated magnetic base
Ideal Applications
-
Vehicle dashboards and metal consoles
-
Forklifts and industrial equipment
-
Work trucks and service vehicles
-
Warehouses and manufacturing floors
-
Temporary or semi-permanent device mounting
What’s Included
-

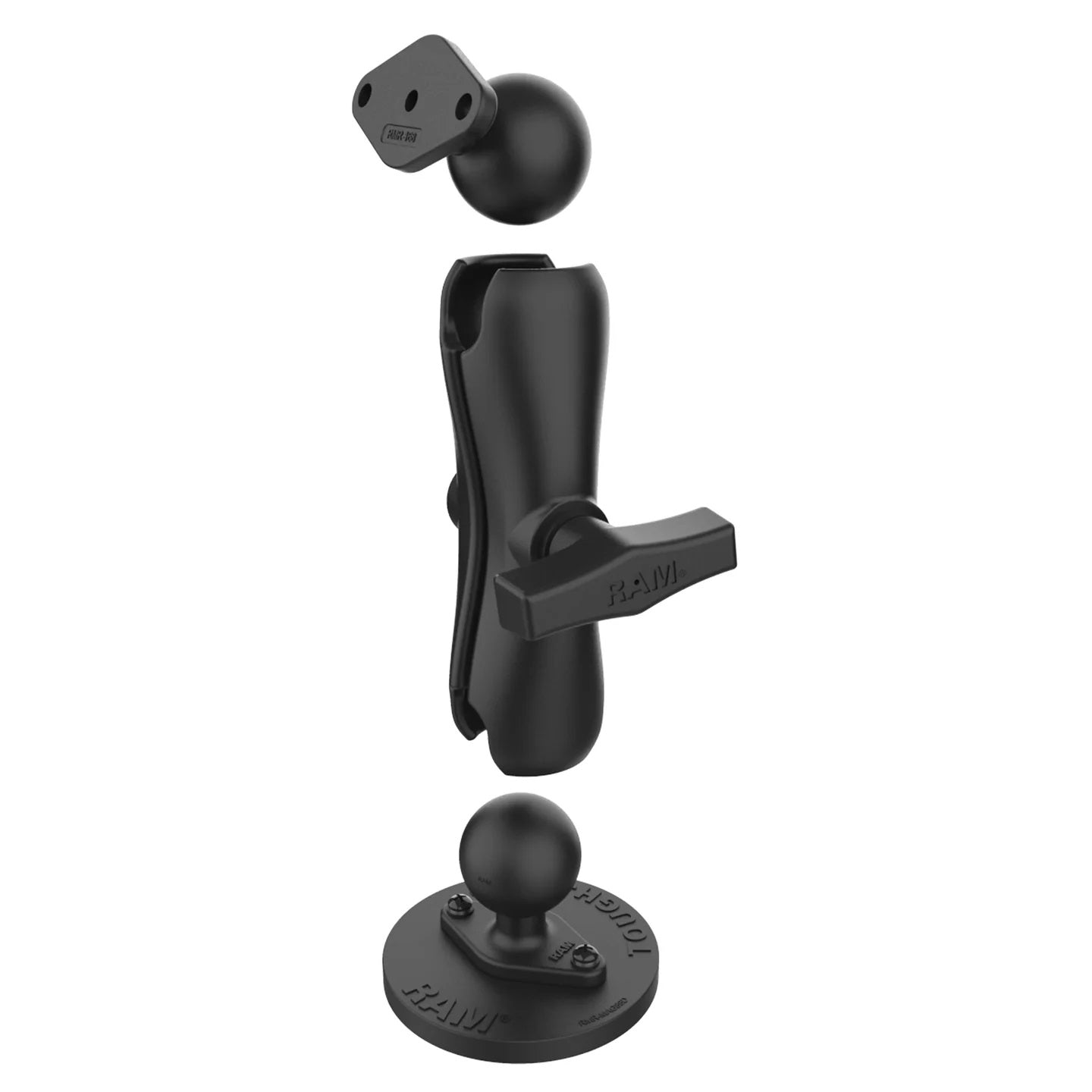

RAM® Tough-Mag™ magnetic base with 1.5" ball
-
Medium double socket arm (C-size)
-
Diamond plate base with AMPS hole pattern
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-138-MAG88U
-
Warranty: Manufacturer’s lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by full manufacturer support.
