Description

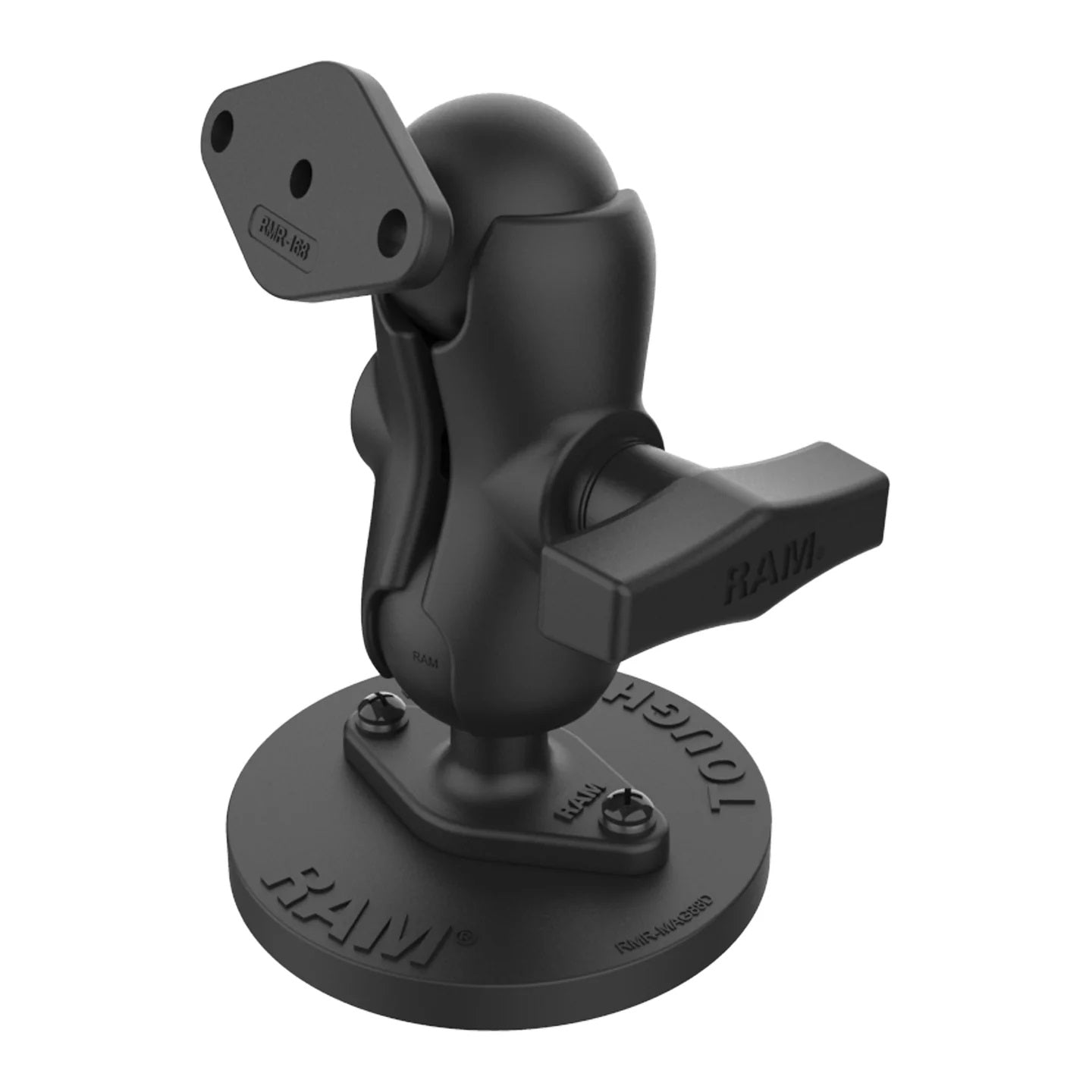

The RAM® Tough-Mag™ Heavy-Duty Magnetic Mount with Diamond Plate & Short Arm is a rugged, vibration-dampening mounting solution designed for secure, flexible device positioning on ferrous metal surfaces. Built with RAM® C-size (1.5") ball and socket technology, this magnetic mount delivers exceptional holding strength, near-infinite adjustability, and long-term durability in demanding environments.
The Tough-Mag™ magnetic base uses ten industrial-strength N52 magnets, providing a powerful grip while the rubberized exterior protects vehicle surfaces from scratches. Paired with a short double socket arm and a diamond base featuring the industry-standard AMPS hole pattern, this mount is ideal for attaching compatible device cradles, docks, and accessories in vehicles, fleets, workshops, and industrial settings.
As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM® products backed by a manufacturer’s lifetime warranty.
Key Features
-
Heavy-duty Tough-Mag™ magnetic base with 10 N52-grade magnets
-
C-size 1.5" rubber ball and socket system for maximum strength
-
Short double socket arm for compact, low-profile installations
-
Diamond plate with industry-standard 2-hole AMPS pattern
-
Rubber-coated magnet protects painted and metal surfaces
-
Near-infinite adjustability for optimal viewing angles
-
Shock and vibration damping to protect mounted devices
-
Constructed from powder-coated, marine-grade aluminum
-
Made in the USA and backed by a lifetime warranty
Ideal Applications
-
Vehicle dashboards and metal surfaces
-
Fleet and commercial vehicle installations
-
Industrial and warehouse environments
-
Temporary or removable mounting setups
-
Tablets, rugged devices, and equipment cradles (up to 4 lbs standard use)
Technical Specifications
-
Ball Size: C-Size (1.5")
-
Load Capacity:
-
Up to 4 lbs (standard use)
-
Up to 3 lbs (heavy-duty use)
-
-
Short Arm Length:
-
Overall: 3.56"
-
Socket-to-Socket: 2.5"
-
-
Magnetic Base Diameter: 3.46" (88mm)
-
Diamond Plate Size: 2.43" x 1.31"
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Materials: Marine-grade aluminum, rubber-coated magnets
-
Weight: 1.21 lbs
-
Country of Origin: USA

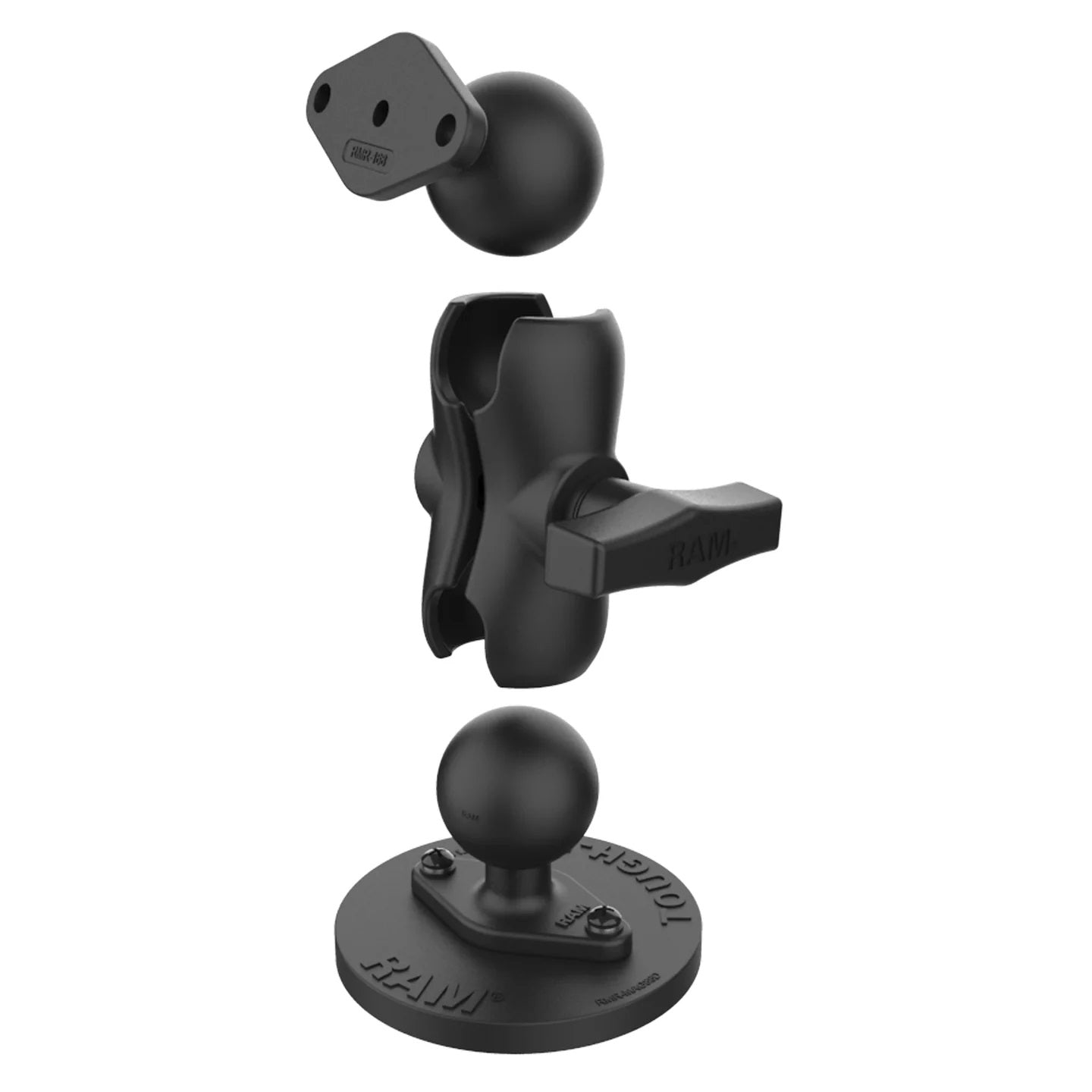

What’s Included
-
RAM® Tough-Mag™ magnetic base with 1.5" ball
-
Short C-size double socket arm
-
Diamond base with 1.5" ball and AMPS hole pattern
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-138-B-MAG88U
-
Warranty: Manufacturer’s lifetime warranty
