Description

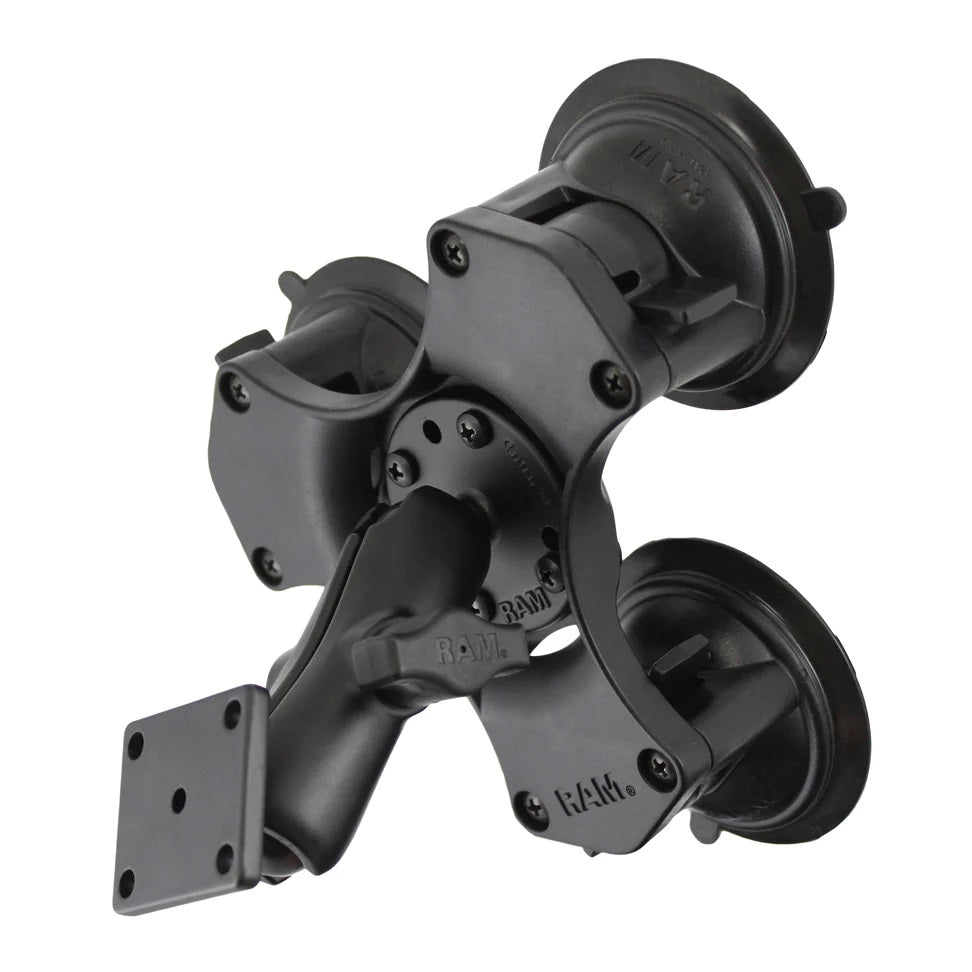

The RAM-B-139U-224 is a heavy-duty triple suction cup mounting system featuring three RAM Twist-Lock suction bases, a medium-length B size double socket arm, and a rectangular plate with the standard 4-hole AMPS pattern. The three-cup design provides a wide mounting footprint for applications that require a secure suction-mounted platform on a suitable smooth, nonporous surface.
The RAM B size ball-and-socket system provides multiple adjustment points, while the AMPS plate offers a versatile interface for attaching compatible device holders, cradles, docks, and other mounting components.
Key Features
-
Triple RAM Twist-Lock suction cup mounting system
-
Three 3.3" diameter suction bases provide a total width of 7.95"
-
Medium-length B size double socket arm provides adjustable positioning
-
Rectangular mounting plate features the standard 4-hole AMPS pattern
-
Compatible with RAM B size 1" ball-and-socket components
-
Ball-and-socket design allows a wide range of adjustment
-
Supports up to 2 lbs in standard-use applications and 1 lb in heavy-duty applications
-
Constructed from marine-grade aluminum and high-strength composite
-
Backed by the manufacturer's lifetime warranty
Use Cases & Compatibility
Designed to provide a secure suction-mounted platform on suitable smooth, nonporous surfaces. The rectangular AMPS plate can be paired with compatible holders, cradles, docks, devices and adapters that use the standard 4-hole AMPS mounting pattern.
Specifications
-
Mounting method: Triple suction cup
-
Suction cup size: Three 3.3" diameter bases
-
Total suction base width: 7.95"
-
Ball size: B Size – 1"
-
Arm length: Medium
-
Socket-to-socket length: 3"
-
Hole pattern: 4-Hole AMPS – 1.181" x 1.496"
-
Weight capacity: 2 lbs standard use; 1 lb heavy-duty use
-
Product weight: 0.51 lb
-
Materials: Marine-grade aluminum and high-strength composite
-
Product line: Twist-Lock™
What’s Included
-
Triple suction cup base assembly
-
Medium B size double socket arm
-
Rectangular AMPS plate assembly
-
Assembly hardware
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-B-139U-224
Warranty: Manufacturer's Lifetime Warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
