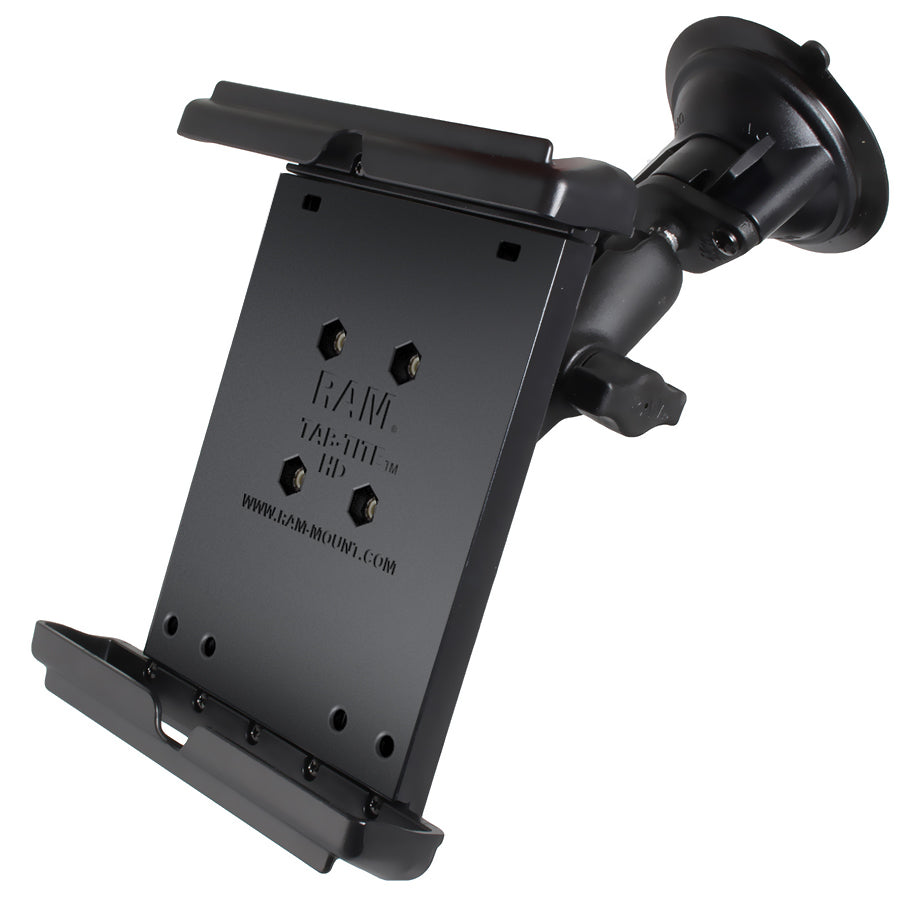

RAM Tab-Tite™ Suction Cup Tablet Mount with Twist-Lock™ for iPad mini 1–4

The RAM Tab-Tite™ Suction Cup Tablet Mount delivers rock-solid tablet mounting for vehicles, offices, and mobile workspaces. Built around RAM’s trusted B-size 1" ball and socket system, this mount offers exceptional adjustability, vibration resistance, and a secure hold on glass and other non-porous surfaces.

Designed for iPad mini 1–4 with light-duty cases, this system also supports a wide range of tablets that fall within the listed cradle dimensions. The Twist-Lock™ suction cup base ensures a strong, reliable grip, while the spring-loaded Tab-Tite™ cradle allows for quick loading and unloading without sacrificing stability.

As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM products backed by the manufacturer’s lifetime warranty—so you can mount with confidence wherever the job takes you.

---

Key Features

• 3.3" Twist-Lock™ suction cup base delivers a powerful hold on glass and smooth, non-porous surfaces

• RAM B-size 1" ball and socket system allows near-infinite viewing angle adjustment

• Medium double socket arm provides stable positioning with minimal vibration

• Spring-loaded Tab-Tite™ cradle makes inserting and removing your tablet fast and secure

• Interchangeable cup ends maintain full access to charging ports, USB, and audio jacks

• Marine-grade aluminum and high-strength composite construction for durability in demanding environments

• Made in the USA with premium materials and precision engineering

---

Device Compatibility

Compatible with iPad mini 1, 2, 3, and 4 (with light-duty cases) and other tablets that fit within the dimensions below.

Important: Tablet cases vary in size—measure your device with the case installed to ensure proper fit.

---

Cradle Dimensions

• Height Range: 7.125" – 9.5"

• Width Range: 5.06" – 5.68"

• Depth Range: 0.13" – 1.0"

---

Mount Specifications

• Suction Cup Diameter: 3.3"

• Ball Size: RAM B-Size (1")

• Arm Length:

  • Overall: 3.73"

  • Socket-to-Socket: 3.0"

• Weight Capacity:

  • Standard Use: up to 2 lbs

  • Heavy-Duty Use: up to 1 lb

• Product Weight: 1.18 lb

---

Materials

• Powder-coated marine-grade aluminum

• High-strength composite

---

What’s Included

• Twist-Lock™ suction cup base with diamond base and 1" B-size ball

• Medium double socket arm

• 2.5" round AMPS base with 1" ball

• RAM Tab-Tite™ spring-loaded tablet cradle

• Custom support cups for iPad mini 1–4 (light-duty case)

---

Brand and Warranty

• Brand: RAM Mounts

• Part Number: RAM-B-166-TAB12U

• Warranty: Manufacturer’s lifetime warranty

---
