Description
Features:

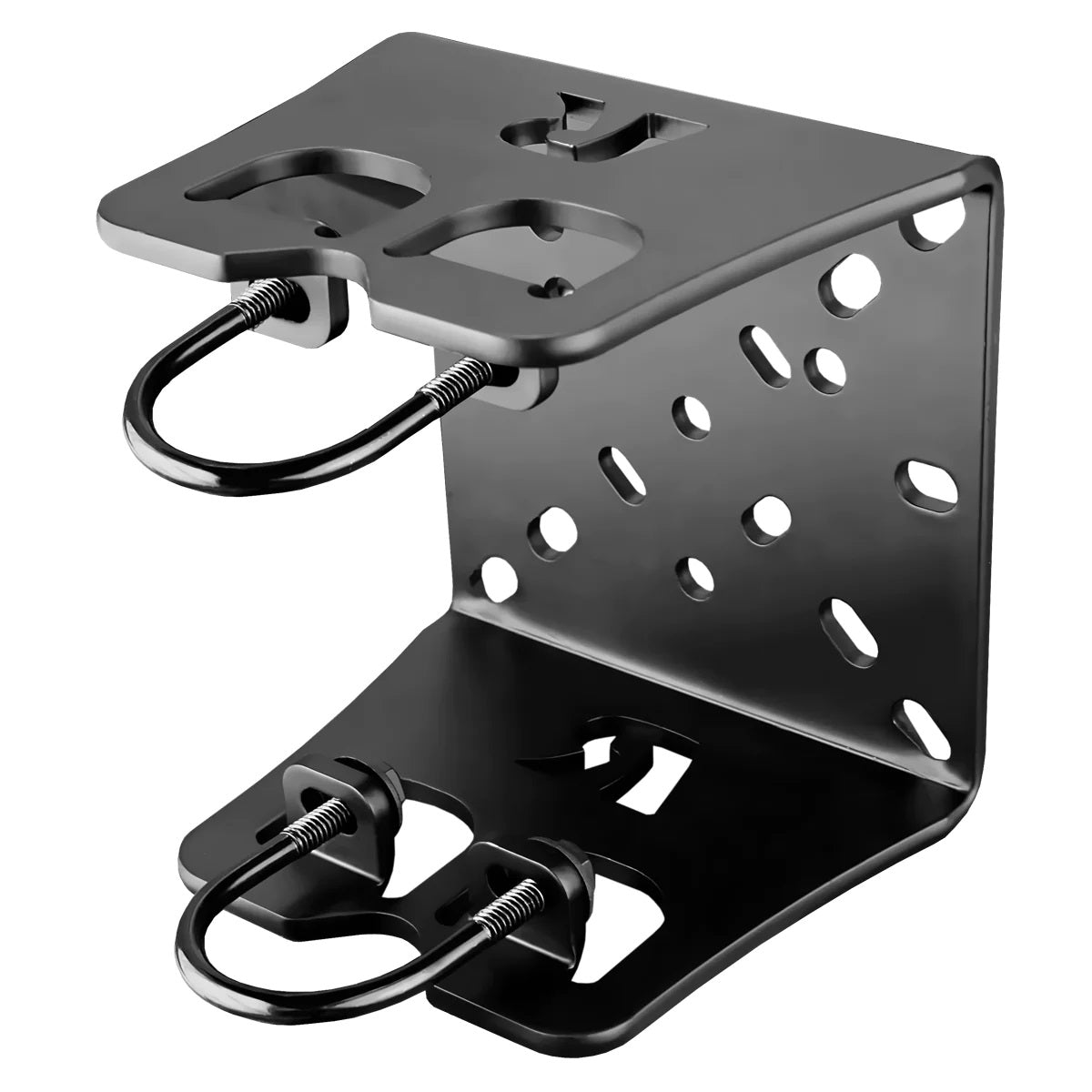

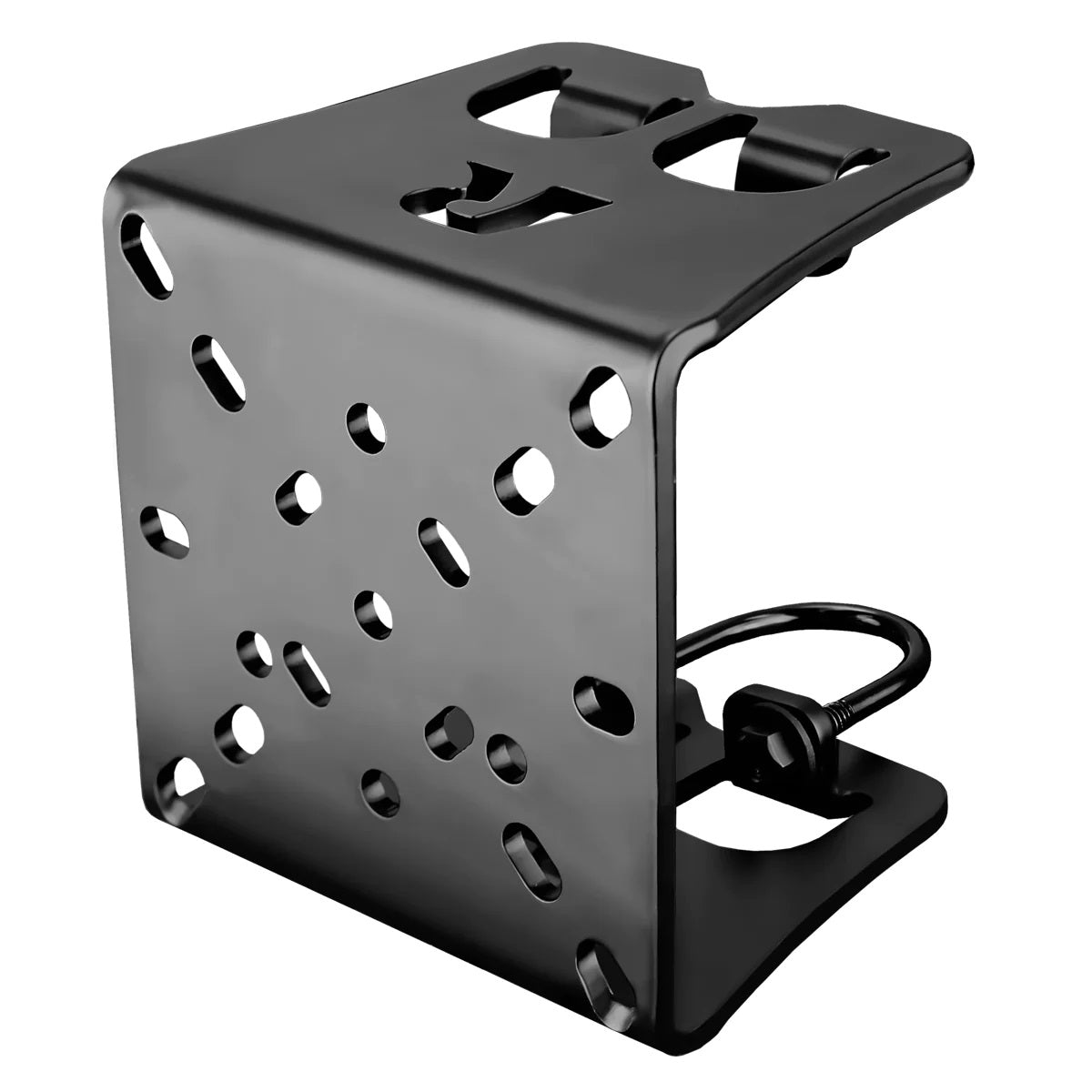

- RAM Vertical Drill-Down Vehicle Base - Attaches to tubing framed seats up to 1.5"(outer diameter) or to any flat surface* - Installs in minutes with no drilling required for many applications using the supplied u-bolt hardware
- 8" upper male Tele-Pole - Consists of a wedge hardware assembly, threaded rod and tightening knob
- The male post is 8" long and has a diameter of 1.328" - fits into lower telescoping pole of the base

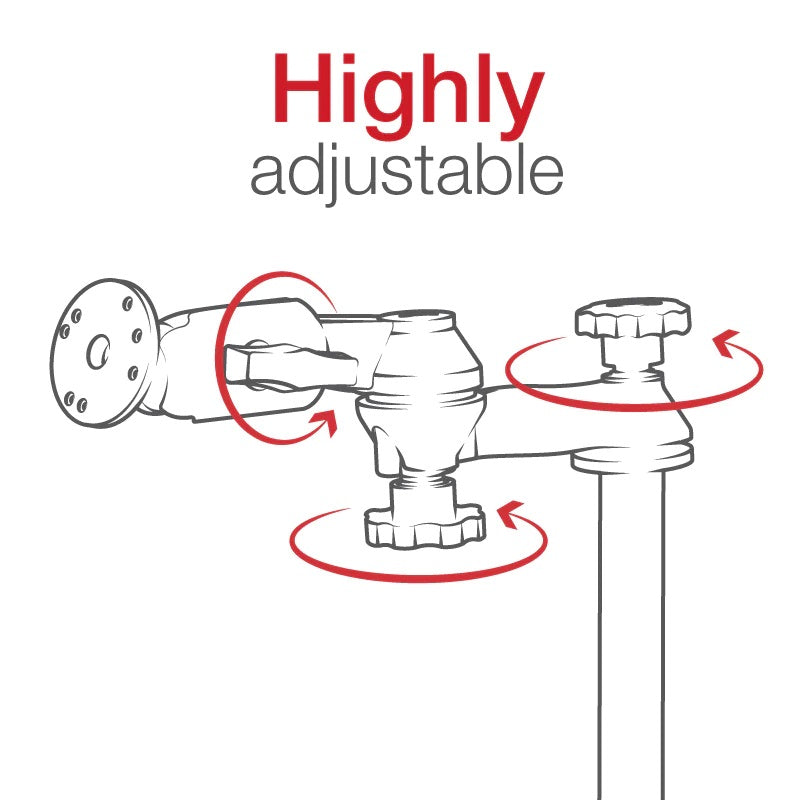

- Tightening knob has a swing arm connection point - Loosen the knob to adjust the swing arm and the height of the Tele-Pole, tighten to lock each into place

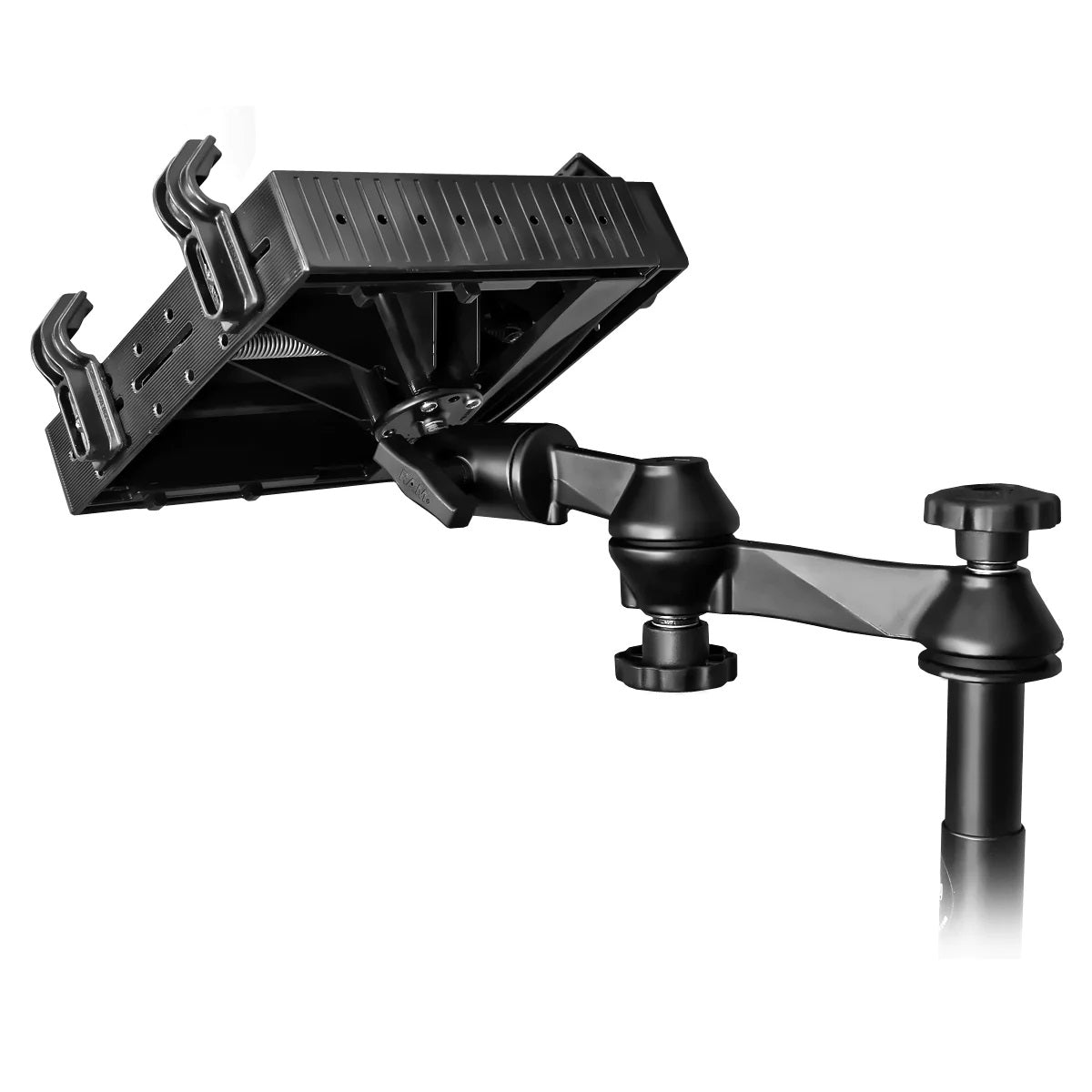

- Double swing arm with each section measuring 6” long – Overall length: 12"
- The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
- 2.5" round AMPS base with 1.5” ball – Connects the Tough Tray Universal Laptop Holder

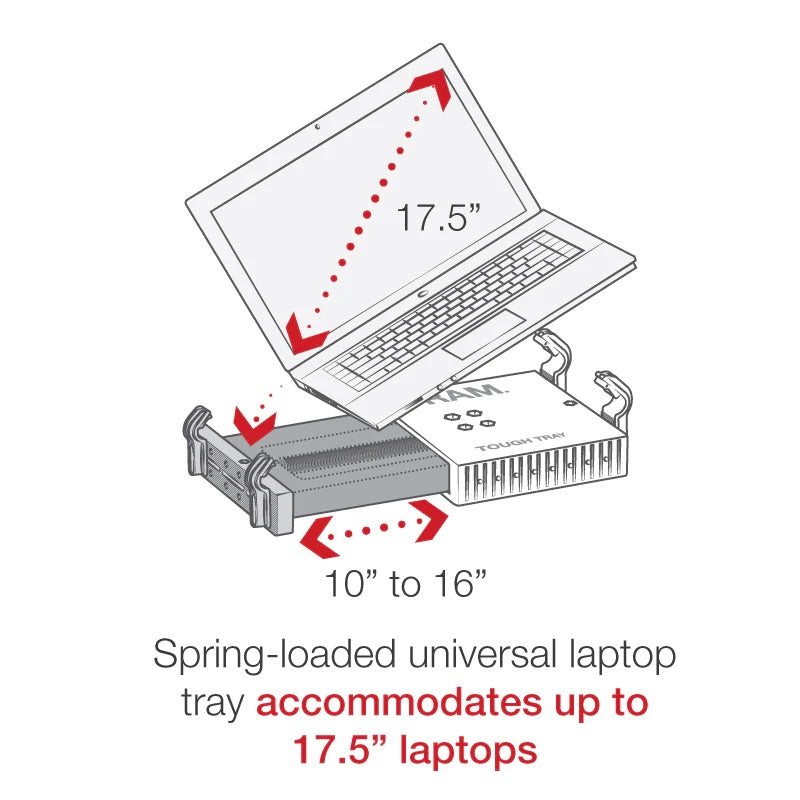

- Spring loaded expandable Tough Tray fits 10 to 16 inch wide laptops and 17 inch screens
- Includes 4 side clamping fingers with rubber inserts to protect the laptop and adjust vertically and horizontally for varying thicknesses of laptops and to keep ports and drives free
- Side hole patterns allows additional RAM systems to be attached to the Tough-Tray for mounting your smartphone, GPS, other electronics, etc.
- Heavy duty - Constructed of powder coated steel, marine grade-aluminum and high strength composite
- Weight: 12 lbs.
- Made in the USA
Included Hardware:
- Tough-Tray assembly hardware
- (2) 1/4"-20 x 3.375" U-Bolts
- (4) 1/4"-20 Nylock Nuts
- (4) 1/4" Flat Washers
Hold Laptops within the Dimensions Below:
- Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
* Multiple hole patterns are available but drilling may be required in the mounting surface if attaching to an enclosed box frame or solid panel. In some applications additional, installer supplied, hardware may be needed.
Brand: RAM Mounts
Part number: RAM-VB-184T-SW1
Warranty: Manufacturer's lifetime warranty
