Description

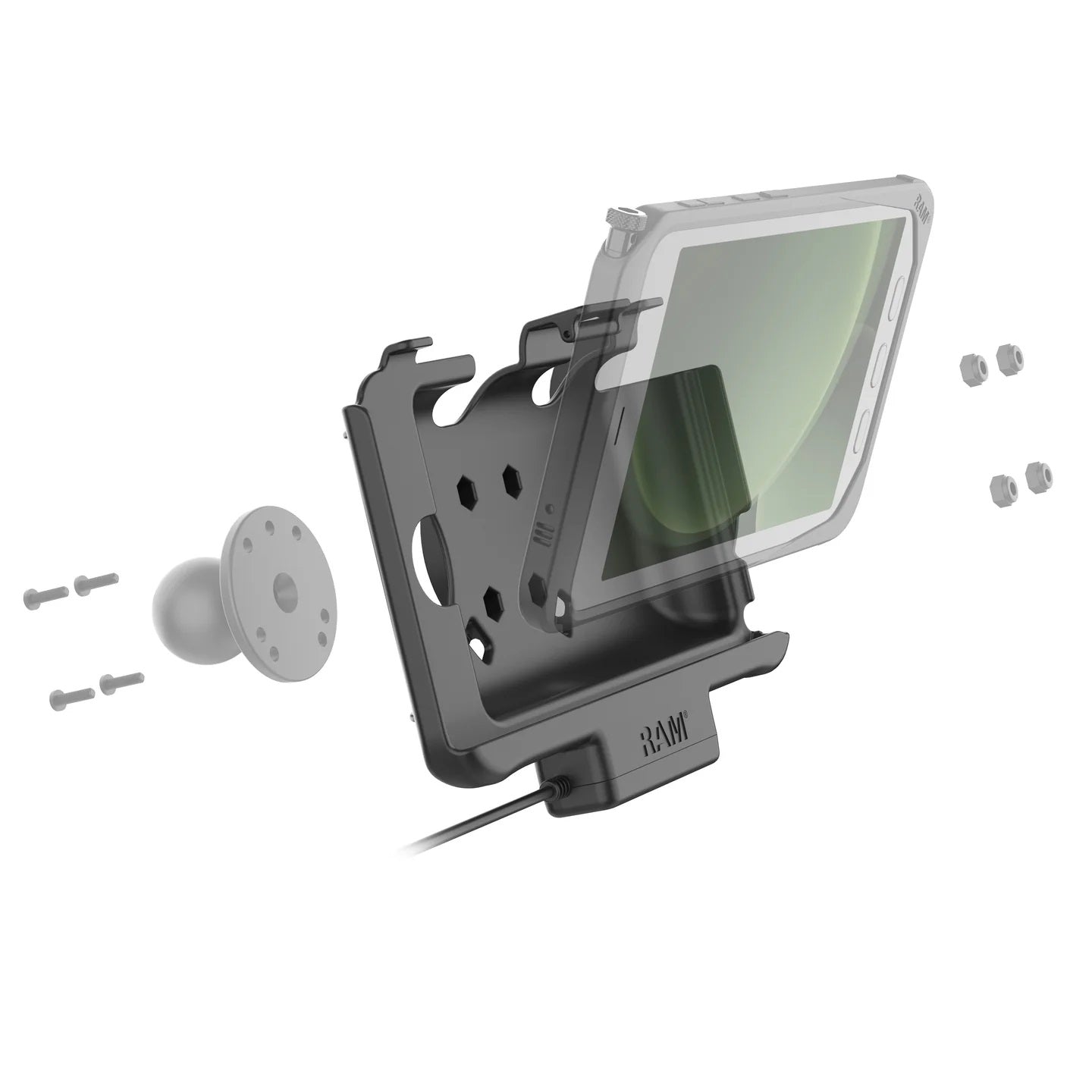

The RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.
Features:

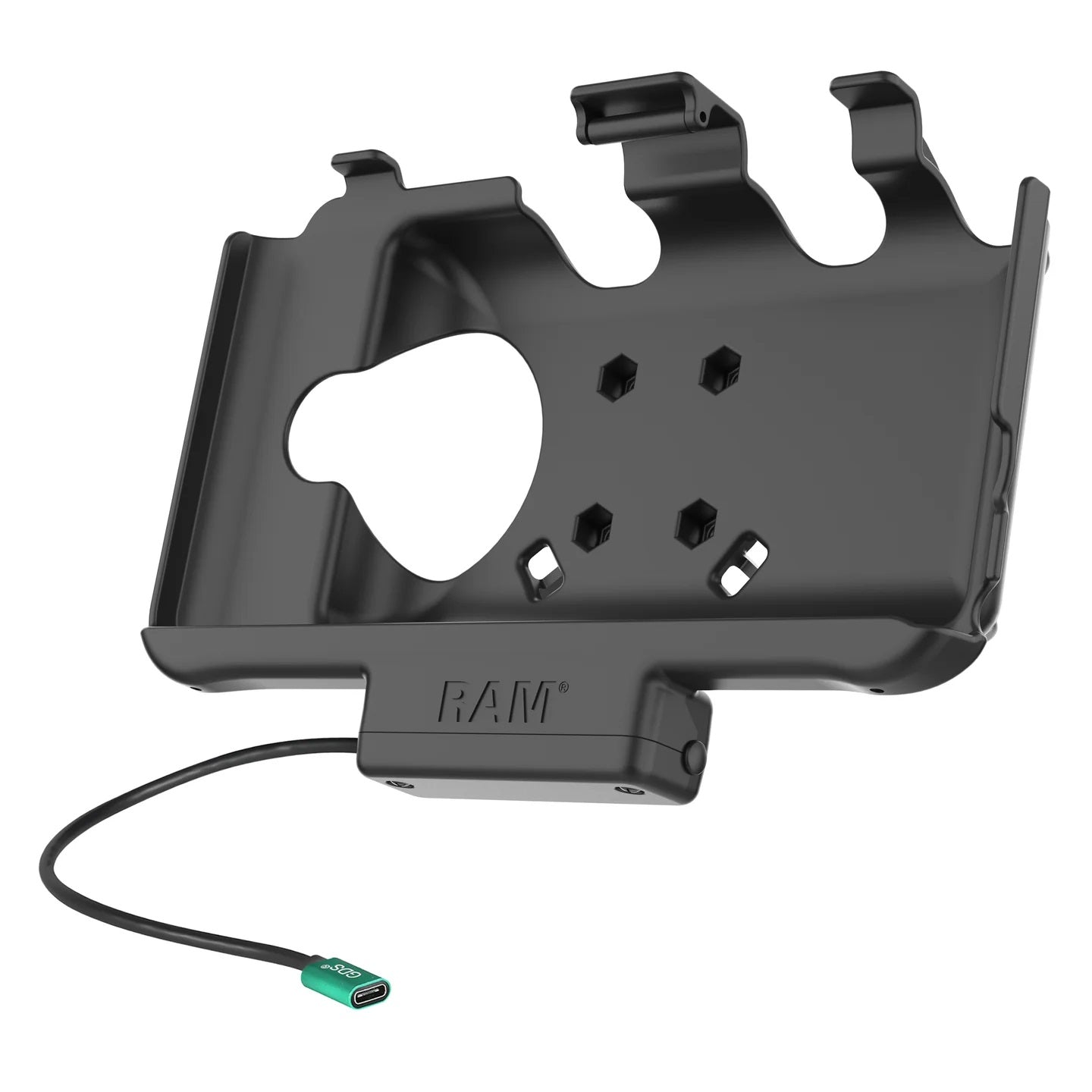

- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Constructed of high strength composite
- Vehicle hardwire charger included
Compatible Devices:
- Samsung
- Tab Active5
- Tab Active3*
- Tab Active2
* This product will not support the "No Battery Mode" function of the Tab Active3.

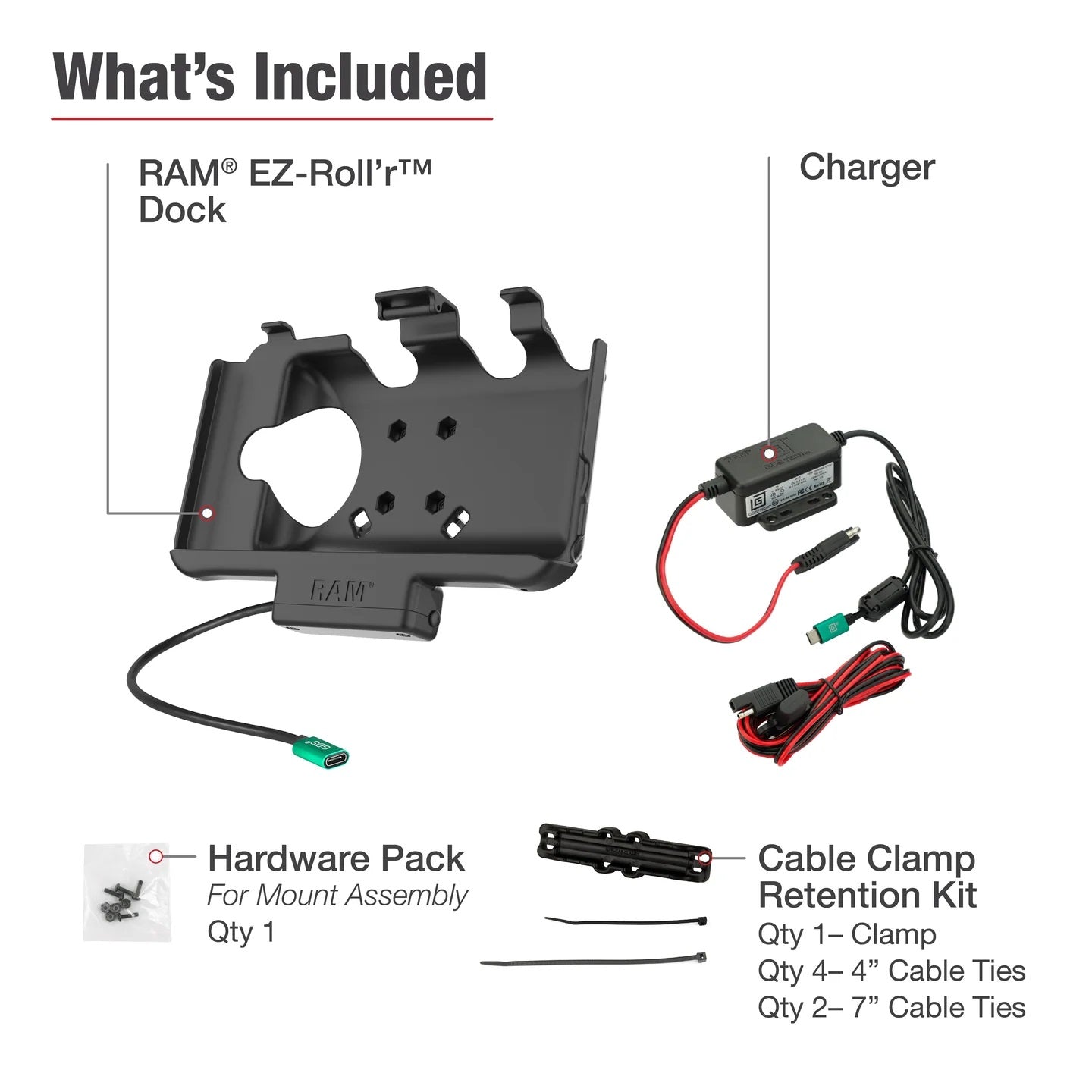

Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) Optional Cable Clamp Housing
- (1) Hardwire Charger
Product Dimensions:
- Width: 9.24"
- Height: 6.34"
- Depth: 2.57"
Specifications:
- Input voltage: 5.3-5.4VDC
- Output voltage: 5VDC
- Power output: 500mA
- Input connector: USB Type-C Female
- Input cable length: 215mm
Additional Information: 5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
Brand: RAM Mounts
Part number: RAM-HOL-SAM60CP-V7CU
Warranty: Manufacturer's 3-year warranty
