Description

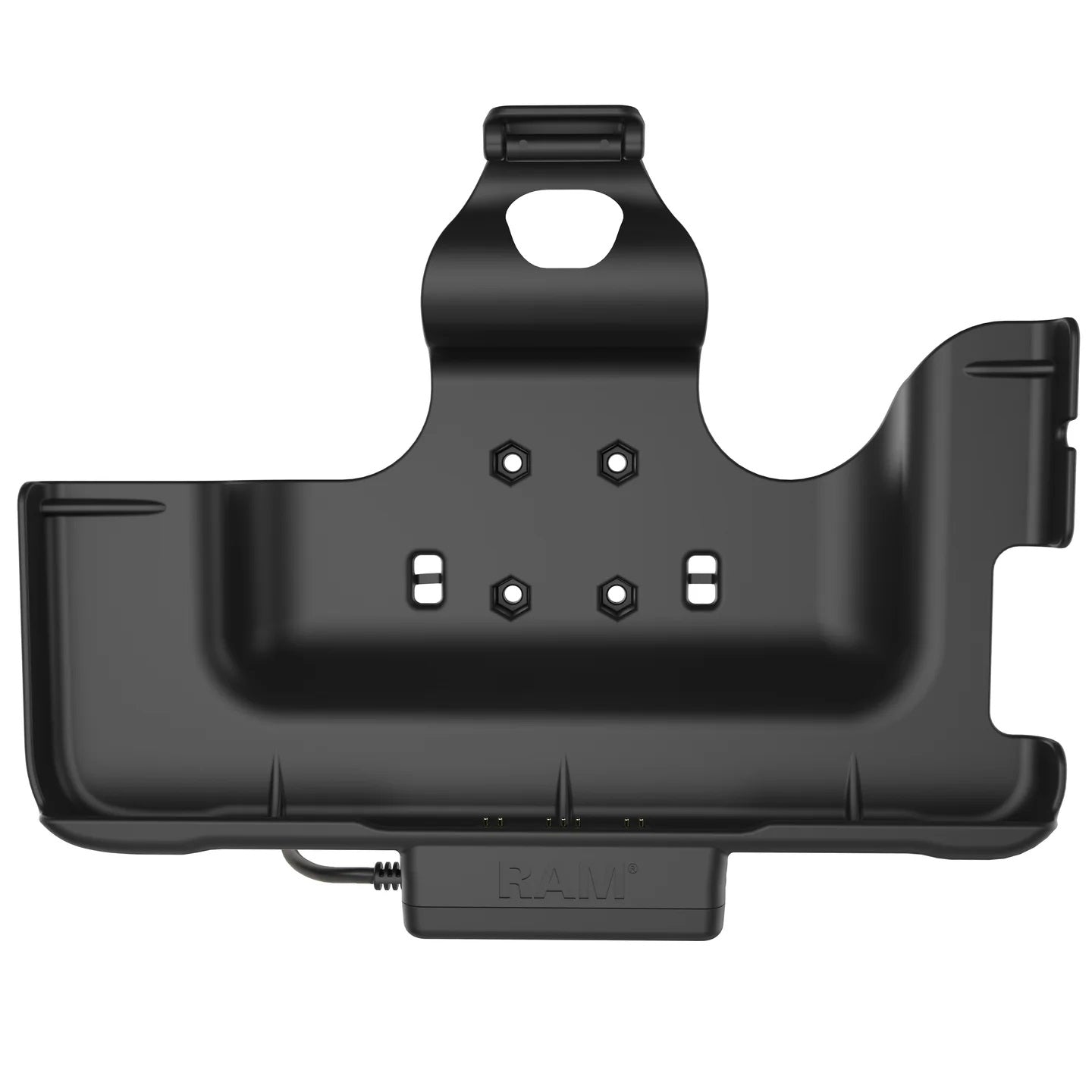

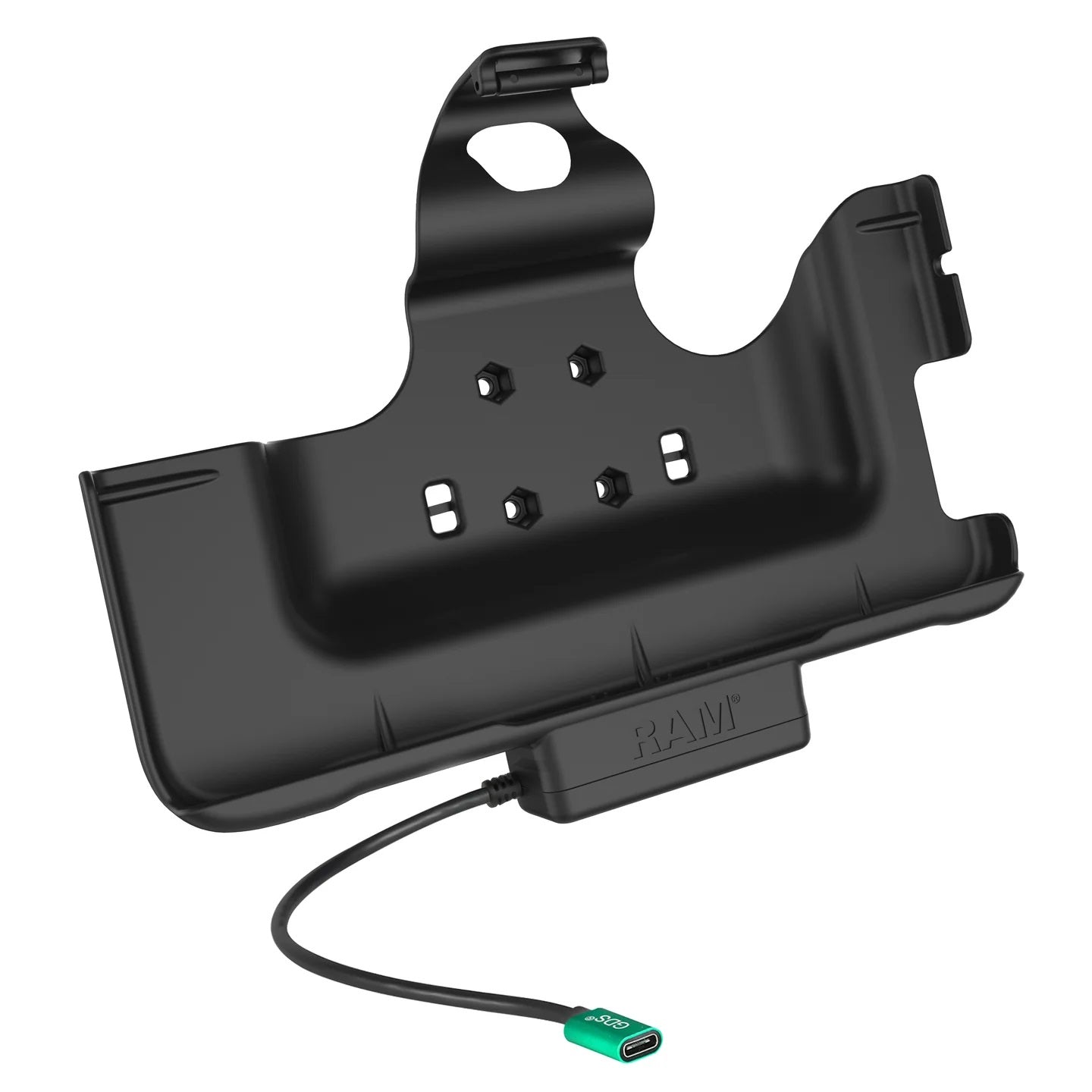

RAM® USB-C Powered Dock for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU)

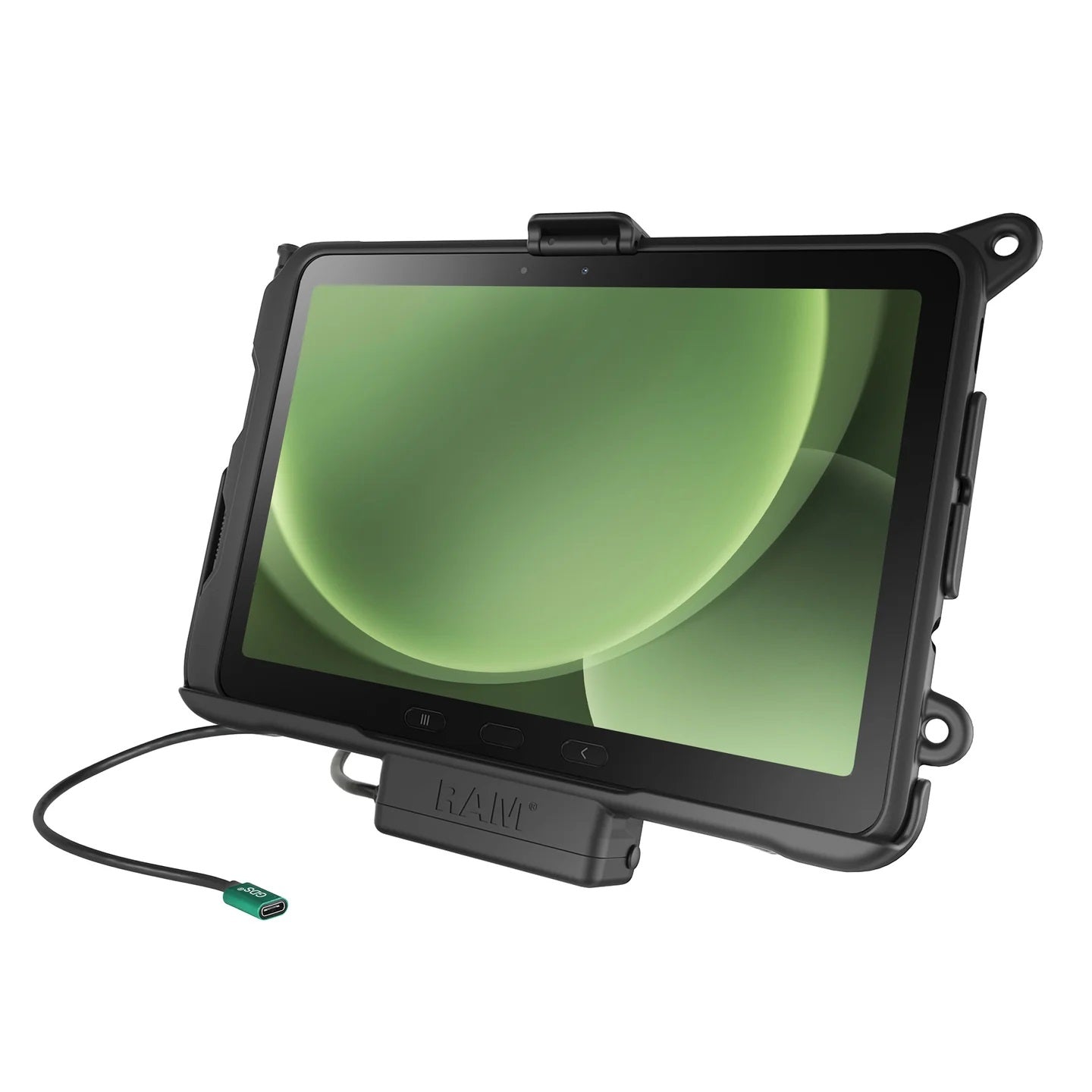

Keep your Samsung Galaxy Tab Active series devices powered and secure with the RAM® EZ-Roll’r™ USB-C Powered Dock. Designed specifically for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro, this cradle delivers reliable charging through integrated pogo pins that connect directly to the tablet’s USB-C port.
Engineered for durability and convenience, this powered holder is fully compatible with both the Samsung OEM protective skin and the rugged RAM® Skin™, ensuring seamless use whether you’re using the tablet alone or paired with the GDS® Hand-Stand™ or GDS® Shoulder Strap.
While the tablet is docked, all key features remain accessible—including the device’s speakers, microphones, and headphone jack—making it an ideal solution for fieldwork, fleet use, and other light-duty applications in landscape mode.
For mounting, simply pair the dock with RAM® round ball bases to create a custom setup for your vehicle, workstation, or mobile environment. The kit also includes a USB-C female pigtail for power input, along with a cable clamp and zip ties for secure cable management.
Key Features
-
Powered Docking – Charges the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro via pogo pin USB-C connection (non-Power Delivery charger required).
-
Device Accessibility – Maintains access to speakers, mics, and headphone jack while docked.
-
Quick Insert/Remove – One-handed docking and release for fast tablet use.
-
Protective Skin Compatible – Works with Samsung’s OEM skin and RAM® Skin™.
-
Light-Duty Landscape Use – Optimized for field use, fleet operations, and mobile workflows.
-
Warranty Coverage – Backed by a 3-year manufacturer warranty.

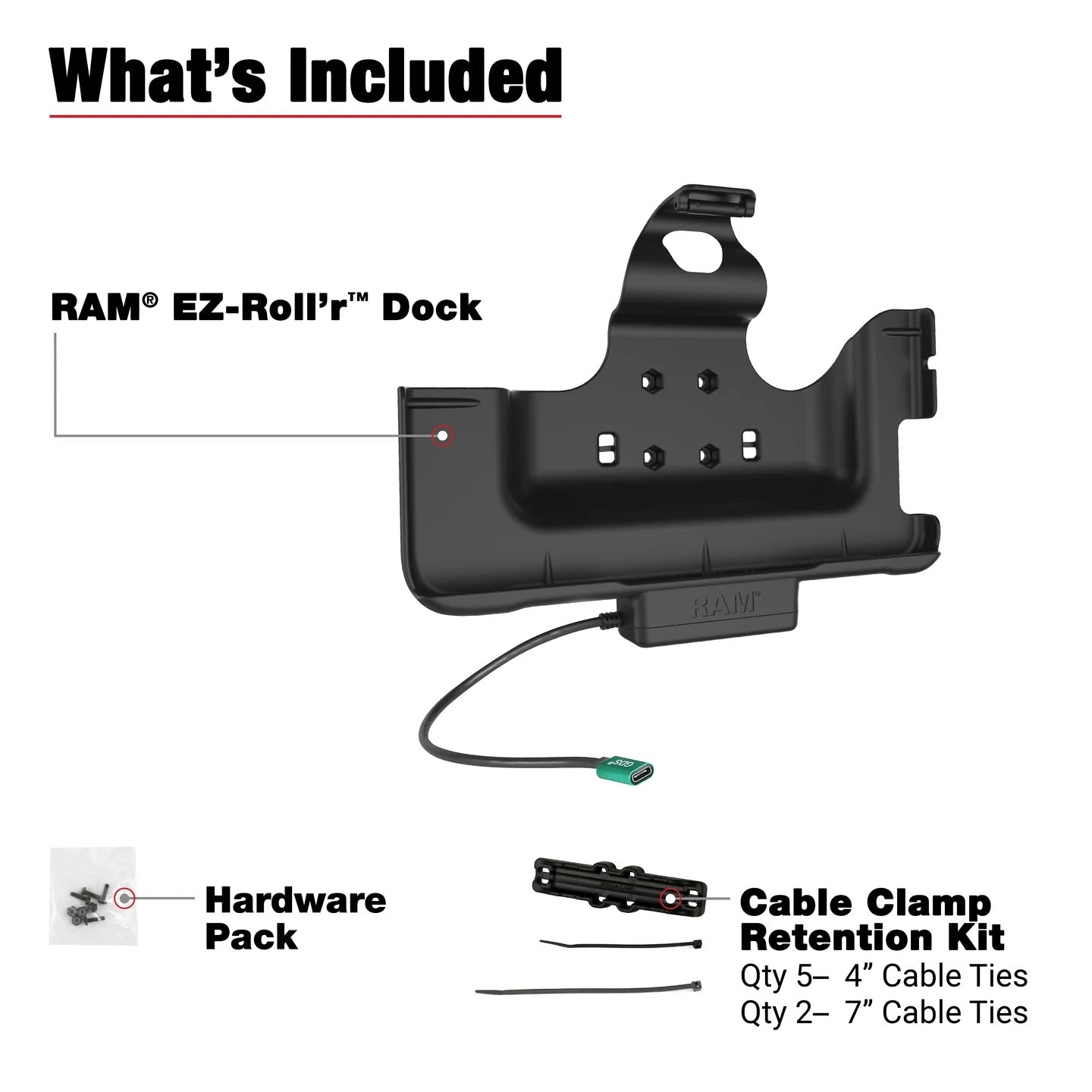

Included Hardware
-
(4) #8-32 x 5/8" Machine Screws
-
(4) #8-32 Nylock Nuts
-
(1) Cable Clamp
-
(2) Large Cable Ties
-
(5) Small Cable Ties
Technical Specifications
-
Input Voltage: 5.3–5.4 VDC
-
Output Voltage: 5 VDC
-
Power Output: 500mA
-
Input Connector: USB Type-C Female
-
Cable Length: 215mm
Compatible Samsung Devices
-
Galaxy Tab Active5 Pro
-
Galaxy Tab Active4 Pro
-
Galaxy Tab Active Pro
Important Notes
-
This dock is not compatible with Power Delivery (PD) chargers. A non-PD charger is required for proper function.
-
Designed exclusively for light-duty applications in landscape orientation.
-
Does not support “No Battery Mode” for the Tab Active5 Pro or Tab Active4 Pro.
Brand: RAM® Mounts
Part Number: RAM-HOL-SAM52CPU
Warranty: 3-Year Manufacturer Warranty
