Description

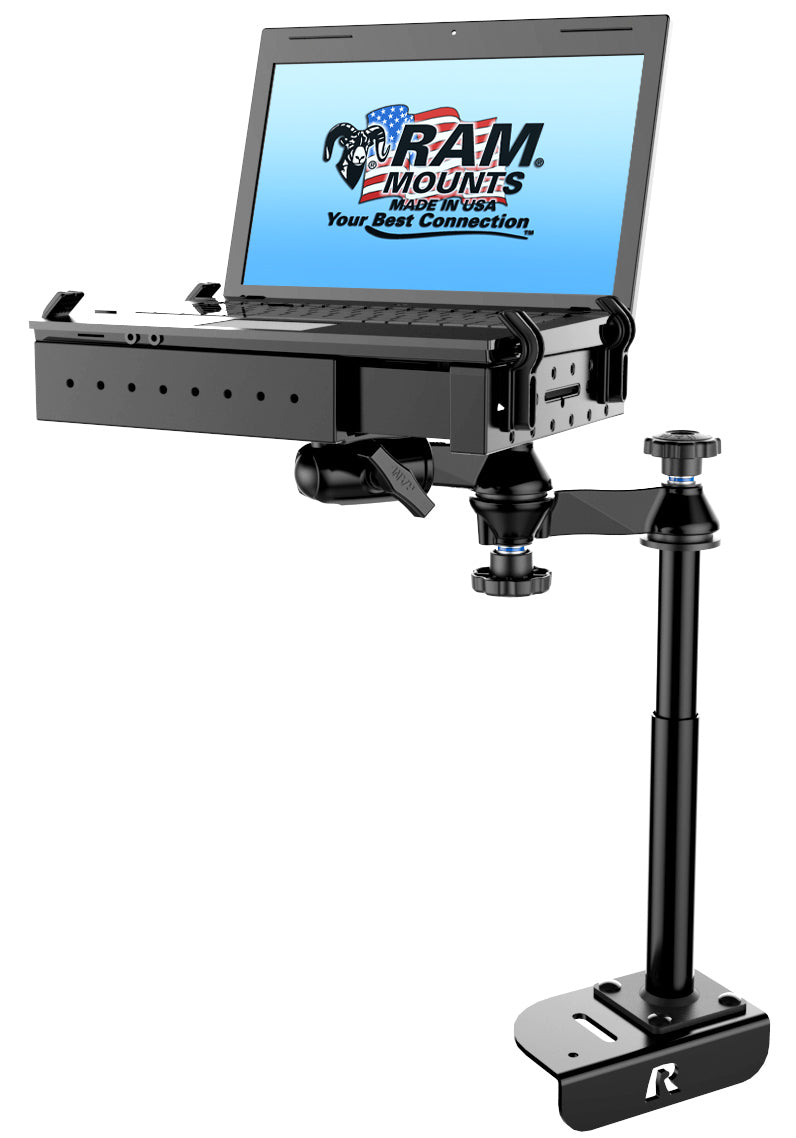

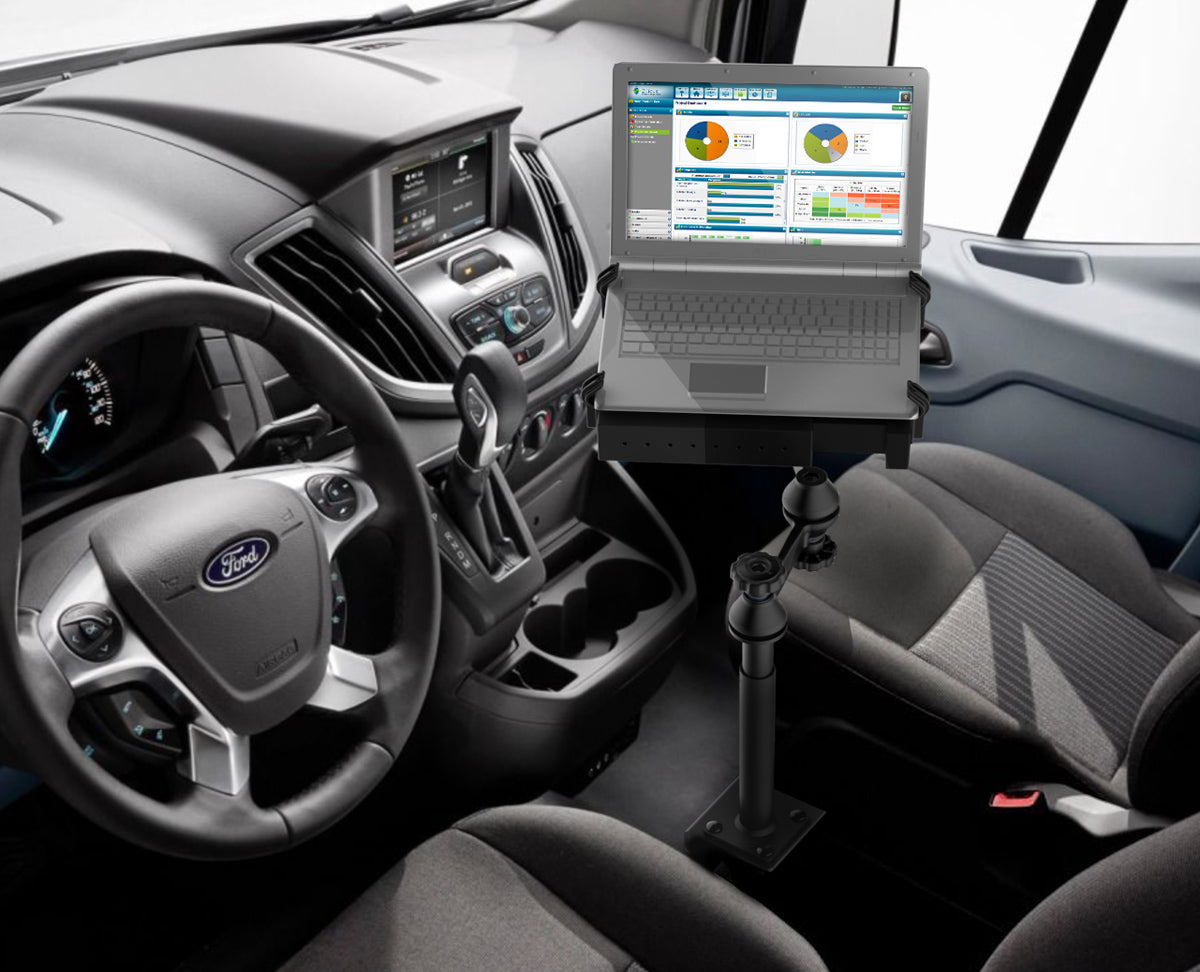

The RAM® No-Drill™ Laptop Mount provides a vehicle-specific computer mounting system for 2014–2026 Ford Transit cargo vans. It installs using the existing front bench or passenger-side seat rail bolts, creating a secure mounting foundation without drilling into the vehicle.
The included dual-articulating swing arm allows the laptop to be positioned for convenient access, while the spring-loaded RAM® Tough-Tray™ adjusts to accommodate a wide range of laptop sizes. Four adjustable retaining arms help secure the computer while allowing access to ports, drives, and controls.
Key Features
-
Complete vehicle-specific laptop mount for 2014–2026 Ford Transit cargo vans
-
Installs using existing front bench or passenger-side seat rail mounting points
-
No drilling required for installation
-

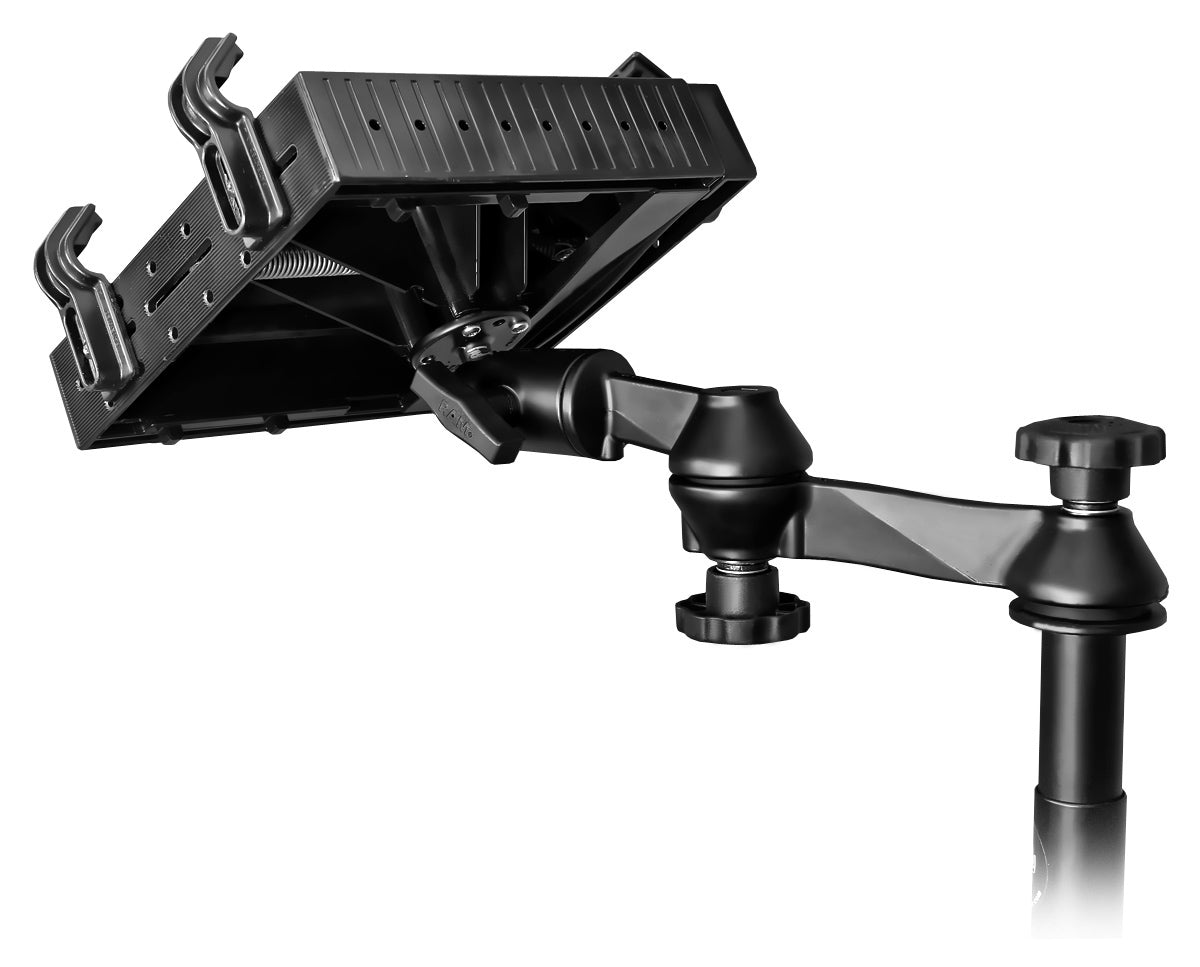

Dual-articulating swing arm supports flexible laptop positioning
-
Spring-loaded RAM® Tough-Tray™ fits many 10" to 17" laptops
-
Four adjustable retaining arms accommodate different laptop widths and thicknesses
-
C Size 1.5" ball-and-socket components provide secure positioning
-
Constructed from powder-coated steel, marine-grade aluminum, and high-strength composite
Use Cases & Compatibility
Designed for commercial vans, delivery fleets, field service vehicles, public safety applications, mobile workstations, and other Ford Transit installations requiring secure laptop access inside the vehicle.
Compatible Vehicles
Ford
-
Transit Cargo Van (2014–2026)
Laptop Compatibility
-
Designed to accommodate many laptops with widths from 10" to 16"
-
Supports laptop thicknesses from 0.5" to 1.75" at the side retaining arms
-
Laptop ports, drives, and controls should be checked against the adjustable retaining-arm positions before installation
Depending on the vehicle configuration and mounting position, the base may limit the overall adjustment range of the passenger seat.
Specifications
Tray Width Range: 10"–16"
Side Arm Clamp Height: 0.5"–1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
Ball Size: C Size, 1.5" diameter
Materials: Powder-coated steel, marine-grade aluminum, and high-strength composite
Installation: Uses existing front bench or passenger-side seat rail bolts
Drilling Required: No
Product Weight: 12.05 lbs
What’s Included
-
Vehicle-specific RAM® No-Drill™ base
-
RAM® Tele-Pole™ mounting components
-
Dual-articulating swing arm
-
RAM® Tough-Tray™ universal laptop holder
-
Laptop tray hardware
-
Tele-Pole™ hardware
-
One 1.75" washer
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-VB-194-SW1
Warranty: Manufacturer’s lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
